ADLQ

Square Surface
LED Downlights

Square Surface

Useful and practical surface downlights outputs from 1,100 to 3,000 lumens.

Fully integrated control gear and replaceable RIDI LED modules or boards.



Two Sizes

ADLQ 195

195 x 195 x H194mm
1,100 or 2,000lm

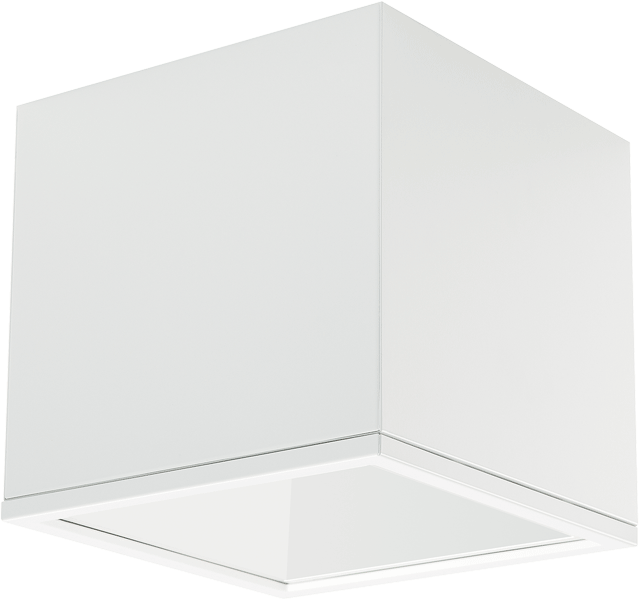

ADLQ 235

235 x 235 x H228mm
2,000 or 3,000lm

Two Reflectors

W Reflector

High reflectivity white reflector with a wide distribution. Works well with additional diffusers or optics.

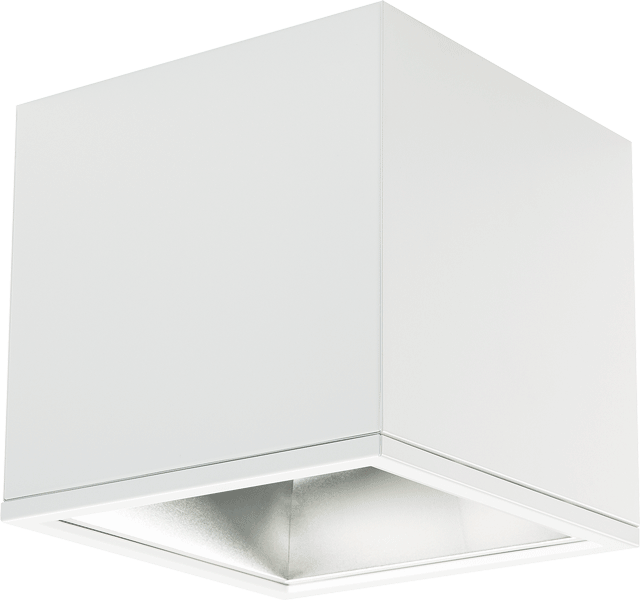

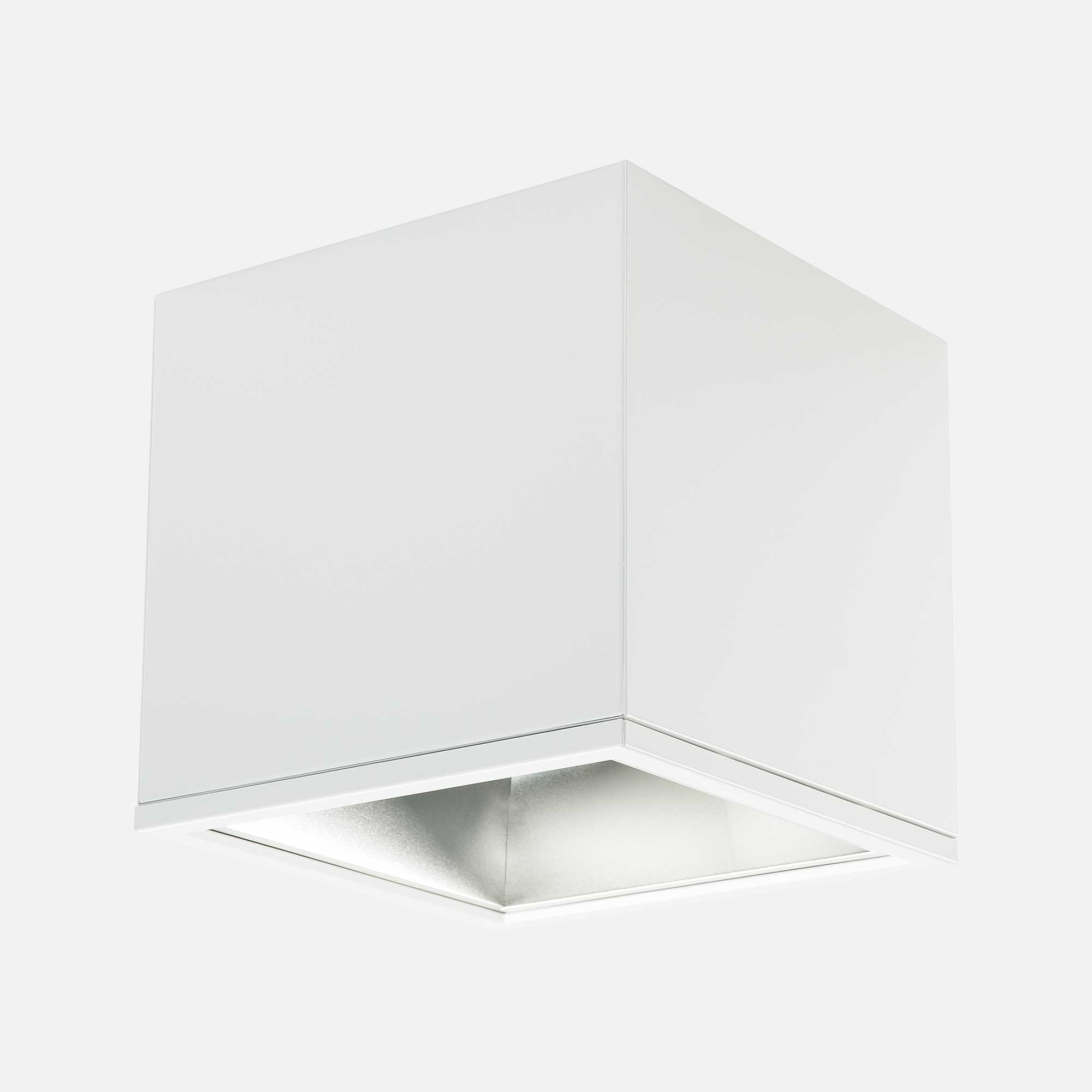

SM Reflector

Satin Matt Aluminium reflector with low glare even without additional optics or diffusers.

Accessories

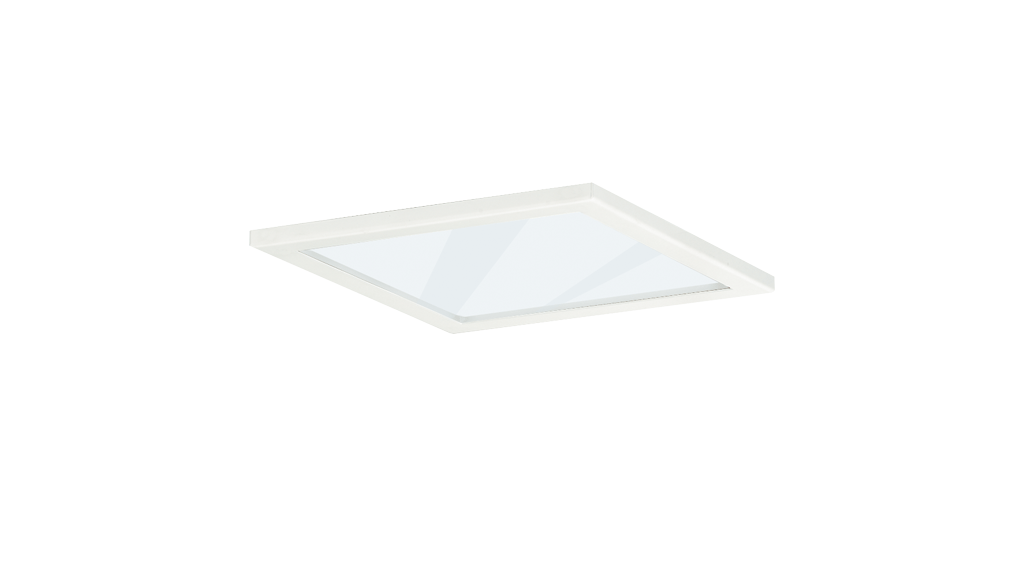

DQ … SK
Clear Glass

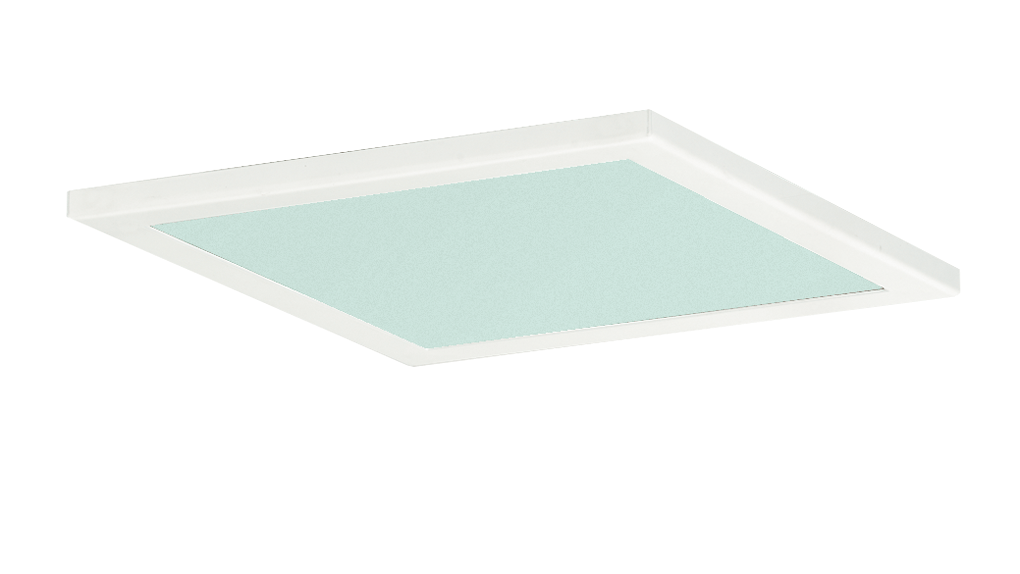

DR … SM
Frosted Glass

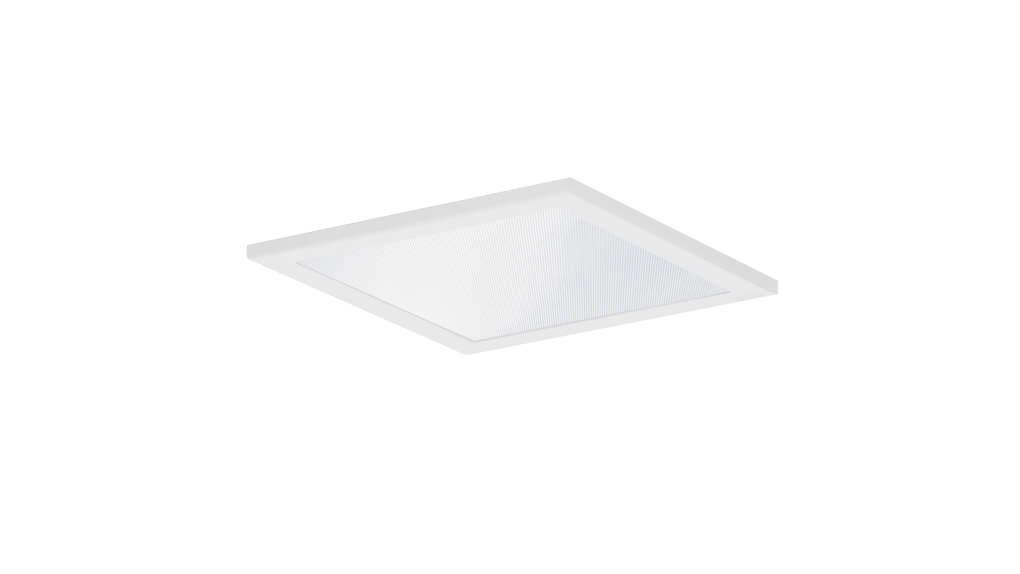

DQ .. MPS
Microprism

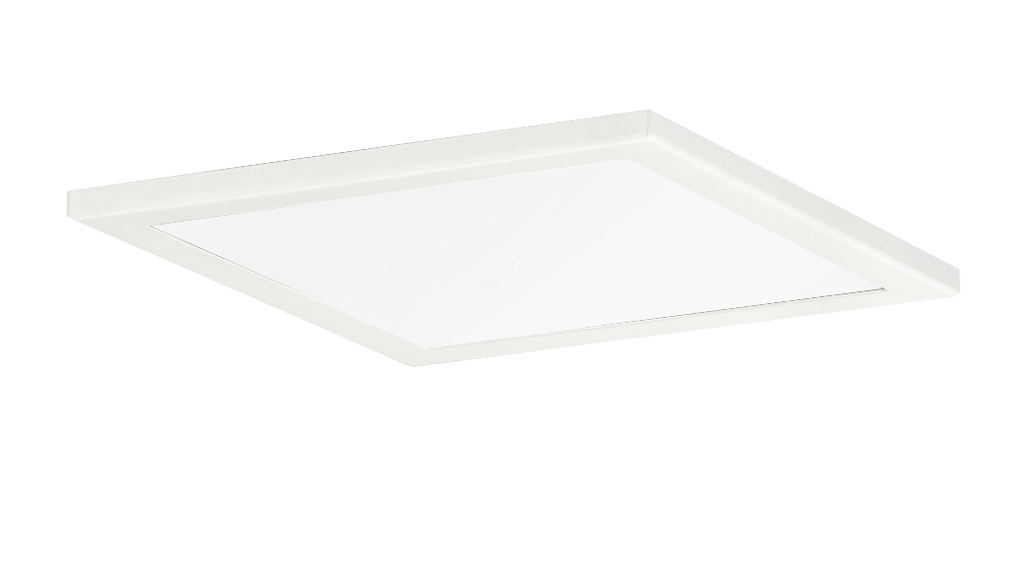

DQ … SO
Opal Glass

DR … SPM
Matt Centre Glass

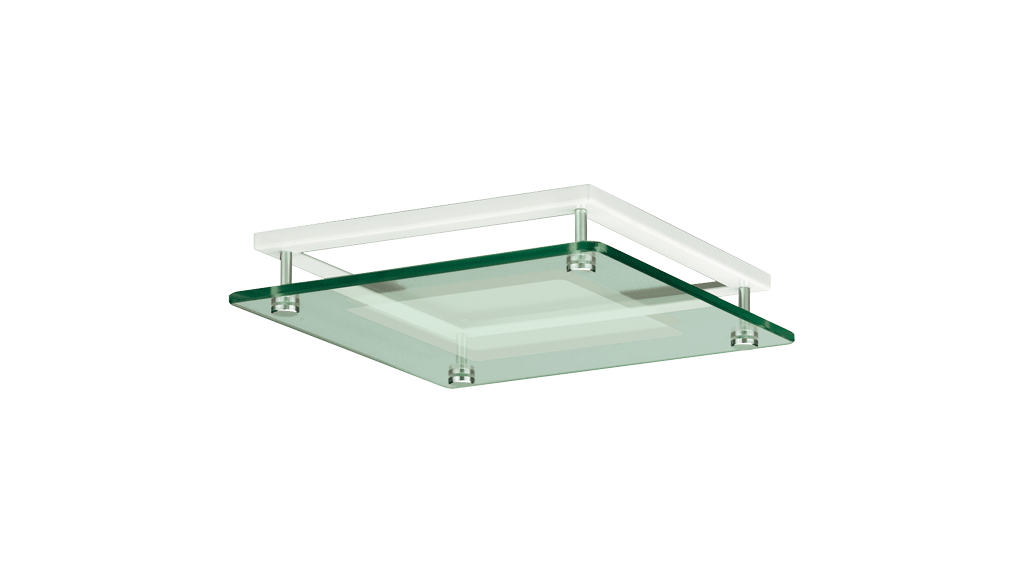

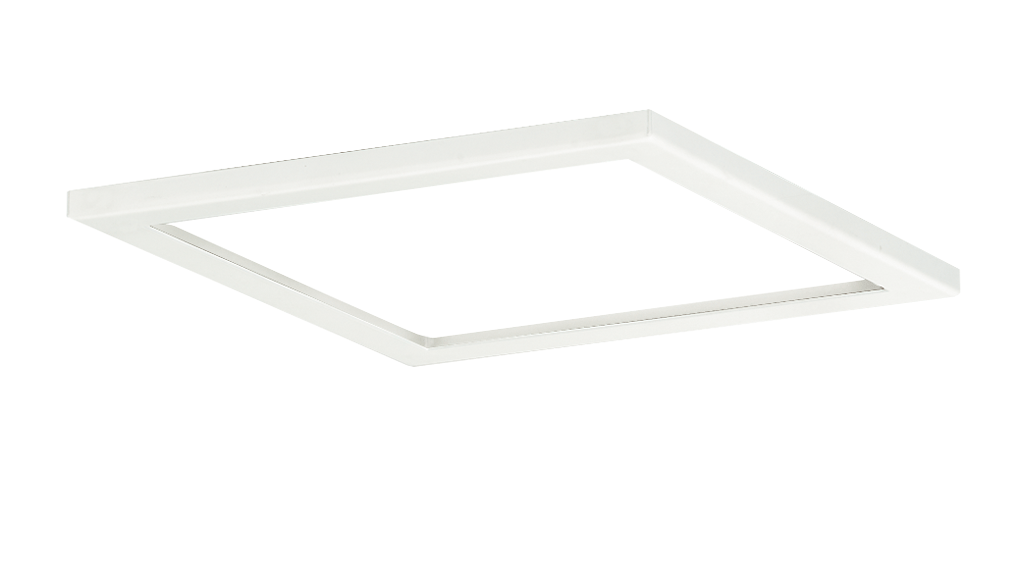

DQ .. DR
Decorative Frame

Black or White

Product Selection

Product Filters

Size
(mm)		 Optic
Type		 Lumen
Output		 Light
Colour		 CRI
(Ra)		 Lm/W UGR
Rating		 Driver
Type		 Body
Colour
Image Part Code
Article Number		 Size
(mm)		 Optic
Type		 Lumen
Output		 Light
Colour		 CRI
(Ra)		 Lm/W
 UGR
Rating		 Driver
Type		 Body
Colour		 Data LDT Polar BIM
Product ImageADLQ 195/1100-830 W
0321876		195 mmextremely wide beam1170 lm3000 K≥ 80146,3 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-830 W
0321877		195 mmextremely wide beam2090 lm3000 K≥ 80130,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-840 W
0321880		195 mmextremely wide beam1170 lm4000 K≥ 80146,3 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-840 W
0321881		195 mmextremely wide beam2090 lm4000 K≥ 80130,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-830 W-DALI
0331876		195 mmextremely wide beam1170 lm3000 K≥ 80146,3 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-830 W-DALI
0331877		195 mmextremely wide beam2090 lm3000 K≥ 80130,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-840 W-DALI
0331880		195 mmextremely wide beam1170 lm4000 K≥ 80146,3 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-840 W-DALI
0331881		195 mmextremely wide beam2090 lm4000 K≥ 80130,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-830 SM
0321931		195 mmwide beam1130 lm3000 K≥ 80141,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-840 SM
0321932		195 mmwide beam1130 lm4000 K≥ 80141,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-830 SM
0321933		195 mmwide beam2000 lm3000 K≥ 80125,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-840 SM
0321934		195 mmwide beam2000 lm4000 K≥ 80125,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-830 SM-DALI

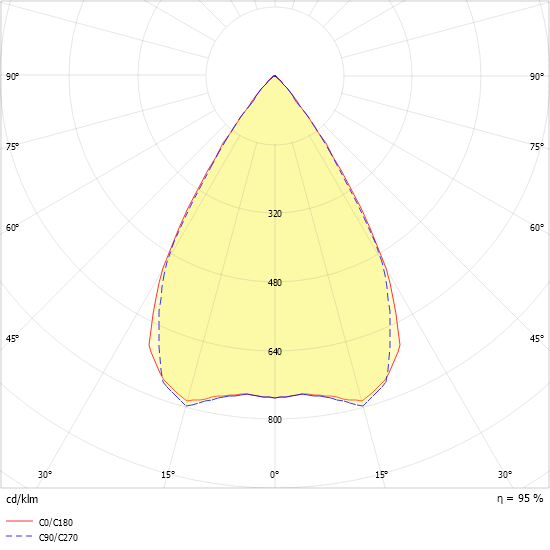

0331931		195 mmwide beam1130 lm3000 K≥ 80141,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/1100-840 SM-DALI
0331932		195 mmwide beam1130 lm4000 K≥ 80141,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-830 SM-DALI
0331933		195 mmwide beam2000 lm3000 K≥ 80125,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 195/2000-840 SM-DALI
0331934		195 mmwide beam2000 lm4000 K≥ 80125,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-830 W
0321878		235 mmextremely wide beam2080 lm3000 K≥ 80130,0 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-830 W
0321879		235 mmextremely wide beam3260 lm3000 K≥ 80141,7 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-840 W
0321882		235 mmextremely wide beam2080 lm4000 K≥ 80130,0 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-840 W
0321883		235 mmextremely wide beam3260 lm4000 K≥ 80141,7 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-830 W-DALI
0331878		235 mmextremely wide beam2080 lm3000 K≥ 80130,0 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-830 W-DALI
0331879		235 mmextremely wide beam3260 lm3000 K≥ 80141,7 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-840 W-DALI
0331882		235 mmextremely wide beam2080 lm4000 K≥ 80130,0 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-840 W-DALI
0331883		235 mmextremely wide beam3260 lm4000 K≥ 80141,7 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-830 SM
0321935		235 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-840 SM
0321936		235 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-830 SM
0321937		235 mmwide beam3180 lm3000 K≥ 80138,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-840 SM
0321938		235 mmwide beam3180 lm4000 K≥ 80138,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-830 SM-DALI
0331935		235 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/2000-840 SM-DALI
0331936		235 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-830 SM-DALI
0331937		235 mmwide beam3180 lm3000 K≥ 80138,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLQ 235/3000-840 SM-DALI
0331938		235 mmwide beam3180 lm4000 K≥ 80138,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
