ADLR

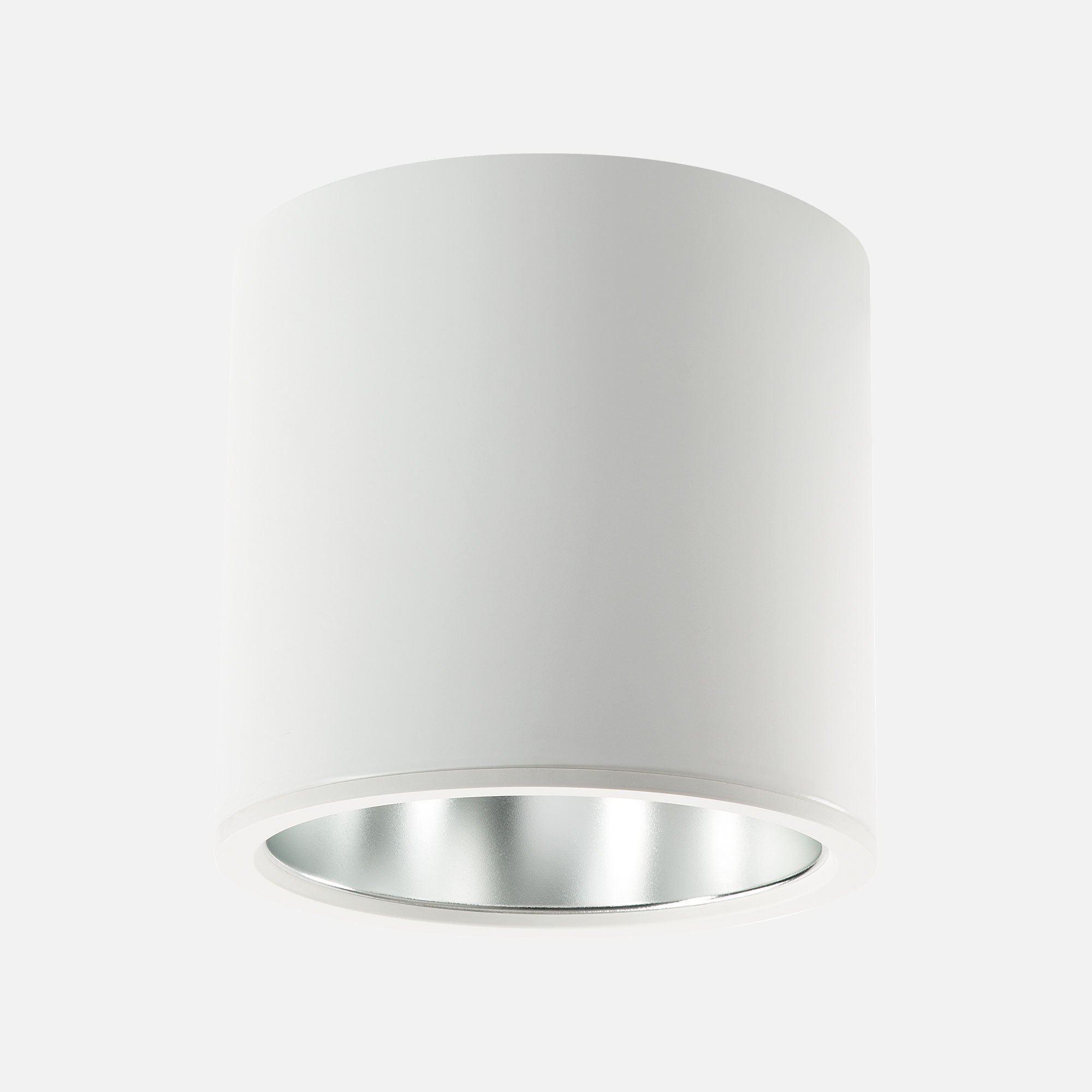

Surface Downlights

Surface Downlights

Useful and practical surface downlights with a broad range of outputs from 1,100 to 6,000 lumens.

Fully integrated control gear and replaceable RIDI LED modules or boards.

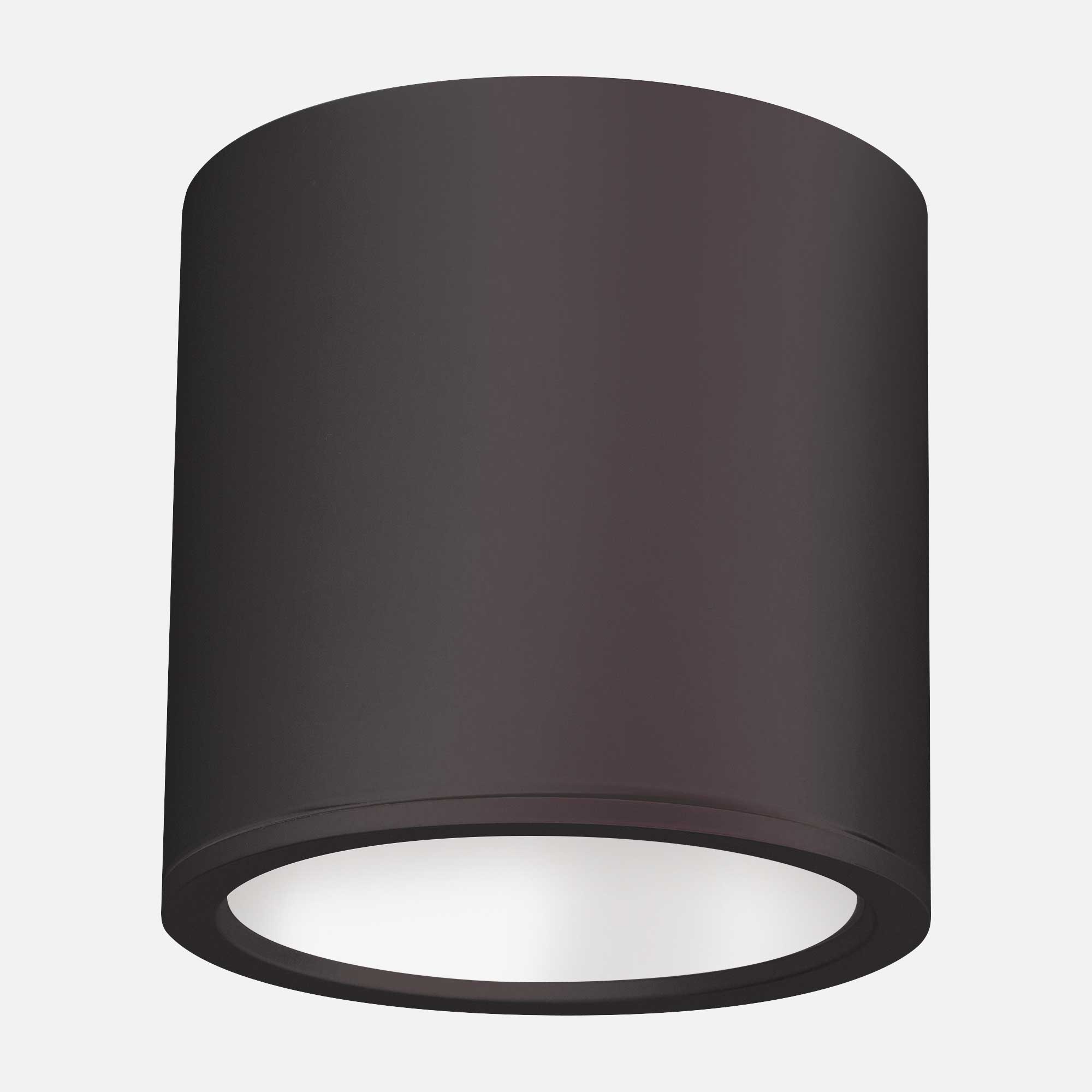

Looks Great in
Other Colours

Our standard White, Silver and Black is available on request, or any RAL is possible too.



Four Sizes

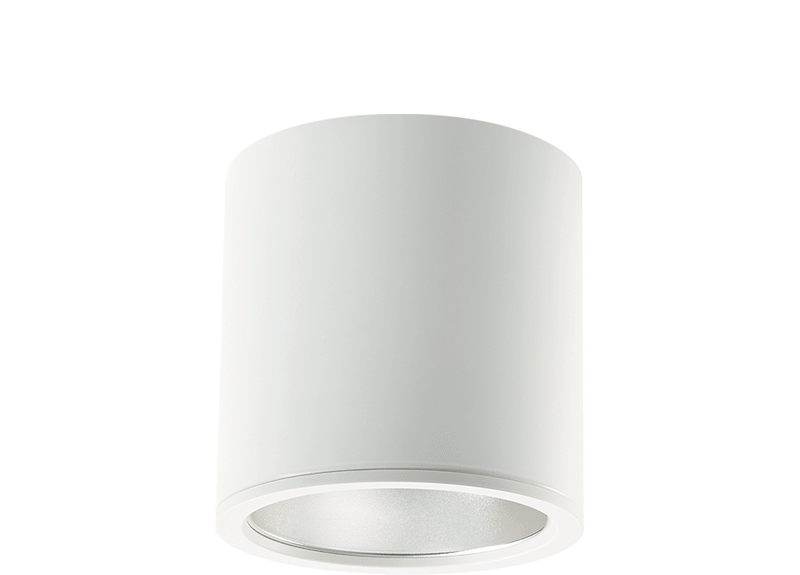

ADLR 150

150mm
1,100 or 2,000lm
White, Narrow or Broad distribution reflectors

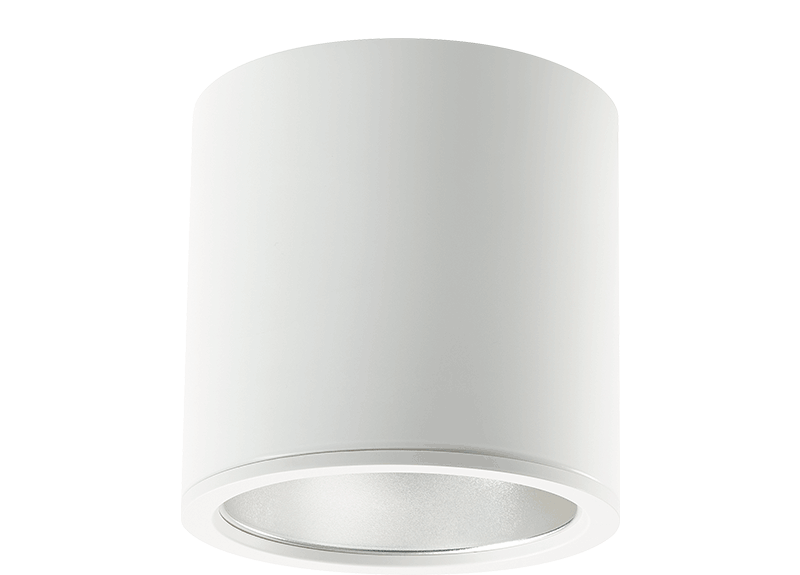

ADLR 195

195mm
1,100 2,000 or 3,000lm
White, Narrow or Broad distribution reflectors

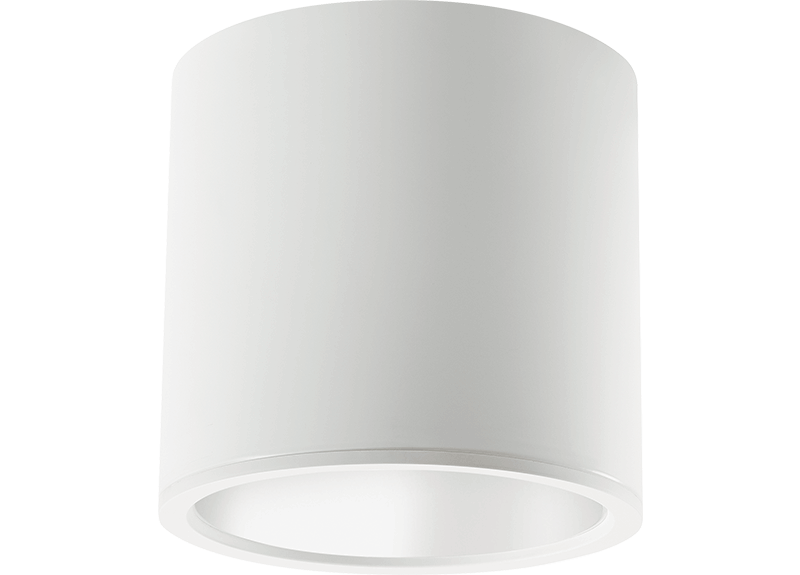

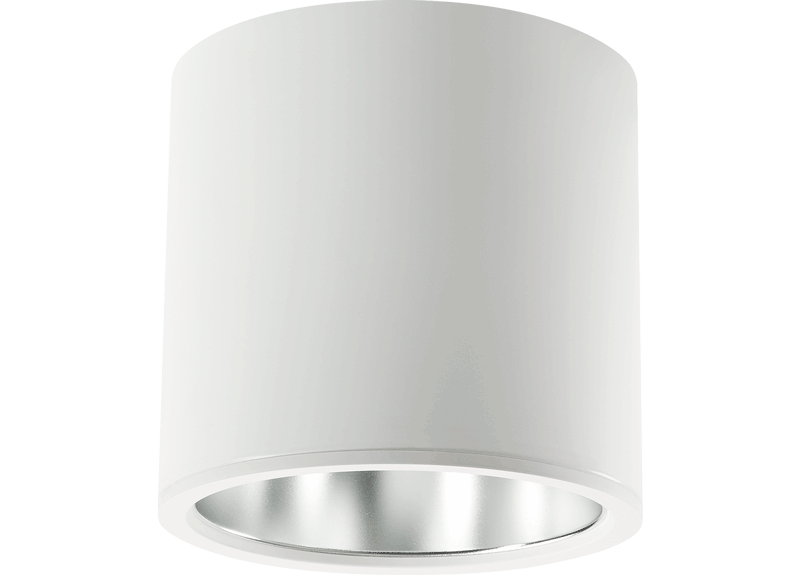

ADLR 235

235mm
2,000 3,000 or 4,000lm
White, Narrow or Broad distribution reflectors

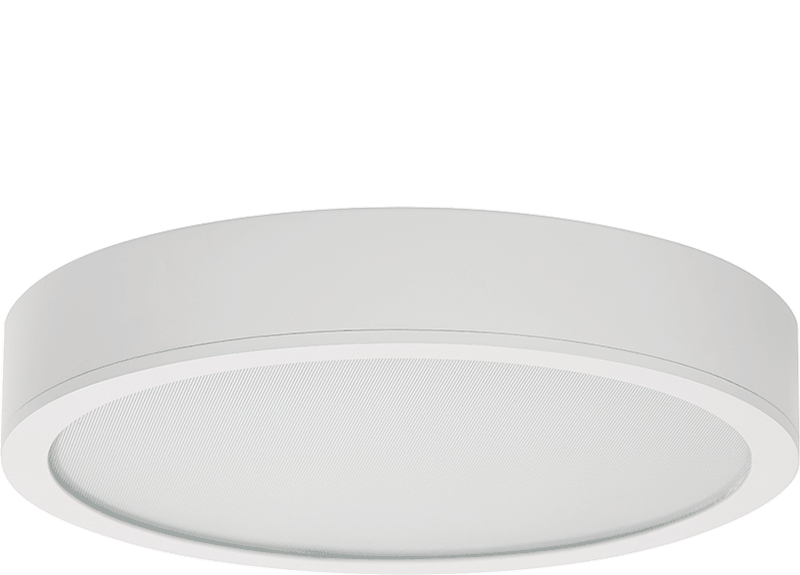

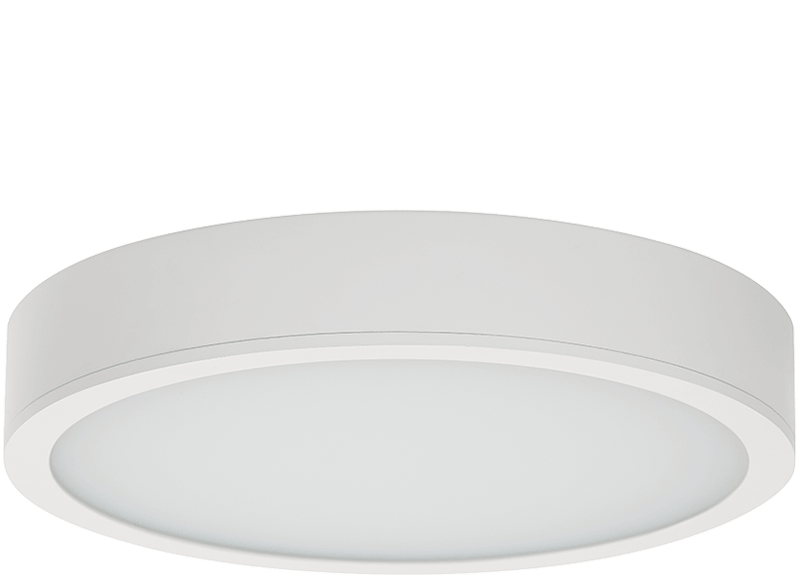

ADLR 410

∅410mm
5,000 or 5,000lm
Diamond Prism, Diamond Prism + Opal, Opal or Microprism diffusers

Three Reflectors

For 150mm, 195mm and 235mm

W Reflector

High reflectivity white reflector with a wide distribution. Works well with additional diffusers or optics.

SMT Reflector

Satin Matt Aluminium reflector with narrow distribution and low glare even without additional optics or diffusers.

SMB Reflector

Satin Matt Aluminium reflector with broad distribution and low glare even without additional optics or diffusers.

Four Diffusers

For 410mm

DPO Diffuser

Diamond Prismatic panel for low glare with additional opal element to prevent imaging of the LEDs

DPS Diffuser

Diamond prismatic diffuser low glare.  LEDs appear as individual points of light.

MPS Diffuser

Laser etched circular prisms for extreme low glare in all directions.  LEDs appear as circles of light.

OS Diffuser

Opal panel provides bright, even illumination of the diffuser.  No visible LEDs.

Loads of Accessories

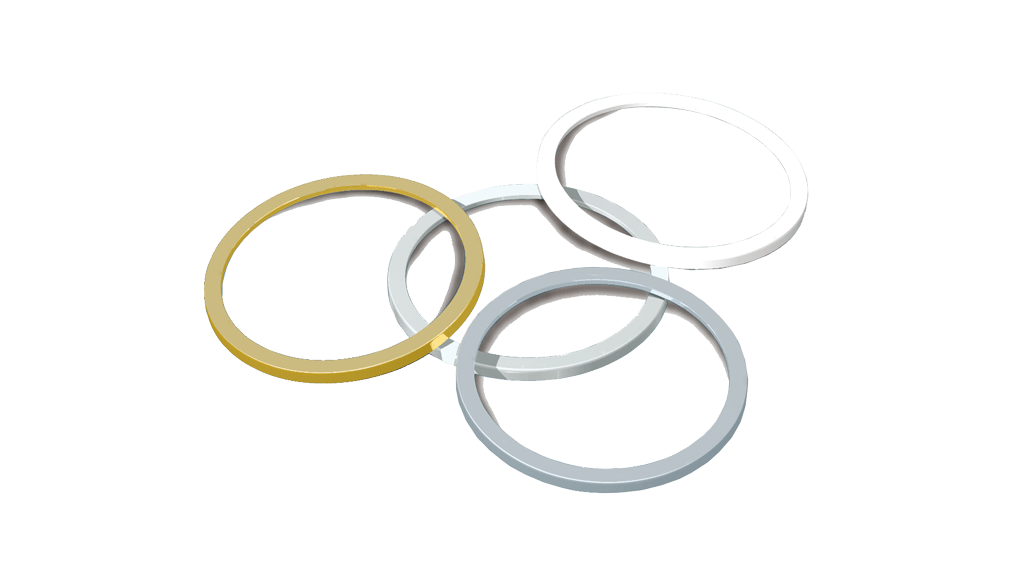

DR … DR-K
Decorative Rings

Silver, Grey, White or Gold

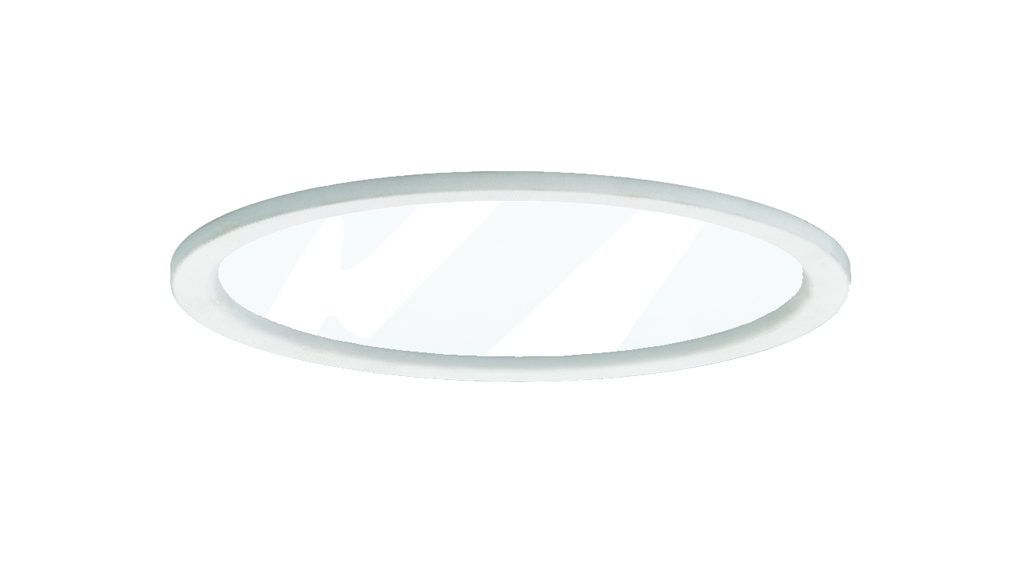

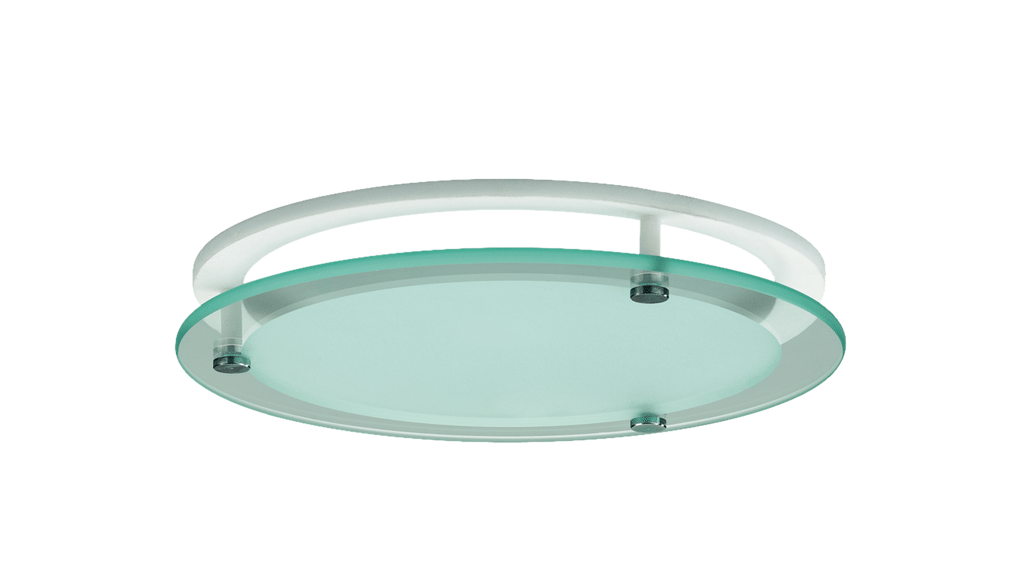

DR … SK
Clear Glass

∅150, ∅195 & 235

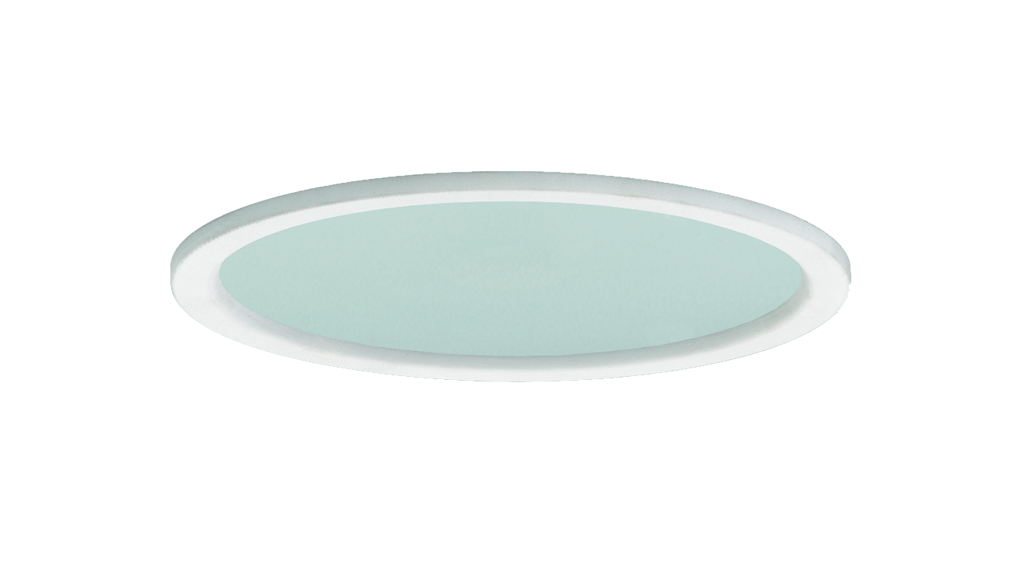

DR ..
Frosted Glass

∅150, ∅195 & 235

DR … SO
Opal Glass

∅150, ∅195 & 235

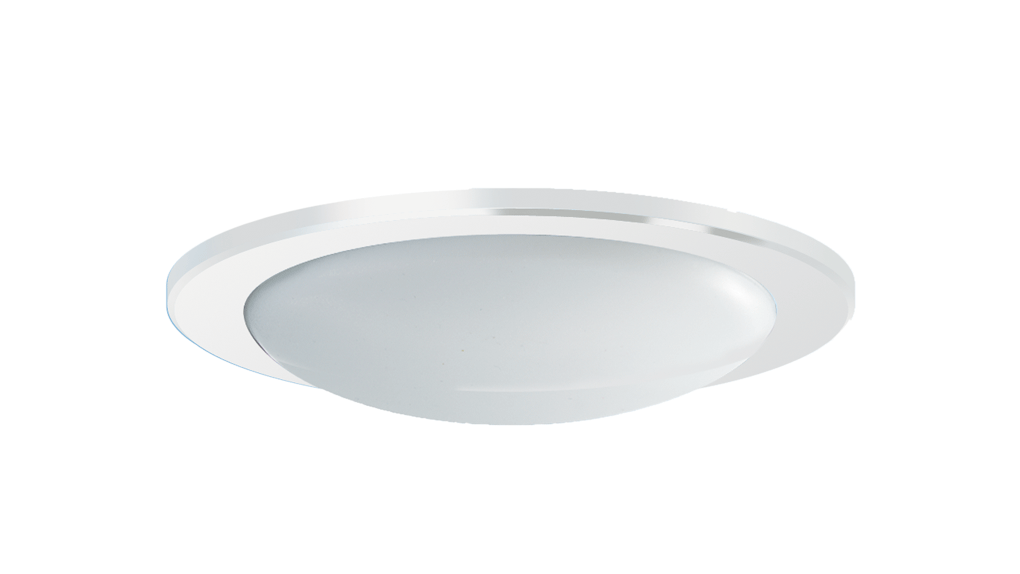

DR … HO
Drop Diffuser

∅150, ∅195 & 235

DR … SPM
Matt Centre Glass

∅150, ∅195 & 235

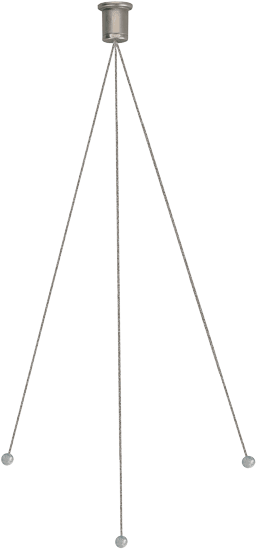

ZSP
Wire Suspension

∅195 ∅235 & 410

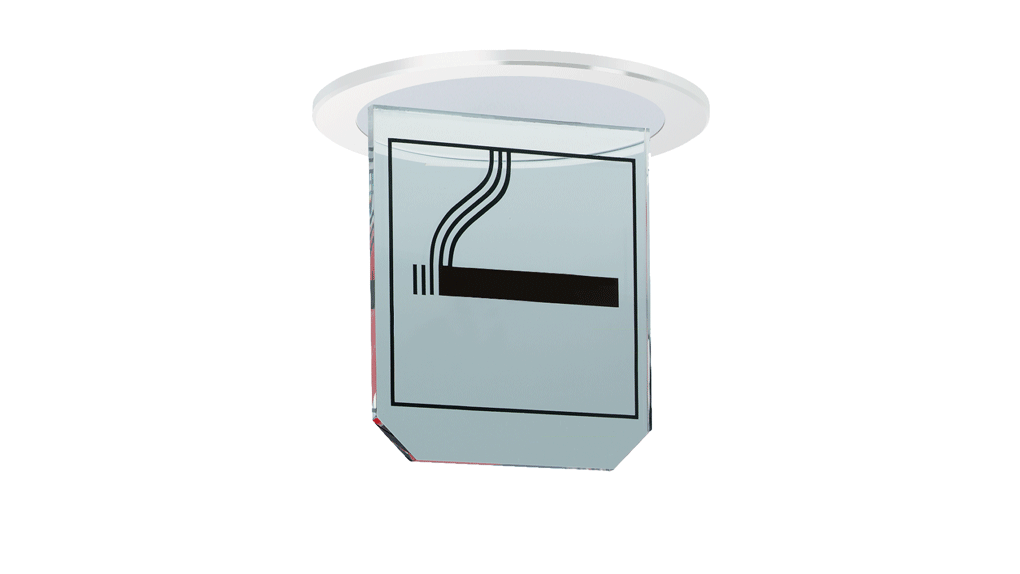

DR … HWNR
Signage

195 & 235

Product Selection

Product Filters

Size
(mm)
Optic
Type
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W UGR
Rating
Driver
Type
Body
Colour
Image Part Code
Article Number
Size
(mm)
Optic
Type
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W
UGR
Rating
Driver
Type
Body
Colour
Data LDT Polar BIM
Product ImageADLR 150/1100-830 W
0322067
150 mmextremely wide beam1160 lm3000 K≥ 80145,0 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/1100-840 W
0322068
150 mmextremely wide beam1160 lm4000 K≥ 80145,0 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/2000-830 W
0322073
150 mmextremely wide beam2060 lm3000 K≥ 80128,8 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/2000-840 W
0322074
150 mmextremely wide beam2060 lm4000 K≥ 80128,8 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/1100-830 W-DALI
0332067
150 mmextremely wide beam1160 lm3000 K≥ 80145,0 lm/W≤ 25DALI-2WhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/1100-840 W-DALI
0332068
150 mmextremely wide beam1160 lm4000 K≥ 80145,0 lm/W≤ 25DALI-2WhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/2000-830 W-DALI
0332073
150 mmextremely wide beam2060 lm3000 K≥ 80128,8 lm/W≤ 25DALI-2WhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/2000-840 W-DALI
0332074
150 mmextremely wide beam2060 lm4000 K≥ 80128,8 lm/W≤ 25DALI-2WhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/2000-8TW W-DALI
0332079
150 mmextremely wide beam2060 lm3000–6500 K≥ 80128,8 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageADLR 150/1100-830 SMB
0322069
150 mmwide beam1070 lm3000 K≥ 80133,8 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Results per Page:
Use the filters above each column to filter and limit table data. Advanced searches can be performed by using the following operators:
<, <=, >, >=, =, *, !, {, }, ||,&&, [empty], [nonempty], rgx:
Learn more

TableFilter v0.7.3

https://www.tablefilter.com/
©2015-2025 Max Guglielmi
?
Page of 15
