ARKA

ARKA – LIGHT FOR OPTIMAL LEARNING AND WORKING

The ARKA luminaire series defines lighting in offices and educational facilities. With its timeless design, it can be seamlessly integrated into both renovation projects and new projects. Classic dimensions allow versatile applications. ARKA creates a low-glare environment where visual information can be clearly perceived. This is particularly crucial in schools and work environments, as it noticeably improves the quality of learning and work.

MOUNTING OPTIONS

ARKA-P | Pendant mounting

ARKA-A | Surface-mounted

ARKA-E | Recessed mounting

AS A SINGLE LUMINAIRE OR LIGHT LINE

Suitable for surface-mounted and pendant version applications

Quick installation thanks to through-wiring
Continuous lines of light
Seamless connection
Extension modules for line installation are available

FLEXIBLE RENOVATION PROJECTS WITH APCON

Use of existing infrastructure

Use of existing 3-pole luminaire connections is possible
Intelligent control despite existing wiring through integration of wireless modules into the luminaires

Intelligent control

ARKA wireless master luminaires with integrated Bluetooth radio sensor
Flexible grouping of master and slave luminaires
Control of luminaires individually or in groups via wireless connection

Hybrid solutions

Connection option for DALI slave luminaires via DALI line to wireless master luminaires
Joint control of wireless and DALI luminaires
Cost-efficient combination of wireless and DALI technology

Further advantages

High flexibility in meeting different renovation requirements
Economical solutions through hybrid technology
Easy integration into existing installations

LOW-GLARE LIGHT FOR EDUCATION AND OFFICES

Standard-compliant lighting for classrooms and workplaces according to DIN 12464
Optimized glare control with UGR ≤ 19
Suitable for VDU workstations (BAP) thanks to microprismatic light distribution
Ideal as wall and blackboard lighting thanks to asymmetric light distribution

THREE LIGHT DISTRIBUTIONS

csm_RIDI_ARKA-P_direct_indirect_b21892451d

Direct-indirect distribution

Direct distribution

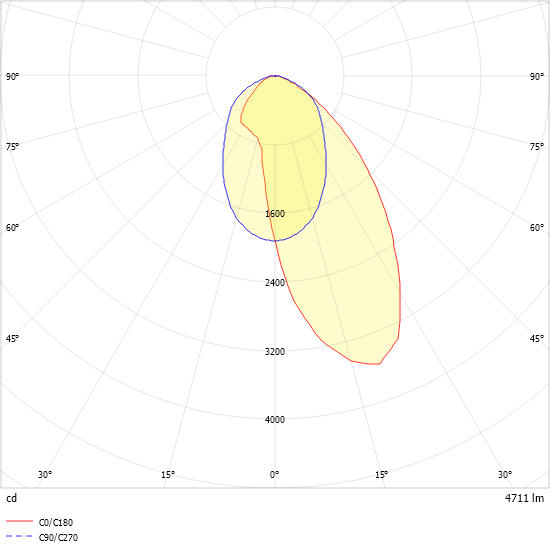

Asymmetric distribution

Product Selection

Product Filters

		Length (mm)	Mounting	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Length (mm)	Mounting	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	ARKA-A1135FLWS830MPO0400 0627926	1131 mm	Surface	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	xFlex	White
	ARKA-A1135FLAG830MPO0400 0627926AG	1131 mm	Surface	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	xFlex	Silver

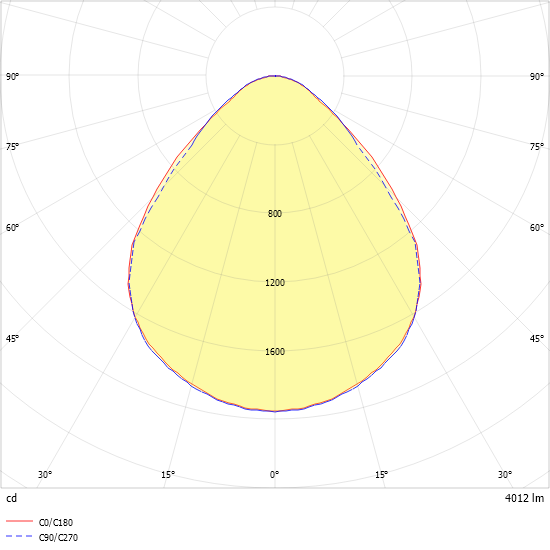

	ARKA-A1135FLWS840MPO0400 0627927	1131 mm	Surface	extremely wide beam	4010 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	xFlex	White
	ARKA-A1135FLAG840MPO0400 0627927AG	1131 mm	Surface	extremely wide beam	4010 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	xFlex	Silver
	ARKA-A1415FLWS830MPO0500 0627929	1411 mm	Surface	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	xFlex	White
	ARKA-A1415FLAG830MPO0500 0627929AG	1411 mm	Surface	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	xFlex	Silver
	ARKA-A1415FLWS840MPO0500 0627931	1411 mm	Surface	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	xFlex	White
	ARKA-A1415FLAG840MPO0500 0627931AG	1411 mm	Surface	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	xFlex	Silver
	ARKA-A1135DAWS830MPO0400 0637926	1131 mm	Surface	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	DALI-2	White

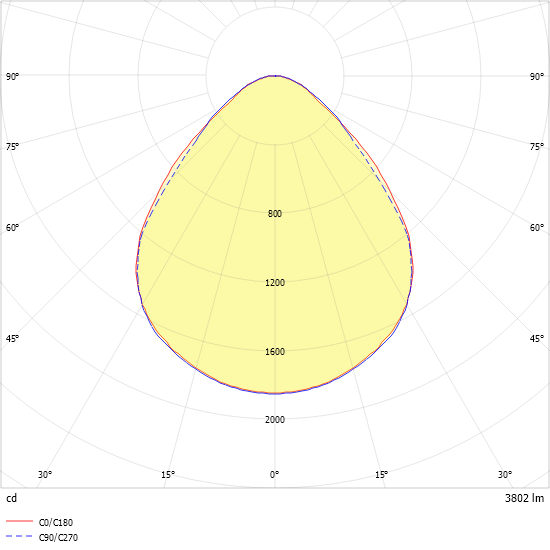

	ARKA-A1135DAAG830MPO0400 0637926AG	1131 mm	Surface	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	DALI-2	Silver
	ARKA-A1135DAWS840MPO0400 0637927	1131 mm	Surface	extremely wide beam	4010 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	DALI-2	White
	ARKA-A1135DAAG840MPO0400 0637927AG	1131 mm	Surface	extremely wide beam	4010 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	DALI-2	Silver
	ARKA-A1135DAWS8TWMPO0400 0637928	1131 mm	Surface	extremely wide beam	4010 lm	30.0 W	2700–6500 K	≥ 80	134 lm/W	≤ 19	DALI-2	White
	ARKA-A1415DAWS830MPO0500 0637929	1411 mm	Surface	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2	White

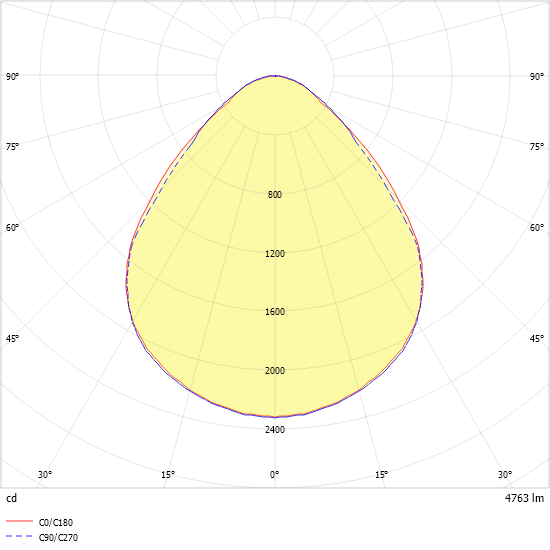

	ARKA-A1415DAAG830MPO0500 0637929AG	1411 mm	Surface	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2	Silver
	ARKA-A1415DAWS840MPO0500 0637931	1411 mm	Surface	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	DALI-2	White
	ARKA-A1415DAAG840MPO0500 0637931AG	1411 mm	Surface	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	DALI-2	Silver
	ARKA-A1415DAWS8TWMPO0500 0637933	1411 mm	Surface	extremely wide beam	5010 lm	38.0 W	2700–6500 K	≥ 80	132 lm/W	≤ 19	DALI-2	White
	ARKA-A1415DAWS830MPO0500-SEN 0637930	1411 mm	Surface	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-A1415DAAG830MPO0500-SEN 0637930AG	1411 mm	Surface	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2 \| Casambi	Silver
	ARKA-A1415DAWS840MPO0500-SEN 0637932	1411 mm	Surface	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-A1415DAAG840MPO0500-SEN 0637932AG	1411 mm	Surface	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	DALI-2 \| Casambi	Silver
	ARKA-A1415DAWS8TWMPO0500-SEN 0637934	1411 mm	Surface	extremely wide beam	5010 lm	38.0 W	2700–6500 K	≥ 80	132 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-A1415DAAG8TWMPO0500-SEN 0637934AG	1411 mm	Surface	extremely wide beam	5010 lm	38.0 W	2700–6500 K	≥ 80	132 lm/W	≤ 19	DALI-2 \| Casambi	Silver

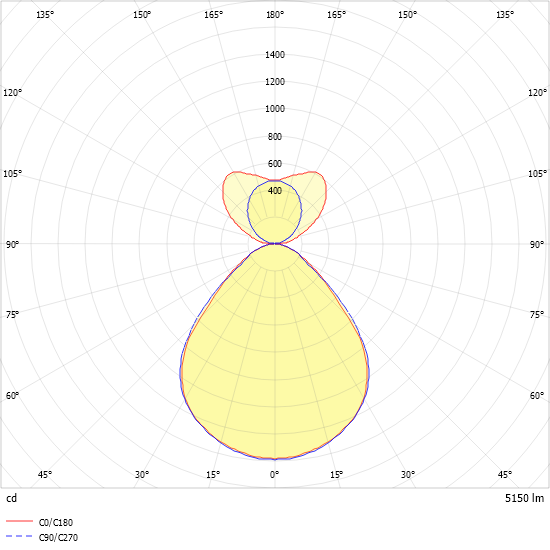

	ARKA-P1135FLWS830MPO0500 0627935	1131 mm	Pendant	wide beam	5150 lm	38.0 W	3000 K	≥ 80	136 lm/W	≤ 16	xFlex	White
	ARKA-P1135FLAG830MPO0500 0627935AG	1131 mm	Pendant	wide beam	5150 lm	38.0 W	3000 K	≥ 80	136 lm/W	≤ 16	xFlex	Silver

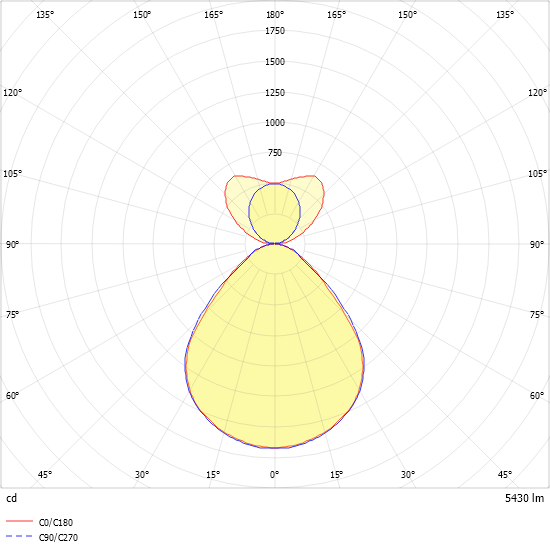

	ARKA-P1135FLWS840MPO0550 0627936	1131 mm	Pendant	wide beam	5430 lm	38.0 W	4000 K	≥ 80	143 lm/W	≤ 16	xFlex	White
	ARKA-P1135FLAG840MPO0550 0627936AG	1131 mm	Pendant	wide beam	5430 lm	38.0 W	4000 K	≥ 80	143 lm/W	≤ 16	xFlex	Silver

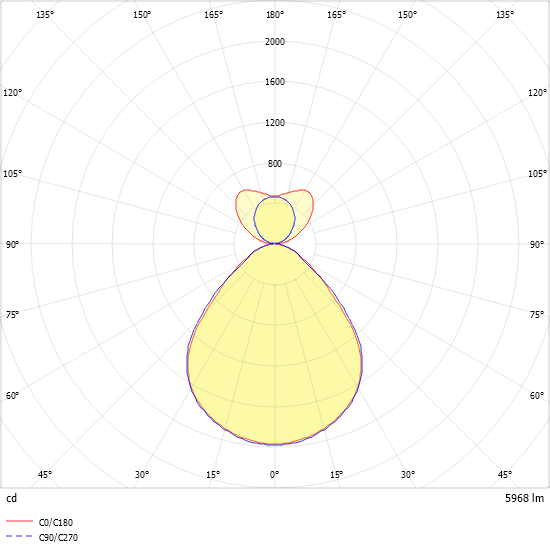

	ARKA-P1415FLWS830MPO0600 0627938	1411 mm	Pendant	wide beam	5970 lm	44.0 W	3000 K	≥ 80	136 lm/W	≤ 16	xFlex	White
	ARKA-P1415FLAG830MPO0600 0627938AG	1411 mm	Pendant	wide beam	5970 lm	44.0 W	3000 K	≥ 80	136 lm/W	≤ 16	xFlex	Silver
	ARKA-P1415FLWS840MPO0650 0627940	1411 mm	Pendant	wide beam	6300 lm	44.0 W	4000 K	≥ 80	143 lm/W	≤ 19	xFlex	White

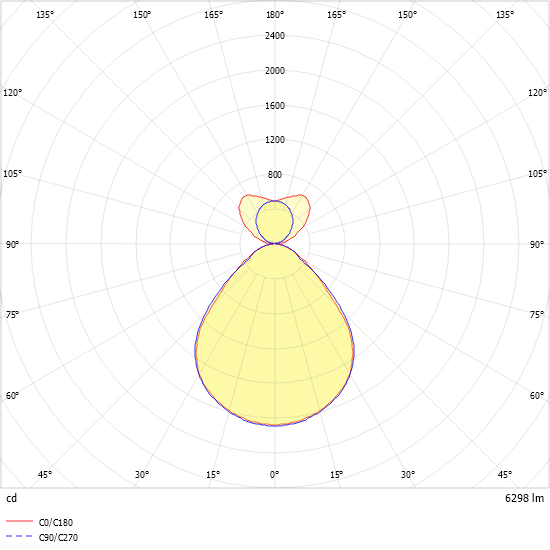

	ARKA-P1415FLAG840MPO0650 0627940AG	1411 mm	Pendant	wide beam	6300 lm	44.0 W	4000 K	≥ 80	143 lm/W	≤ 19	xFlex	Silver
	ARKA-P1135DAWS830MPO0500 0637935	1131 mm	Pendant	wide beam	5150 lm	38.0 W	3000 K	≥ 80	136 lm/W	≤ 16	DALI-2	White
	ARKA-P1135DAAG830MPO0500 0637935AG	1131 mm	Pendant	wide beam	5150 lm	38.0 W	3000 K	≥ 80	136 lm/W	≤ 16	DALI-2	Silver
	ARKA-P1135DAWS840MPO0550 0637936	1131 mm	Pendant	wide beam	5430 lm	38.0 W	4000 K	≥ 80	143 lm/W	≤ 16	DALI-2	White
	ARKA-P1135DAAG840MPO0550 0637936AG	1131 mm	Pendant	wide beam	5430 lm	38.0 W	4000 K	≥ 80	143 lm/W	≤ 16	DALI-2	Silver
	ARKA-P1135DAWS8TWMPO0550 0637937	1131 mm	Pendant	wide beam	5430 lm	38.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2	White
	ARKA-P1415DAWS830MPO0600 0637938	1411 mm	Pendant	wide beam	5970 lm	44.0 W	3000 K	≥ 80	136 lm/W	≤ 16	DALI-2	White
	ARKA-P1415DAAG830MPO0600 0637938AG	1411 mm	Pendant	wide beam	5970 lm	44.0 W	3000 K	≥ 80	136 lm/W	≤ 16	DALI-2	Silver
	ARKA-P1415DAWS840MPO0650 0637940	1411 mm	Pendant	wide beam	6300 lm	44.0 W	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2	White
	ARKA-P1415DAAG840MPO0650 0637940AG	1411 mm	Pendant	wide beam	6300 lm	44.0 W	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2	Silver
	ARKA-P1415DAWS8TWMPO0650 0637942	1411 mm	Pendant	wide beam	6300 lm	44.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2	White
	ARKA-P1415DAAG8TWMPO0650 0637942AG	1411 mm	Pendant	wide beam	6300 lm	44.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2	Silver
	ARKA-P1415DAWS830MPO0600-SEN 0637939	1411 mm	Pendant	wide beam	5970 lm	44.0 W	3000 K	≥ 80	136 lm/W	≤ 16	DALI-2 \| Casambi	White
	ARKA-P1415DAAG830MPO0600-SEN 0637939AG	1411 mm	Pendant	wide beam	5970 lm	44.0 W	3000 K	≥ 80	136 lm/W	≤ 16	DALI-2 \| Casambi	Silver
	ARKA-P1415DAWS840MPO0650-SEN 0637941	1411 mm	Pendant	wide beam	6300 lm	44.0 W	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-P1415DAAG840MPO0650-SEN 0637941AG	1411 mm	Pendant	wide beam	6300 lm	44.0 W	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2 \| Casambi	Silver
	ARKA-P1415DAWS8TWMPO0650-SEN 0637943	1411 mm	Pendant	wide beam	6300 lm	44.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-P1415DAAG8TWMPO0650-SEN 0637943AG	1411 mm	Pendant	wide beam	6300 lm	44.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2 \| Casambi	Silver
	ARKA-A1135FLWS840AS0450 0627944	1131 mm	Surface	asymmetric beam	4600 lm	30.0 W	4000 K	≥ 80	153 lm/W		xFlex	White
	ARKA-A1135FLAG840AS0450 0627944AG	1131 mm	Surface	asymmetric beam	4600 lm	30.0 W	4000 K	≥ 80	153 lm/W		xFlex	Silver
	ARKA-A1415FLWS840AS0600 0627945	1411 mm	Surface	asymmetric beam	5760 lm	37.0 W	4000 K	≥ 80	156 lm/W		xFlex	White
	ARKA-A1415FLAG840AS0600 0627945AG	1411 mm	Surface	asymmetric beam	5760 lm	37.0 W	4000 K	≥ 80	156 lm/W		xFlex	Silver
	ARKA-A1135DAWS840AS0450 0637944	1131 mm	Surface	asymmetric beam	4600 lm	30.0 W	4000 K	≥ 80	153 lm/W		DALI-2	White
	ARKA-A1135DAAG840AS0450 0637944AG	1131 mm	Surface	asymmetric beam	4600 lm	30.0 W	4000 K	≥ 80	153 lm/W		DALI-2	Silver
	ARKA-A1415DAWS840AS0600 0637945	1411 mm	Surface	asymmetric beam	5760 lm	37.0 W	4000 K	≥ 80	156 lm/W		DALI-2	White

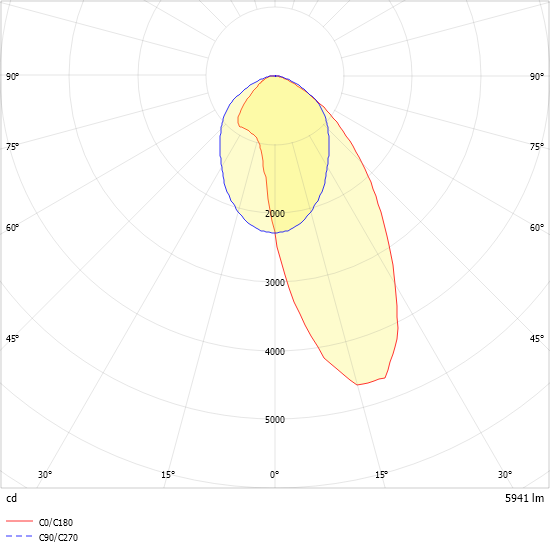

	ARKA-A1415DAAG840AS0600 0637945AG	1411 mm	Surface	asymmetric beam	5760 lm	37.0 W	4000 K	≥ 80	156 lm/W		DALI-2	Silver
	ARKA-E1197FLWS840AS0450 0823029	1197 mm	Recessed	extremely wide beam	4600 lm	30.0 W	4000 K	≥ 80	153 lm/W		xFlex	White
	ARKA-E1247FLWS840AS0450 0823033	1247 mm	Recessed	extremely wide beam	4600 lm	30.0 W	4000 K	≥ 80	153 lm/W		xFlex	White
	ARKA-E1497FLWS840AS0600 0823037	1497 mm	Recessed	extremely wide beam	5760 lm	37.0 W	4000 K	≥ 80	156 lm/W		xFlex	White
	ARKA-E1547FLWS840AS0600 0823044	1547 mm	Recessed	extremely wide beam	5760 lm	37.0 W	4000 K	≥ 80	156 lm/W		xFlex	White
	ARKA-E1197DAWS840AS0450 0833029	1197 mm	Recessed	extremely wide beam	4710 lm	30.0 W	4000 K	≥ 80	157 lm/W		DALI-2	White
	ARKA-E1247DAWS840AS0450 0833033	1247 mm	Recessed	extremely wide beam	4710 lm	30.0 W	4000 K	≥ 80	157 lm/W		DALI-2	White
	ARKA-E1497DAWS840AS0600 0833037	1497 mm	Recessed	extremely wide beam	5940 lm	37.0 W	4000 K	≥ 80	161 lm/W		DALI-2	White
	ARKA-E1547DAWS840AS0600 0833044	1547 mm	Recessed	extremely wide beam	5940 lm	37.0 W	4000 K	≥ 80	161 lm/W		DALI-2	White
	ARKA-E1197FLWS840MPO0400 0823028	1197 mm	Recessed	extremely wide beam	4010 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	xFlex	White
	ARKA-E1197FLWS830MPO0400 0823030	1197 mm	Recessed	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	xFlex	White
	ARKA-E1247FLWS840MPO0400 0823032	1247 mm	Recessed	extremely wide beam	4010 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	xFlex	White
	ARKA-E1247FLWS830MPO0400 0823034	1247 mm	Recessed	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	xFlex	White
	ARKA-E1497FLWS840MPO0500 0823036	1497 mm	Recessed	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	xFlex	White
	ARKA-E1497FLWS830MPO0500 0823039	1497 mm	Recessed	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	xFlex	White
	ARKA-E1547FLWS840MPO0500 0823043	1547 mm	Recessed	extremely wide beam	5010 lm	37.0 W	4000 K	≥ 80	135 lm/W	≤ 19	xFlex	White
	ARKA-E1547FLWS830MPO0500 0823046	1547 mm	Recessed	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	xFlex	White
	ARKA-E1197DAWS840MPO0400 0833028	1247 mm	Recessed	extremely wide beam	4020 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	DALI-2	White
	ARKA-E1197DAWS830MPO0400 0833030	1197 mm	Recessed	extremely wide beam	3800 lm	30.0 W	3000 K	≥ 80	127 lm/W	≤ 19	DALI-2	White
	ARKA-E1197DAWS8TWMPO0400 0833031	1197 mm	Recessed	extremely wide beam	4020 lm	30.0 W	2700–6500 K	≥ 80	134 lm/W	≤ 19	DALI-2	White
	ARKA-E1247DAWS840MPO0400 0833032	1247 mm	Recessed	extremely wide beam	4020 lm	30.0 W	4000 K	≥ 80	134 lm/W	≤ 19	DALI-2	White
	ARKA-E1247DAWS830MPO0400 0833034	1247 mm	Recessed	extremely wide beam	3800 lm	30.0 W	4000 K	≥ 80	127 lm/W	≤ 19	DALI-2	White
	ARKA-E1247DAWS8TWMPO0400 0833035	1247 mm	Recessed	extremely wide beam	4020 lm	30.0 W	2700–6500 K	≥ 80	134 lm/W	≤ 19	DALI-2	White
	ARKA-E1497DAWS840MPO0500 0833036	1497 mm	Recessed	extremely wide beam	5060 lm	37.0 W	4000 K	≥ 80	137 lm/W	≤ 19	DALI-2	White
	ARKA-E1497DAWS830MPO0500 0833039	1497 mm	Recessed	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2	White
	ARKA-E1497DAWS8TWMPO0500 0833041	1497 mm	Recessed	extremely wide beam	5060 lm	38.0 W	2700–6500 K	≥ 80	133 lm/W	≤ 19	DALI-2	White
	ARKA-E1547DAWS840MPO0500 0833043	1547 mm	Recessed	extremely wide beam	5060 lm	37.0 W	4000 K	≥ 80	137 lm/W	≤ 19	DALI-2	White
	ARKA-E1547DAWS830MPO0500 0833046	1547 mm	Recessed	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2	White
	ARKA-E1547DAWS8TWMPO0500 0833049	1547 mm	Recessed	extremely wide beam	5060 lm	38.0 W	2700–6500 K	≥ 80	133 lm/W	≤ 19	DALI-2	White
	ARKA-E1497DAWS840MPO0500-SEN 0833038	1497 mm	Recessed	extremely wide beam	5060 lm	37.0 W	4000 K	≥ 80	137 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-E1497DAWS830MPO0500-SEN 0833040	1497 mm	Recessed	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-E1497DAWS8TWMPO0500-SEN 0833042	1497 mm	Recessed	extremely wide beam	5060 lm	38.0 W	2700–6500 K	≥ 80	133 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-E1547DAWS840MPO0500-SEN 0833045	1547 mm	Recessed	extremely wide beam	5060 lm	37.0 W	4000 K	≥ 80	137 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-E1547DAWS830MPO0500-SEN 0833047	1547 mm	Recessed	extremely wide beam	4760 lm	37.0 W	3000 K	≥ 80	129 lm/W	≤ 19	DALI-2 \| Casambi	White
	ARKA-E1547DAWS8TWMPO0500-SEN 0833048	1547 mm	Recessed	extremely wide beam	5060 lm	38.0 W	2700–6500 K	≥ 80	133 lm/W	≤ 19	DALI-2 \| Casambi	White
