EDLQ

Square Recessed
LED Downlights

Downlights, Squarerer

Effective LED downlights featuring the same replaceable RIDI LED light engines as our round downlights – just square.



Three Sizes

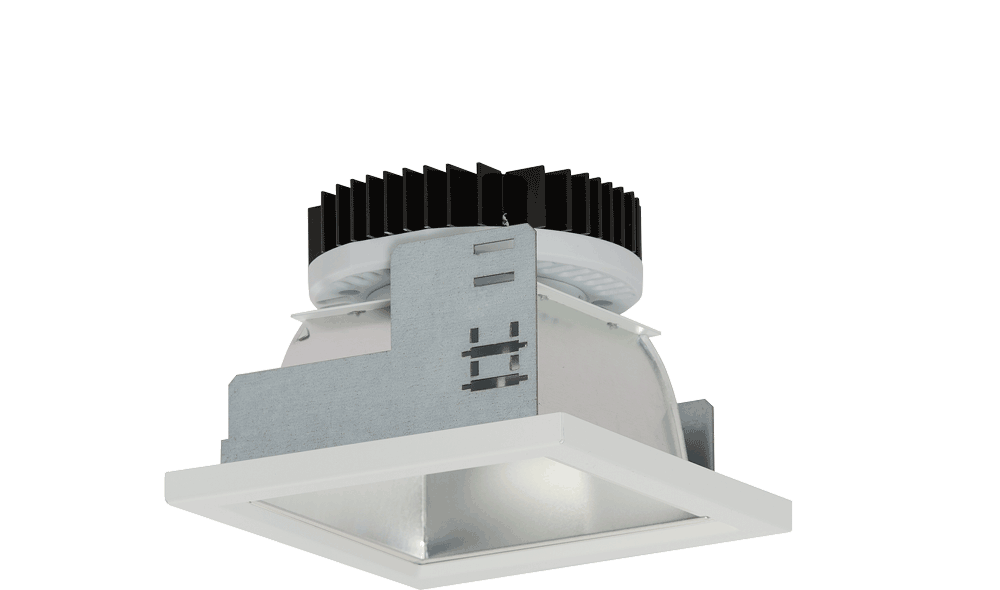

EDLQ 150

150 x 150mm
1,100 or 2,000lm
White or Semi Matt Aluminium Reflectors

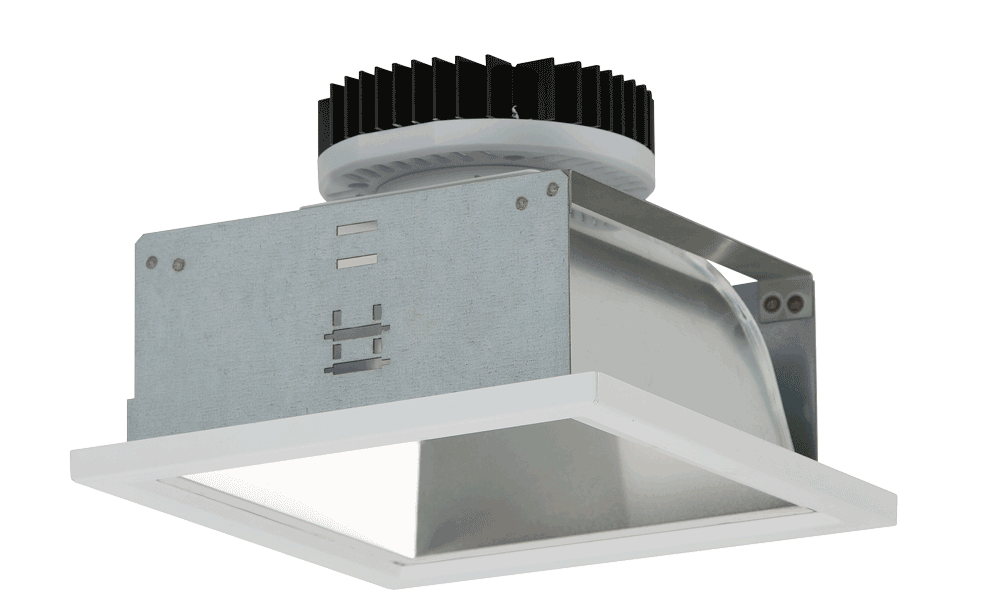

EDLQ 195

195 x 195mm
1,100 2,000 or 3,000lm
White or Semi Matt Aluminium Reflectors

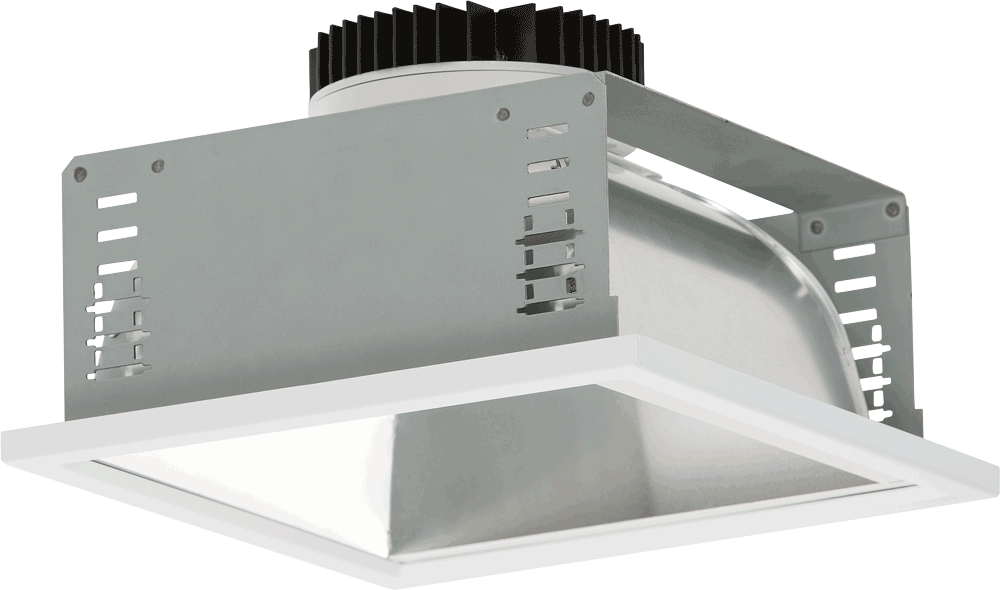

EDLQ 235

235 x 235mm
2,000 3,000 or 4,000lm
White or Semi Matt Aluminium Reflectors

Two Reflectors

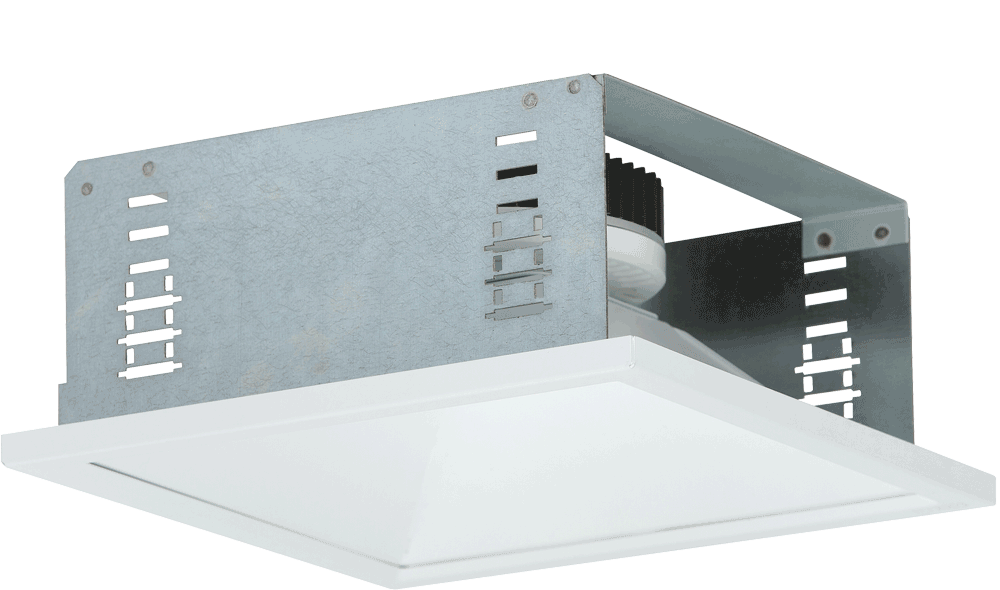

W Reflector

High reflectivity white reflector with a wide distribution. Works well with additional diffusers or optics.

SM Reflector

Satin Matt Aluminium reflector with low glare even without additional optics or diffusers.

Accessories

DQ … SK
Clear Glass

DR … SM
Frosted Glass

DQ .. MPS
Microprism

DQ … SO
Opal Glass

DR … SPM
Matt Centre Glass

DQ .. DR
Decorative Frame

Black or White

Product Selection

Product Filters

Size
(mm)
Optic
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W UGR
Rating
Driver
Type
Body
Colour
Image Part Code
Article Number
Size
(mm)
Optic
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W
UGR
Rating
Driver
Type
Body
Colour
Data LDT Polar BIM
Product ImageEDLQ 150/1100-840 W
0321337
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 W
0321338
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 W
0321339
150 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 W
0321340
150 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 W-DALI
0331337
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 W-DALI
0331338
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 W-DALI
0331339
150 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 W-DALI
0331340
150 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-TW-W
0336729
150 mmwide beam2020 lm3000–6500 K≥ 80126,3 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 W-EDS3
0321337//377
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 W-EDS3
0321338//377
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 W-EDS3
0321339//377
150 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 W-EDS3
0321340//377
150 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 W-DA-EDS3
0331337//377
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 W-DA-EDS3
0331338//377
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 W-DA-EDS3
0331339//377
150 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 W-DA-EDS3
0331340//377
150 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 SM
0321369
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 SM
0321370
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 SM
0321371
150 mmwide beam2040 lm4000 K≥ 80127,5 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 SM
0321372
150 mmwide beam2040 lm3000 K≥ 80127,5 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 SM-DALI
0331369
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 SM-DALI
0331370
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 SM-DALI
0331371
150 mmwide beam2040 lm4000 K≥ 80127,5 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 SM-DALI
0331372
150 mmwide beam2040 lm3000 K≥ 80127,5 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-TW-SM
0336728
150 mmwide beam1970 lm3000–6500 K≥ 80123,1 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 SM-EDS3
0321369//377
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 SM-EDS3
0321370//377
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 SM-EDS3
0321371//377
150 mmwide beam2040 lm4000 K≥ 80127,5 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 SM-EDS3
0321372//377
150 mmwide beam2040 lm3000 K≥ 80127,5 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-840 SM-DA-EDS3
0331369//377
150 mmwide beam1140 lm4000 K≥ 80142,5 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/1100-830 SM-DA-EDS3
0331370//377
150 mmwide beam1140 lm3000 K≥ 80142,5 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-840 SM-DA-EDS3
0331371//377
150 mmwide beam2040 lm4000 K≥ 80127,5 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 150/2000-830 SM-DA-EDS3
0331372//377
150 mmwide beam2040 lm3000 K≥ 80127,5 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 W
0321341
195 mmextremely wide beam1170 lm4000 K≥ 80146,3 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 W
0321342
195 mmextremely wide beam1170 lm3000 K≥ 80146,3 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 W
0321343
195 mmextremely wide beam2090 lm4000 K≥ 80130,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 W
0321344
195 mmextremely wide beam2090 lm3000 K≥ 80130,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 W
0321345
195 mmextremely wide beam3280 lm4000 K≥ 80142,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 W
0321346
195 mmextremely wide beam3280 lm3000 K≥ 80142,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 W-DALI
0331341
195 mmextremely wide beam1170 lm4000 K≥ 80146,3 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 W-DALI
0331342
195 mmextremely wide beam1170 lm3000 K≥ 80146,3 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 W-DALI
0331343
195 mmextremely wide beam2090 lm4000 K≥ 80130,6 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 W-DALI
0331344
195 mmextremely wide beam2090 lm3000 K≥ 80130,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 W-DALI
0331345
195 mmextremely wide beam3280 lm4000 K≥ 80142,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 W-DALI
0331346
195 mmextremely wide beam3280 lm3000 K≥ 80142,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-TW-SM
0336730
195 mmwide beam3150 lm3000–6500 K≥ 80137,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-TW-W
0336731
195 mmextremely wide beam3280 lm3000–6500 K≥ 80142,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 W-EDS3
0321341//377
195 mmextremely wide beam1170 lm4000 K≥ 80146,3 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 W-EDS3
0321342//377
195 mmextremely wide beam1170 lm3000 K≥ 80146,3 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 W-EDS3
0321343//377
195 mmextremely wide beam2090 lm4000 K≥ 80130,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 W-EDS3
0321344//377
195 mmextremely wide beam2090 lm3000 K≥ 80130,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 W-EDS3
0321345//377
195 mmextremely wide beam3280 lm4000 K≥ 80142,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 W-EDS3
0321346//377
195 mmextremely wide beam3280 lm3000 K≥ 80142,6 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 W-DA-EDS3
0331341//377
195 mmextremely wide beam1170 lm4000 K≥ 80146,3 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 W-DA-EDS3
0331342//377
195 mmextremely wide beam1170 lm3000 K≥ 80146,3 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 W-DA-EDS3
0331343//377
195 mmextremely wide beam2090 lm4000 K≥ 80130,6 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 W-DA-EDS3
0331344//377
195 mmextremely wide beam2090 lm3000 K≥ 80130,6 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 W-DA-EDS3
0331345//377
195 mmextremely wide beam3280 lm4000 K≥ 80142,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 W-DA-EDS3
0331346//377
195 mmextremely wide beam3280 lm3000 K≥ 80142,6 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 SM
0321373
195 mmwide beam1130 lm4000 K≥ 80141,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 SM
0321374
195 mmwide beam1130 lm3000 K≥ 80141,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 SM
0321375
195 mmwide beam2000 lm4000 K≥ 80125,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 SM
0321376
195 mmwide beam2000 lm3000 K≥ 80125,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 SM
0321377
195 mmwide beam3150 lm4000 K≥ 80137,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 SM
0321378
195 mmwide beam3150 lm3000 K≥ 80137,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 SM-DALI
0331373
195 mmwide beam1130 lm4000 K≥ 80141,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 SM-DALI
0331374
195 mmwide beam1130 lm3000 K≥ 80141,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 SM-DALI
0331375
195 mmwide beam2000 lm4000 K≥ 80125,0 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 SM-DALI
0331376
195 mmwide beam2000 lm3000 K≥ 80125,0 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 SM-DALI
0331377
195 mmwide beam3150 lm4000 K≥ 80137,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 SM-DALI
0331378
195 mmwide beam3150 lm3000 K≥ 80137,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 SM-EDS3
0321373//377
195 mmwide beam1130 lm4000 K≥ 80141,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 SM-EDS3
0321374//377
195 mmwide beam1130 lm3000 K≥ 80141,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 SM-EDS3
0321375//377
195 mmwide beam2000 lm4000 K≥ 80125,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 SM-EDS3
0321376//377
195 mmwide beam2000 lm3000 K≥ 80125,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 SM-EDS3
0321377//377
195 mmwide beam3150 lm4000 K≥ 80137,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 SM-EDS3
0321378//377
195 mmwide beam3150 lm3000 K≥ 80137,0 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-840 SM-DA-EDS3
0331373//377
195 mmwide beam1130 lm4000 K≥ 80141,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/1100-830 SM-DA-EDS3
0331374//377
195 mmwide beam1130 lm3000 K≥ 80141,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-840 SM-DA-EDS3
0331375//377
195 mmwide beam2000 lm4000 K≥ 80125,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/2000-830 SM-DA-EDS3
0331376//377
195 mmwide beam2000 lm3000 K≥ 80125,0 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-840 SM-DA-EDS3
0331377//377
195 mmwide beam3150 lm4000 K≥ 80137,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 195/3000-830 SM-DA-EDS3
0331378//377
195 mmwide beam3150 lm3000 K≥ 80137,0 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 W
0321347
235 mmextremely wide beam2080 lm4000 K≥ 80130,0 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 W
0321348
235 mmextremely wide beam2080 lm3000 K≥ 80130,0 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 W
0321349
235 mmextremely wide beam3260 lm4000 K≥ 80141,7 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 W
0321350
235 mmextremely wide beam3260 lm3000 K≥ 80141,7 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 W
0321351
235 mmextremely wide beam4200 lm4000 K≥ 80135,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 W
0321352
235 mmextremely wide beam4200 lm3000 K≥ 80135,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 W
0321467
235 mmextremely wide beam5340 lm4000 K≥ 80121,4 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 W
0321468
235 mmextremely wide beam5340 lm3000 K≥ 80121,4 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 W-DALI
0331347
235 mmextremely wide beam2080 lm4000 K≥ 80130,0 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 W-DALI
0331348
235 mmextremely wide beam2080 lm3000 K≥ 80130,0 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 W-DALI
0331349
235 mmextremely wide beam3260 lm4000 K≥ 80141,7 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 W-DALI
0331350
235 mmextremely wide beam3260 lm3000 K≥ 80141,7 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 W-DALI
0331351
235 mmextremely wide beam4200 lm4000 K≥ 80135,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 W-DALI
0331352
235 mmextremely wide beam4200 lm3000 K≥ 80135,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 W-DALI
0331467
235 mmextremely wide beam5340 lm4000 K≥ 80121,4 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 W-DALI
0331468
235 mmextremely wide beam5340 lm3000 K≥ 80121,4 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3600-TW-W
0336733
235 mmextremely wide beam3290 lm3000–6500 K≥ 80117,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 W-EDS3
0321347//377
235 mmextremely wide beam2080 lm4000 K≥ 80130,0 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 W-EDS3
0321348//377
235 mmextremely wide beam2080 lm3000 K≥ 80130,0 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 W-EDS3
0321349//377
235 mmextremely wide beam3260 lm4000 K≥ 80141,7 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 W-EDS3
0321350//377
235 mmextremely wide beam3260 lm3000 K≥ 80141,7 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 W-EDS3
0321351//377
235 mmextremely wide beam4200 lm4000 K≥ 80135,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 W-EDS3
0321352//377
235 mmextremely wide beam4200 lm3000 K≥ 80135,5 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 W-EDS3
0321467//377
235 mmextremely wide beam5340 lm4000 K≥ 80121,4 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 W-EDS3
0321468//377
235 mmextremely wide beam5340 lm3000 K≥ 80121,4 lm/W≤ 25On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 W-DA-EDS3
0331347//377
235 mmextremely wide beam2080 lm4000 K≥ 80130,0 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 W-DA-EDS3
0331348//377
235 mmextremely wide beam2080 lm3000 K≥ 80130,0 lm/W≤ 22DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 W-DA-EDS3
0331349//377
235 mmextremely wide beam3260 lm4000 K≥ 80141,7 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 W-DA-EDS3
0331350//377
235 mmextremely wide beam3260 lm3000 K≥ 80141,7 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 W-DA-EDS3
0331351//377
235 mmextremely wide beam4200 lm4000 K≥ 80135,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 W-DA-EDS3
0331352//377
235 mmextremely wide beam4200 lm3000 K≥ 80135,5 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 W-DA-EDS3
0331467//377
235 mmextremely wide beam5340 lm4000 K≥ 80121,4 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 W-DA-EDS3
0331468//377
235 mmextremely wide beam5340 lm3000 K≥ 80121,4 lm/W≤ 25DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 SM
0321379
235 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 16On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 SM
0321380
235 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 SM
0321381
235 mmwide beam3180 lm4000 K≥ 80138,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 SM
0321382
235 mmwide beam3180 lm3000 K≥ 80138,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 SM
0321383
235 mmwide beam4090 lm4000 K≥ 80131,9 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 SM
0321384
235 mmwide beam4090 lm3000 K≥ 80131,9 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 SM
0321465
235 mmwide beam5200 lm4000 K≥ 80118,2 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 SM
0321466
235 mmwide beam5200 lm3000 K≥ 80118,2 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 SM-DALI
0331379
235 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 SM-DALI
0331380
235 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 SM-DALI
0331381
235 mmwide beam3180 lm4000 K≥ 80138,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 SM-DALI
0331382
235 mmwide beam3180 lm3000 K≥ 80138,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 SM-DALI
0331383
235 mmwide beam4090 lm4000 K≥ 80131,9 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 SM-DALI
0331384
235 mmwide beam4090 lm3000 K≥ 80131,9 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 SM-DALI
0331465
235 mmwide beam5200 lm4000 K≥ 80118,2 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 SM-DALI
0331466
235 mmwide beam5200 lm3000 K≥ 80118,2 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3600-TW-SM
0336732
235 mmwide beam3210 lm3000–6500 K≥ 80114,6 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 SM-EDS3
0321379//377
235 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 SM-EDS3
0321380//377
235 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 SM-EDS3
0321381//377
235 mmwide beam3180 lm4000 K≥ 80138,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 SM-EDS3
0321382//377
235 mmwide beam3180 lm3000 K≥ 80138,3 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 SM-EDS3
0321383//377
235 mmwide beam4090 lm4000 K≥ 80131,9 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 SM-EDS3
0321384//377
235 mmwide beam4090 lm3000 K≥ 80131,9 lm/W≤ 19On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 SM-EDS3
0321465//377
235 mmwide beam5200 lm4000 K≥ 80118,2 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 SM-EDS3
0321466//377
235 mmwide beam5200 lm3000 K≥ 80118,2 lm/W≤ 22On/OffWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-840 SM-DA-EDS3
0331379//377
235 mmwide beam2020 lm4000 K≥ 80126,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/2000-830 SM-DA-EDS3
0331380//377
235 mmwide beam2020 lm3000 K≥ 80126,3 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-840 SM-DA-EDS3
0331381//377
235 mmwide beam3180 lm4000 K≥ 80138,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/3000-830 SM-DA-EDS3
0331382//377
235 mmwide beam3180 lm3000 K≥ 80138,3 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-840 SM-DA-EDS3
0331383//377
235 mmwide beam4090 lm4000 K≥ 80131,9 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/4000-830 SM-DA-EDS3
0331384//377
235 mmwide beam4090 lm3000 K≥ 80131,9 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-840 SM-DA-EDS3
0331465//377
235 mmwide beam5200 lm4000 K≥ 80118,2 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageEDLQ 235/5000-830 SM-DA-EDS3
0331466//377
235 mmwide beam5200 lm3000 K≥ 80118,2 lm/W≤ 19DALIWhitePDFEulumdatProduct ImageEulumdat

Projects Featuring EDLQ

Calthorpe Park School, Fleet, Hampshire

Calthorpe Park School, Fleet, Hampshire

The new extension to the original 1970‘s Calthorpe Park School was designed in-house by architectural services ...
Pinewood School, Fleet, Hampshire

Pinewood School, Fleet, Hampshire

Pinewood School was the first of a phase of new school designs which featured energy efficient lighting as well as ...
Bedford Modern School

Bedford Modern School

A new science block at Bedford Modern school to replace the existing building that had been largely unchanged since
