EL-E

Low Glare Inset Optics

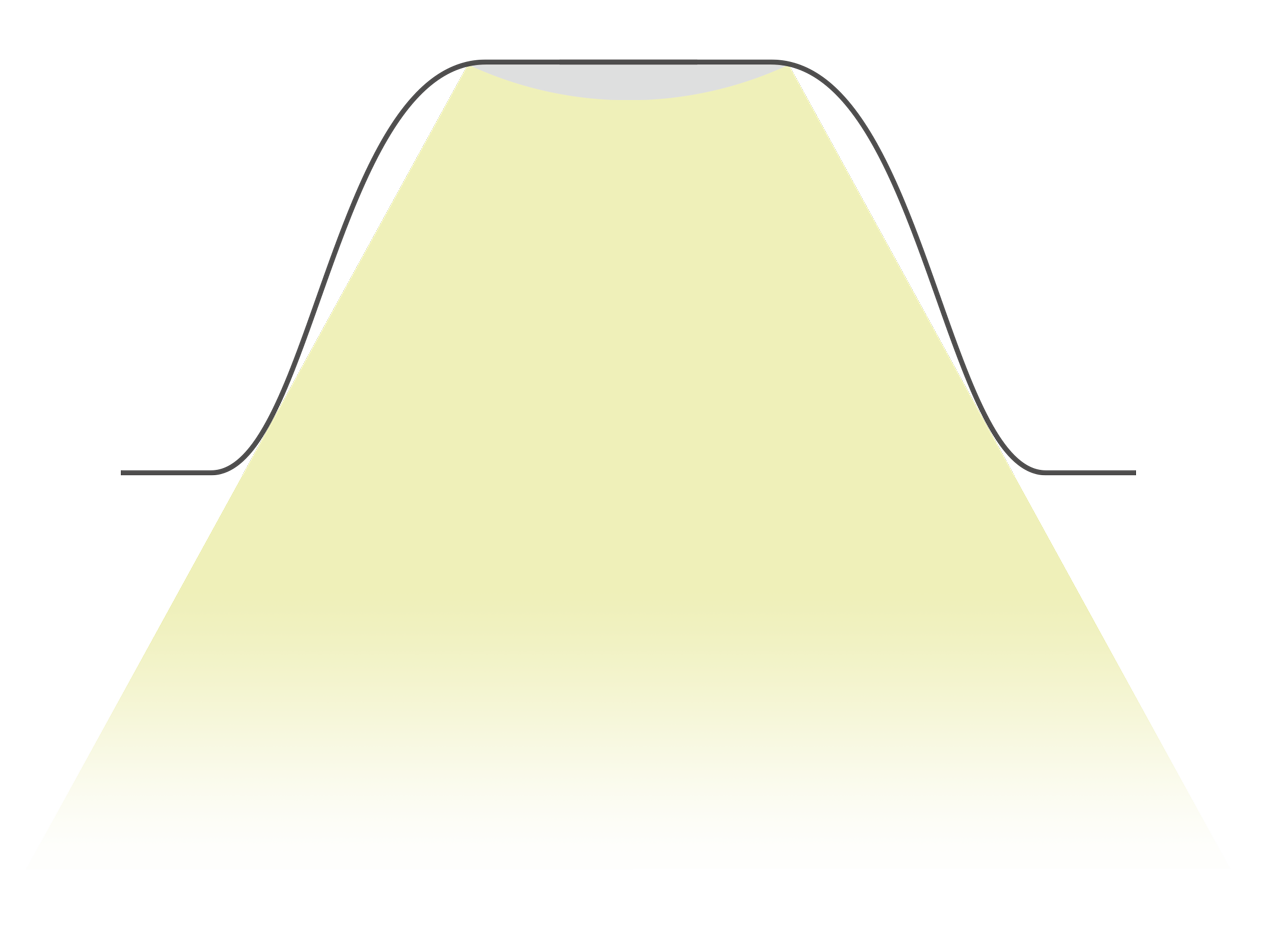

LEDs are housed behind an opal material which produces a soft, diffuse beam of light.

The frosted mini reflectors in front of the light emitting surface significantly reduce glare while maintaining excellent optical efficency.

Variety

Versions of every size for every ceiling type

Available with RIDI Resflex

Set the output onsite by adjusting the internal potentiometer to give just the right light level and just the right energy usage.

Product Selection

Product Filters

		Shape	Length (mm)	Mounting	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type
Image	Part Code Article Number	Shape	Length (mm)	Mounting	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Data	LDT	Polar	BIM
	EL-AS1547NDWS840LFA0550 0627802	rectangular	1555 mm	Surface	asymmetric beam	5460 lm	4000 K	≥ 80	130 lm/W		On/Off
	EL-AS1247NDWS840LFA0450 0627803	rectangular	1255 mm	Surface	asymmetric beam	4340 lm	4000 K	≥ 80	128 lm/W		On/Off
	EL-AS1547DAWS840LFA0550 0637802	rectangular	1555 mm	Surface	asymmetric beam	5460 lm	4000 K	≥ 80	130 lm/W		DALI
	EL-AS1247DAWS840LFA0450 0637803	rectangular	1255 mm	Surface	asymmetric beam	4340 lm	4000 K	≥ 80	128 lm/W		DALI
	EL-ES1547NDWS840LFA0550 0828052	rectangular	1547 mm	Recessed	asymmetric beam	5460 lm	4000 K	≥ 80	130 lm/W		On/Off
	EL-ES1247NDWS840LFA0450 0828053	rectangular	1247 mm	Recessed	asymmetric beam	4340 lm	4000 K	≥ 80	128 lm/W		On/Off

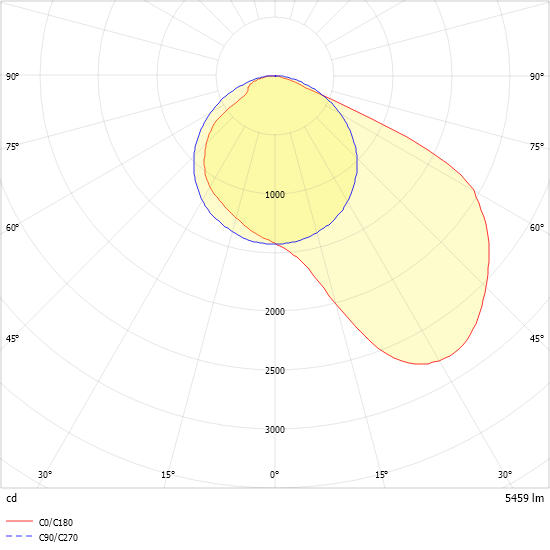

	EL-ES1547DAWS840LFA0550 0838052	rectangular	1547 mm	Recessed	asymmetric beam	5460 lm	4000 K	≥ 80	130 lm/W		DALI
	EL-ES1247DAWS840LFA0450 0838053	rectangular	1247 mm	Recessed	asymmetric beam	4340 lm	4000 K	≥ 80	128 lm/W		DALI
	EL-AS1247NDWS840MPO0350 0627852	rectangular	1255 mm	Surface	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	On/Off
	EL-AS1547NDWS840MPO0450 0627853	rectangular	1555 mm	Surface	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	On/Off
	EL-AS1247DAWS840MPO0350 0637852	rectangular	1255 mm	Surface	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	DALI-2
	EL-AS1547DAWS840MPO0450 0637853	rectangular	1555 mm	Surface	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	DALI-2
	EL-ES1247NDWS840MPO0350 0828085	rectangular	1247 mm	Recessed	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	On/Off
	EL-ES1547NDWS840MPO0450 0828087	rectangular	1547 mm	Recessed	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	On/Off
	EL-ES1247DAWS840MPO0350 0838085	rectangular	1247 mm	Recessed	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	DALI-2
	EL-ES1547DAWS840MPO0450 0838087	rectangular	1547 mm	Recessed	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	DALI-2
	EL-ES1197NDWS840MPO0350 0828084	rectangular	1197 mm	Recessed	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	On/Off
	EL-ES1497NDWS840MPO0450 0828086	rectangular	1497 mm	Recessed	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	On/Off
	EL-ES1197DAWS840MPO0350 0838084	rectangular	1197 mm	Recessed	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	DALI-2
	EL-ES1497DAWS840MPO0450 0838086	rectangular	1497 mm	Recessed	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	DALI-2
	EL-EPS1248NDWS840MPO0350 0828107	rectangular	1248 mm	Recessed	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	On/Off
	EL-EPS1548NDWS840MPO0450 0828108	rectangular	1548 mm	Recessed	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	On/Off
	EL-EPS1248DAWS840MPO0350 0838107	rectangular	1248 mm	Recessed	wide beam	3500 lm	4000 K	≥ 80	146 lm/W	≤ 19	DALI-2
	EL-EPS1548DAWS840MPO0450 0838108	rectangular	1548 mm	Recessed	wide beam	4500 lm	4000 K	≥ 80	145 lm/W	≤ 19	DALI-2
	EL-EE1197RFWS840M9P0600 0828135	rectangular	1197 mm	Recessed	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-EE1497RFWS840M9P0800 0828136	rectangular	1497 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	xFlex
	EL-EE1197DAWS840M9P0600 0838135	rectangular	1197 mm	Recessed	wide beam	6080 lm	4000 K	≥ 80	160 lm/W	≤ 19	DALI
	EL-EE1497DAWS840M9P0800 0838136	rectangular	1497 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI
	EL-EE1247RFWS840M9P0600 0828137	rectangular	1247 mm	Recessed	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-EE1547RFWS840M9P0800 0828138	rectangular	1547 mm	Recessed	wide beam	8200 lm	4000 K	≥ 80	164 lm/W	≤ 19	xFlex
	EL-EE1247DAWS840M9P0600 0838137	rectangular	1247 mm	Recessed	wide beam	6080 lm	4000 K	≥ 80	164 lm/W	≤ 19	DALI
	EL-EE1547DAWS840M9P0800 0838138	rectangular	1547 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI
	EL-EQ0597NDWS840M9P0400 0828127	square	597 mm	Recessed	wide beam	4010 lm	4000 K	≥ 80	160 lm/W	≤ 19	On/Off
	EL-EQ0597RFWS840M9P0600 0828129	square	597 mm	Recessed	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-EQ0597DAWS840M9P0400 0838127	square	597 mm	Recessed	wide beam	4010 lm	4000 K	≥ 80	160 lm/W	≤ 19	DALI
	EL-EQ0597DAWS840M9P0600 0838129	square	597 mm	Recessed	wide beam	6020 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-EQ0622NDWS840M9P0400 0828128	square	622 mm	Recessed	wide beam	4010 lm	4000 K	≥ 80	160 lm/W	≤ 19	On/Off
	EL-EQ0622RFWS840M9P0600 0828130	square	622 mm	Recessed	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-EQ0622DAWS840M9P0400 0838128	square	622 mm	Recessed	wide beam	4010 lm	4000 K	≥ 80	160 lm/W	≤ 19	DALI
	EL-EQ0622DAWS840M9P0600 0838130	square	622 mm	Recessed	wide beam	6020 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-ES1197RFWS840M9P0600 0828131	rectangular	1197 mm	Recessed	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-ES1497RFWS840M9P0800 0828133	rectangular	1497 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	xFlex
	EL-ES1197DAWS840M9P0600 0838131	rectangular	1197 mm	Recessed	wide beam	6020 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-ES1497DAWS840M9P0800 0838133	rectangular	1497 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI
	EL-ES1247RFWS840M9P0600 0828132	rectangular	1247 mm	Recessed	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-ES1547RFWS840M9P0800 0828134	rectangular	1547 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	xFlex
	EL-ES1247DAWS840M9P0600 0838132	rectangular	1247 mm	Recessed	wide beam	6020 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-ES1547DAWS840M9P0800 0838134	rectangular	1547 mm	Recessed	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI
	EL-EQ0597NDWS840M9S0350 0828121	square	597 mm	Recessed	wide beam	3710 lm	4000 K	≥ 80	143 lm/W	≤ 19	On/Off
	EL-EQ0597DAWS840M9S0350 0838121	square	597 mm	Recessed	wide beam	3710 lm	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2
	EL-EQ0622NDWS840M9S0350 0828122	square	622 mm	Recessed	wide beam	3710 lm	4000 K	≥ 80	143 lm/W	≤ 19	On/Off
	EL-EQ0622DAWS840M9S0350 0838122	square	622 mm	Recessed	wide beam	3710 lm	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2
	EL-ES1247NDWS840M9S0550 0828125	rectangular	1247 mm	Recessed	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	On/Off
	EL-ES1547NDWS840M9S0750 0828126	rectangular	1547 mm	Recessed	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	On/Off
	EL-ES1247DAWS840M9S0550 0838125	rectangular	1247 mm	Recessed	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	DALI
	EL-ES1547DAWS840M9S0750 0838126	rectangular	1547 mm	Recessed	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	DALI-2
	EL-EQ0310DAWS840M5P0200 0838141	square	310 mm	Recessed	wide beam	2040 lm	4000 K	≥ 80	157 lm/W	≤ 19	DALI-2
	EL-EQ0483DAWS840M5P0250 0838142	square	483 mm	Recessed	wide beam	2730 lm	4000 K	≥ 80	152 lm/W	≤ 19	DALI-2
	EL-EQ0310DAWS940M5P0200 0838145	square	310 mm	Recessed	wide beam	2080 lm	4000 K	≥ 90	130 lm/W	≤ 19	DALI-2
	EL-EQ0483DAWS940M5P0250 0838146	square	483 mm	Recessed	wide beam	2740 lm	4000 K	≥ 90	125 lm/W	≤ 19	DALI-2
	EL-EQ0597DAWS840M5P0500 0838139	square	597 mm	Recessed	wide beam	5050 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-EQ0597DAWS940M5P0500 0838143	square	597 mm	Recessed	wide beam	5140 lm	4000 K	≥ 90	139 lm/W	≤ 19	DALI
	EL-EQ0622DAWS840M5P0500 0838140	square	622 mm	Recessed	wide beam	5050 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-EQ0622DAWS940M5P0500 0838144	square	622 mm	Recessed	wide beam	5140 lm	4000 K	≥ 90	139 lm/W	≤ 19	DALI
	EL-AQ0622NDWS840M9S0350 0627905	square	630 mm	Surface	wide beam	3710 lm	4000 K	≥ 80	143 lm/W	≤ 19	On/Off
	EL-AQ0622DAWS840M9S0350 0637905	square	630 mm	Surface	wide beam	3710 lm	4000 K	≥ 80	143 lm/W	≤ 19	DALI-2
	EL-AQ0622NDWS840M9P0400 0627908	square	630 mm	Surface	wide beam	4010 lm	4000 K	≥ 80	160 lm/W	≤ 19	On/Off
	EL-AQ0622RFWS840M9P0600 0627909	square	630 mm	Surface	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-AQ0622DAWS840M9P0400 0637908	square	630 mm	Surface	wide beam	4010 lm	4000 K	≥ 80	160 lm/W	≤ 19	DALI
	EL-AQ0622DAWS840M9P0600 0637909	square	630 mm	Surface	wide beam	6020 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-AQ0622DAWS840M5P0500 0637914	square	630 mm	Surface	wide beam	5050 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-AQ0622DAWS940M5P0500 0637917	square	630 mm	Surface	wide beam	5140 lm	4000 K	≥ 90	139 lm/W	≤ 19	DALI
	EL-AQ0310DAWS840M5P0200 0637915	square	318 mm	Surface	wide beam	2040 lm	4000 K	≥ 80	157 lm/W	≤ 19	DALI-2
	EL-AQ0483DAWS840M5P0250 0637916	square	491 mm	Surface	wide beam	2730 lm	4000 K	≥ 80	152 lm/W	≤ 19	DALI-2
	EL-AQ0310DAWS940M5P0200 0637918	square	318 mm	Surface	wide beam	2080 lm	4000 K	≥ 90	130 lm/W	≤ 19	DALI-2
	EL-AQ0483DAWS940M5P0250 0637919	square	491 mm	Surface	wide beam	2740 lm	4000 K	≥ 90	125 lm/W	≤ 19	DALI-2
	EL-AS1247NDWS840M9S0550 0627906	rectangular	1255 mm	Surface	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	On/Off
	EL-AS1547NDWS840M9S0750 0627907	rectangular	1555 mm	Surface	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	On/Off
	EL-AS1247DAWS840M9S0550 0637906	rectangular	1255 mm	Surface	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	DALI-2
	EL-AS1547DAWS840M9S0750 0637907	rectangular	1555 mm	Surface	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	DALI-2
	EL-AS1247RFWS840M9P0600 0627910	rectangular	1255 mm	Surface	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-AS1547RFWS840M9P0800 0627911	rectangular	1555 mm	Surface	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	xFlex
	EL-AS1247DAWS840M9P0600 0637910	rectangular	1255 mm	Surface	wide beam	6020 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI
	EL-AS1547DAWS840M9P0800 0637911	rectangular	1555 mm	Surface	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI
	EL-AE1247RFWS840M9P0600 0627912	rectangular	1255 mm	Surface	wide beam	6100 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex
	EL-AE1547RFWS840M9P0800 0627913	rectangular	1555 mm	Surface	wide beam	8200 lm	4000 K	≥ 80	161 lm/W	≤ 19	xFlex
	EL-AE1247DAWS840M9P0600 0637912	rectangular	1255 mm	Surface	wide beam	6080 lm	4000 K	≥ 80	164 lm/W	≤ 19	DALI
	EL-AE1547DAWS840M9P0800 0637913	rectangular	1555 mm	Surface	wide beam	8030 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI
	EL-AE1247NDWS840M9S0550 0627920	rectangular	1255 mm	Surface	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	On/Off
	EL-AE1547NDWS840M9S0750 0627921	rectangular	1555 mm	Surface	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	On/Off
	EL-AE1247DAWS840M9S0550 0637920	rectangular	1255 mm	Surface	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	DALI-2
	EL-AE1547DAWS840M9S0750 0637921	rectangular	1555 mm	Surface	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	DALI-2
	EL-EE1197NDWS840M9S0550 0828147	rectangular	1197 mm	Recessed	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	On/Off
	EL-EE1497NDWS840M9S0750 0828148	rectangular	1497 mm	Recessed	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	On/Off
	EL-EE1197DAWS840M9S0550 0838147	rectangular	1197 mm	Recessed	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	DALI-2
	EL-EE1497DAWS840M9S0750 0838148	rectangular	1497 mm	Recessed	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	DALI-2
	EL-EE1247NDWS840M9S0550 0828149	rectangular	1247 mm	Recessed	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	On/Off
	EL-EE1547NDWS840M9S0750 0828150	rectangular	1547 mm	Recessed	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	On/Off
	EL-EE1247DAWS840M9S0550 0838149	rectangular	1247 mm	Recessed	wide beam	5570 lm	4000 K	≥ 80	147 lm/W	≤ 19	DALI-2
	EL-EE1547DAWS840M9S0750 0838150	rectangular	1547 mm	Recessed	wide beam	7430 lm	4000 K	≥ 80	149 lm/W	≤ 19	DALI-2
