FPL

Edge lit flat panel luminaire

DESIGN

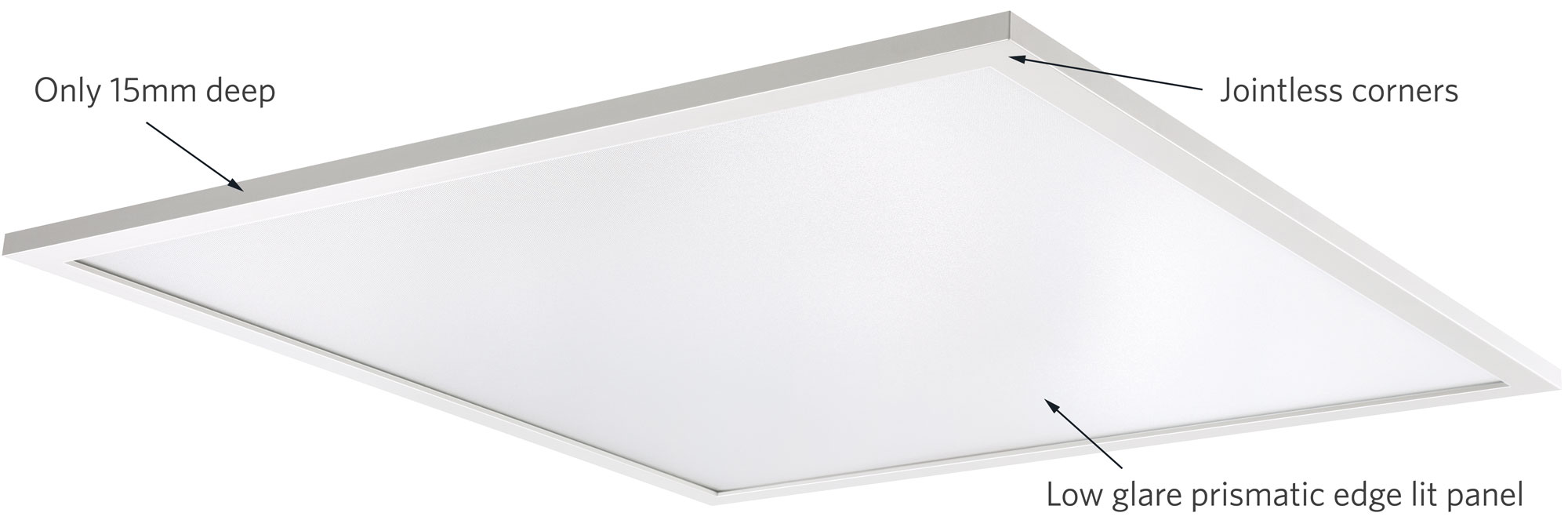

FPL is an edge lit recessed panel luminaire produced to meet our stringent requirements.

UGR19 glare control prismatic diffuser
Powerswitch adjustable output
Colour Switch pick the colour temperature

ColourSwitch

Change the colour temperture of the light from 3,000K to 4,000K or 5,000K to 6,500K to change the mood of an area or to fit the decorative scheme.

PowerSwitch

Choose the output on site with PowerSwitch to suit the lighting design.

Reducing output reduces energy use.

3,000lm = 25W
3,500lm = 29W
4,000lm = 33W*
4,500lm = 37W

*factory default

Metal Pan Ceiling Adaptor

This cost effective adaptor plate allows you to use standard 1200x300mm FPLs in concealed grid metal pan ceilings.

Available for SAS330, Burgess and other metal pan. ceilings on request.

Accessories

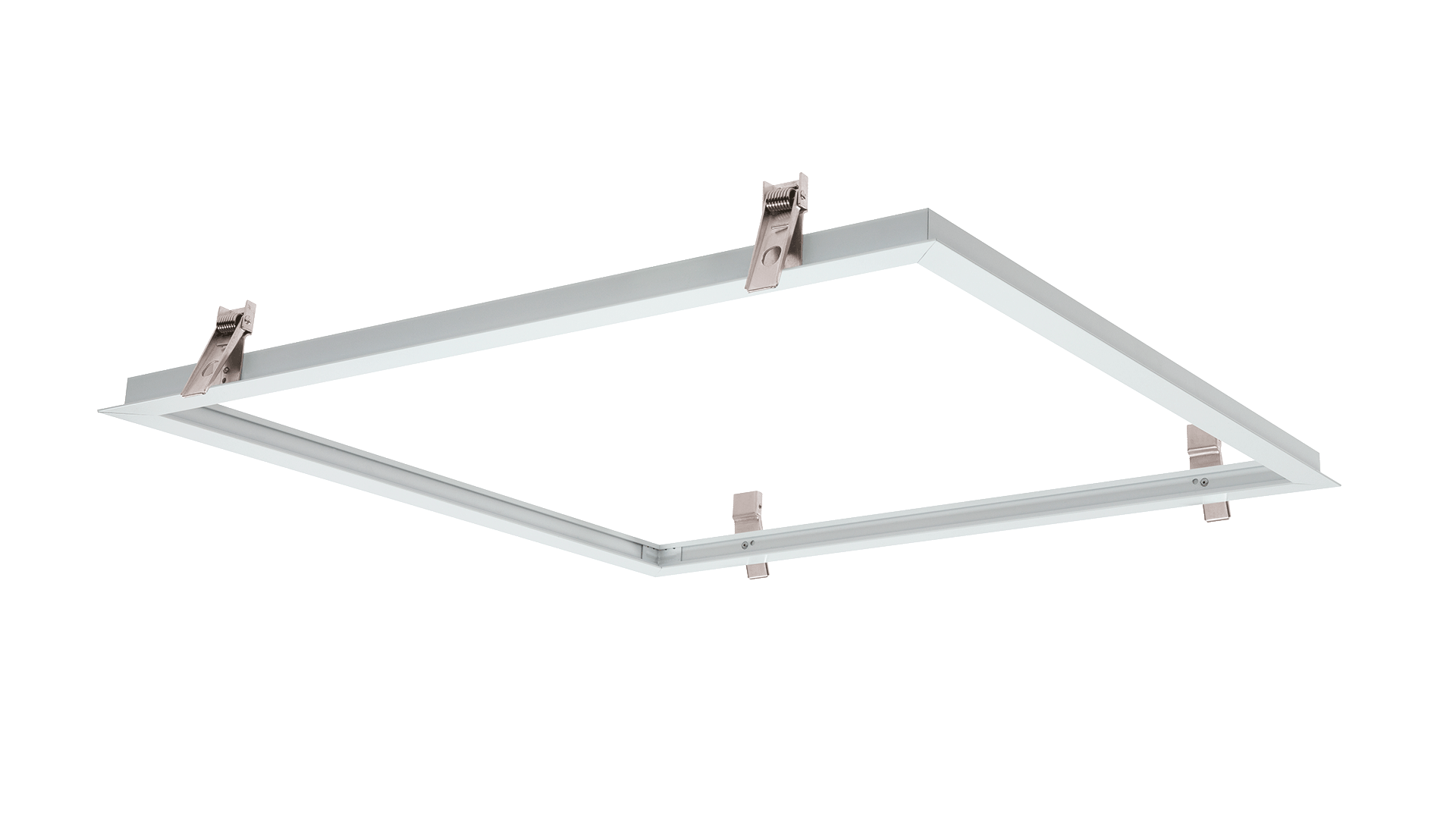

ZBS-ER FPL

Recessing kit for plasterboard ceilings
ZBS-ER FPL-EQ300 – 300x300mm
ZBS-ER FPL-EQ595 – 600x600mm
ZBS-ER FPL-EE1195 – 300x1200mm

Instructions PDF

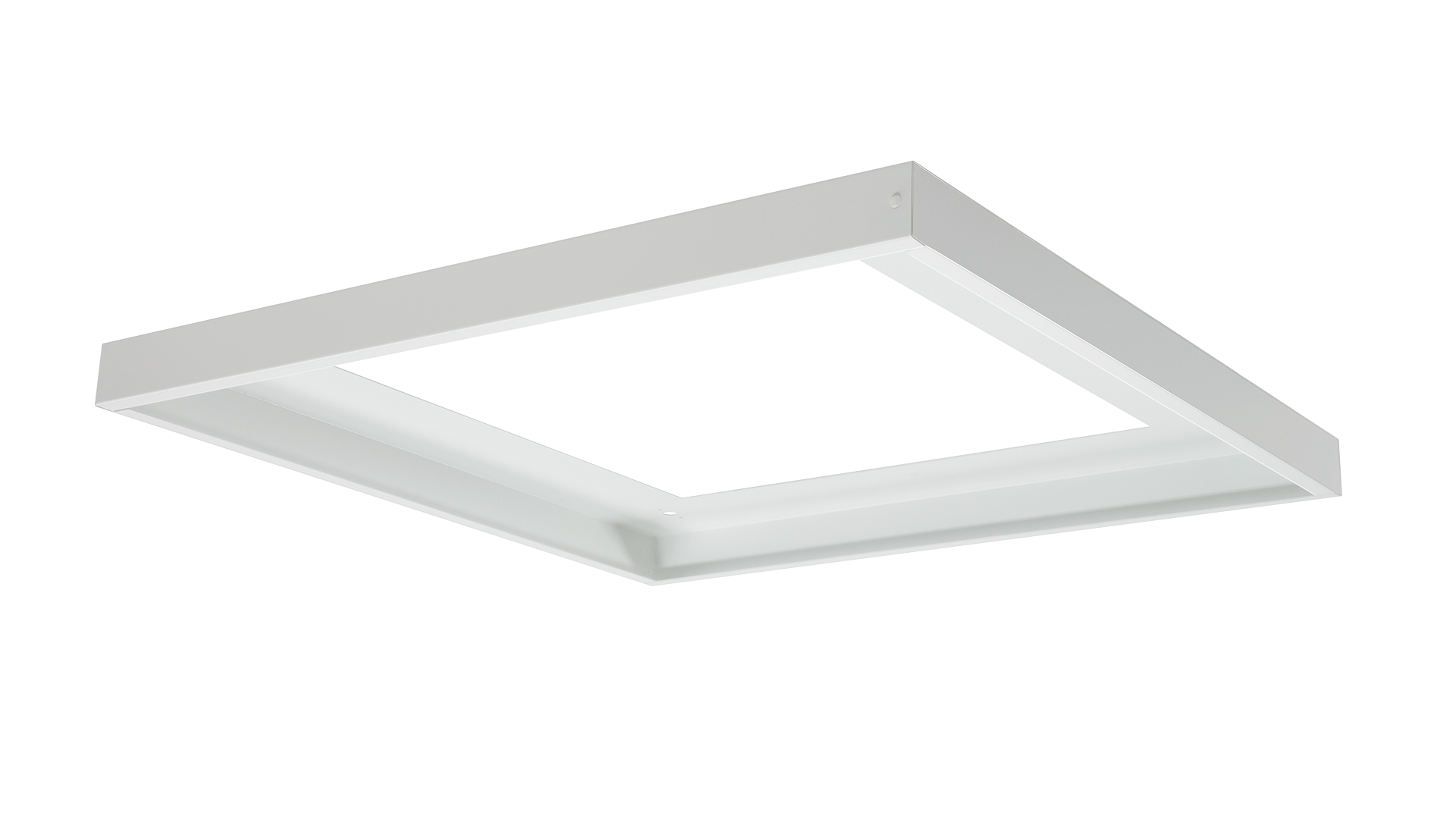

ZBS-AR FPL

Surface mounting kit
ZBS-AR FPL-EQ300 – 303x303x45mm
ZBS-AR FPL-EQ595 – 603x603x45mm
ZBS-AR FPL-EE1195 – 303x1203x45mm

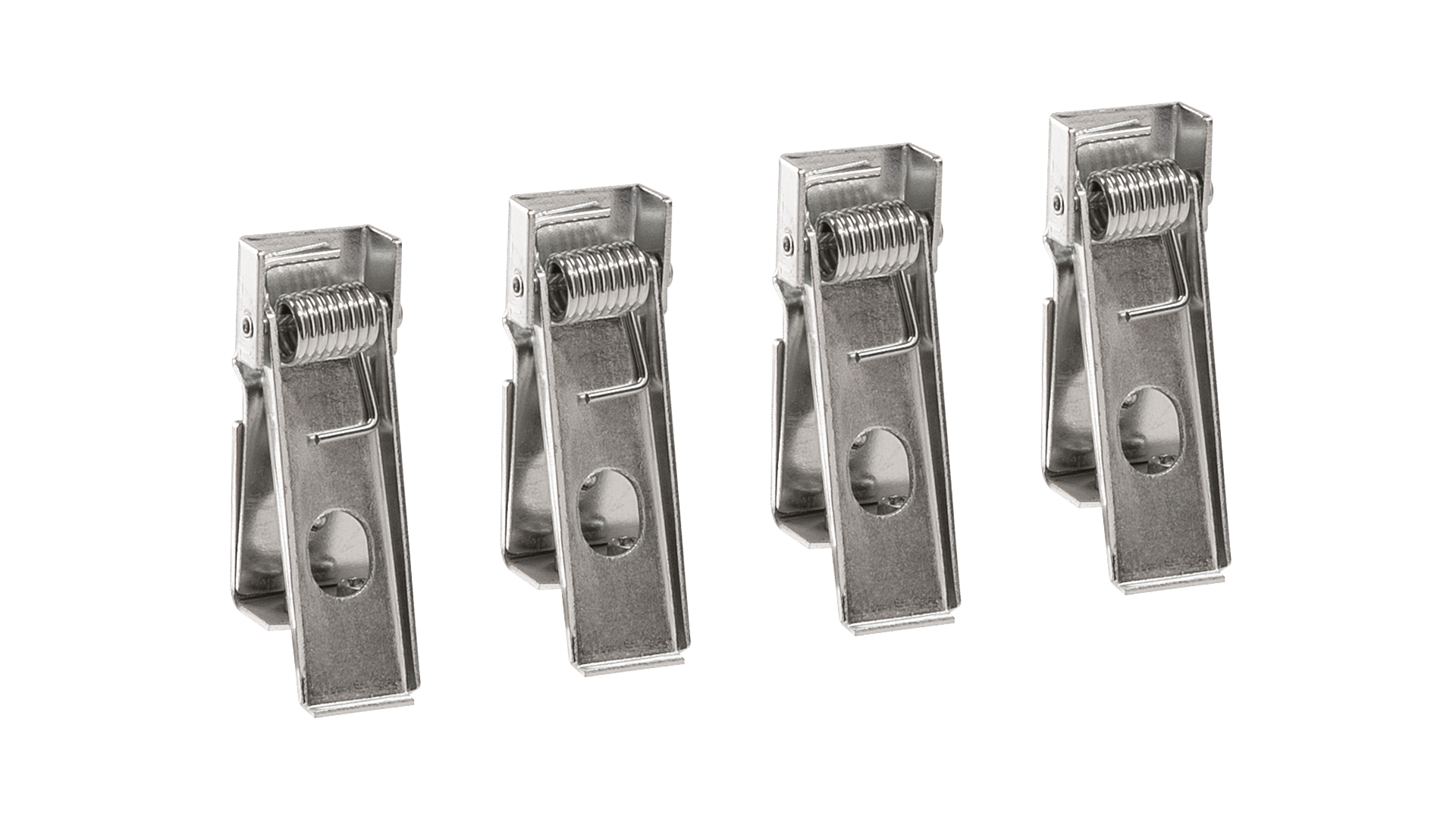

ZBS-ER FPL-EQ

Recessing clips for plasterboard ceilings

Instructions PDF

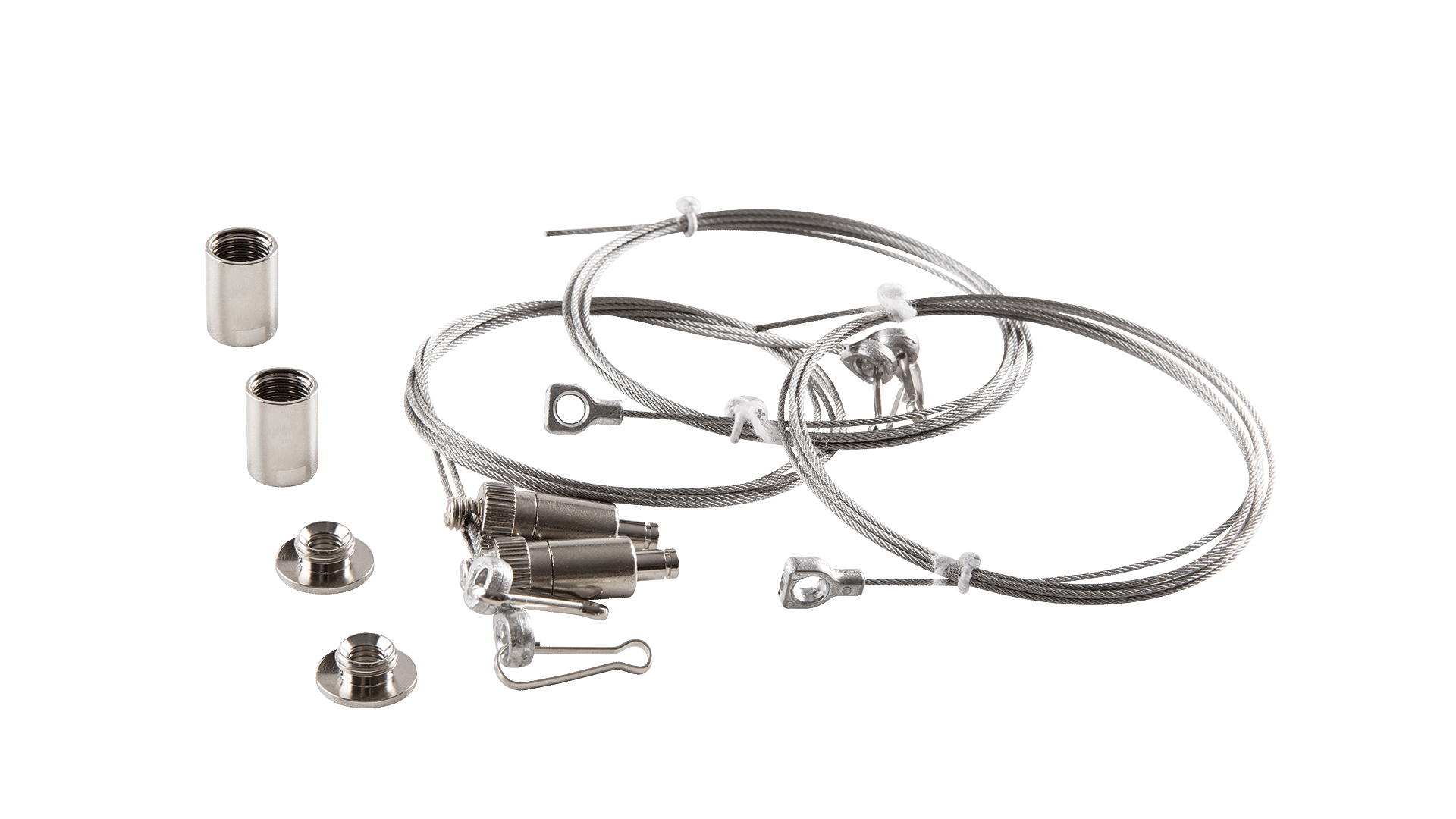

ZBS-FPL 1,5m

1.5m length wire suspension kit for FPL

Metal Panel
Ceiling Adaptor

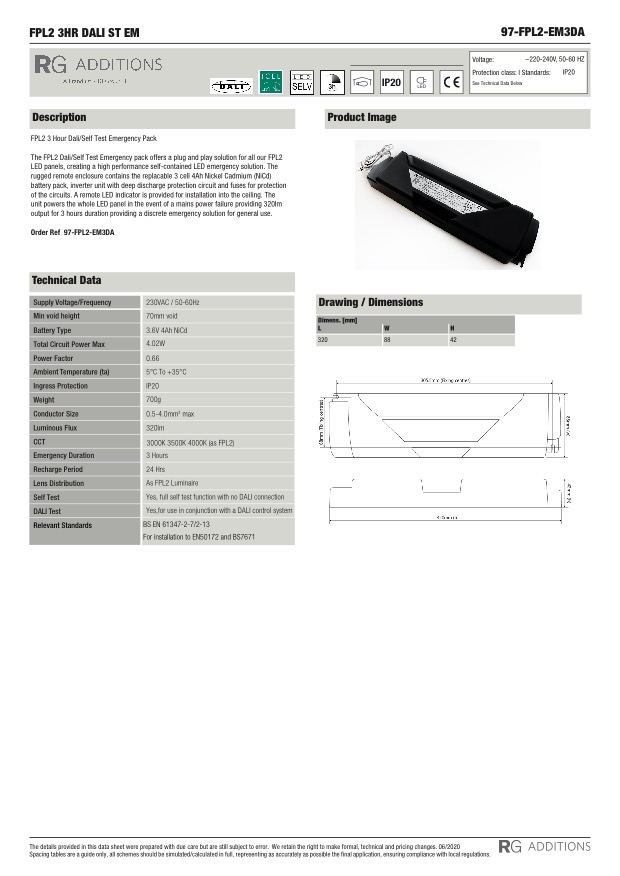

3 Hour Manual Test Emergency Pack

3 Hour DALI Test Emergency Pack

Product Selection

Product Filters

		Size (mm)	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour

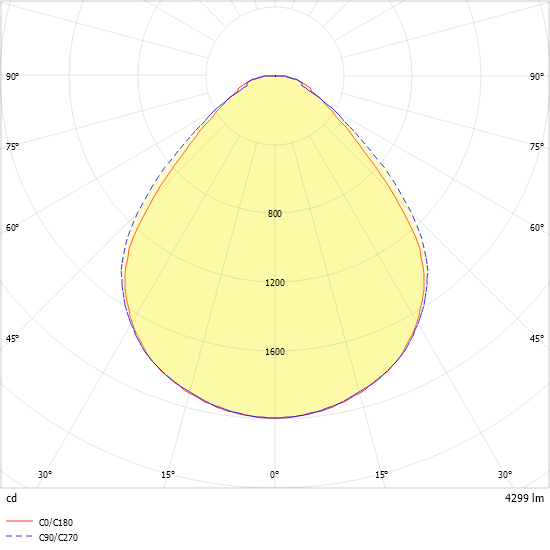

Image	Part Code Article Number	Size (mm)	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	FPL4-EQ0595FLWS830840MPS0500 0823022	595 mm	4300 lm	33.0 W	3000 K; 4000 K	≥ 80	130 lm/W	≤ 19	xFlex	White
	FPL4-EE1195FLWS830840MPS0500 0823023	1195 mm	4250 lm	33.0 W	3000 K; 4000 K	≥ 80	129 lm/W	≤ 19	xFlex	White
	FPL4-EE1245FLWS830840MPS0500 0823024	1245 mm	4300 lm	33.0 W	3000 K; 4000 K	≥ 80	130 lm/W	≤ 19	xFlex	White
	FPL4-EE1545FLWS830840MPS0600 0823025	1545 mm	5000 lm	35.0 W	3000 K; 4000 K	≥ 80	143 lm/W	≤ 19	xFlex	White
	FPL4-EQ0595DAWS830840MPS0500 0833022	595 mm	4300 lm	33.0 W	3000 K; 4000 K	≥ 80	130 lm/W	≤ 19	DALI-2	White
	FPL4-EE1195DAWS830840MPS0500 0833023	1195 mm	4250 lm	33.0 W	3000 K; 4000 K	≥ 80	129 lm/W	≤ 19	DALI-2	White
	FPL4-EE1245DAWS830840MPS0500 0833024	1245 mm	4250 lm	33.0 W	3000 K; 4000 K	≥ 80	129 lm/W	≤ 19	DALI-2	White
	FPL4-EE1545DAWS830840MPS0600 0833025	1545 mm	5000 lm	35.0 W	3000 K; 4000 K	≥ 80	143 lm/W	≤ 19	DALI-2	White
	FPL3-EQ0595DAWS8TWMPS0500 0832995	595 mm	4020 lm	35.0 W	3000–6500 K	≥ 80	115 lm/W	≤ 19	DALI	White
	FPL3-EE1245DAWS830840MPS0500 0832997	1245 mm	3900 lm	33.0 W	3000 K; 4000 K	≥ 80	118 lm/W	≤ 19	DALI-2	White
	FPL3-EE1545DAWS830840MPS0500 0832998	1545 mm	3900 lm	33.0 W	3000 K; 4000 K	≥ 80	118 lm/W	≤ 19	DALI-2	White
	FPL2-EQ0300NDWS830MPS0200 0822983	295 mm	1600 lm	17.0 W	3000 K	≥ 80	94 lm/W	≤ 22	On/Off	White
	FPL2-EQ0300NDWS840MPS0200 0822984	295 mm	1600 lm	17.0 W	4000 K	≥ 80	94 lm/W	≤ 22	On/Off	White
	FPL2-EQ0300DAWS830MPS0200 0832983	295 mm	1780 lm	18.0 W	3000 K	≥ 80	99 lm/W	≤ 22	DALI-2	White
	FPL2-EQ0300DAWS840MPS0200 0832984	295 mm	1780 lm	18.0 W	4000 K	≥ 80	99 lm/W	≤ 22	DALI-2	White
