H-LINE

High Uplight
Light Channel

DESIGN

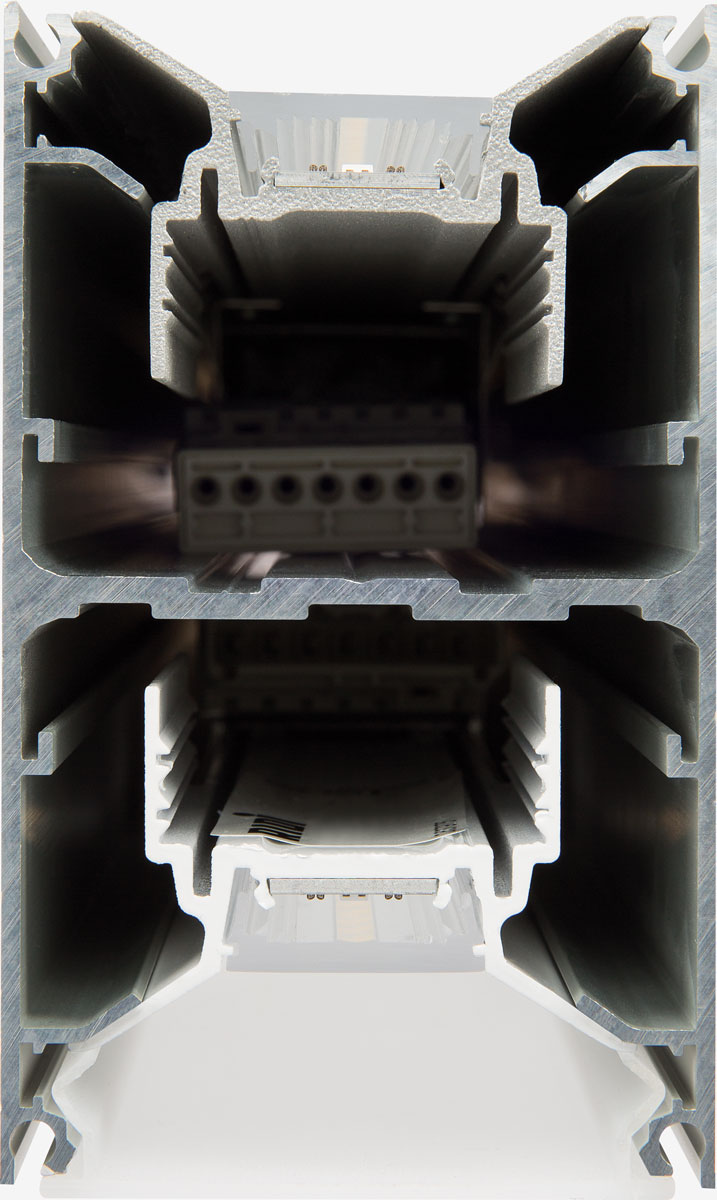

A perfect mirror image. H-Line places two light channels back to back for extreme flexibility and performance.

H-Line uses the same light modules as U-LINE, which can be placed invidivdually or in continuous unbroken runs.

Incorporate blank sections with sensors or spotlights for even more possibilities.

The downlight is controlled, precise and efficient.

The separate uplight system provides copious shadow free indirect illumination

		Size (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	H-LINE 1192DANE840B/AO0550 0635799AF	1192 mm	5020 lm	4000 K	≥ 80	114,1 lm/W	≤ 22	DALI
	H-LINE 1192DANE840B/MPS0600 0635795AF	1192 mm	5470 lm	4000 K	≥ 80	124,3 lm/W	≤ 22	DALI
	H-LINE 1492DANE840B/AO0700 0635798AF	1492 mm	6470 lm	4000 K	≥ 80	115,5 lm/W	≤ 22	DALI
	H-LINE 1492DANE840B/MPS0800 0635794AF	1492 mm	7040 lm	4000 K	≥ 80	125,7 lm/W	≤ 22	DALI
	H-LINE 1778DANE840B/AO0900 0635811AF	1778 mm	7930 lm	4000 K	≥ 80	114,9 lm/W	≤ 22	DALI
	H-LINE 1778DANE840B/MPS0950 0635810AF	1778 mm	8600 lm	4000 K	≥ 80	124,6 lm/W	≤ 22	DALI
	H-LINE 2378DANE840B/AO1200 0635800AF	2378 mm	10840 lm	4000 K	≥ 80	115,3 lm/W	≤ 22	DALI
	H-LINE 2378DANE840B/MPS1300 0635796AF	2378 mm	11750 lm	4000 K	≥ 80	125,0 lm/W	≤ 19	DALI
	H-LINE 2978DANE840B/AO1500 0635801AF	2978 mm	13750 lm	4000 K	≥ 80	116,5 lm/W	≤ 22	DALI
	H-LINE 2978DANE840B/MPS1700 0635797AF	2978 mm	14880 lm	4000 K	≥ 80	126,1 lm/W	≤ 19	DALI

Direct / Indirect lighting system with separate up and down sections for maximum flexibility and very high uplight

An extremely flexible light channel for use as a single luminaire or continuous system

Continuous LED light channel in extruded aluminium for surface, pendant or recessed mounting
