HERO 2

HERO2 – HIGH EFFICIENCY AND SAFE LIGHTING FOR VERSATILE APPLICATIONS

The HERO2 highbay luminaire family combines outstanding energy efficiency with three light distributions and three light colours for demand-oriented illumination in any environment. The impact-resistant housing ensures maximum safety even under the toughest conditions. Thanks to multifunctional accessories, such as adjustable wall and ceiling brackets or integration into the RIDI LINIA EVO lighting system, HERO2 offers numerous application possibilities.

THREE DIMENSIONS

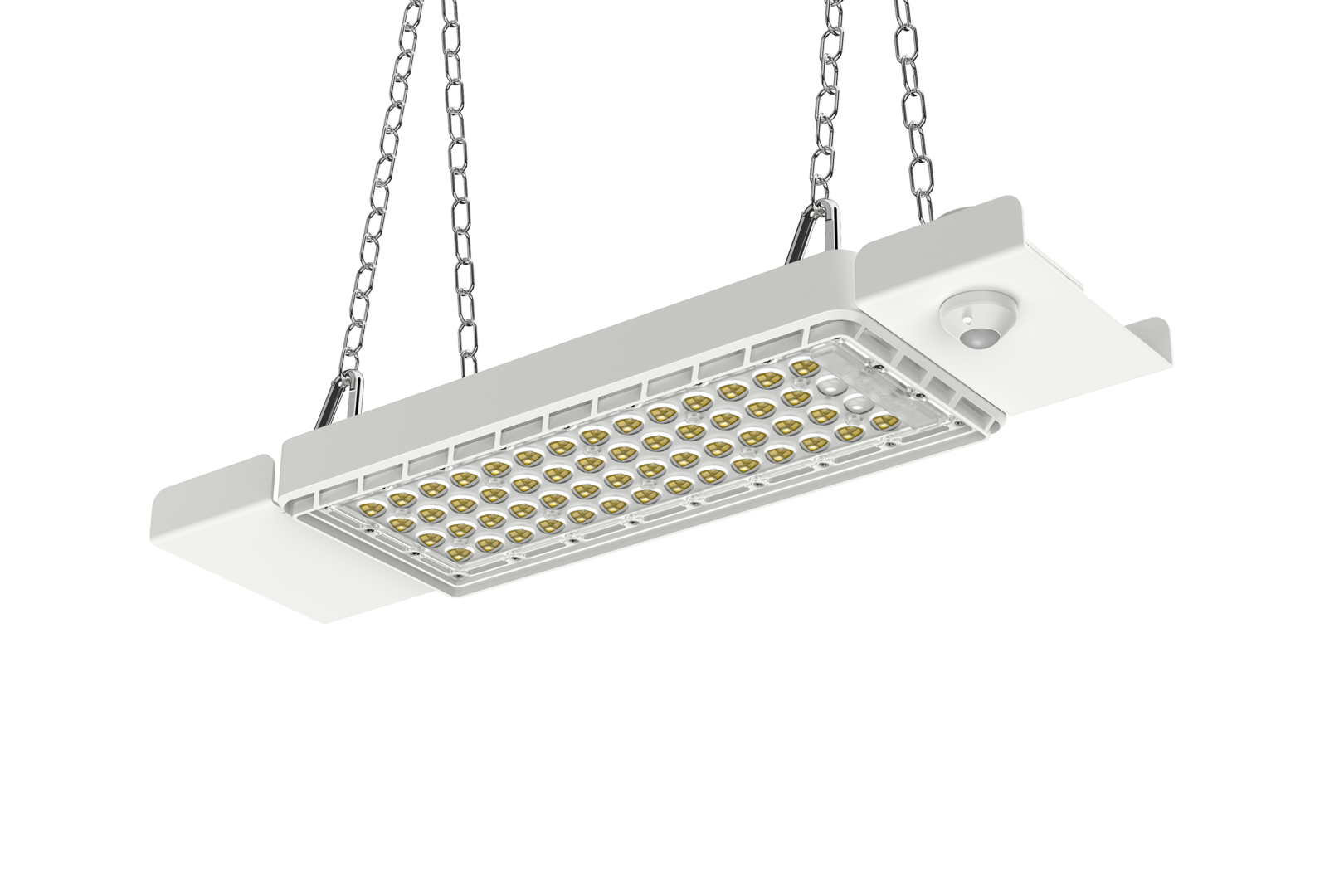

HERO2 1500

Up to 15,000 lumens luminous flux

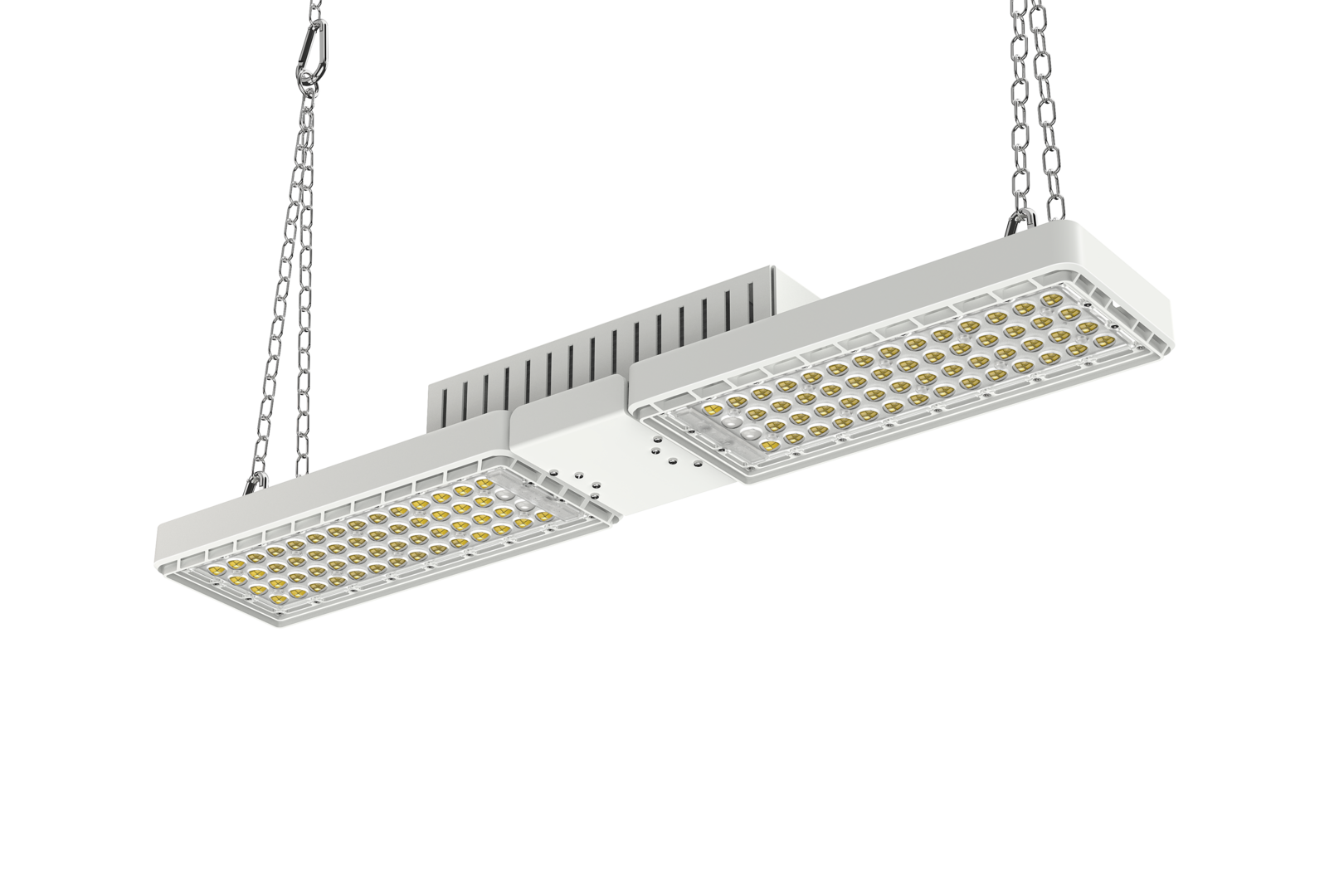

HERO2 3000

Up to 30,000 lumens luminous flux

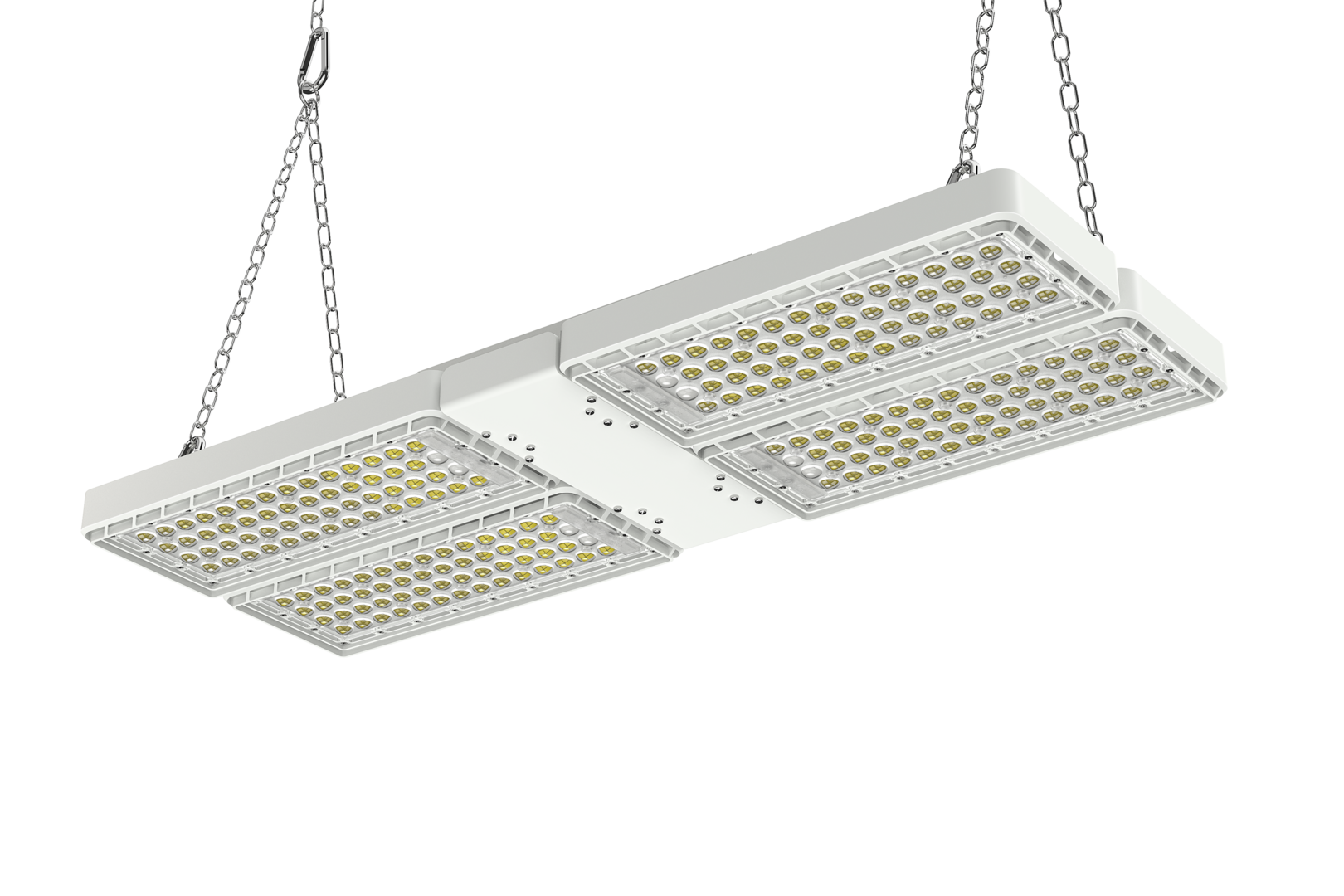

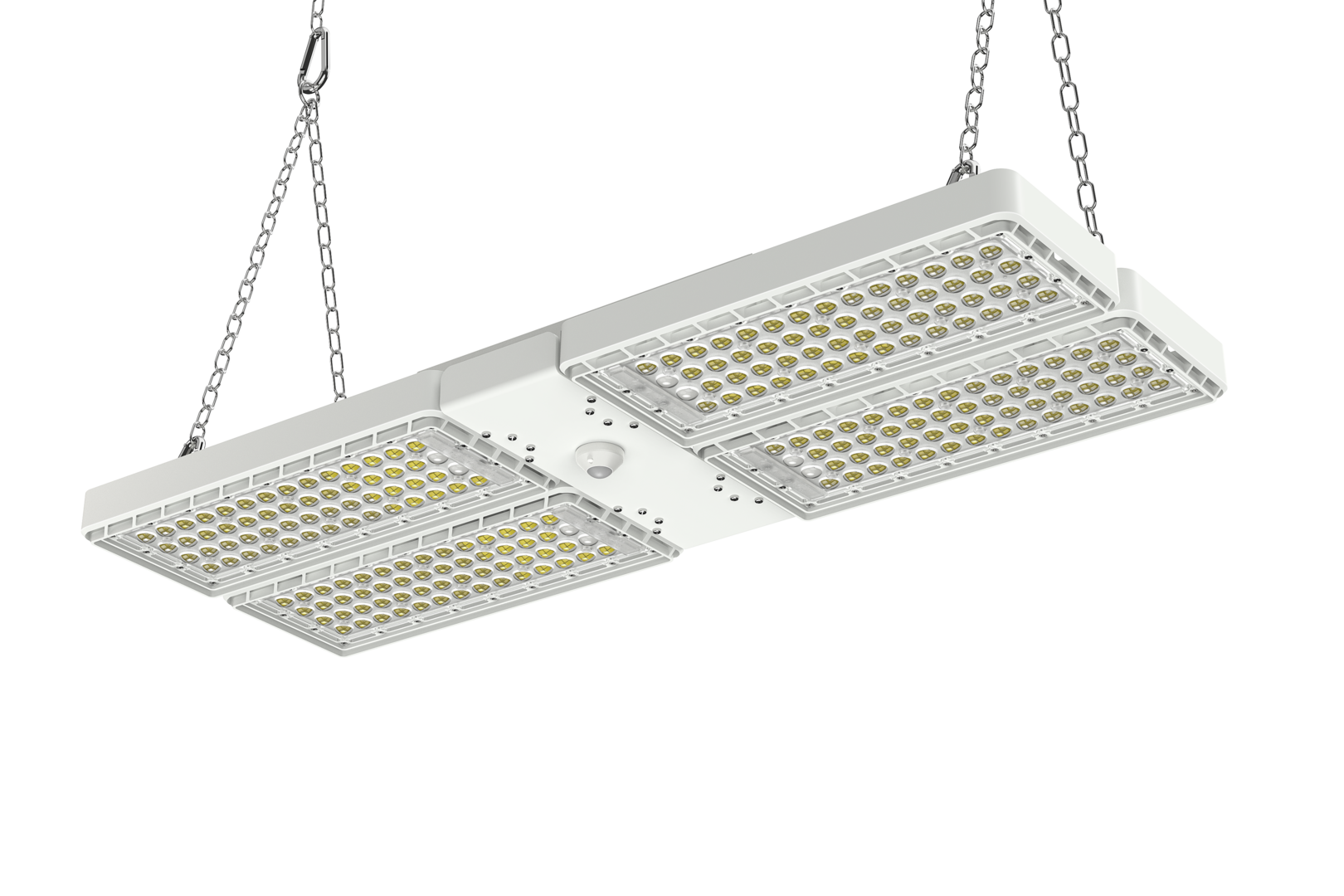

HERO2 6000

Up to 60,000 lumens luminous flux

THREE LIGHT DISTRIBUTIONS

B: wide beam | 94°
T: narrow beam | 67°
RT: oval beam for shelf applications | 30/70°

THREE LIGHT DISTRIBUTIONS

1:1 Replacement Using Existing Infrastructure

Continued use of the existing 3-pole installation
Master luminaires with integrated wireless passive infrared motion sensor or wireless receiver module enable intelligent APCON EASY BLE lighting control solutions even with 3-pole luminaire connections

Uncomplicated commissioning

Easy remote pre-configuration via a free web tool significantly reduces on-site effort
Final configuration on-site via free app
With an added gateway placed on site, the system can be accessed from anywhere via an additional web tool

Intelligent Control

Luminaires with integrated wireless passive infrared motion sensor or wireless receiver module enable intelligent APCON EASY BLE lighting control solutions even with 3-pole luminaire connections
Up to 3 additional HERO2 standard DALI version luminaires can be connected to each wireless master or slave luminaire via the DALI line
HERO2 wireless master luminaires with integrated motion sensor switch the luminaires on and off individually or in groups when motion is detected
Based on the innovative Silvair wireless mesh system according to the latest Bluetooth NLC standard

Additional Advantages

Energy monitoring, usage analysis, error reports, and remote-control options
Energy data, error messages, and status reports are displayed via the visualisation and are available for further documentation and interpretation
Compliance with legal requirements for energy savings and CO₂ reduction

THREE VERSIONS

Switchable (On/Off)

Dimmable (DALI)

csm_RIDI_Bewegung_Tageslichtsensor_3034e53dc7

Motion and daylight sensor

BALL IMPACT SAFETY

The impact-resistant housing provides reliable protection – even under extreme stress.

FLEXIBLE APPLICATION WITH ADDITIONAL ACCESSORIES

Ceiling mounting

Wall mounting

Integration into the RIDI LINIA EVO system

With the appropriate accessories, HERO2 can not only be flexibly used as an adjustable wall or ceiling luminaire but also easily integrated into the RIDI LINIA EVO lighting system.

PRODUCT SELECTOR

Product Filters

		Size (mm)	Beam Angle	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Integrated Controls	Body Colour
Image	Part Code Article Number	Size (mm)	Beam Angle	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Integrated Controls	Body Colour	Data	LDT	Polar	BIM
	HERO2NDWS840B1500 0627958	528 mm	94 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	> 25	On/Off	None	White
	HERO2NDWS865B1500 0627959	528 mm	94 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	> 25	On/Off	None	White
	HERO2NDWS840B3000 0627967	868 mm	94 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	> 25	On/Off	None	White
	HERO2NDWS865B3000 0627968	868 mm	94 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	> 25	On/Off	None	White
	HERO2NDWS840B6000 0627976	868 mm	94 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	> 25	On/Off	None	White
	HERO2NDWS865B6000 0627977	868 mm	94 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	> 25	On/Off	None	White
	HERO2DAWS840B1500 0637958	528 mm	94 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	> 25	DALI-2	None	White
	HERO2DAWS865B1500 0637959	528 mm	94 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	> 25	DALI-2	None	White
	HERO2DAWS940B1250 0637960	528 mm	94 °	wide beam	12650 lm	80.0 W	4000 K	≥ 90	158 lm/W	≤ 25	DALI-2	None	White
	HERO2DAWS840B3000 0637967	868 mm	94 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	> 25	DALI-2	None	White
	HERO2DAWS865B3000 0637968	868 mm	94 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	> 25	DALI-2	None	White
	HERO2DAWS940B2500 0637969	868 mm	94 °	wide beam	25000 lm	159.0 W	4000 K	≥ 90	157 lm/W	≤ 25	DALI-2	None	White
	HERO2DAWS840B6000 0637976	868 mm	94 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	> 25	DALI-2	None	White
	HERO2DAWS865B6000 0637977	868 mm	94 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	> 25	DALI-2	None	White
	HERO2DAWS940B5000 0637978	868 mm	94 °	wide beam	50100 lm	319.0 W	4000 K	≥ 90	157 lm/W	≤ 25	DALI-2	None	White
	HERO2DAWS840B1500-SEN 0637958//437	528 mm	94 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	> 25	DALI-2	Sensor	White
	HERO2DAWS865B1500-SEN 0637959//437	528 mm	94 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	> 25	DALI-2	Sensor	White
	HERO2DAWS940B1250-SEN 0637960//437	528 mm	94 °	wide beam	12650 lm	80.0 W	4000 K	≥ 90	158 lm/W	≤ 25	DALI-2	Sensor	White
	HERO2DAWS840B3000-SEN 0637967//437	868 mm	94 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	> 25	DALI-2	Sensor	White
	HERO2DAWS865B3000-SEN 0637968//437	868 mm	94 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	> 25	DALI-2	Sensor	White
	HERO2DAWS940B2500-SEN 0637969//437	868 mm	94 °	wide beam	25000 lm	159.0 W	4000 K	≥ 90	157 lm/W	≤ 25	DALI-2	Sensor	White
	HERO2DAWS840B6000-SEN 0637976//437	868 mm	94 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	> 25	DALI-2	Sensor	White
	HERO2DAWS865B6000-SEN 0637977//437	868 mm	94 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	> 25	DALI-2	Sensor	White
	HERO2DAWS940B5000-SEN 0637978//437	868 mm	94 °	wide beam	50100 lm	319.0 W	4000 K	≥ 90	157 lm/W	≤ 25	DALI-2	Sensor	White
	HERO2DAWS840B1500-SL 0637958//438	528 mm	94 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	> 25	DALI-2	Wireless Repeater	White
	HERO2DAWS865B1500-SL 0637959//438	528 mm	94 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	> 25	DALI-2	Wireless Repeater	White
	HERO2DAWS940B1250-SL 0637960//438	528 mm	94 °	wide beam	12650 lm	80.0 W	4000 K	≥ 90	158 lm/W	≤ 25	DALI-2	Wireless Repeater	White
	HERO2DAWS840B3000-SL 0637967//438	868 mm	94 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	> 25	DALI-2	Wireless Repeater	White
	HERO2DAWS865B3000-SL 0637968//438	868 mm	94 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	> 25	DALI-2	Wireless Repeater	White
	HERO2DAWS940B2500-SL 0637969//438	868 mm	94 °	wide beam	25000 lm	159.0 W	4000 K	≥ 90	157 lm/W	≤ 25	DALI-2	Wireless Repeater	White
	HERO2DAWS840B6000-SL 0637976//438	868 mm	94 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	> 25	DALI-2	Wireless Repeater	White
	HERO2DAWS865B6000-SL 0637977//438	868 mm	94 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	> 25	DALI-2	Wireless Repeater	White
	HERO2DAWS940B5000-SL 0637978//438	868 mm	94 °	wide beam	50100 lm	319.0 W	4000 K	≥ 90	157 lm/W	≤ 25	DALI-2	Wireless Repeater	White
	HERO2NDWS840T1500 0627961	528 mm	67 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	≤ 22	On/Off	None	White
	HERO2NDWS865T1500 0627962	528 mm	67 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	≤ 22	On/Off	None	White
	HERO2NDWS840T3000 0627970	868 mm	67 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	≤ 22	On/Off	None	White
	HERO2NDWS865T3000 0627971	868 mm	67 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	≤ 22	On/Off	None	White
	HERO2NDWS840T6000 0627979	868 mm	67 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	≤ 22	On/Off	None	White
	HERO2NDWS865T6000 0627980	868 mm	67 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	≤ 22	On/Off	None	White
	HERO2DAWS840T1500 0637961	528 mm	67 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS865T1500 0637962	528 mm	67 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS940T1250 0637963	528 mm	67 °	wide beam	12650 lm	80.0 W	4000 K	≥ 90	158 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS840T3000 0637970	868 mm	67 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS865T3000 0637971	868 mm	67 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS940T2500 0637972	868 mm	67 °	wide beam	25000 lm	159.0 W	4000 K	≥ 90	157 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS840T6000 0637979	868 mm	67 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS865T6000 0637980	868 mm	67 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS940T5000 0637981	868 mm	67 °	wide beam	50100 lm	319.0 W	4000 K	≥ 90	157 lm/W	≤ 22	DALI-2	None	White
	HERO2DAWS840T1500-SEN 0637961//437	528 mm	67 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS865T1500-SEN 0637962//437	528 mm	67 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS940T1250-SEN 0637963//437	528 mm	67 °	wide beam	12650 lm	80.0 W	4000 K	≥ 90	158 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS840T3000-SEN 0637970//437	868 mm	67 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS865T3000-SEN 0637971//437	868 mm	67 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS940T2500-SEN 0637972//437	868 mm	67 °	wide beam	25000 lm	159.0 W	4000 K	≥ 90	157 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS840T6000-SEN 0637979//437	868 mm	67 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS865T6000-SEN 0637980//437	868 mm	67 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS940T5000-SEN 0637981//437	868 mm	67 °	wide beam	50100 lm	319.0 W	4000 K	≥ 90	157 lm/W	≤ 22	DALI-2	Sensor	White
	HERO2DAWS840T1500-SL 0637961//438	528 mm	67 °	wide beam	14540 lm	80.0 W	4000 K	≥ 80	182 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS865T1500-SL 0637962//438	528 mm	67 °	wide beam	14540 lm	80.0 W	6500 K	≥ 80	182 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS940T1250-SL 0637963//438	528 mm	67 °	wide beam	12650 lm	80.0 W	4000 K	≥ 90	158 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS840T3000-SL 0637970//438	868 mm	67 °	wide beam	28730 lm	159.0 W	4000 K	≥ 80	181 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS865T3000-SL 0637971//438	868 mm	67 °	wide beam	28730 lm	159.0 W	6500 K	≥ 80	181 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS940T2500-SL 0637972//438	868 mm	67 °	wide beam	25000 lm	159.0 W	4000 K	≥ 90	157 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS840T6000-SL 0637979//438	868 mm	67 °	wide beam	57580 lm	319.0 W	4000 K	≥ 80	181 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS865T6000-SL 0637980//438	868 mm	67 °	wide beam	57580 lm	319.0 W	6500 K	≥ 80	181 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2DAWS940T5000-SL 0637981//438	868 mm	67 °	wide beam	50100 lm	319.0 W	4000 K	≥ 90	157 lm/W	≤ 22	DALI-2	Wireless Repeater	White
	HERO2NDWS840RT1500 0627964			wide beam					0 lm/W		On/Off	None	White
	HERO2NDWS865RT1500 0627965			wide beam					0 lm/W		On/Off	None	White
	HERO2NDWS840RT3000 0627973			wide beam					0 lm/W		On/Off	None	White
	HERO2NDWS865RT3000 0627974			wide beam					0 lm/W		On/Off	None	White
	HERO2NDWS840RT6000 0627982			wide beam					0 lm/W		On/Off	None	White
	HERO2NDWS865RT6000 0627983			wide beam					0 lm/W		On/Off	None	White
	HERO2DAWS840RT1500 0637964			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS865RT1500 0637965			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS940RT1500 0637966			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS840RT3000 0637973			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS865RT3000 0637974			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS940RT3000 0637975			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS840RT6000 0637982			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS865RT6000 0637983			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS940RT6000 0637984			wide beam					0 lm/W		DALI-2	None	White
	HERO2DAWS840RT1500-SEN 0637964//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS865RT1500-SEN 0637965//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS940RT1500-SEN 0637966//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS840RT3000-SEN 0637973//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS865RT3000-SEN 0637974//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS940RT3000-SEN 0637975//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS840RT6000-SEN 0637982//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS865RT6000-SEN 0637983//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS940RT6000-SEN 0637984//437			wide beam					0 lm/W		DALI-2	Sensor	White
	HERO2DAWS840RT1500-SL 0637964//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS865RT1500-SL 0637965//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS940RT1500-SL 0637966//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS840RT3000-SL 0637973//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS865RT3000-SL 0637974//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS940RT3000-SL 0637975//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS840RT6000-SL 0637982//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS865RT6000-SL 0637983//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
	HERO2DAWS940RT6000-SL 0637984//438			wide beam					0 lm/W		DALI-2	Wireless Repeater	White
