IHLS

Product Filters

		Length (mm)	Mounting	Beam Angle	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type
Image	Part Code Article Number	Length (mm)	Mounting	Beam Angle	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Data	LDT	Polar	BIM
	IHLS-L 154/410-840 SB 0650077	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	3860 lm	4000 K	≥ 80	114 lm/W	≤ 22	On/Off

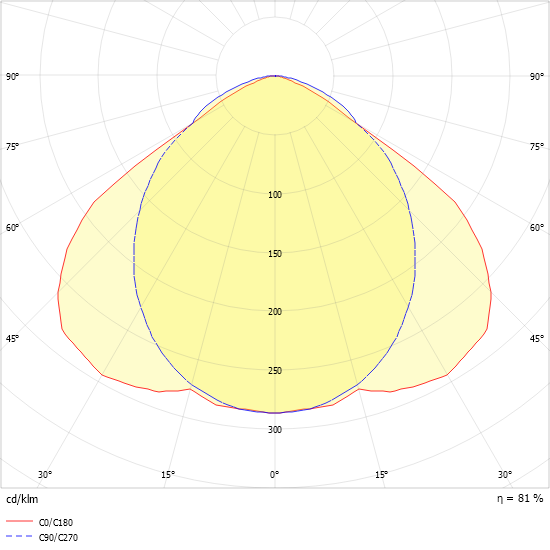

	IHLS-L 180/620-840 SB 0650078	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	5460 lm	4000 K	≥ 80	114 lm/W	≤ 22	On/Off
	IHLS-L 254/820-840 SB 0650079	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	7720 lm	4000 K	≥ 80	114 lm/W	≤ 25	On/Off
	IHLS-L 280/1240-840 SB 0650080	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	10910 lm	4000 K	≥ 80	114 lm/W	≤ 25	On/Off
	IHLS-L 324/570-840 SB 0650081	600 mm	Surface; Pendant	113.55 °	extremely wide beam	4990 lm	4000 K	≥ 80	111 lm/W	≤ 22	On/Off
	IHLS-L 354/1230-840 SB 0650082	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	11570 lm	4000 K	≥ 80	113 lm/W	≤ 25	On/Off
	IHLS-L 380/1860-840 SB 0650083	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	16370 lm	4000 K	≥ 80	114 lm/W	≤ 25	On/Off
	IHLS-L 424/760-840 SB 0650084	600 mm	Surface; Pendant	113.55 °	extremely wide beam	6650 lm	4000 K	≥ 80	111 lm/W	≤ 22	On/Off
	IHLS-L 454/1640-840 SB 0650085	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	15430 lm	4000 K	≥ 80	113 lm/W	≤ 25	On/Off
	IHLS-L 180/935-840 SB 0650598	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	7570 lm	4000 K	≥ 80	110 lm/W	≤ 25	On/Off
	IHLS-L 280/1870-840 SB 0650599	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	15150 lm	4000 K	≥ 80	110 lm/W	≤ 25	On/Off
	IHLS-L 380/2520-840 SB 0650600	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	20430 lm	4000 K	≥ 80	112 lm/W	≤ 25	On/Off
	IHLS-L 480/3360-840 SB 0650601	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	27240 lm	4000 K	≥ 80	112 lm/W	≤ 25	On/Off
	IHLS-L 154/410-840 SB-DA 0660077	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	3860 lm	4000 K	≥ 80	114 lm/W	≤ 22	DALI
	IHLS-L 180/620-840 SB-DA 0660078	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	5460 lm	4000 K	≥ 80	114 lm/W	≤ 22	DALI
	IHLS-L 254/820-840 SB-DA 0660079	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	7720 lm	4000 K	≥ 80	114 lm/W	≤ 25	DALI
	IHLS-L 280/1240-840 SB-DA 0660080	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	10910 lm	4000 K	≥ 80	114 lm/W	≤ 25	DALI

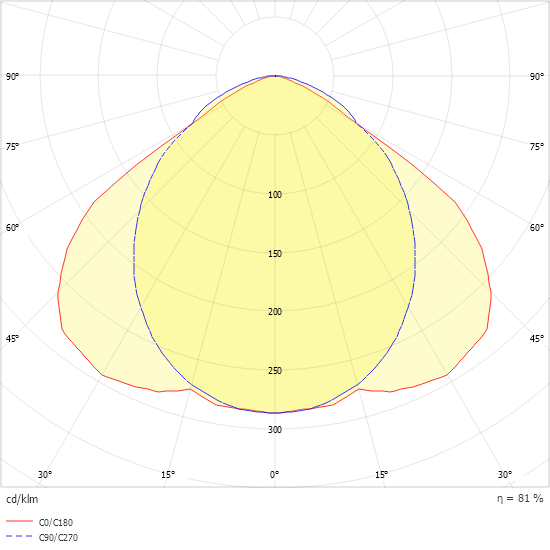

	IHLS-L 324/570-840 SB-DA 0660081	600 mm	Surface; Pendant	113.55 °	extremely wide beam	4990 lm	4000 K	≥ 80	111 lm/W	≤ 22	DALI
	IHLS-L 354/1230-840 SB-DA 0660082	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	11570 lm	4000 K	≥ 80	113 lm/W	≤ 25	DALI
	IHLS-L 380/1860-840 SB-DA 0660083	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	16370 lm	4000 K	≥ 80	114 lm/W	≤ 25	DALI
	IHLS-L 424/760-840 SB-DA 0660084	600 mm	Surface; Pendant	113.55 °	extremely wide beam	6650 lm	4000 K	≥ 80	111 lm/W	≤ 22	DALI
	IHLS-L 454/1640-840 SB-DA 0660085	1200 mm	Surface; Pendant	113.55 °	extremely wide beam	15430 lm	4000 K	≥ 80	113 lm/W	≤ 25	DALI
	IHLS-L 480/2480-840 SB-DA 0660086	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	21820 lm	4000 K	≥ 80	114 lm/W	≤ 25	DALI
	IHLS-L 180/935-840 SB-DA 0660598	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	7570 lm	4000 K	≥ 80	110 lm/W	≤ 25	DALI
	IHLS-L 280/1870-840 SB-DA 0660599	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	15150 lm	4000 K	≥ 80	110 lm/W	≤ 25	DALI
	IHLS-L 380/2520-840 SB-DA 0660600	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	20430 lm	4000 K	≥ 80	112 lm/W	≤ 25	DALI
	IHLS-L 480/3360-840 SB-DA 0660601	1500 mm	Surface; Pendant	113.55 °	extremely wide beam	27240 lm	4000 K	≥ 80	112 lm/W	≤ 25	DALI
	IHLS-L 154/410-840 SM 0650553	1200 mm	Surface; Pendant	114.50 °	extremely wide beam	4430 lm	4000 K	≥ 80	130 lm/W	≤ 22	On/Off

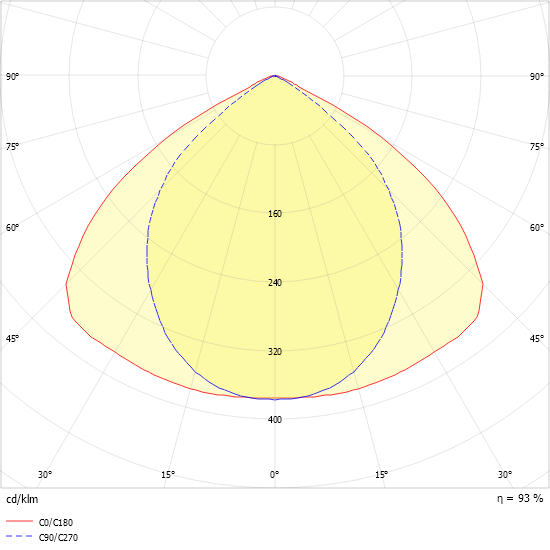

	IHLS-L 180/620-840 SM 0650554	1500 mm	Surface; Pendant	114.50 °	extremely wide beam	6260 lm	4000 K	≥ 80	130 lm/W	≤ 22	On/Off
	IHLS-L 254/820-840 SM 0650555	1200 mm	Surface; Pendant	94.56 °	extremely wide beam	8230 lm	4000 K	≥ 80	121 lm/W	≤ 22	On/Off
	IHLS-L 280/1240-840 SM 0650556	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	11640 lm	4000 K	≥ 80	121 lm/W	≤ 22	On/Off
	IHLS-L 324/570-840 SM 0650557	600 mm	Surface; Pendant	94.56 °	extremely wide beam	5320 lm	4000 K	≥ 80	118 lm/W	≤ 19	On/Off
	IHLS-L 354/1230-840 SM 0650558	1200 mm	Surface; Pendant	94.56 °	extremely wide beam	12350 lm	4000 K	≥ 80	121 lm/W	≤ 22	On/Off
	IHLS-L 380/1860-840 SM 0650559	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	17460 lm	4000 K	≥ 80	121 lm/W	≤ 22	On/Off

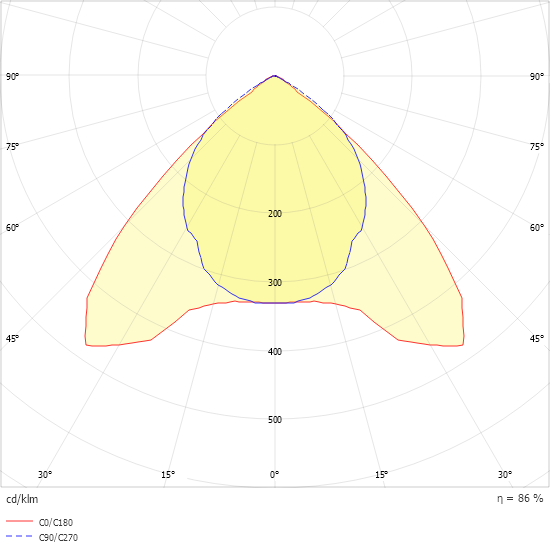

	IHLS-L 424/760-840 SM 0650560	600 mm	Surface; Pendant	94.56 °	extremely wide beam	7100 lm	4000 K	≥ 80	118 lm/W	≤ 19	On/Off
	IHLS-L 454/1640-840 SM 0650561	1200 mm	Surface; Pendant	94.56 °	extremely wide beam	16460 lm	4000 K	≥ 80	121 lm/W	≤ 22	On/Off

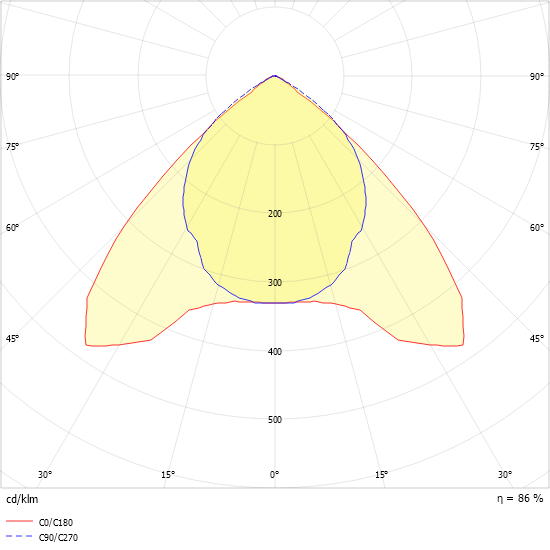

	IHLS-L 480/2480-840 SM 0650562	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	23280 lm	4000 K	≥ 80	121 lm/W	≤ 22	On/Off
	IHLS-L 180/935-840 SM 0650606	1500 mm	Surface; Pendant	114.50 °	extremely wide beam	8690 lm	4000 K	≥ 80	126 lm/W	≤ 22	On/Off
	IHLS-L 280/1870-840 SM 0650607	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	16160 lm	4000 K	≥ 80	117 lm/W	≤ 22	On/Off
	IHLS-L 380/2520-840 SM 0650608	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	21800 lm	4000 K	≥ 80	119 lm/W	≤ 22	On/Off
	IHLS-L 480/3360-840 SM 0650609	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	29070 lm	4000 K	≥ 80	119 lm/W	≤ 22	On/Off

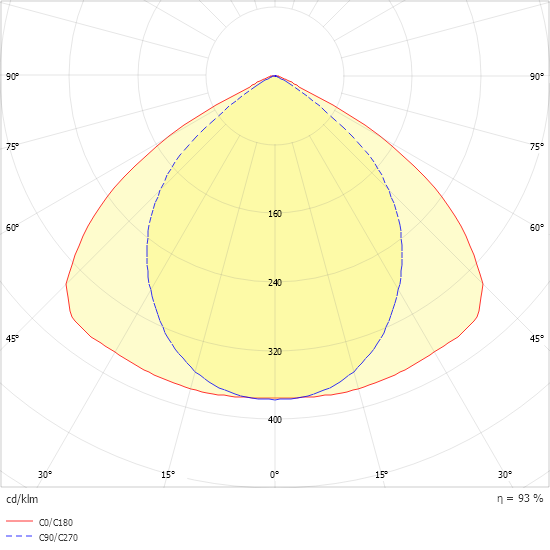

	IHLS-L 154/410-840 SM-DA 0660553	1200 mm	Surface; Pendant	114.50 °	extremely wide beam	4420 lm	4000 K	≥ 80	130 lm/W	≤ 22	DALI
	IHLS-L 180/620-840 SM-DA 0660554	1500 mm	Surface; Pendant	114.50 °	extremely wide beam	6260 lm	4000 K	≥ 80	130 lm/W	≤ 22	DALI
	IHLS-L 254/820-840 SM-DA 0660555	1200 mm	Surface; Pendant	94.56 °	extremely wide beam	8230 lm	4000 K	≥ 80	121 lm/W	≤ 22	DALI
	IHLS-L 280/1240-840 SM-DA 0660556	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	11640 lm	4000 K	≥ 80	121 lm/W	≤ 22	DALI
	IHLS-L 324/570-840 SM-DA 0660557	600 mm	Surface; Pendant	94.56 °	extremely wide beam	5320 lm	4000 K	≥ 80	118 lm/W	≤ 19	DALI
	IHLS-L 354/1230-840 SM-DA 0660558	1200 mm	Surface; Pendant	94.56 °	extremely wide beam	12350 lm	4000 K	≥ 80	121 lm/W	≤ 22	DALI
	IHLS-L 380/1860-840 SM-DA 0660559	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	17460 lm	4000 K	≥ 80	121 lm/W	≤ 22	DALI
	IHLS-L 424/760-840 SM-DA 0660560	600 mm	Surface; Pendant	94.56 °	extremely wide beam	7100 lm	4000 K	≥ 80	118 lm/W	≤ 19	DALI
	IHLS-L 454/1640-840 SM-DA 0660561	1200 mm	Surface; Pendant	94.56 °	extremely wide beam	16460 lm	4000 K	≥ 80	121 lm/W	≤ 22	DALI
	IHLS-L 480/2480-840 SM-DA 0660562	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	23280 lm	4000 K	≥ 80	121 lm/W	≤ 22	DALI
	IHLS-L 180/935-840 SM-DA 0660606	1500 mm	Surface; Pendant	114.50 °	extremely wide beam	8690 lm	4000 K	≥ 80	126 lm/W	≤ 22	DALI
	IHLS-L 280/1870-840 SM-DA 0660607	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	16160 lm	4000 K	≥ 80	117 lm/W	≤ 22	DALI
	IHLS-L 380/2520-840 SM-DA 0660608	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	21800 lm	4000 K	≥ 80	119 lm/W	≤ 22	DALI
	IHLS-L 480/3360-840 SM-DA 0660609	1500 mm	Surface; Pendant	94.56 °	extremely wide beam	29070 lm	4000 K	≥ 80	119 lm/W	≤ 22	DALI
	IHLS-L 154/410-840 OS 0650087	1200 mm	Surface; Pendant	88.61 °	wide beam	2930 lm	4000 K	≥ 80	86 lm/W	≤ 22	On/Off
	IHLS-L 180/620-840 OS 0650088	1500 mm	Surface; Pendant	88.61 °	wide beam	4140 lm	4000 K	≥ 80	86 lm/W	≤ 22	On/Off
	IHLS-L 254/820-840 OS 0650089	1200 mm	Surface; Pendant	99.62 °	extremely wide beam	7380 lm	4000 K	≥ 80	109 lm/W	≤ 25	On/Off
	IHLS-L 280/1240-840 OS 0650090	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	10440 lm	4000 K	≥ 80	109 lm/W	≤ 25	On/Off
	IHLS-L 324/570-840 OS 0650091	600 mm	Surface; Pendant	99.62 °	extremely wide beam	4770 lm	4000 K	≥ 80	106 lm/W	≤ 22	On/Off
	IHLS-L 354/1230-840 OS 0650092	1200 mm	Surface; Pendant	99.62 °	extremely wide beam	11070 lm	4000 K	≥ 80	109 lm/W	≤ 25	On/Off
	IHLS-L 380/1860-840 OS 0650093	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	15660 lm	4000 K	≥ 80	109 lm/W	≤ 25	On/Off
	IHLS-L 424/760-840 OS 0650094	600 mm	Surface; Pendant	99.62 °	extremely wide beam	6360 lm	4000 K	≥ 80	106 lm/W	≤ 22	On/Off
	IHLS-L 454/1640-840 OS 0650095	1200 mm	Surface; Pendant	99.62 °	extremely wide beam	14760 lm	4000 K	≥ 80	109 lm/W	≤ 25	On/Off
	IHLS-L 480/2480-840 OS 0650096	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	20870 lm	4000 K	≥ 80	109 lm/W	≤ 25	On/Off

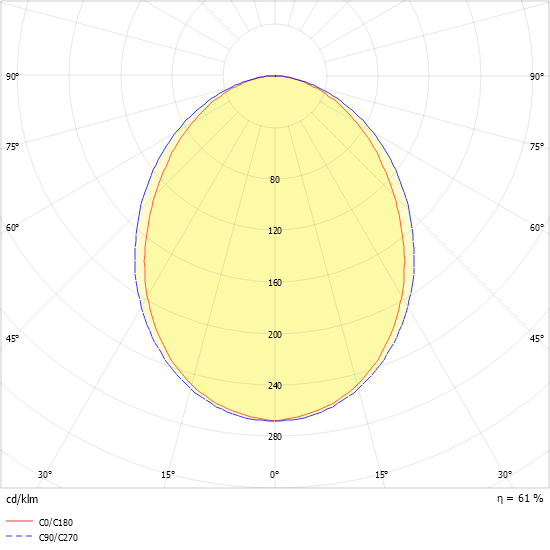

	IHLS-L 180/935-840 OS 0650594	1500 mm	Surface; Pendant	88.61 °	wide beam	5750 lm	4000 K	≥ 80	83 lm/W	≤ 25	On/Off
	IHLS-L 280/1870-840 OS 0650595	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	14490 lm	4000 K	≥ 80	105 lm/W	≤ 25	On/Off
	IHLS-L 380/2520-840 OS 0650596	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	19550 lm	4000 K	≥ 80	107 lm/W	≤ 25	On/Off
	IHLS-L 480/3360-840 OS 0650597	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	26060 lm	4000 K	≥ 80	107 lm/W	≤ 25	On/Off
	IHLS-L 154/410-840 OS-DA 0660087	1200 mm	Surface; Pendant	88.61 °	wide beam	2930 lm	4000 K	≥ 80	86 lm/W	≤ 22	DALI
	IHLS-L 180/620-840 OS-DA 0660088	1500 mm	Surface; Pendant	88.61 °	wide beam	4140 lm	4000 K	≥ 80	86 lm/W	≤ 22	DALI

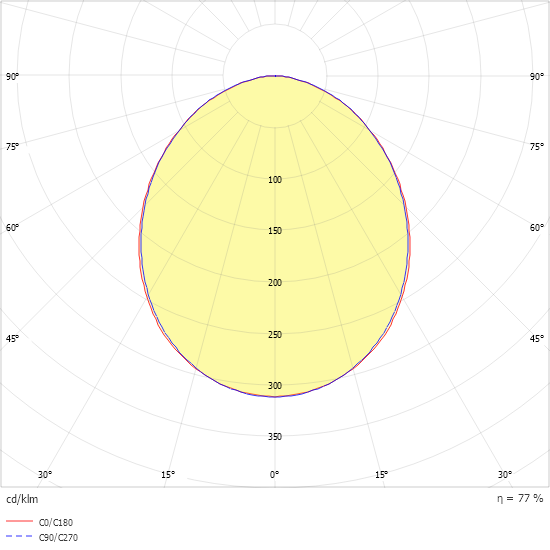

	IHLS-L 254/820-840 OS-DA 0660089	1200 mm	Surface; Pendant	99.62 °	extremely wide beam	7380 lm	4000 K	≥ 80	109 lm/W	≤ 25	DALI
	IHLS-L 280/1240-840 OS-DA 0660090	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	10440 lm	4000 K	≥ 80	109 lm/W	≤ 25	DALI
	IHLS-L 324/570-840 OS-DA 0660091	600 mm	Surface; Pendant	99.62 °	extremely wide beam	4770 lm	4000 K	≥ 80	106 lm/W	≤ 22	DALI
	IHLS-L 354/1230-840 OS-DA 0660092	1200 mm	Surface; Pendant	99.62 °	extremely wide beam	11070 lm	4000 K	≥ 80	109 lm/W	≤ 25	DALI
	IHLS-L 380/1860-840 OS-DA 0660093	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	15660 lm	4000 K	≥ 80	109 lm/W	≤ 25	DALI
	IHLS-L 424/760-840 OS-DA 0660094	600 mm	Surface; Pendant	99.62 °	extremely wide beam	6360 lm	4000 K	≥ 80	106 lm/W	≤ 22	DALI
	IHLS-L 454/1640-840 OS-DA 0660095	1200 mm	Surface; Pendant	99.62 °	extremely wide beam	14760 lm	4000 K	≥ 80	109 lm/W	≤ 25	DALI
	IHLS-L 480/2480-840 OS-DA 0660096	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	20870 lm	4000 K	≥ 80	109 lm/W	≤ 25	DALI
	IHLS-L 180/935-840 OS-DA 0660594	1500 mm	Surface; Pendant	88.61 °	wide beam	5750 lm	4000 K	≥ 80	83 lm/W	≤ 25	DALI
	IHLS-L 280/1870-840 OS-DA 0660595	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	14490 lm	4000 K	≥ 80	105 lm/W	≤ 25	DALI

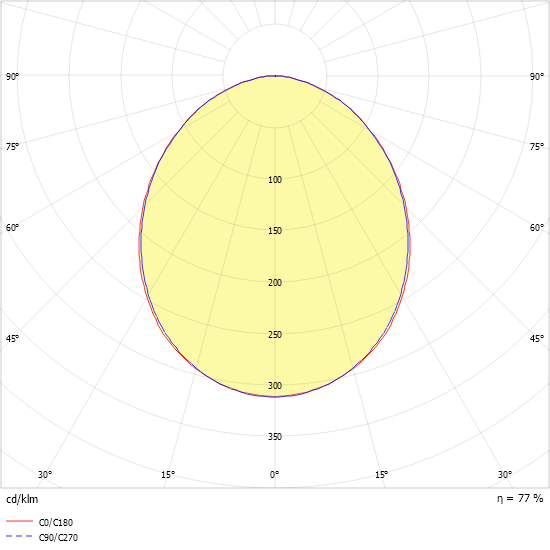

	IHLS-L 380/2520-840 OS-DA 0660596	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	19550 lm	4000 K	≥ 80	107 lm/W	≤ 25	DALI
	IHLS-L 480/3360-840 OS-DA 0660597	1500 mm	Surface; Pendant	99.62 °	extremely wide beam	26060 lm	4000 K	≥ 80	107 lm/W	≤ 25	DALI
