IPPY

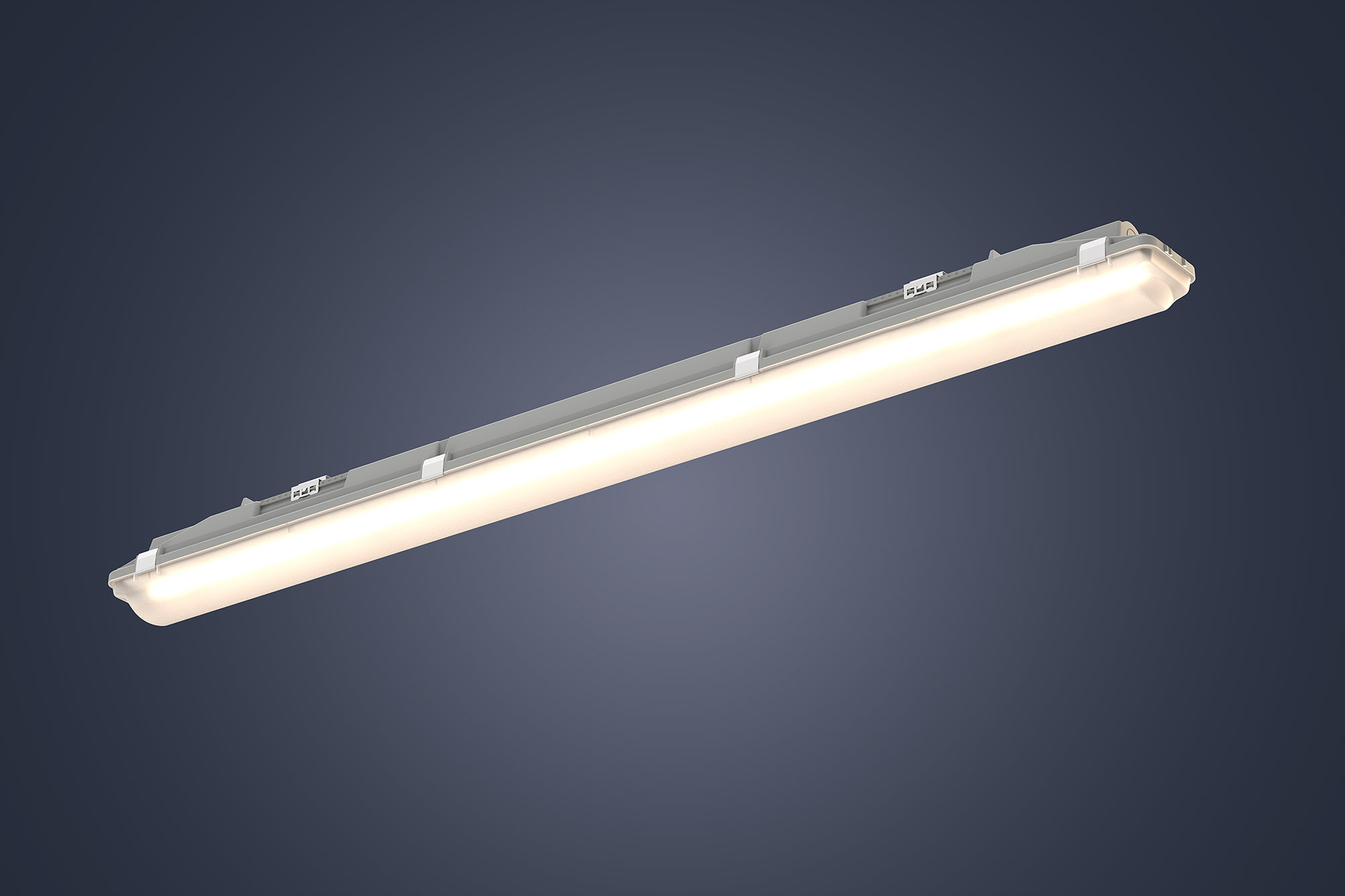

RIDI_IPPY_Single

Protection Class IP65

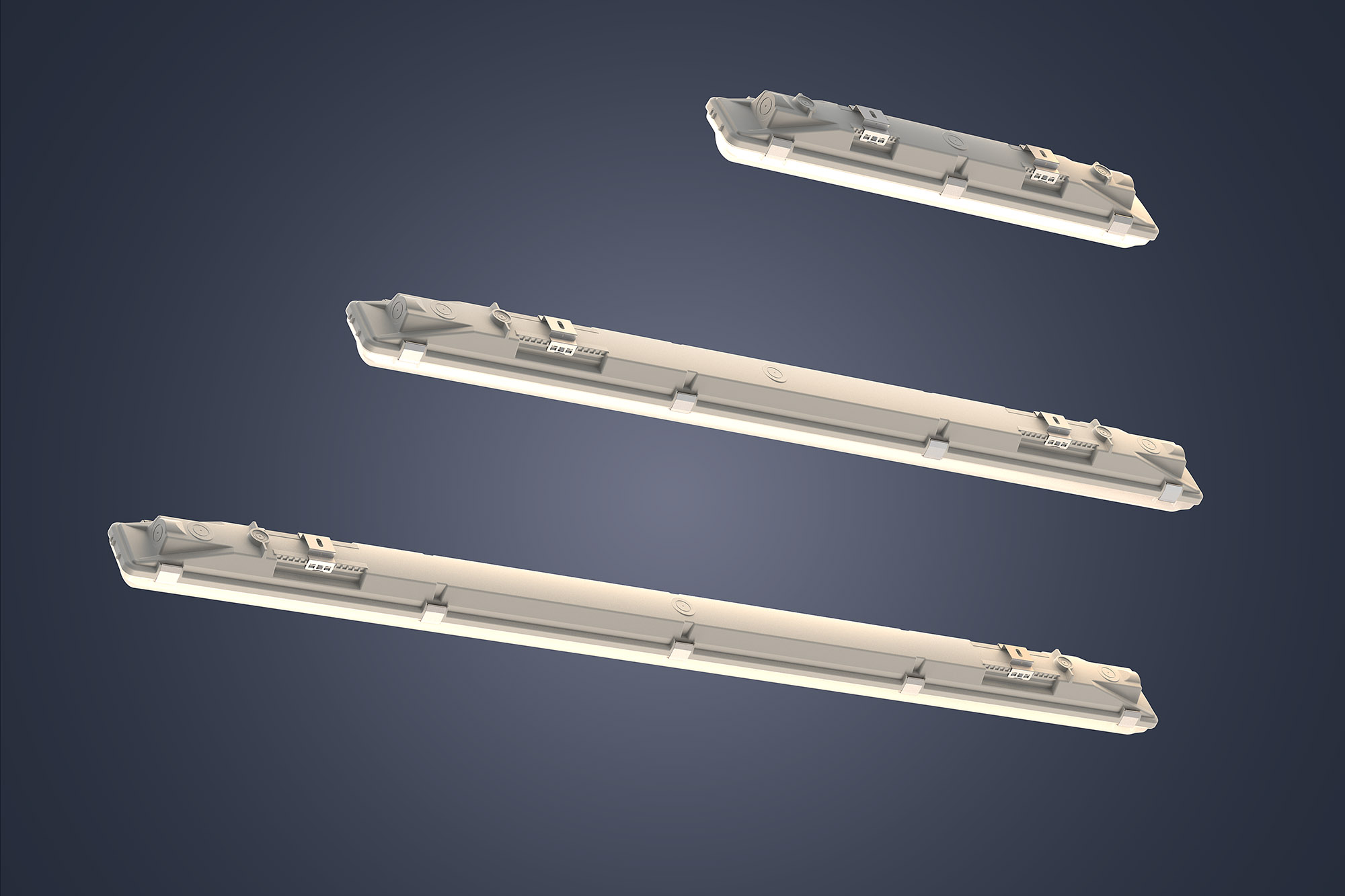

RIDI_IPPY_Laengen

Three Sizes

Image	Part No.	Description
No Image	ZWV-V2A-IPPY1200-8 0211763	Stainless steel V2A tub closure (8 pieces), including plugs and ceiling mounting brackets for IPPY1200
No Image	ZWV-V2A-IPPY1500-10 0211764	Stainless steel V2A tub closure (10 pieces), including plugs and ceiling mounting brackets for IPPY1500
No Image	ZWV-V2A-IPPY0605-6 0211762	Stainless steel V2A tub seal (6 pieces), including plugs and ceiling mounting brackets for IPPY605
No Image	ZPS-B IPPY 0211760	Bracket for pendant fixing IPPY, 2 pieces
No Image	ZKS-F IPPY 0211761	Bracket for vertical mounting IPPY, 2 pieces
No Image	ZIDV-IPPY1200/3/2,5 0209635	Internal through wiring, 3x 2.5 mm², for IPPY1200
No Image	ZIDV-IPPY1500/3/2,5 0209636	Internal through wiring, 3x 2.5 mm², for IPPY1500
No Image	ZIDV-IPPY1200/5/2,5 0209633	Internal through wiring, 5x 2.5 mm², for IPPY1200
No Image	ZIDV-IPPY1500/5/2,5 0209634	Internal through wiring, 5x 2.5 mm², for IPPY1500
No Image	ZNAPGV-P IPPY 0211765	Mains connection with PG screw connection
No Image	ZDAE-IPPY 0211766	Pressure equalisation element < 0°C, 1 piece
No Image	WIPPY0605-PC 0211767	Replacement diffuser for IPPY0605 made of PC, 1 piece
No Image	WIPPY1200-PC 0211768	Replacement diffuser for IPPY1200 made of PC, 1 piece
No Image	WIPPY1500-PC 0211769	Replacement diffuser for IPPY1500 made of PC, 1 piece

Product Filters

		Length (mm)	Beam Angle	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	Driver Type	IP rating	IK Rating	Temp Range
Image	Part Code Article Number	Length (mm)	Beam Angle	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	Driver Type	IP rating	IK Rating	Temp Range	Data	LDT	Polar	BIM
	IPPY1500FLKG840O0850 0921278	1477 mm	92 °	8500 lm	53.0 W	4000 K	≥ 80	160 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1500FLKG865O0850 0921281	1477 mm	92 °	8500 lm	53.0 W	6500 K	≥ 80	160 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1200FLKG840O0700 0921284	1186 mm	123 °	7000 lm	44.0 W	4000 K	≥ 80	159 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1200FLKG865O0700 0921286	1186 mm	123 °	7000 lm	44.0 W	6500 K	≥ 80	159 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1500DAKG840O0850 0931278	1477 mm	92 °	8500 lm	53.0 W	4000 K	≥ 80	160 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1500DAKG865O0850 0931281	1477 mm	92 °	8500 lm	53.0 W	6500 K	≥ 80	160 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1200DAKG840O0700 0931284	1186 mm	123 °	7000 lm	44.0 W	4000 K	≥ 80	159 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1200DAKG865O0700 0931286	1186 mm	123 °	7000 lm	44.0 W	6500 K	≥ 80	159 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1500FLKG840O0850-EDS3 0921279	1477 mm	92 °	8500 lm	53.0 W	4000 K	≥ 80	160 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1500FLKG865O0850-EDS3 0921282	1477 mm	92 °	8500 lm	53.0 W	6500 K	≥ 80	160 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1200FLKG840O0700-EDS3 0921285	1186 mm	123 °	7000 lm	44.0 W	4000 K	≥ 80	159 lm/W	xFlex	IP66	IK08	-20 - 35 °C
	IPPY1500DAKG840O0850-EDS3 0931279	1477 mm	92 °	8540 lm	53.0 W	4000 K	≥ 80	161 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1500DAKG865O0850-EDS3 0931282	1477 mm	92 °	8540 lm	53.0 W	6500 K	≥ 80	161 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1200DAKG840O0700-EDS3 0931285	1186 mm	123 °	7000 lm	44.0 W	4000 K	≥ 80	159 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1200DAKG865O0700-EDS3 0931287	1186 mm	123 °	7000 lm	44.0 W	6500 K	≥ 80	159 lm/W	DALI-2	IP66	IK08	-20 - 35 °C
	IPPY1200FLKG865O0700-EDS3 0921287	1186 mm	123 °	7000 lm	44.0 W	6500 K	≥ 80	159 lm/W	xFlex	IP66	IK08	-20 - 35 °C
