LBK

LIGHT. BUILDING. KIT

LBK is the most compact luminaire in its class. It offers performance and intelligent light distribution usually associated with much larger luminaires. Despite being only 25mm wide and 50mm high, the LBK houses the power supply an electrical terminus within the housing. Many LED luminaires direct the light forward only but LBK features a cleverly designed reeded linear prism optic where light is directed forwards and also onto the surrounding surface. Its versatility is therefore assured.

CONSTRUCTS

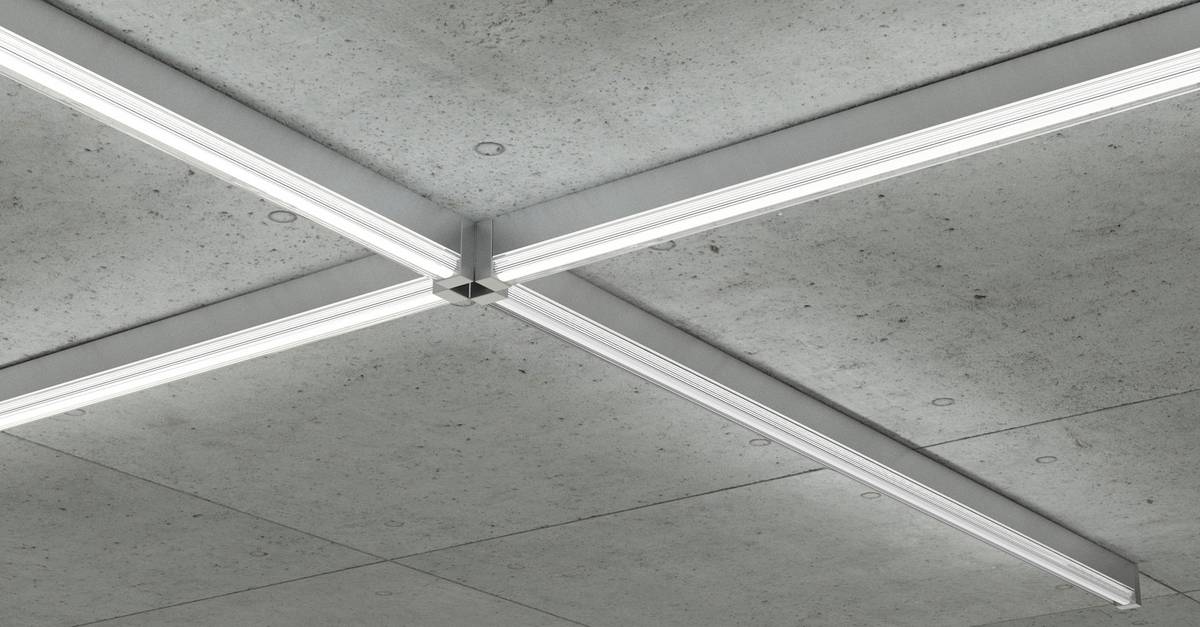

Innovative and dynamic constructions can be built with LBK whether as an elegant individual fitting or by using corner connectors you can generate unique and creative designs. Create squares, rectangles, zig zags, complex molecular shapes. Use the Light Building Kit to fuel your creativity.
The square construction in the illustration uses 4 standards of the lengths (573, 873, 1173 and 1473mm) and connected via a linear and 90° connector.

DIFFUSE OR RADIAL

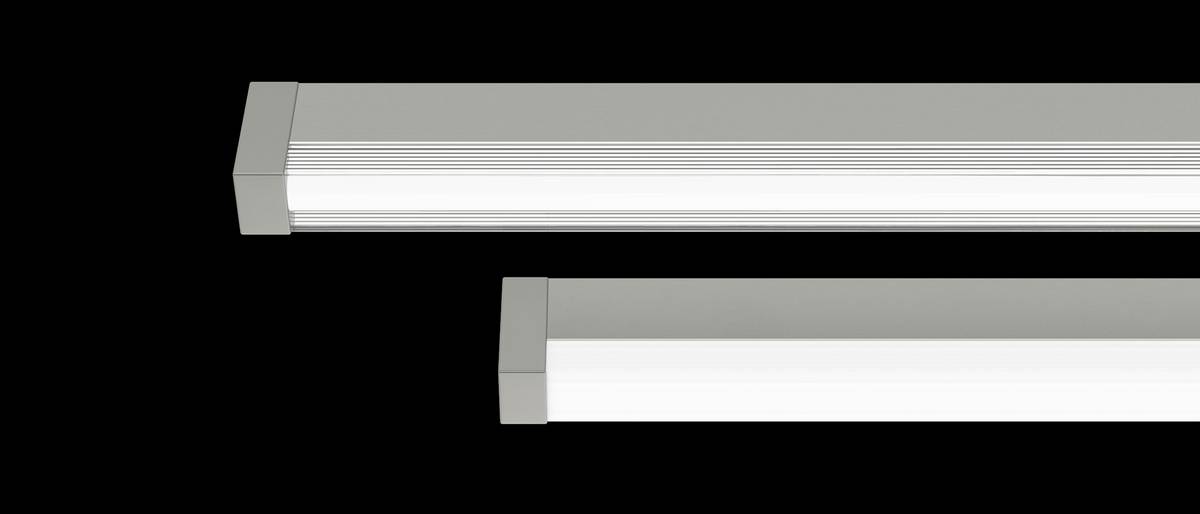

How do you want your light? If diffuse light is required, an opal PMMA cover can be specified. However, if a more radial light where light falls on the surface surrounding the LBK then a transparent and internal reeded diffuser optic can be used.

BORN IN 1993

LBK was conceived as a T5 fluorescent luminaire in 1993. It has won Red Dot and IF Design awards. Spectral proudly developed the new LED version to be exactly the same size as its fluorescent predecessor, and deliberately mirrors the same fixing dimensions opening up many refurbishment opportunities. Its diminutive size and light performance has always remained LBK’s forte.

Product Selection

Product Filters

		Length (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour

Image	Part Code Article Number	Length (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	LBK 0573DANE-0225K840 SPZ0000061AF	573 mm	2050 lm	4000 K	≥ 80	121 lm/W	> 25	DALI-2	Silver

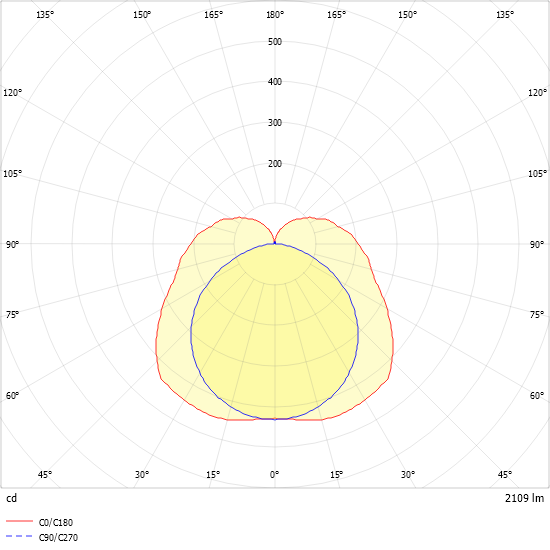

	LBK 0573DAFWS-0225K840 SPZ0000061AH	573 mm	2110 lm	4000 K	≥ 80	124 lm/W	> 25	DALI-2	White
	LBK 0573DAFSW-0225K840 SPZ0000061AQ	573 mm	2010 lm	4000 K	≥ 80	118 lm/W	> 25	DALI-2	Black

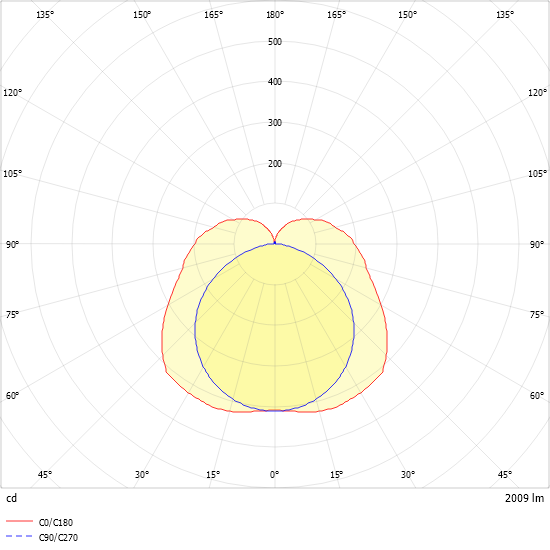

	LBK 0573DASEG-0225K840 SPZ0000061BN	573 mm	2010 lm	4000 K	≥ 80	118 lm/W	> 25	DALI-2	Black

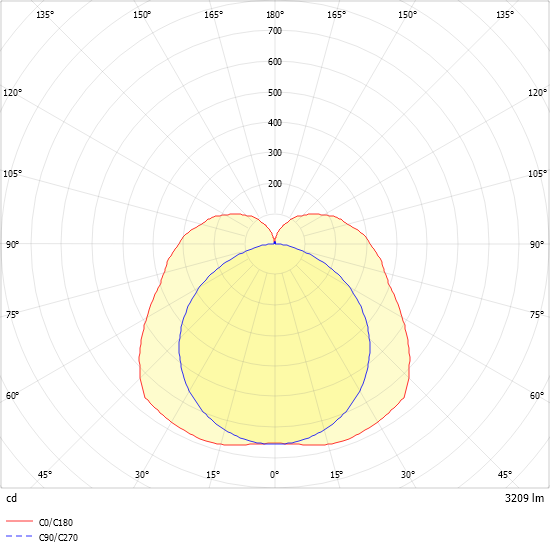

	LBK 0873NDNE-0350K840 SPZ0000066AF	873 mm	3210 lm	4000 K	≥ 80	128 lm/W	> 25	On/Off	Silver
	LBK 0873NDFSW-0350K840 SPZ0000066AQ	873 mm	3150 lm	4000 K	≥ 80	126 lm/W	> 25	On/Off	Black
	LBK 0873DANE-0350K840 SPZ0000067AF	873 mm	3210 lm	4000 K	≥ 80	128 lm/W	> 25	DALI-2	Silver
	LBK 0873DAFSW-0350K840 SPZ0000067AQ	873 mm	3150 lm	4000 K	≥ 80	126 lm/W	> 25	DALI-2	Black

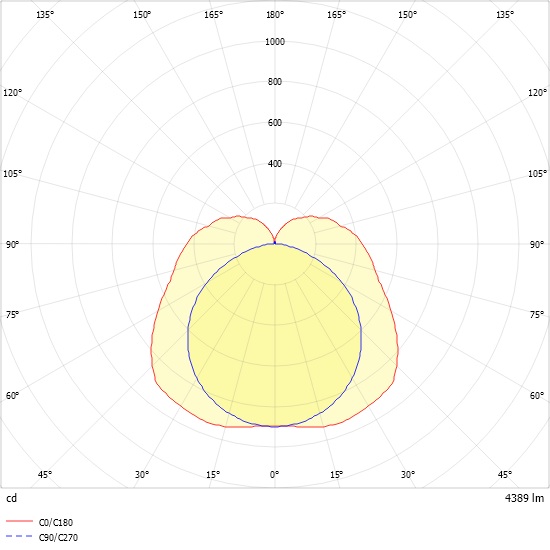

	LBK 1173NDNE-0450K840 SPZ0000072AF	1173 mm	4390 lm	4000 K	≥ 80	129 lm/W	> 25	On/Off	Silver
	LBK 1173NDFSW-0450K840 SPZ0000072AQ	1173 mm	4300 lm	4000 K	≥ 80	126 lm/W	> 25	On/Off	Black
	LBK 1173DANE-0450K840 SPZ0000073AF	1173 mm	4390 lm	4000 K	≥ 80	129 lm/W	> 25	DALI-2	Silver
	LBK 1173DAFSW-0450K840 SPZ0000073AQ	1173 mm	4300 lm	4000 K	≥ 80	126 lm/W	> 25	DALI-2	Black
	LBK 1473NDNE-0600K840 SPZ0000078AF	1473 mm	5550 lm	4000 K	≥ 80	131 lm/W	> 25	On/Off	Silver

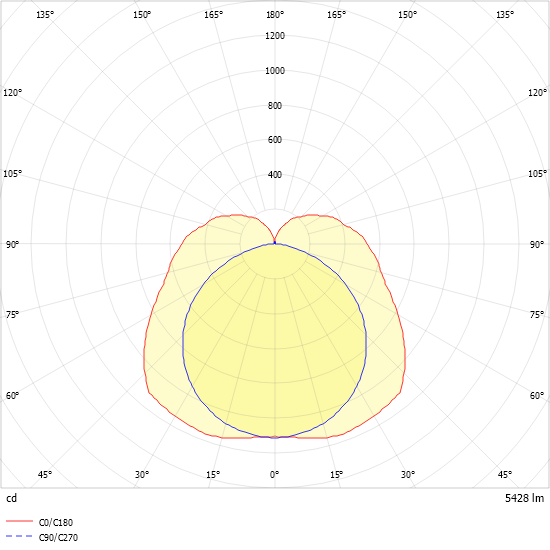

	LBK 1473NDFSW-0600K840 SPZ0000078AQ	1473 mm	5430 lm	4000 K	≥ 80	128 lm/W	> 25	On/Off	Black

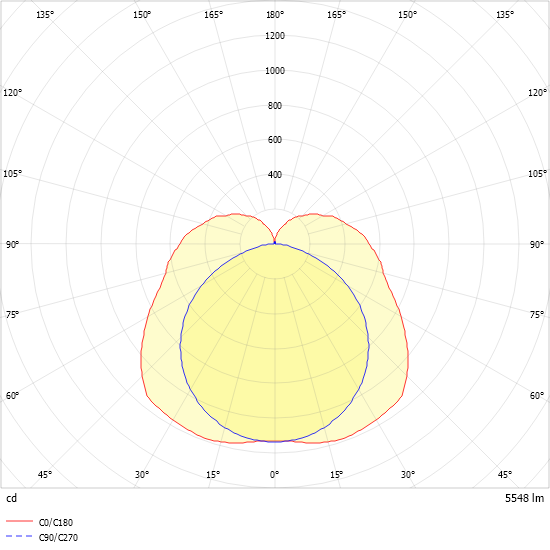

	LBK 1473DANE-0600K840 SPZ0000079AF	1473 mm	5550 lm	4000 K	≥ 80	131 lm/W	> 25	DALI-2	Silver
	LBK 1473DAFSW-0600K840 SPZ0000079AQ	1473 mm	5430 lm	4000 K	≥ 80	128 lm/W	> 25	DALI-2	Black
