LUNARO 2

LUNARO2 – INTELLIGENTLY CONNECTED IN INDUSTRY AND LOGISTICS

Renovation means more than just renewal – it means intelligently combining existing elements with forward-looking technology. Robust and efficient the new powerful LUNARO2 highbay spotlight meets the highest requirements. Developed for industry and logistics, it impresses with its impact-resistant, fin-free housing and is therefore also suitable for sensitive clean areas such as food processing. A straightforward 1:1 replacement allows for the seamless reuse of the existing 3-pole installation and luminaire positions. Thanks to integrated APCON EASY BLE wireless technology and the Bluetooth NLC standard, LUNARO2 combines maximum light quality with intelligent control – for sustainable, flexible and future-oriented lighting solutions.

INTELLIGENT SOLUTION FOR RENOVATION PROJECTS

1:1 replacement using the existing infrastructure

  • Continued use of the existing 3-pole installation
  • Existing suspension points can continue to be used
  • Master luminaires with integrated passive infrared motion detectors enable intelligent APCON EASY BLE lighting control solutions even with 3-pole luminaire connections

Uncomplicated commissioning

  • Simple pre-configuration remotely via a free web tool significantly reduces the amount of work required on site
  • Final configuration on site via free app
  • The gateway located on site means that the system can be accessed from anywhere via an additional web tool

Intelligent control

  • Each luminaire can be used as a wireless/master or wireless/slave luminaire
  • Up to 3 additional LUNARO2 luminaires as a standard DALI design can be connected to a wireless master luminaire via a DALI cable
  • LUNARO2 radio master luminaires with integrated motion detectors switch the luminaires on and off individually or in groups when motion is detected
  • Based on the innovative Silvair radio/mesh system according to the latest Bluetooth NLC standard

Further advantages

  • Energy monitoring, usage analysis, error messages and remote-control options
  • Energy data, error messages and status reports are displayed via visualisations and are available for further documentation and interpretation
  • Compliance with legal requirements for energy saving and CO2 reduction

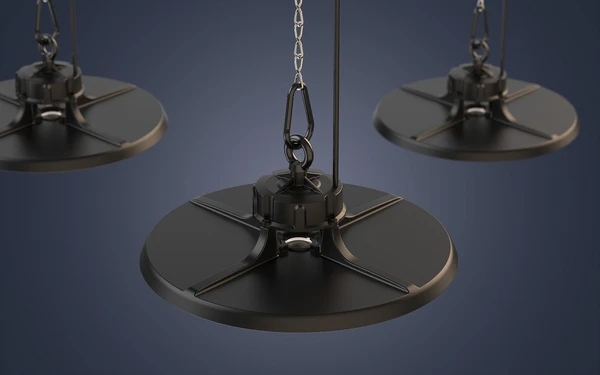

OPTIMISED HOUSING

The smooth housing of the LUNARO2 not only makes it easy to clean in accordance with food industry requirements, but is also based on a thermally optimised design with large-area heat dissipation – for reliable operation at ambient temperatures of up to 60°C.



  • High protection class: IP65
  • High impact resistance: IK09

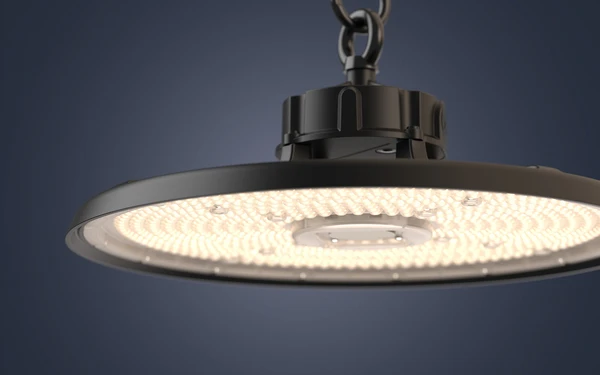

POWERFUL AND EFFICIENT

    • Luminous flux: up to 30,000 lm
    • Efficiency: up to 160 lm/W

    THREE VARIATIONS

      Switchable (xFlex) – adjustable luminous flux

      Dimmable (DALI)

      Motion sensor

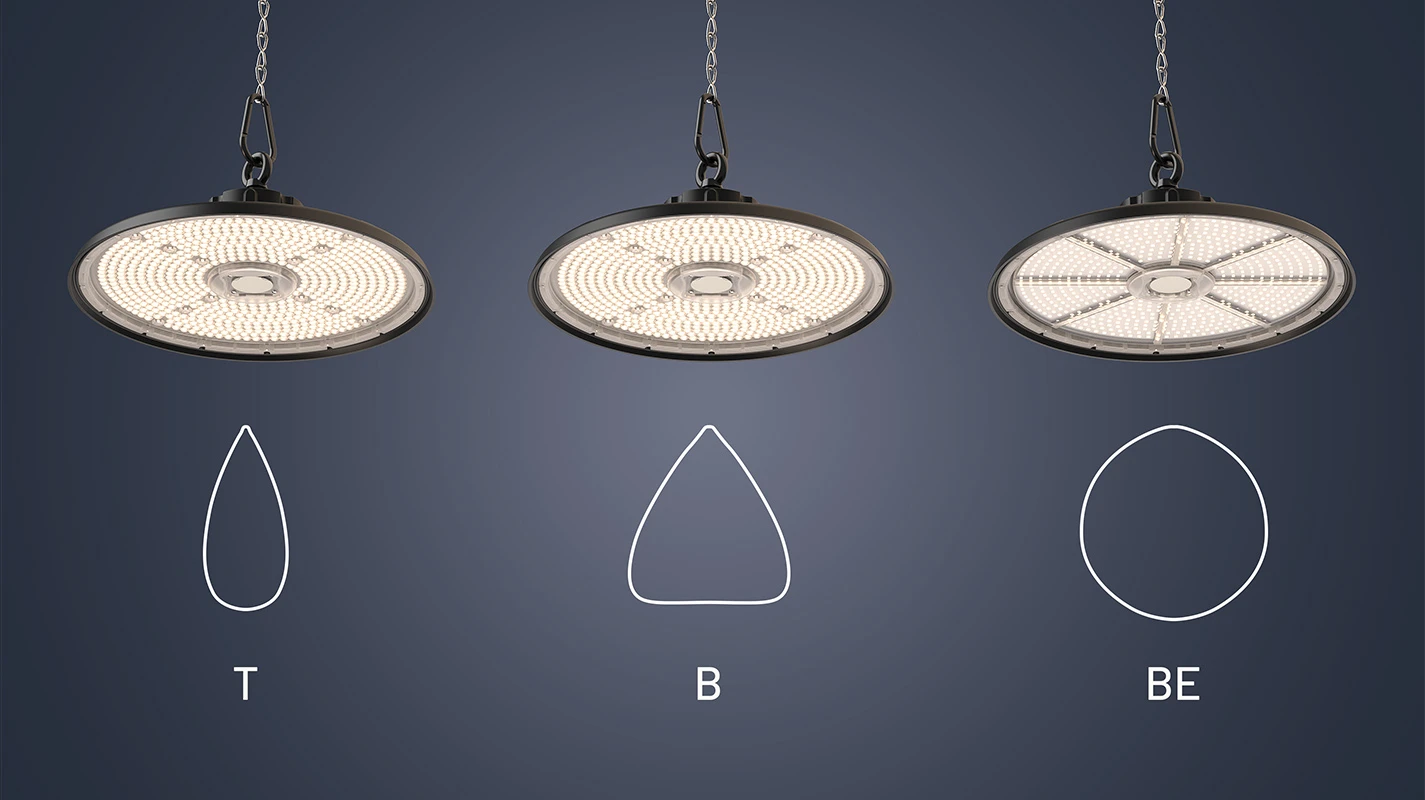

      THREE LIGHT DISTRIBUTION PATTERNS

        PRODUCT SELECTOR

        Product Filters

        Diameter
        (mm)
        Beam
        Angle
        Optic
        Type
        Lumen
        Output
        Power
        (W)
        Light
        Colour
        CRI
        (Ra)
        Lm/W UGR
        Rating
        Driver
        Type
        Sensor Body
        Colour
        Image Part Code
        Article Number
        Diameter
        (mm)
        Beam
        Angle
        Optic
        Type
        Lumen
        Output
        Power
        (W)
        Light
        Colour
        CRI
        (Ra)
        Lm/W UGR
        Rating
        Driver
        Type
        Sensor Body
        Colour
        Data LDT Polar BIM
        Product ImageLUNARO2DASW840B3000
        0336978SW
        400 mm74 °medium beam29920 lm201.0 W4000 K≥ 80149 lm/W≤ 25DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865B2200
        0336987SW
        400 mm74 °medium beam21910 lm147.0 W6500 K≥ 80149 lm/W≤ 22DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865B2800
        0336984SW
        400 mm74 °medium beam28430 lm201.0 W6500 K≥ 80141 lm/W≤ 22DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840B2400
        0336981SW
        400 mm74 °medium beam23060 lm147.0 W4000 K≥ 80157 lm/W≤ 22DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW840B3000
        0326978SW
        400 mm74 °medium beam29920 lm201.0 W4000 K≥ 80149 lm/W≤ 25xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW840B2400
        0326981SW
        400 mm74 °medium beam23060 lm147.0 W4000 K≥ 80157 lm/W≤ 22xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW865B2800
        0326984SW
        400 mm74 °medium beam28430 lm201.0 W6500 K≥ 80141 lm/W≤ 22xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW865B2200
        0326987SW
        400 mm74 °medium beam21910 lm147.0 W6500 K≥ 80149 lm/W≤ 22xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865BE2200
        0336988SW
        400 mm110 °extremely wide beam21320 lm147.0 W6500 K≥ 80145 lm/W> 25DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865BE2800
        0336985SW
        400 mm110 °extremely wide beam27660 lm201.0 W6500 K≥ 80138 lm/W> 25DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840BE2200
        0336982SW
        400 mm110 °extremely wide beam22440 lm147.0 W4000 K≥ 80153 lm/W> 25DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840BE3000
        0336979SW
        400 mm110 °extremely wide beam29120 lm201.0 W4000 K≥ 80145 lm/W> 25DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW840BE3000
        0326979SW
        400 mm110 °extremely wide beam29120 lm201.0 W4000 K≥ 80145 lm/W> 25xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW840BE2200
        0326982SW
        400 mm110 °extremely wide beam22440 lm147.0 W4000 K≥ 80153 lm/W> 25xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW865BE2800
        0326985SW
        400 mm110 °extremely wide beam27660 lm201.0 W6500 K≥ 80138 lm/W> 25xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW865BE2200
        0326988SW
        400 mm110 °extremely wide beam21320 lm147.0 W6500 K≥ 80145 lm/W> 25xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865T2200
        0336989SW
        400 mm46 °deep beam21870 lm147.0 W6500 K≥ 80149 lm/W≤ 19DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865T2800
        0336986SW
        400 mm46 °deep beam28380 lm201.0 W6500 K≥ 80141 lm/W≤ 22DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840T2400
        0336983SW
        400 mm46 °deep beam23020 lm147.0 W4000 K≥ 80157 lm/W≤ 22DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840T3000
        0336980SW
        400 mm46 °deep beam29870 lm201.0 W4000 K≥ 80149 lm/W≤ 22DALI-2NoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW840T3000
        0326980SW
        400 mm46 °deep beam29870 lm201.0 W4000 K≥ 80149 lm/W≤ 22xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW840T2400
        0326983SW
        400 mm46 °deep beam23020 lm147.0 W4000 K≥ 80157 lm/W≤ 22xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW865T2200
        0326989SW
        400 mm46 °deep beam21870 lm147.0 W6500 K≥ 80149 lm/W≤ 19xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2FLSW865T2800
        0326986SW
        400 mm46 °deep beam28380 lm201.0 W6500 K≥ 80141 lm/W≤ 22xFlexNoBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865B2800-SEN
        0336984SW437
        400 mm74 °medium beam28430 lm201.0 W6500 K≥ 80141 lm/W≤ 22DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865B2200-SEN
        0336987SW437
        400 mm74 °medium beam21910 lm147.0 W6500 K≥ 80149 lm/W≤ 22DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840B3000-SEN
        0336978SW437
        400 mm74 °medium beam29920 lm201.0 W4000 K≥ 80149 lm/W≤ 25DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840B2400-SEN
        0336981SW437
        400 mm74 °medium beam23060 lm147.0 W4000 K≥ 80157 lm/W≤ 22DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840BE3000-SEN
        0336979SW437
        400 mm110 °extremely wide beam29120 lm201.0 W4000 K≥ 80145 lm/W> 25DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840BE2200-SEN
        0336982SW437
        400 mm110 °extremely wide beam22440 lm147.0 W4000 K≥ 80153 lm/W> 25DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865BE2800-SEN
        0336985SW437
        400 mm110 °extremely wide beam27660 lm201.0 W6500 K≥ 80138 lm/W> 25DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865BE2200-SEN
        0336988SW437
        400 mm110 °extremely wide beam21320 lm147.0 W6500 K≥ 80145 lm/W> 25DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840T3000-SEN
        0336980SW437
        400 mm46 °deep beam29870 lm201.0 W4000 K≥ 80149 lm/W≤ 22DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW840T2400-SEN
        0336983SW437
        400 mm46 °deep beam23020 lm147.0 W4000 K≥ 80157 lm/W≤ 22DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865T2800-SEN
        0336986SW437
        400 mm46 °deep beam28380 lm201.0 W6500 K≥ 80141 lm/W≤ 22DALI-2YesBlackPDFEulumdatProduct Image
        Product ImageLUNARO2DASW865T2200-SEN
        0336989SW437
        400 mm46 °deep beam21870 lm147.0 W6500 K≥ 80149 lm/W≤ 19DALI-2YesBlackPDFEulumdatProduct Image
