Orto

ANGULAR STRENGTH

Spectral engineered specially designed die cast corner joints which are not only extremely stable but, in celebration, add a design feature, enabling you to choose from a range of finishes; select chrome, matt nickel-plated or in a contrast colour to suit the corporate colour palette of the project – the possibilities for individualisation are many.

THE RIGHT LIGHT AT ANY HEIGHT

At Spectral we spend a lot of development time working on what we term “the right light for the task”. What is optimum illumination? How do we affect eye comfort? Where would it be concentrated? How can we achieve this for height adjustable desks? As part of a family of products, Orto Desk features a robust clamp to allow it to attach to any desk system. In addition, it means that the distance between the light source and the desk surface remains a constant, even if the table is raised to its maximum position. The right light at any height.

Product Selection

Product Filters

Height
(mm)
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W UGR
Rating
Driver
Type
Body
Colour
Image Part Code
Article Number
Height
(mm)
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W UGR
Rating
Driver
Type
Body
Colour
Data LDT Polar BIM
Product ImageORTO-S DAFWS840SR0850
SPG0630020AH
2142 mm8380 lm4000 K≥ 80106 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageORTO-S DAFSW840SR0850
SPG0630020AQ
2142 mm8020 lm4000 K≥ 80102 lm/W≤ 16DALIBlackPDFEulumdatProduct ImageEulumdat

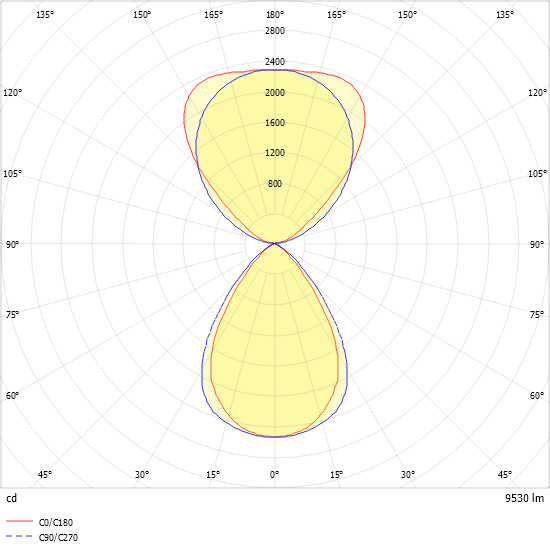

Product ImageORTO-S DAFWS840MR0950
SPG0630021AH
2142 mm9530 lm4000 K≥ 80121 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageORTO-S DAFSW840MR0950
SPG0630021AQ
2142 mm9170 lm4000 K≥ 80116 lm/W≤ 16DALIBlackPDFEulumdatProduct ImageEulumdat

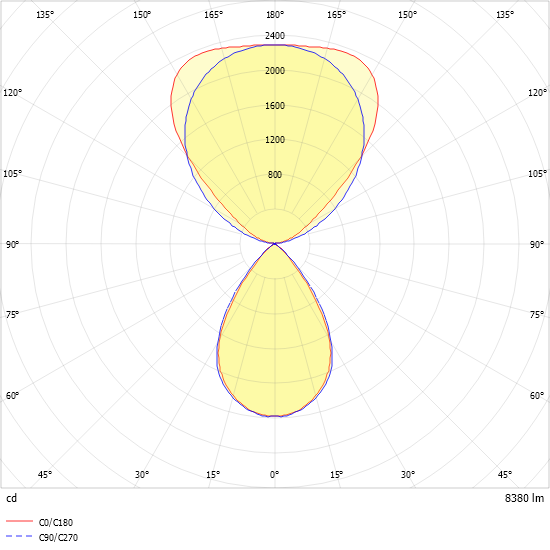

Product ImageORTO-T DAFWS840SR0850
SPG0630025AH
1460 mm8380 lm4000 K≥ 80106 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageORTO-T DAFSW840SR0850
SPG0630025AQ
1460 mm8020 lm4000 K≥ 80102 lm/W≤ 16DALIBlackPDFEulumdatProduct ImageEulumdat
Product ImageORTO-T DAFWS840MR0950
SPG0630029AH
1460 mm9530 lm4000 K≥ 80121 lm/W≤ 16DALIWhitePDFEulumdatProduct ImageEulumdat
Product ImageORTO-T DAFSW840MR0950
SPG0630029AQ
1460 mm9170 lm4000 K≥ 80116 lm/W≤ 16DALIBlackPDFEulumdatProduct ImageEulumdat

Projects Featuring Orto

John Robertson Architects

John Robertson Architects

When JRA decided they were going to refurbish their offices, they evaluated ORTO at Spectral’s show space in Clerkenwell
KRESINGS Architektur, Münster

KRESINGS Architektur, Münster

Spectral supplied Orto floorstanding direct/indirect luminaires to Kresings Architektur GmbH for their offices in ...
