PAT

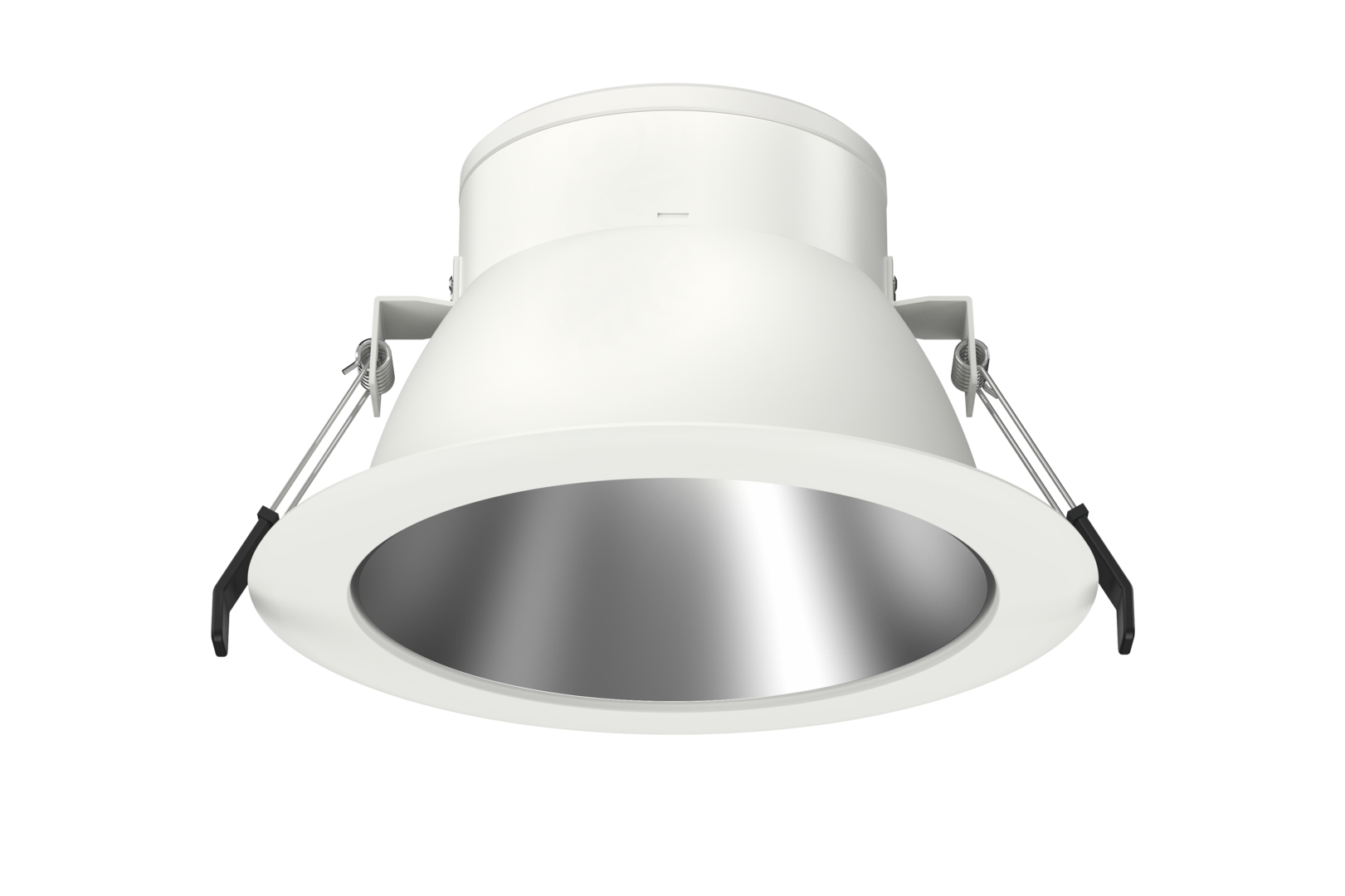

PAT – FUNCTIONAL FOR EFFICIENT MODERNISATION

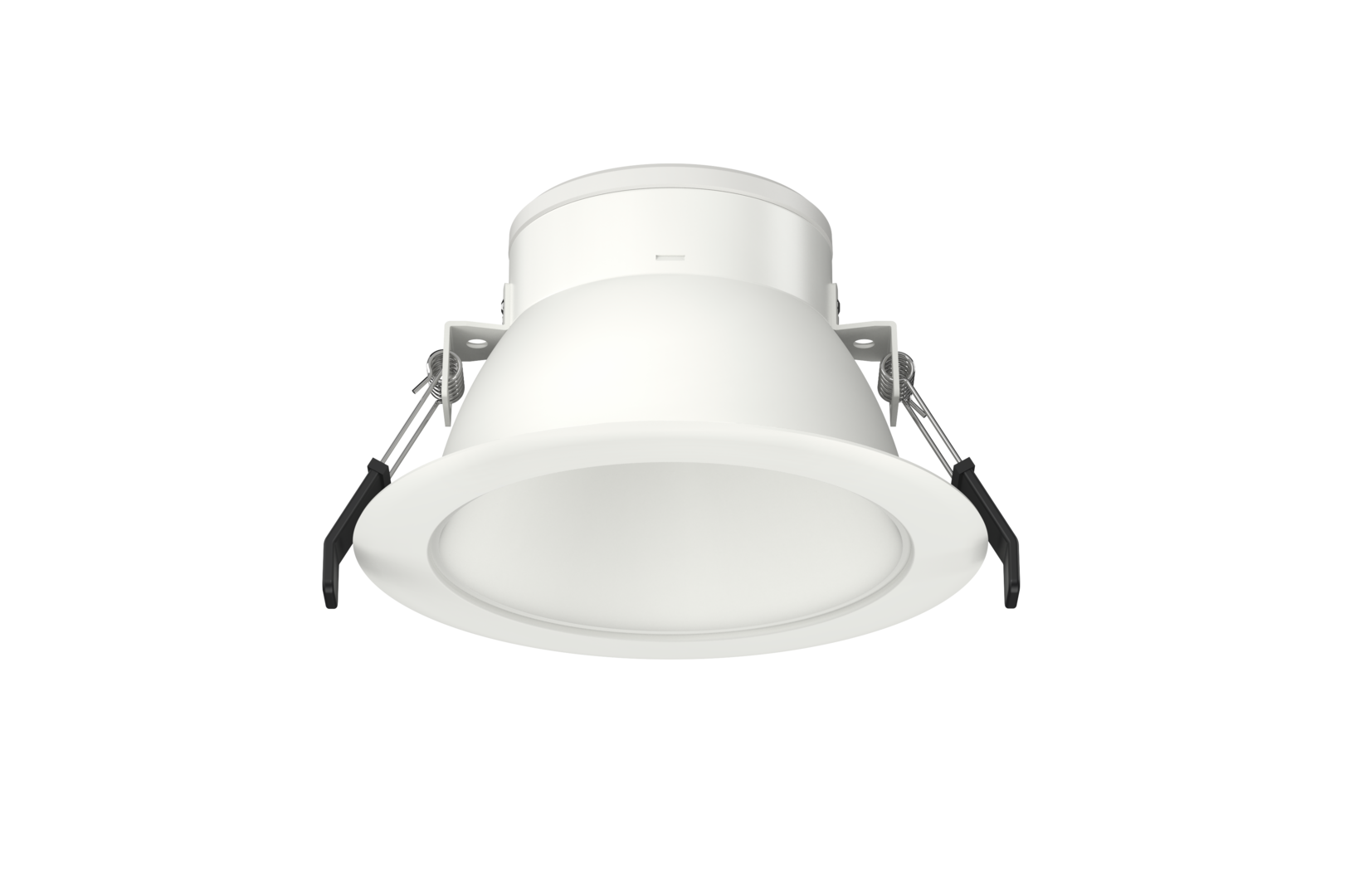

The PAT downlight offers a cost-effective and practical solution for renovations. Existing ceiling cut-outs and the existing infrastructure can still be used thanks to the optional renovation adaptor rings. The downlight impresses with its robust metal housing and clear, functional design – ideal for quick, efficient modernisation.

TWO DIAMETERS

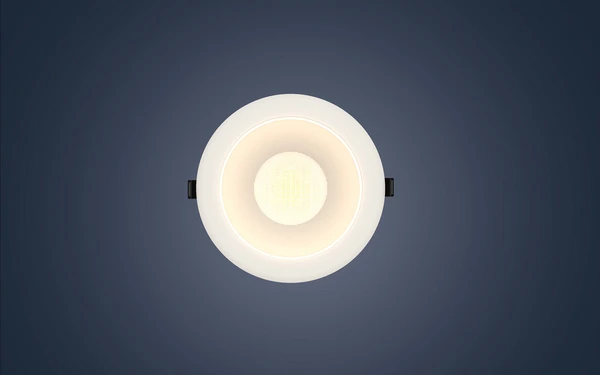

PAT175 | Outer diameter: 172 mm

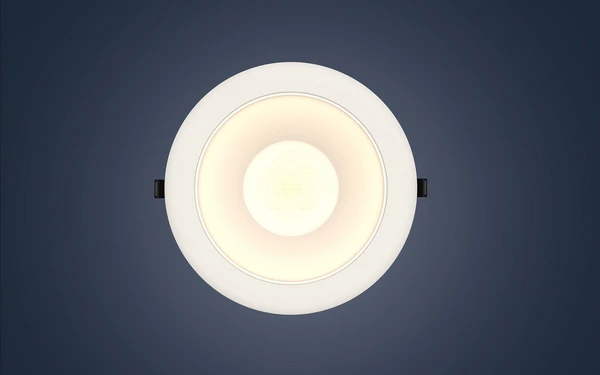

PAT235 | Outer diameter: 230 mm

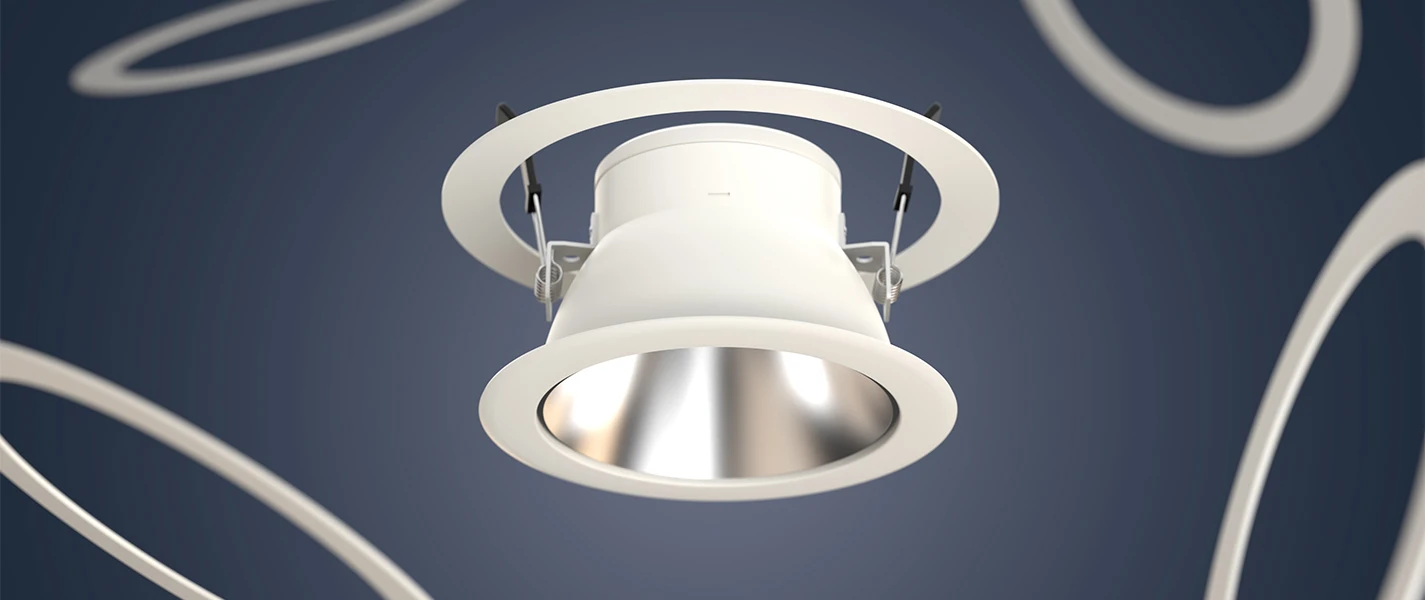

OPTIONAL RENOVATION ADAPTOR RINGS

A ceiling cut-out that is too large can be neatly concealed using a renovation adaptor ring – the PAT luminaire is mounted precisely in it, providing a visually appealing solution.

TWO REFLECTORS

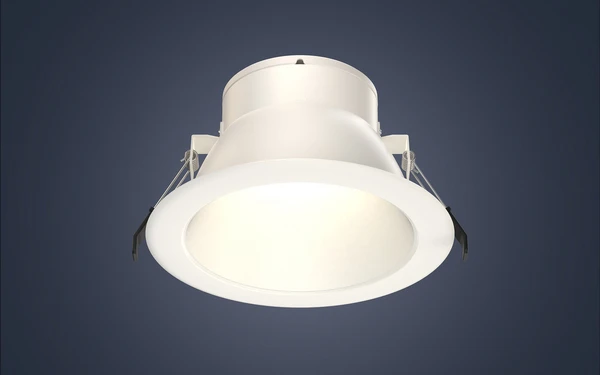

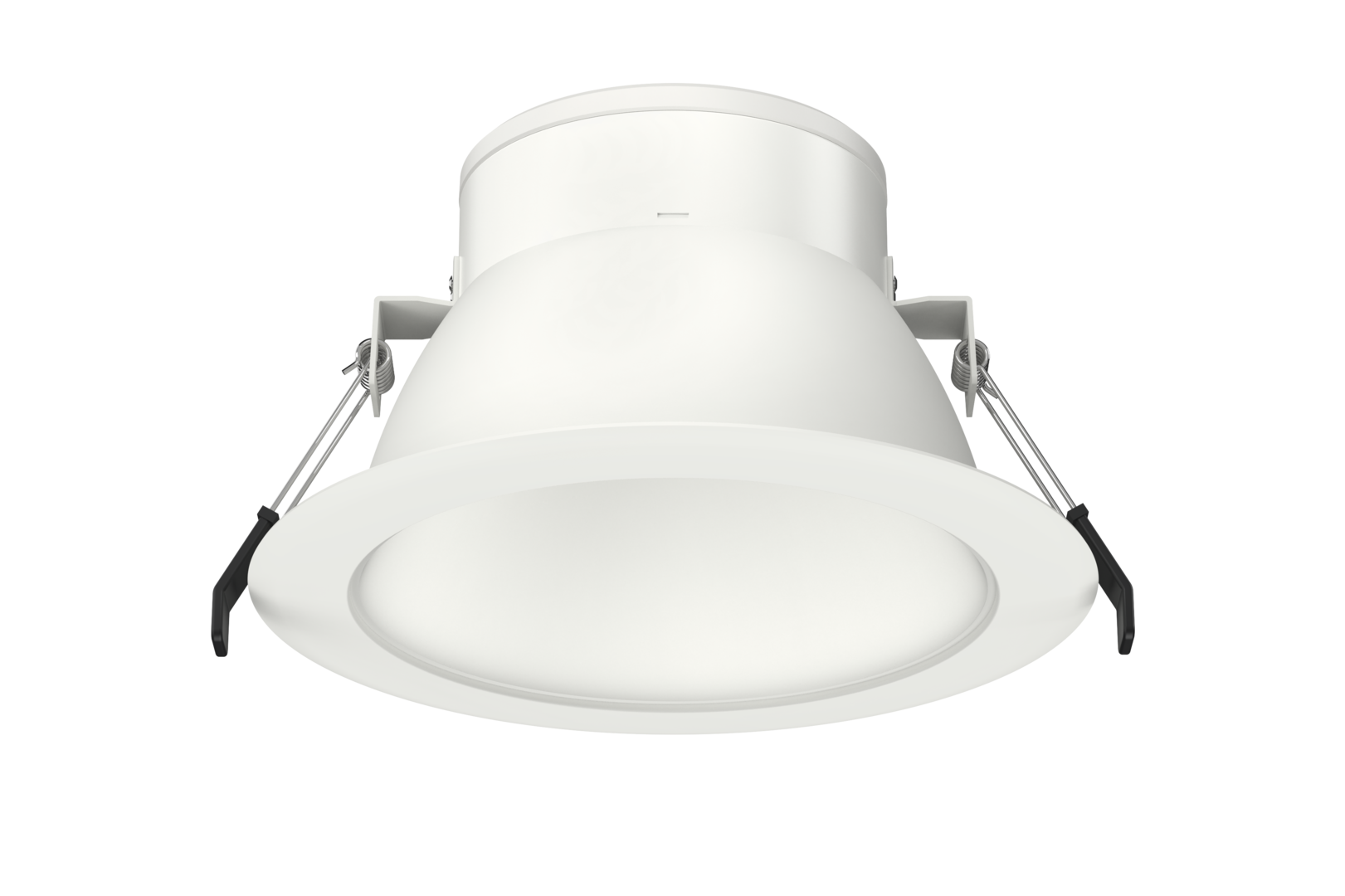

Reflector white (W) | UGR ≤ 22

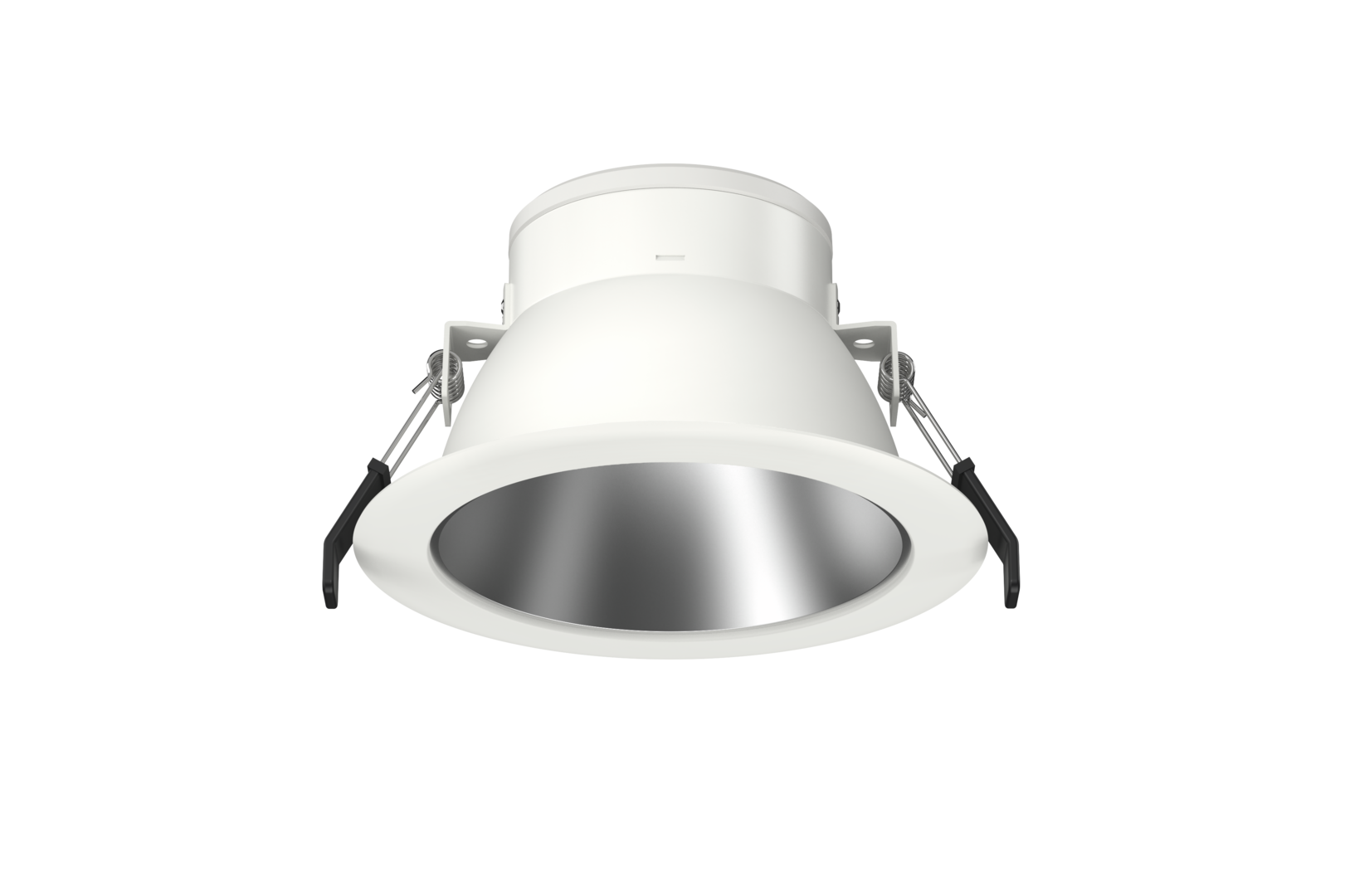

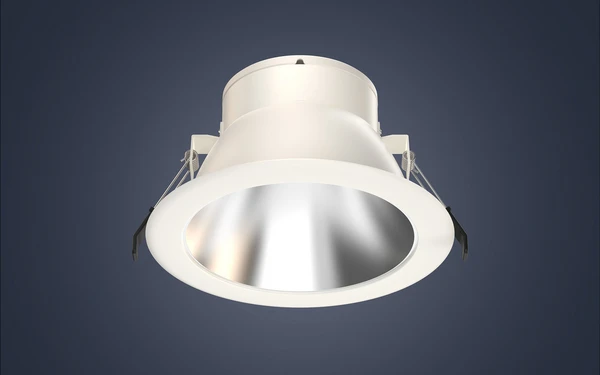

Reflector matt (SM) | UGR ≤ 19

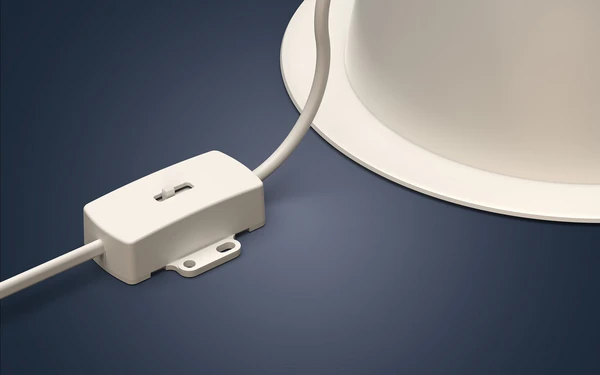

COLOUR SWITCH

Two adjustable colour temperatures

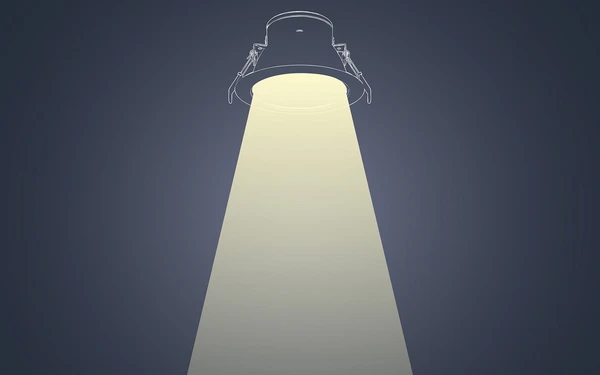

3000 Kelvin

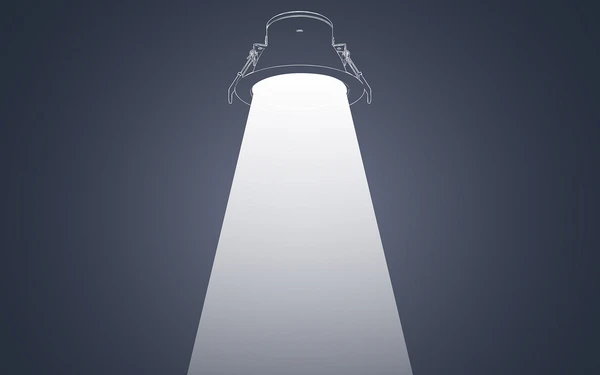

4000 Kelvin

FUTURE-PROOF MODERNISATION

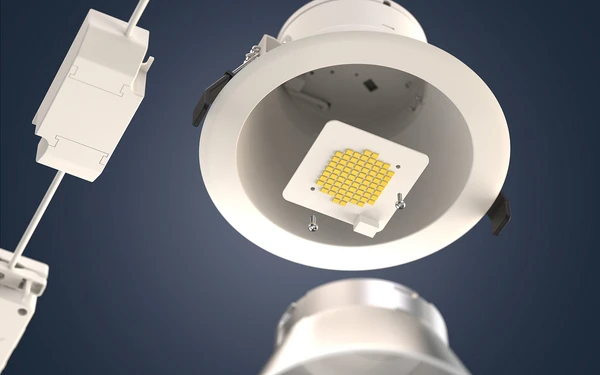

+ Repairable – LED module and driver can be replaced by a specialist

+ High efficiency >120 lm/W

PRODUCT SELECTOR

Product Filters

		Diameter (mm)	Beam Angle	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Diameter (mm)	Beam Angle	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM

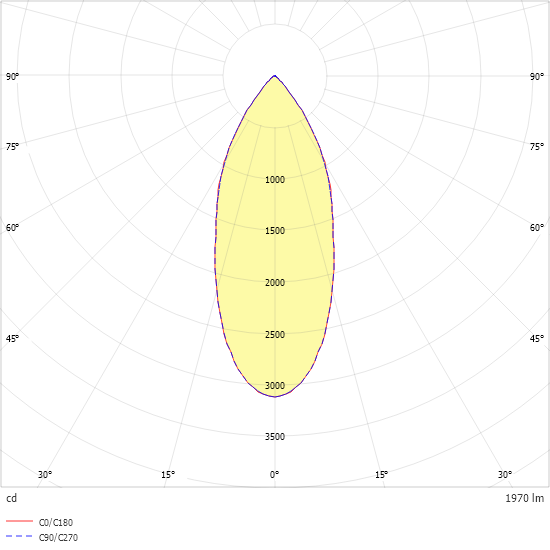

	PAT175DAWS830840SM0200 0332722	172 mm	43 °	deep-wide beam	1970 lm	15.0 W	3000 K; 4000 K	≥ 80	131 lm/W	≤ 19	DALI-2	White

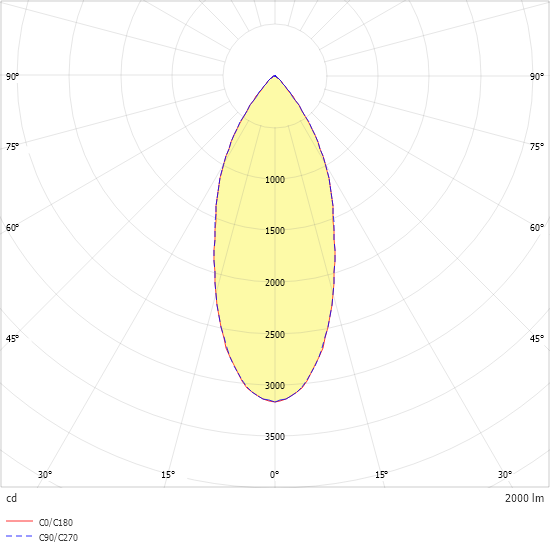

	PAT175FLWS830840SM0200 0322722	172 mm	43 °	deep-wide beam	2000 lm	16.0 W	3000 K; 4000 K	≥ 80	125 lm/W	≤ 19	xFlex	White
	PAT175DAWS830840W0200 0332721	172 mm	65 °	wide beam	1940 lm	15.0 W	3000 K; 4000 K	≥ 80	129 lm/W	≤ 22	DALI-2	White

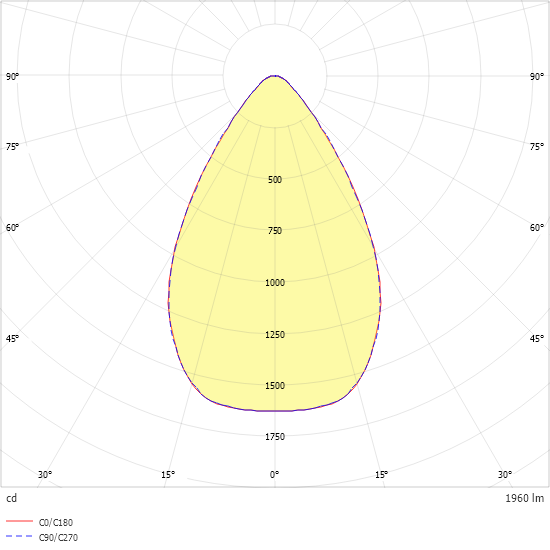

	PAT175FLWS830840W0200 0322721	172 mm	65 °	wide beam	1960 lm	16.0 W	3000 K; 4000 K	≥ 80	123 lm/W	≤ 22	xFlex	White

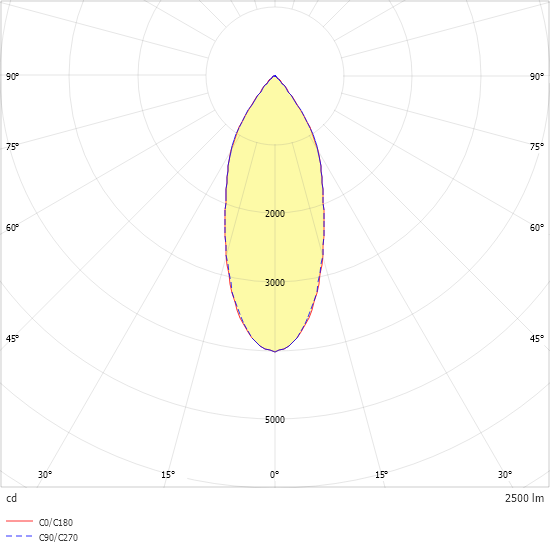

	PAT235DAWS830840SM0250 0332724	230 mm	41 °	deep-wide beam	2500 lm	19.0 W	3000 K; 4000 K	≥ 80	132 lm/W	≤ 16	DALI-2	White

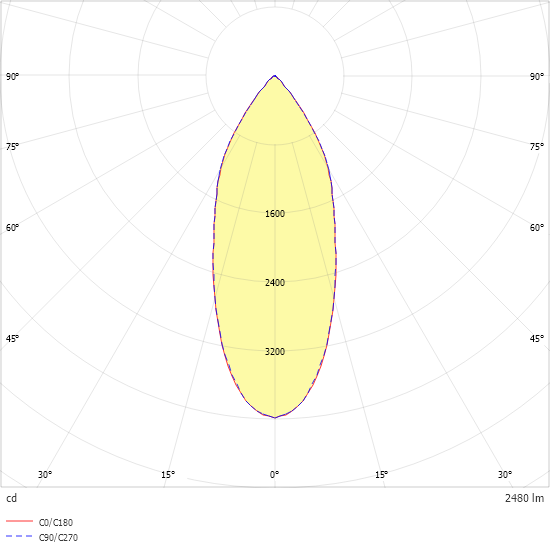

	PAT235FLWS830840SM0250 0322724	230 mm	41 °	deep-wide beam	2480 lm	19.5 W	3000 K; 4000 K	≥ 80	127 lm/W	≤ 16	xFlex	White

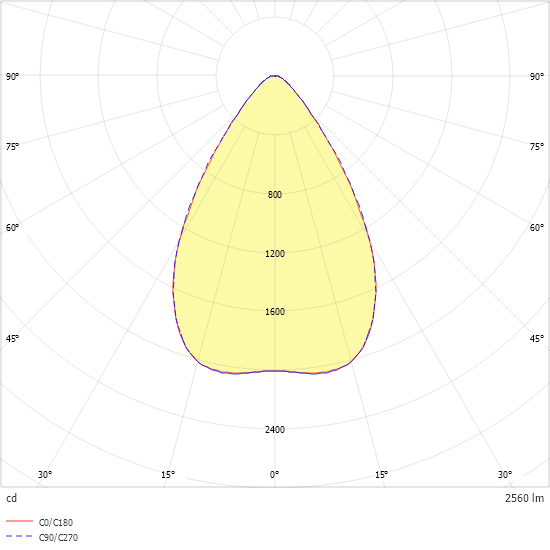

	PAT235DAWS830840W0250 0332723	230 mm	66 °	wide beam	2560 lm	19.0 W	3000 K; 4000 K	≥ 80	135 lm/W	≤ 22	DALI-2	White
	PAT235FLWS830840W0250 0322723	230 mm	66 °	wide beam	2540 lm	19.5 W	3000 K; 4000 K	≥ 80	130 lm/W	≤ 22	xFlex	White
