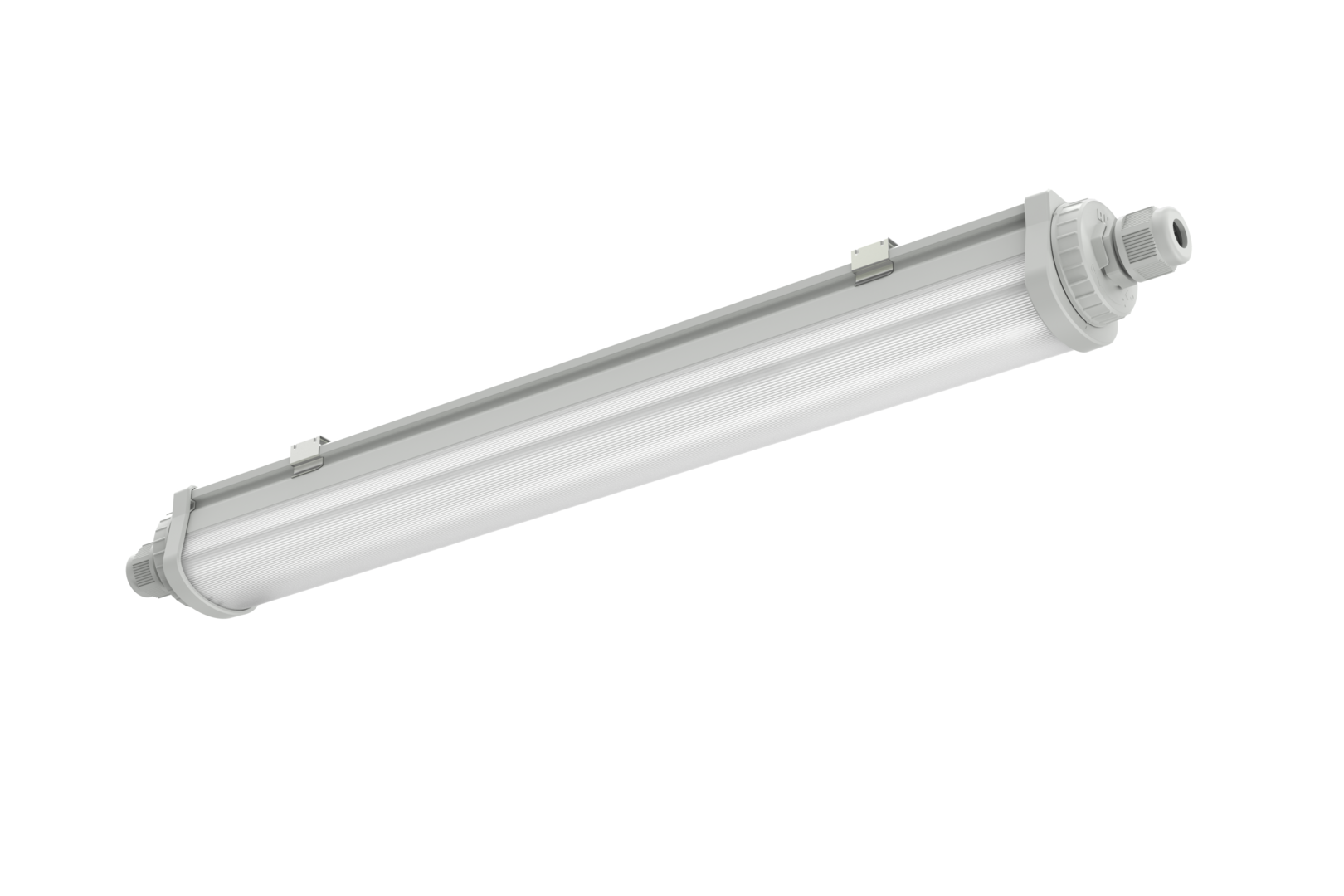

PFSB2
ROBUST MOISTURE-PROOF LUMINAIRES FOR DEMANDING ENVIRONMENTS

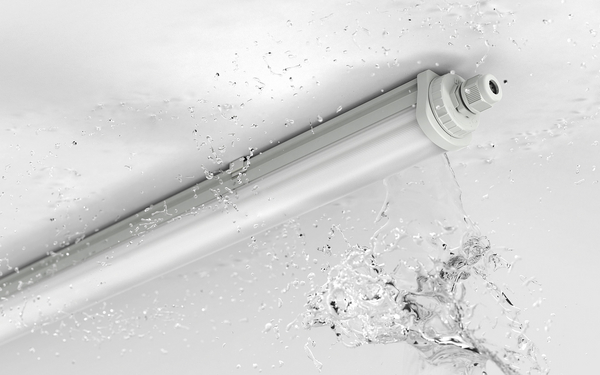

Protection Class IP65

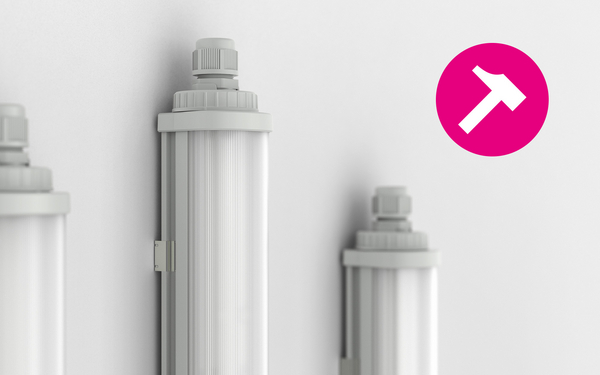

Impact Resistance IK08
- High operating tenperature range of -25°C to 40°C
- Housing made from UV stabilised polycarbonate
Mounting

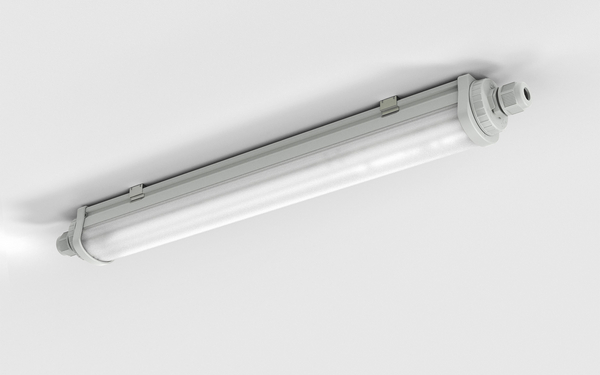

Ceiling mounting

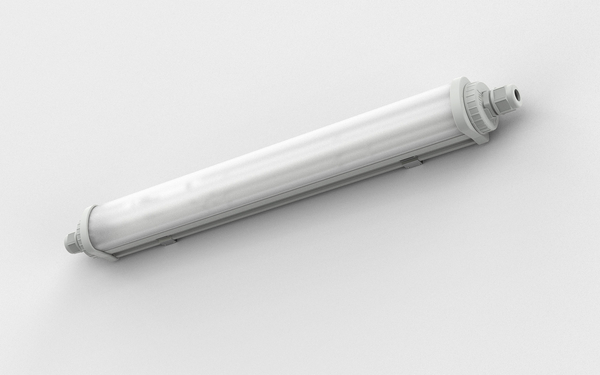

Wall mounting

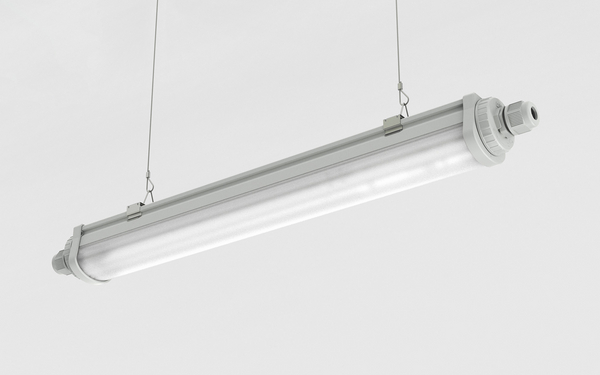

Pendant mounting
Through Wiring
All luminaires are equipped with integrated through-wiring as standard.
Simple Installation
-
Cover with swivelling bayonet catch
-

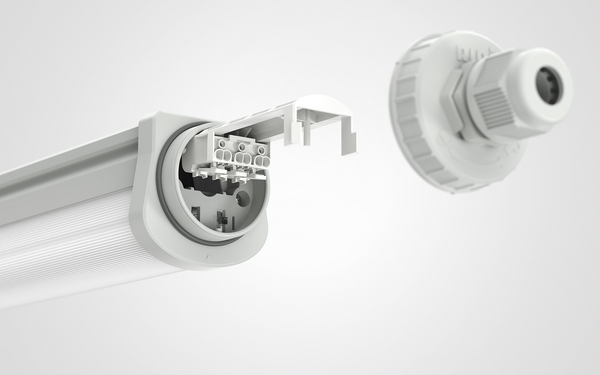

Extendable terminal block for convenient wiring
-

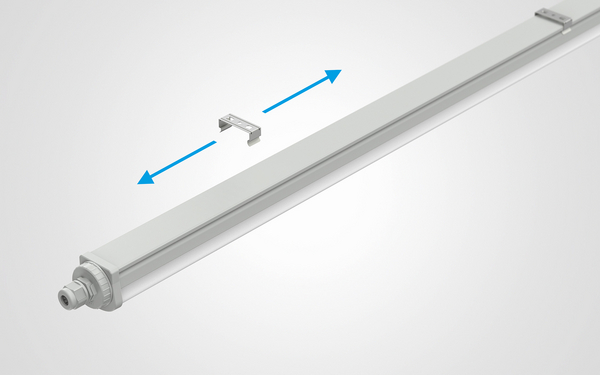

Sliding fastening clips for easy mounting
Repairability
Replaceable LED board and driver, Quick and easy disassembly and virtually maintenance-free
Product Selection
Product Filters
| Length (mm) |
Optic Type |
Lumen Output |
Light Colour |
CRI (Ra) |
Lm/W | Driver Type |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image | Part Code Article Number |
Length (mm) |
Optic Type |
Lumen Output |
Light Colour |
CRI (Ra) |
Lm/W | Driver Type |
Data | LDT | Polar | BIM |

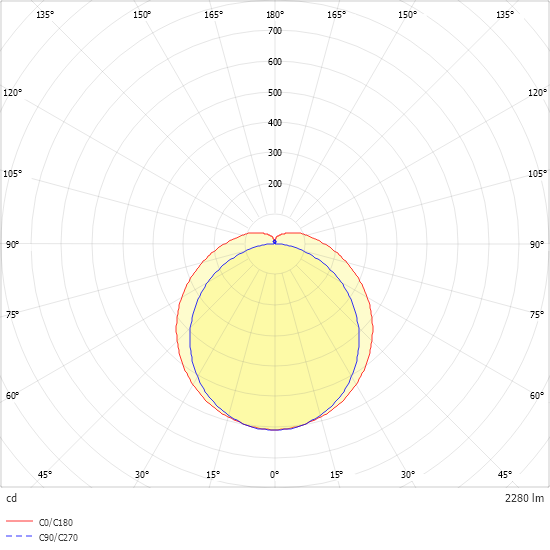

 | PFSB2 0600FLLG840O0250 0921262BH | 620 mm | diffuse beam | 2280 lm | 4000 K | ≥ 80 | 134 lm/W | xFlex |  |  |  |  |
 | PFSB2 1200FLLG840O0550 0921263BH | 1220 mm | diffuse beam | 5320 lm | 4000 K | ≥ 80 | 130 lm/W | xFlex | | |  | |
| PFSB2 1500FLLG840O0700 0921264BH | 1520 mm | diffuse beam | 6930 lm | 4000 K | ≥ 80 | 141 lm/W | xFlex | | |  | |
| PFSB2 1500FLLG840O0950 0921265BH | 1520 mm | diffuse beam | 9420 lm | 4000 K | ≥ 80 | 162 lm/W | xFlex | | |  | |

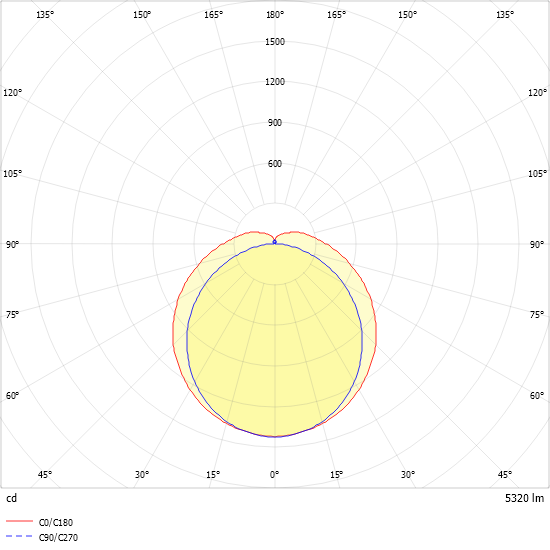

| PFSB2 1200DALG840O0550 0931263BH | 1220 mm | diffuse beam | 5320 lm | 4000 K | ≥ 80 | 130 lm/W | DALI-2 | | |  | |

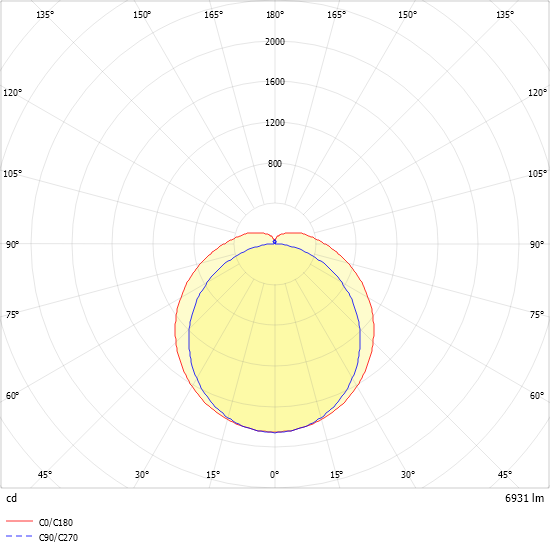

| PFSB2 1500DALG840O0700 0931264BH | 1520 mm | diffuse beam | 6930 lm | 4000 K | ≥ 80 | 141 lm/W | DALI-2 | | |  | |
| PFSB2 1200FLLG840O0550-RS 0921266BH | 1220 mm | diffuse beam | 5320 lm | 4000 K | ≥ 80 | 130 lm/W | xFlex | | |  | |

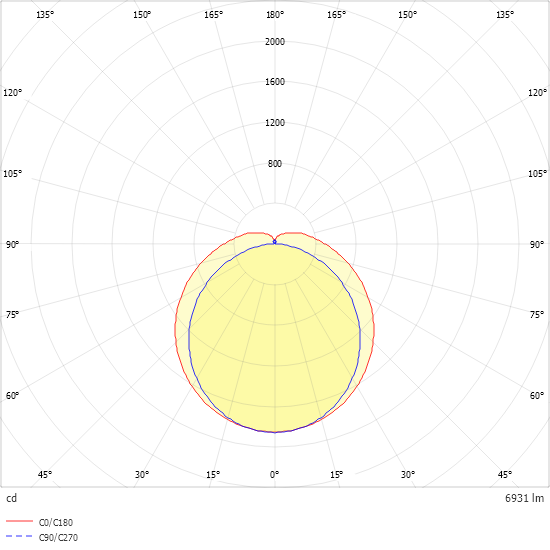

| PFSB2 1500FLLG840O0700-RS 0921267BH | 1520 mm | diffuse beam | 6930 lm | 4000 K | ≥ 80 | 141 lm/W | xFlex | | |  | |
