S36-Profil

TOOLBOX OF OPPORTUNITIES

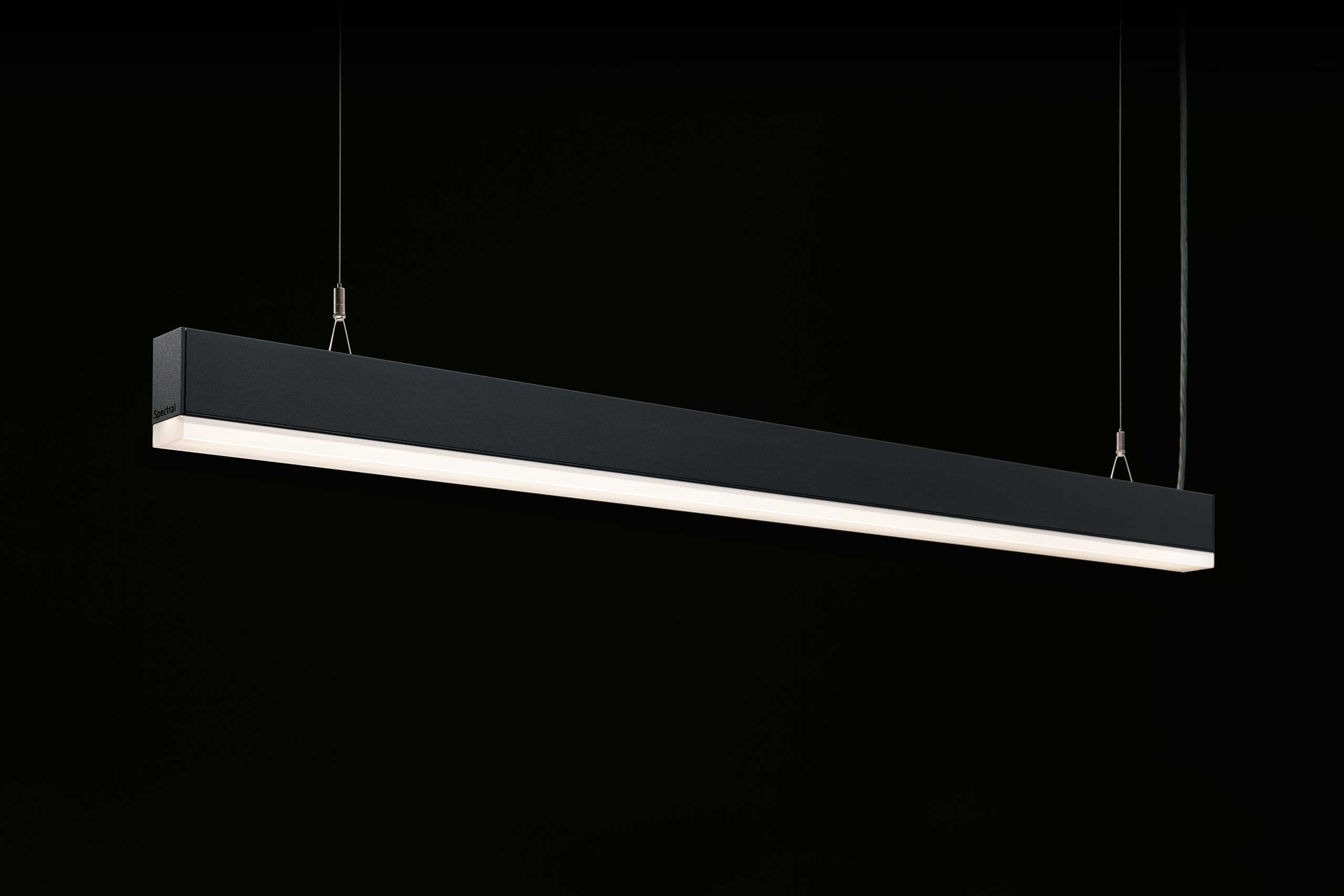

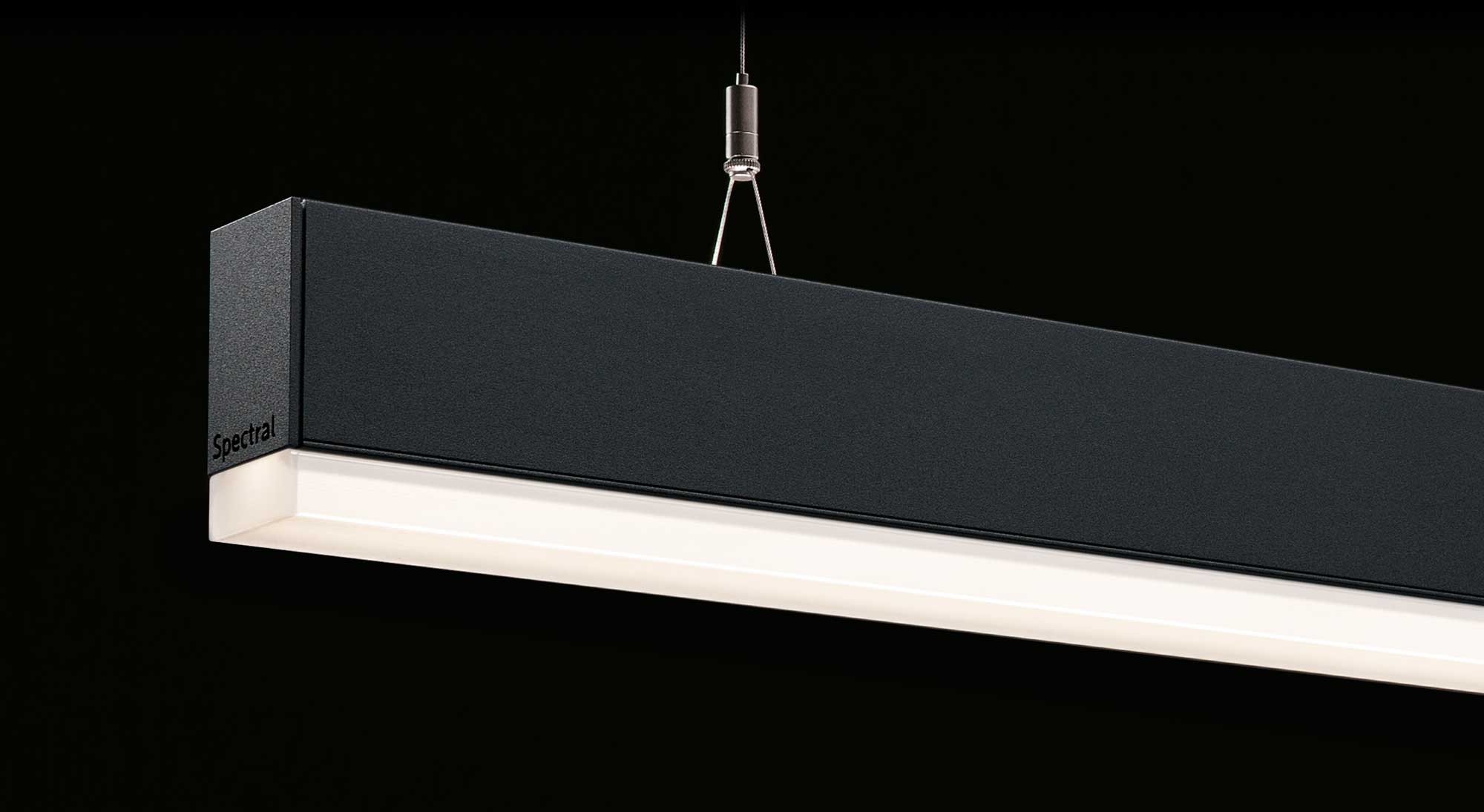

Despite being just 36mm wide, light performance and structural stability were key engineering goals. In addition, our engineers managed to incorporate the latest driver technology and electrical terminals within the diminutive body. Torsional rigidity is exceptional and as a result, very long suspended light lines are possible. You can specify continuous light in both direct and indirect or simply have individual light lines. Bar codes perhaps? Beautifully integrated 90° angle connectors allow the designer to form simple or complex light structures.

FLEXIBILITY AS STANDARD

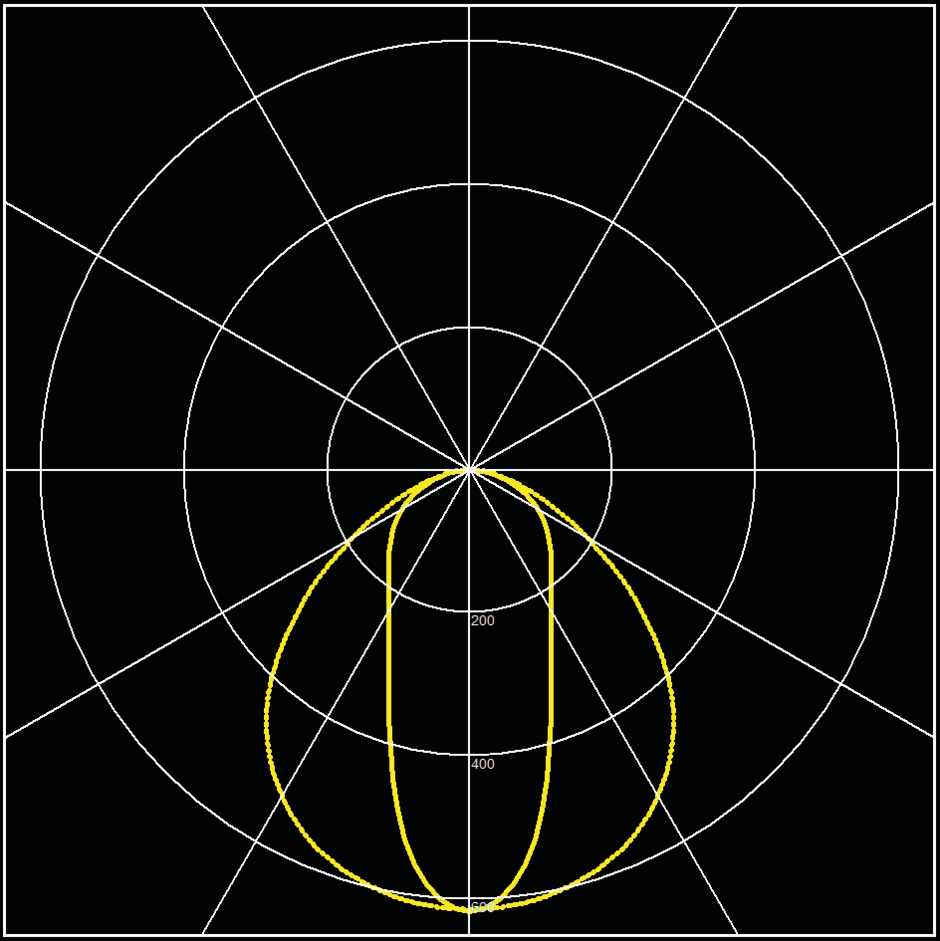

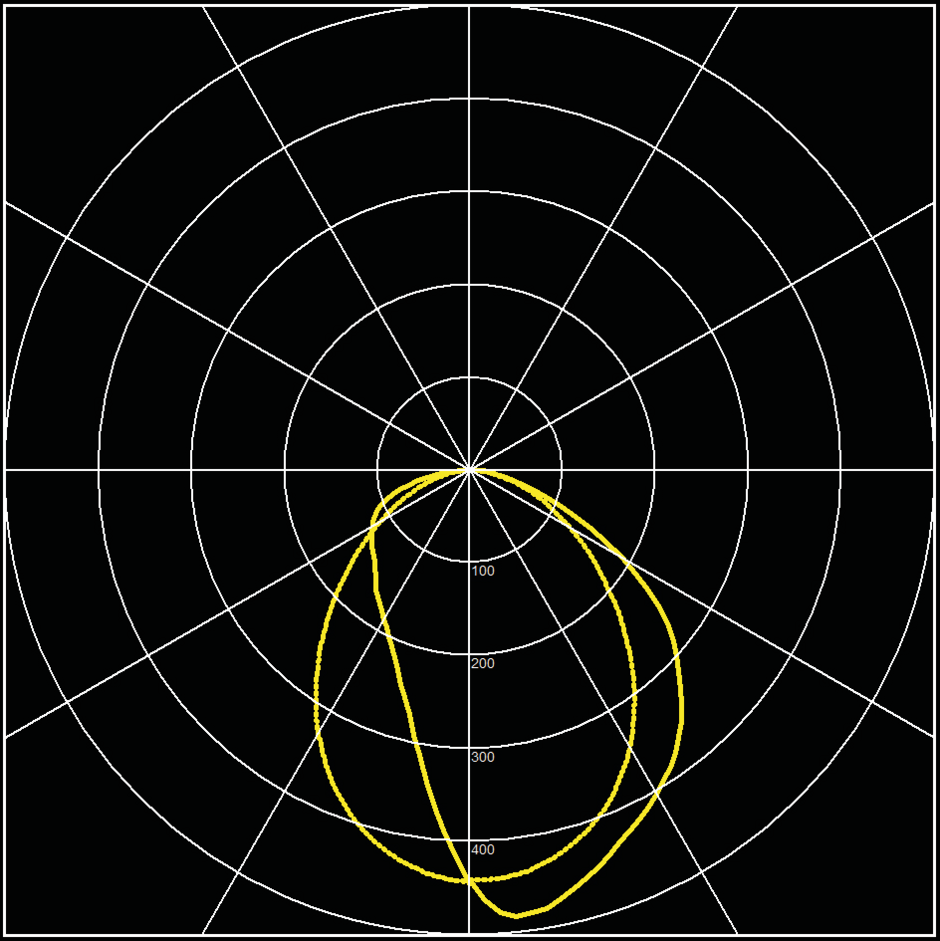

What type of environment do you need? Whether in museums, foyers or office environments – maximum flexibility is S36’ forte. Want minimal glare? Choose Microprismatic. Want defined light lines? Opal. Need to direct the light onto a surface? Asymmetric. Or perhaps to define a strip? choose the narrow beam linear optics option. Or for a more visually alluring affect, use the Pergament insert for a crisp decorative yet high performing light line. The options are endless.

LIGHT LINE DEFINITION

Want to emulate the laser lines of light from the TRON movie? Want hanging defined lines? Perhaps the ceiling is low so surface mount to a ceiling surface or mount onto a wall? S36 offers infinite potential. The many optical inserts come in different heights to ensure an optimum distance from the LED chip to the light guide. Opting for indirect light adds yet more light volume to a space and is always integrated within the body.

Product Selection

Product Filters

		Length (mm)	Mounting	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type

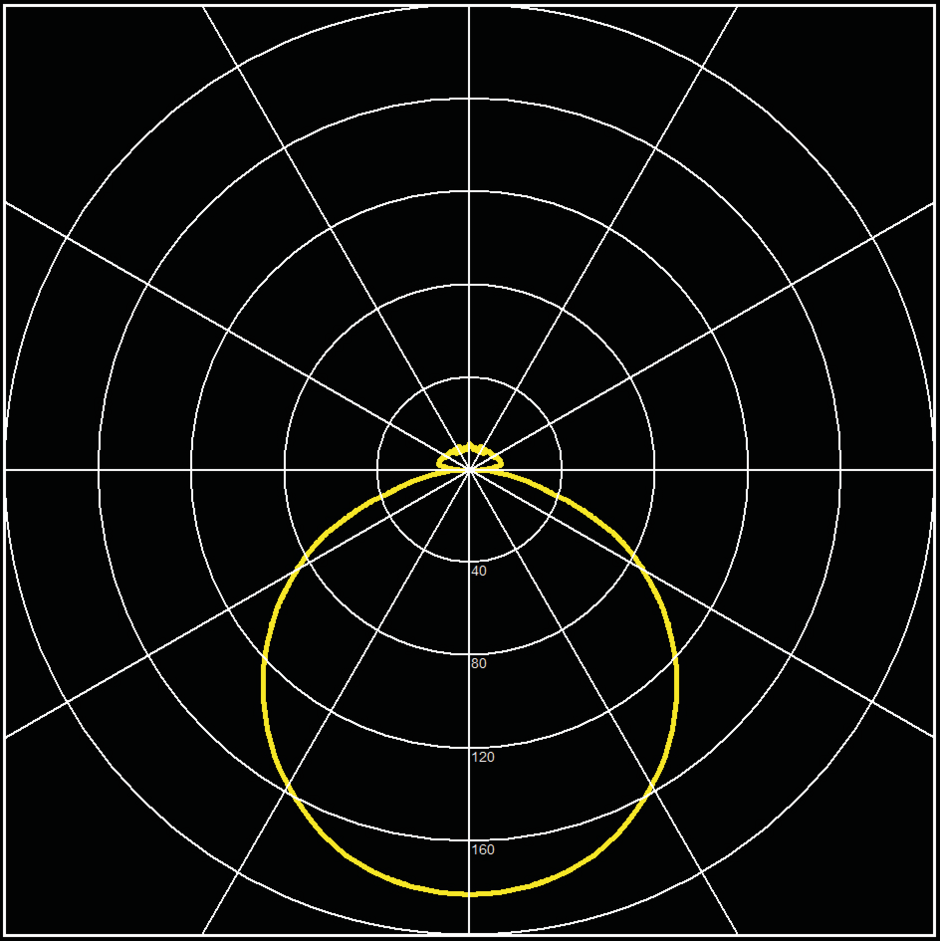

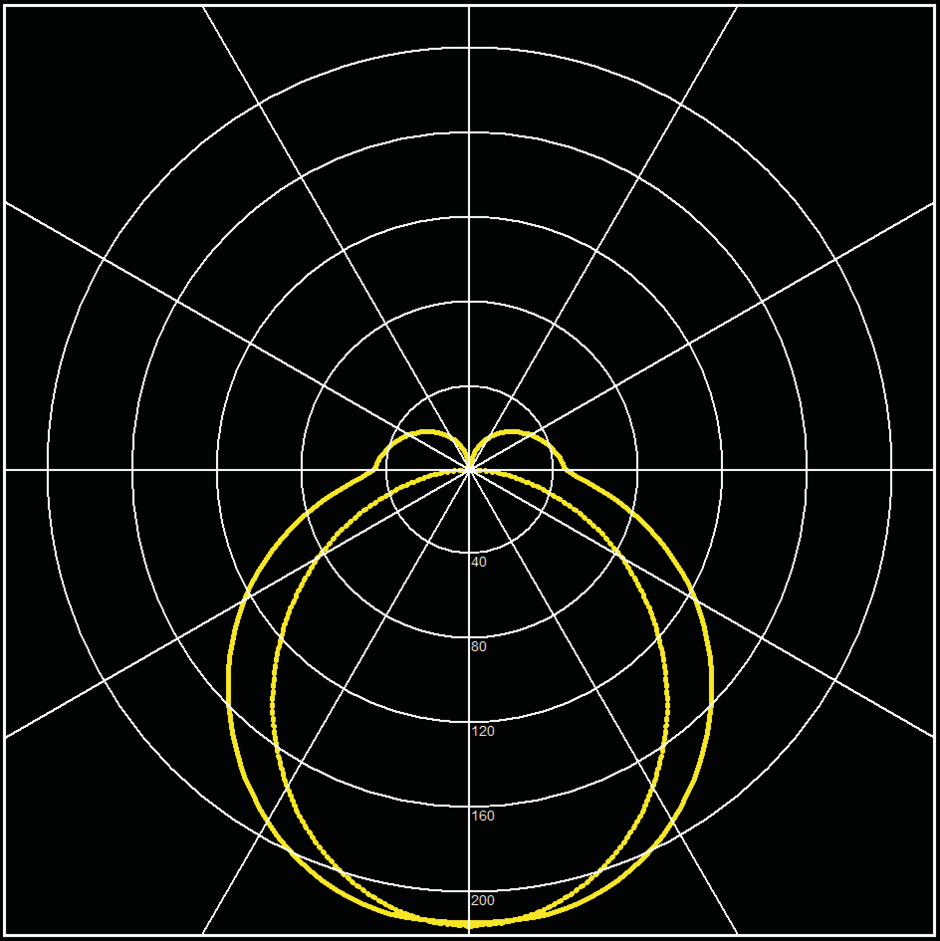

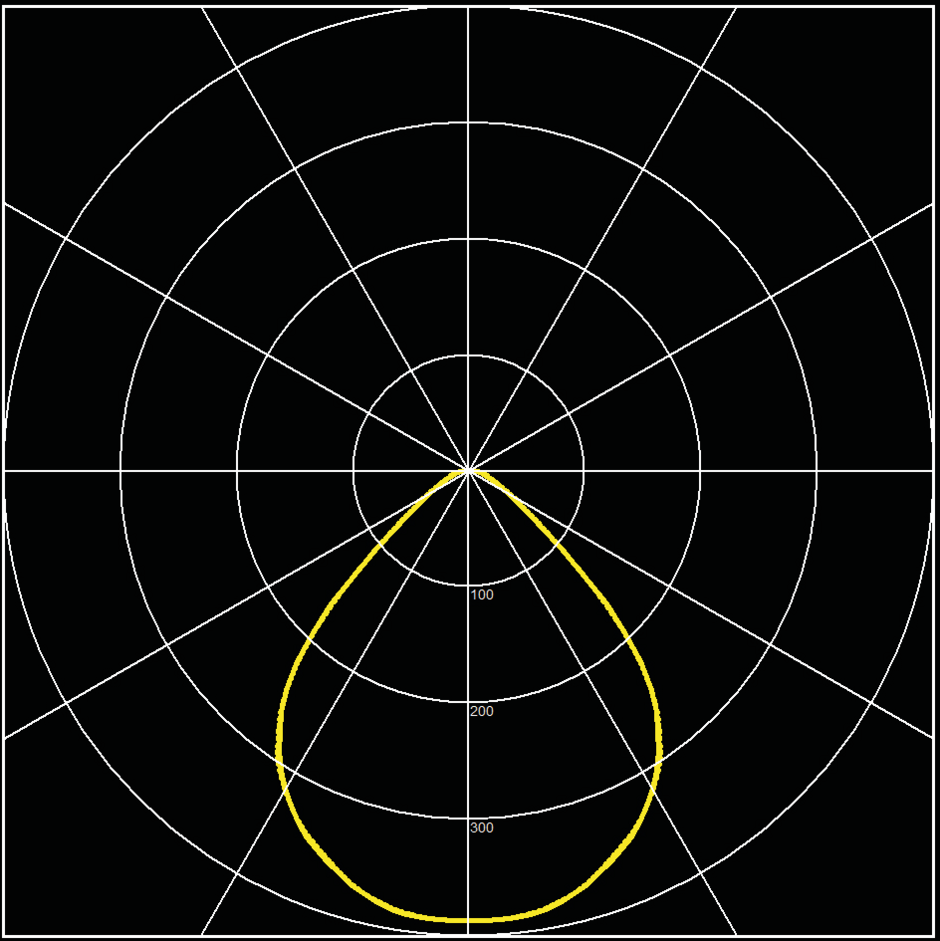

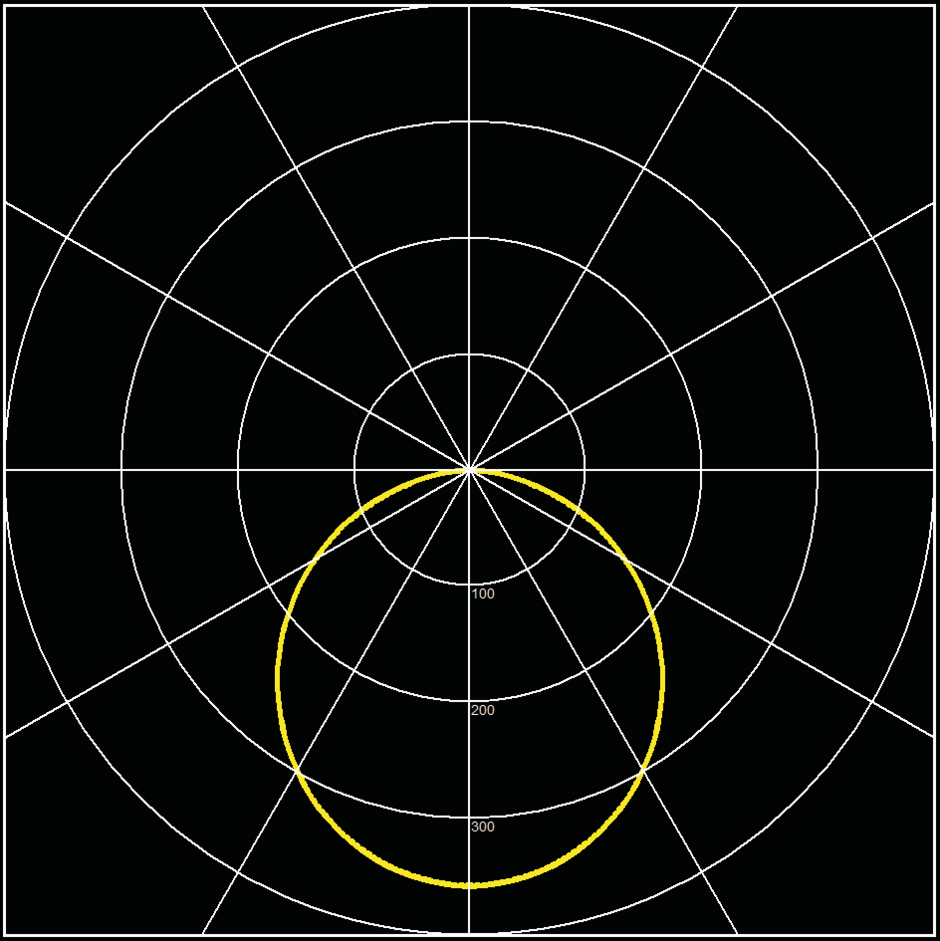

Image	Part Code Article Number	Length (mm)	Mounting	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Data	LDT	Polar	BIM

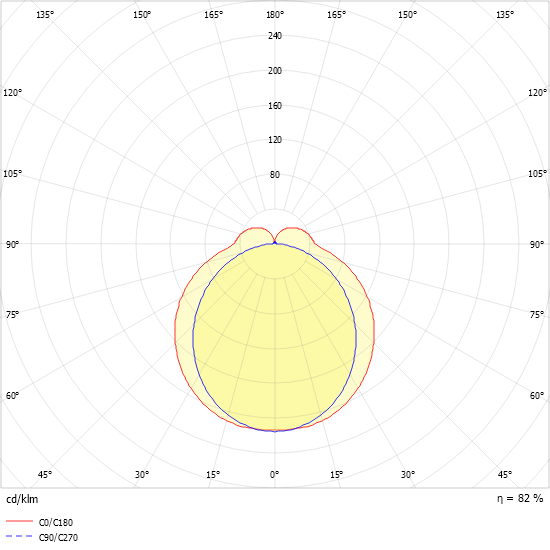

	S36-AD119 DAFSW840LPO0250 SPG0630133AQ	1190 mm	Surface	2470 lm	4000 K	≥ 80	112 lm/W	≤ 25	DALI-2
	S36-PDI119 NDFSW840LPO0550 SPG0620032AQ	1190 mm	Pendant	5280 lm	4000 K	≥ 80	120 lm/W	≤ 22	On/Off
	S36-PDI149 NDFSW840LPO0700 SPG0620033AQ	1490 mm	Pendant	6610 lm	4000 K	≥ 80	122 lm/W	≤ 22	On/Off
	S36-PD119 NDFSW840LPO0250 SPG0620038AQ	1190 mm	Pendant	2470 lm	4000 K	≥ 80	112 lm/W	≤ 25	On/Off
	S36-PD149 NDFSW840LPO0300 SPG0620039AQ	1490 mm	Pendant	3090 lm	4000 K	≥ 80	114 lm/W	≤ 25	On/Off
	S36-PDI119 DAFSW840LPO0550 SPG0630032AQ	1190 mm	Pendant	5280 lm	4000 K	≥ 80	120 lm/W	≤ 22	DALI

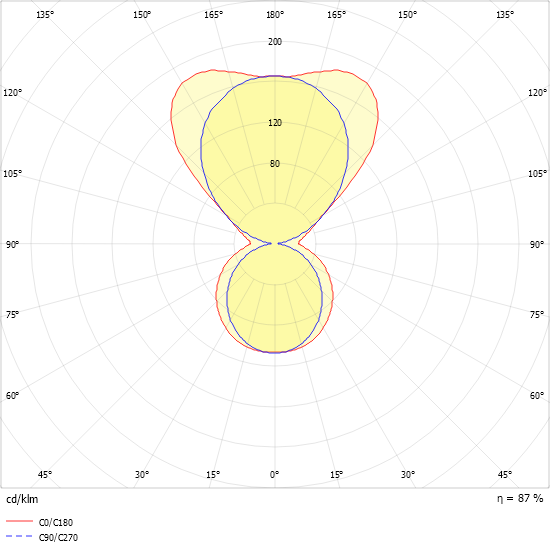

	S36-PDI149 DAFSW840LPO0700 SPG0630033AQ	1490 mm	Pendant	6610 lm	4000 K	≥ 80	122 lm/W	≤ 22	DALI
	S36-PD119 DAFSW840LPO0250 SPG0630038AQ	1190 mm	Pendant	2470 lm	4000 K	≥ 80	112 lm/W	≤ 25	DALI
	S36-PD149 DAFSW840LPO0300 SPG0630039AQ	1490 mm	Pendant	3090 lm	4000 K	≥ 80	114 lm/W	≤ 25	DALI

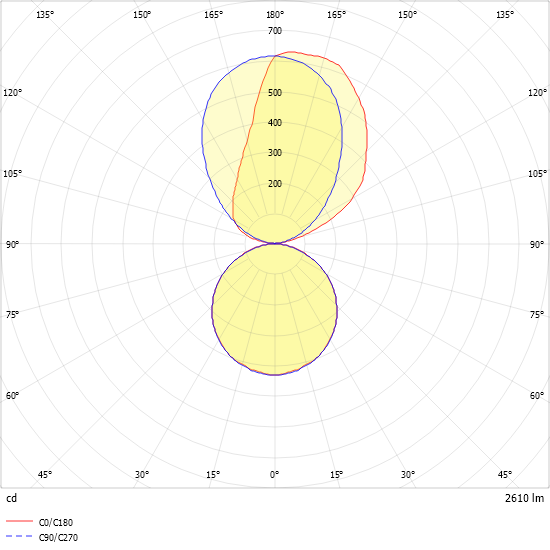

	S36-WDI060 DAFSW840O0250 SPG0630163AQ	600 mm	Surface	2610 lm	4000 K	≥ 80	119 lm/W	≤ 25	DALI-2

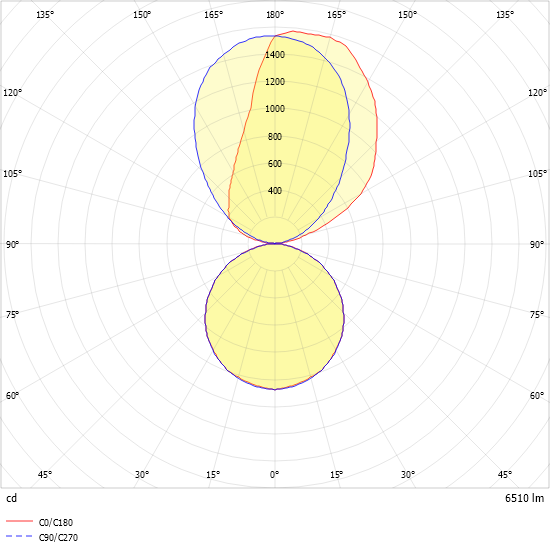

	S36-WDI149 DAFSW840O0650 SPG0630166AQ	1490 mm	Surface	6510 lm	4000 K	≥ 80	121 lm/W	≤ 25	DALI-2
