SALI

Stand Alone LINIA gear trays
IP 20 and IP54
Pre-assembled individual units ready to install

Image	Part No.	Description
No Image	ZADV SALI…150-5X1,5 DV 0205565	Sheathed cable 5×1.5mm² through wiring SALI external, max. 10A
No Image	ZADV SALI…150-3X1,5 DV 0205566	Sheathed cable 3×1.5mm² through wiring SALI external, max. 10A
	VLTHSS AUFHÄNGER AN SCHRÄGE 0205920	Hanger with wire 1.5m + ceiling fixing, inclined ceilings,1 pc
	VLTHSD AUFHÄNGER + DECKENBEF. 0205921	Hanger with wire 1.5m + ceiling fixing, 1 pc.
	VLTHS AUFHÄNGER MIT OESE 0205922	Hanger with wire 1.5m + ring loop, 1 pc.
	VLTHSB AUFHÄNGER + BALDACHIN 0205923	Hanger with wire 1.5m + canopy, 1 pc.
	VLTHST AUFHÄNGER AN T-PROFIL 0207943	Wire pend. f. syst. ceil. 24-26mm T, max 10kg, 1.5m, 1 pc
	VLTHSD SW AUFH. + DECKENBEF. 0205921SW	Hanger with cable 1.5m + ceiling fixture, black bow, 1 pc
	VLTHS SW AUFHÄNGER MIT OESE 0205922SW	Hanger with cable 1.5m + ring loop, black bow, 1 pc.
	VLTHSB-SI AUFHÄNGER +BALDACHIN 0205923SI	Hanger with wire 1.5m + canopy, silver, 1 pc.
	VLTHST SW AUFH. AN T-PROFIL 0207943SW	Wire pend., sys.ceilings w. T 24-26mm, max 10kg, 1.5m, 1 pc.
	VLTHDS AUFHÄNGER + HAKEN KURZ 0205222	Chain suspension hanger, angular mounting, max 20kg, 1 pc
	VLTHDK AUFHÄNGER + KARABINER 0205223	Chain suspension hanger for VLRFAS, 1 pc
	VLTHDB AUFHÄNGER 0205224	Ceiling fixture with cross screw for securing, max. 20 kg, 1 piece
	VLTHD TRAGSCHIENENAUFHÄNGER 0205794	Hanger for ceiling mounting, max. 20kg, 1 pc
	VLTHD-H10 TRAGSCH.AUFHÄNGER 0205930	Hanger for ceiling mounting H=10mm, max. 20kg, 1 pc.
	VLTHD-H01 TRAGSCH.AUFHÄNGER 0209167	Hanger for ceiling mounting H = 1 mm, uncoated, max. 20 kg, one unit
	VLTHD-H10-WS TRAGSCH.AUFHÄNGER 0205930BA	Hanger for ceiling mounting H=10mm, white max. 20kg, 1 pc.
	VLTHD-H01-WS TRAGSCH.AUFHÄNGER 0209167WS	Hanger for ceiling mounting H = 1 mm, white, max. 20 kg, one unit
	VLTLIK 0208310	Internal cable retainer, plastic, 10 units
	VLBP 0205887	Plate with loop for ceiling fixing. max. 20kg, 1 pc
	VLTLA 0205760	Ext. cable retainer max. 2 x dia.13mm + 1 x dia.7mm, 1 pc

Product Filters

		Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	Driver Type	IP rating	Temp Range
Image	Part Code Article Number	Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	Driver Type	IP rating	Temp Range	Data	LDT	Polar	BIM
	SALI-GPS150-FLWS840B1000 1552022	1504 mm	wide beam	9820 lm	4000 K	≥ 80	158 lm/W	xFlex	IP54	-25 - 35 °C
	SALI-GPS150-FLWS840E1000 1552023	1504 mm	narrow beam	9930 lm	4000 K	≥ 80	160 lm/W	xFlex	IP54	-25 - 35 °C

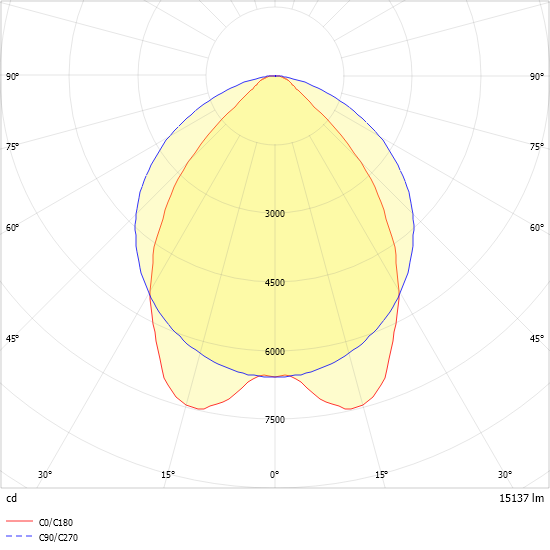

	SALI-GL150-FLWS840B1500 1552024	1504 mm	wide beam	15140 lm	4000 K	≥ 80	180 lm/W	xFlex	IP21	-25 - 37 °C
	SALI-GL150-FLWS840TB1500 1552025	1504 mm	deep-wide beam	15140 lm	4000 K	≥ 80	180 lm/W	xFlex	IP21	-25 - 37 °C

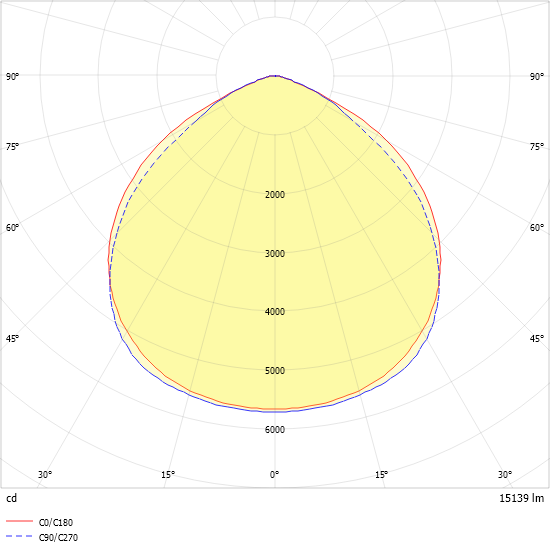

	SALI-GL150-FLWS840BE1500 1552026	1504 mm	extremely wide beam	15140 lm	4000 K	≥ 80	180 lm/W	xFlex	IP21	-25 - 37 °C
	SALI-GL150-FLWS840BU0650 1552030	1504 mm	wide beam	6450 lm	4000 K	≥ 80	179 lm/W	xFlex	IP21	-25 - 45 °C
	SALI-GPS150-DAWS840B1000 1562022	1504 mm	wide beam	9820 lm	4000 K	≥ 80	158 lm/W	DALI-2	IP54	-25 - 38 °C

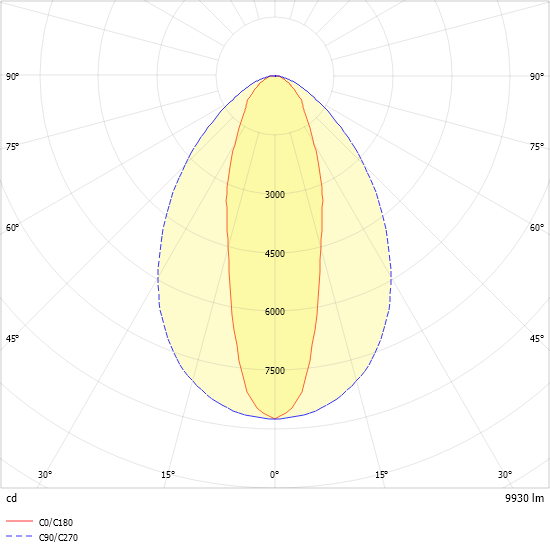

	SALI-GPS150-DAWS840E1000 1562023	1504 mm	narrow beam	9930 lm	4000 K	≥ 80	160 lm/W	DALI-2	IP54	-25 - 38 °C
	SALI-GL150-DAWS840B1500 1562024	1504 mm	wide beam	15140 lm	4000 K	≥ 80	180 lm/W	DALI-2	IP21	-25 - 32 °C
	SALI-GL150-DAWS840TB1500 1562025	1504 mm	deep-wide beam	15330 lm	4000 K	≥ 80	180 lm/W	DALI-2	IP21	-25 - 32 °C
	SALI-GL150-DAWS840BE1500 1562026	1504 mm	extremely wide beam	14840 lm	4000 K	≥ 80	177 lm/W	DALI-2	IP21	-25 - 32 °C
	SALI-GL150-DAWS840BU0650 1562030	1504 mm	wide beam	6450 lm	4000 K	≥ 80	179 lm/W	DALI-2	IP21	-25 - 45 °C
