Smart
Wireless

Combines wireless enabled luminaires, sensors, switches and scene plates along with a simple to use mobile app.

The system is fully featured, providing the same functionality of typical wired systems, but proves itself invaluable where additional control wiring is difficult or unwanted.

Functionality …

Energy Saving

Motion Detection
Wireless multisensor sensors detect occupancy and allow both presence and absence control regimes.

Using presence detection, lights switch on and off automatically with occupancy. With absence detection, lights need to be switched on manually using a switch or scene plate but still switch off automatically.

Daylight Harvesting
A room with daylight is more natural and comfortable to work in. It also means that less artificial light is needed. Automatic dimming and switching of the lighting maintains the right lighting levels and reduces energy usage.

Time Control
Lighting output and settings can be timed to match your building’s usage. Each area can respond to the type of usage based on day and time.

Comfort, Convenience and Wellbeing

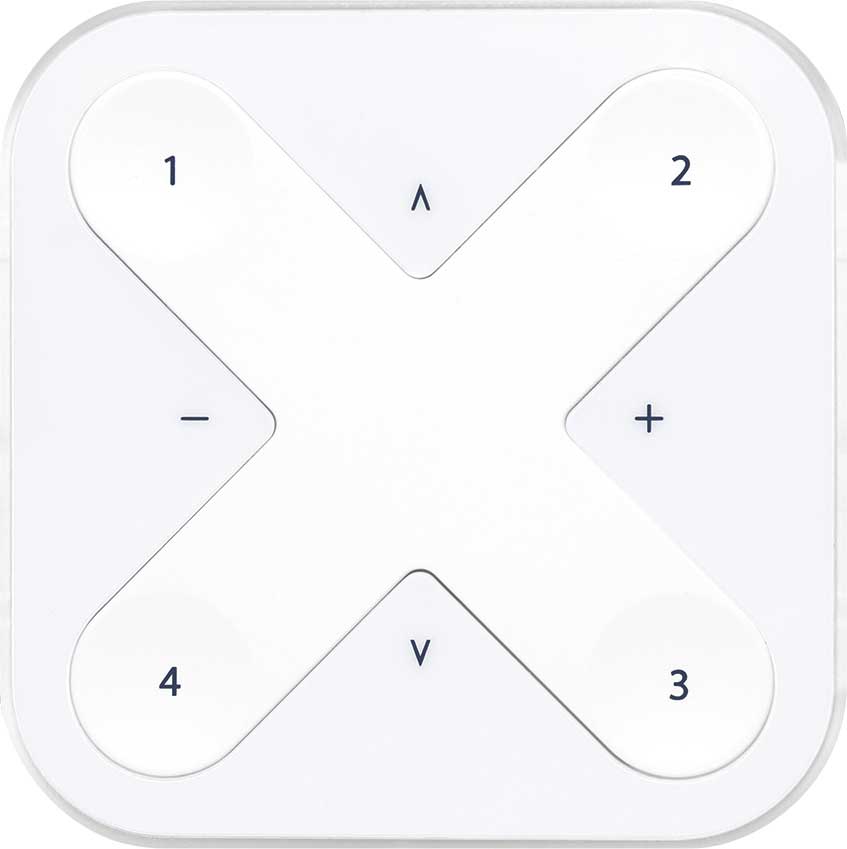

Scene Setting and Sequences
Change the mood or function of a room at the touch of a button. And you can fine tune those scenes any time using the simple mobile app.

Circadian rhythms and Tuneable White
Daylight is never static, it changes in colour and intensity from dawn to dusk. Used with RIDI group tuneable white luminaires, the system is able to mimic this cycle to promote wellbeing.

Find out more about well lighting

Smart Circulation
We don’t hold on a whole building’s corridors and circulation areas, just because one office is occupied.

Smart Circulation puts a bubble of light around building users so that they never enter a dark corridor or stairwell, while minimising the lit area to save energy.

AV Integration
Connect to with your AV system so that at a touch of button the blinds will close, the projector and sound system will switch on and of course the perfect light level will be set.

… with Simple Installation

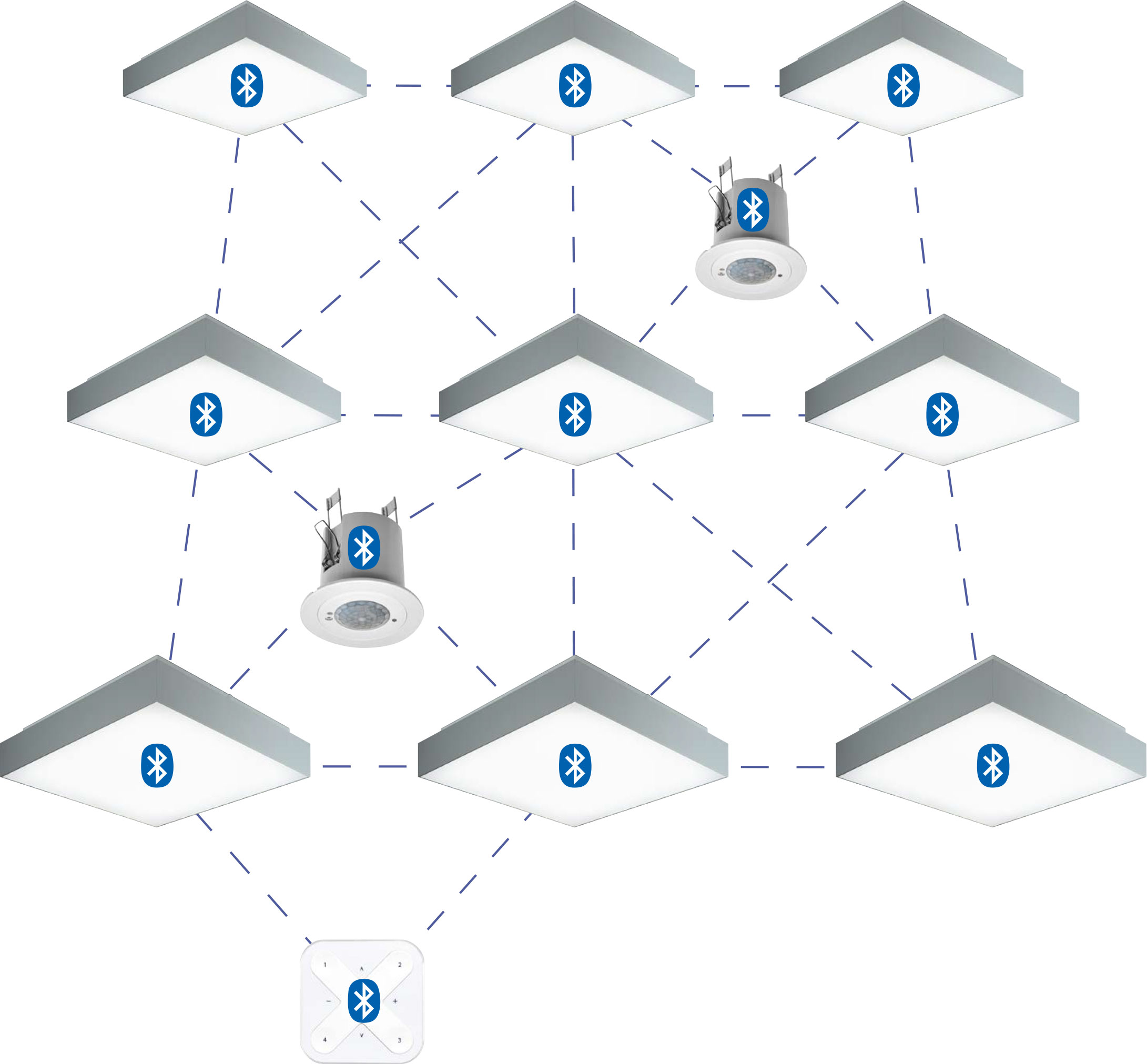

Smart Wireless is powered by the Casambi bluetooth mesh, which means no control cables are required.

Swap existing lights for wireless enabled units and connect to the existing mains wiring.  The sensors are mains powered but communicate via Bluetooth, they can piggy-back from the lighting power.

Virtually all our luminaires can be supplied as wireless enabled versions and many will be drop in replacements for your existing modular fittings.

Configure using your phone, or let us take care of it.



Design

We work with you from the very begining to ensure that when all luminaires and controls are supplied they will be compatible, efficient and economical.

Please contact us if you would like further information about lighting controls, energy savings or if you would like any assistance with planning your next project

Setup

The smart wireless system is easy to configure using the free mobile app.  If you’d rather get on with your day job, leave it to us to set it up for you.

Support

We offer on-site and remote support plans for long term peace of mind.

Product Filters

Mounting Driver
Type
Image Part Code
Article Number
Mounting Driver
Type
Data LDT Polar BIM
Product ImageAPCON BLE-HYBRIDBOX-MINI-WS
0209557
Surface; Recessed; Insert; Pendant; Standing; Power railDALI | CasambiNo PDF Available
Product ImageAPCON BLE-HYBRIDBOX-MINI-SW
0209557SW
Surface; Recessed; Insert; Pendant; Standing; Power railDALI | CasambiNo PDF Available
Product ImageAPCON BLE HYBRIDBOX-SM
0209497
SurfaceDALI | CasambiPDF
Product ImageAPCON BLE HYBRIDBOX-RM
0209498
RecessedDALI | CasambiPDF
Product ImageAPCON BLE HYBRIDBOX-RSM
0209499
Surface; RecessedDALI | CasambiPDF
Product ImageAPCON BLE-ASD
0212530
RecessedDALI | CasambiPDF
Product ImageAPCON BLE SEN PD4 DA2 CAS-SC
0209505
RecessedDALI-2 | CasambiPDF
Product ImageAPCON BLE SEN PD4 CAS-SC
0209506
RecessedCasambiPDF
Product ImageAPCON BLE SEN PD4 GH DA2CAS-CM
0209507
SurfaceDALI-2 | CasambiPDF
Product ImageAPCON BLE SEN PD4 GH CAS-CM
0209508
SurfaceCasambiPDF
Product ImageAPCON BLE-XPRESSW
0206970
SurfacePDF
Product ImageAPCON BLE-XPRESSB
0206970SW
SurfacePDF
Product ImageAPCON BLE-COP-A
0209024
RecessedPDF
Product ImageAPCON BLE-1SWITCH
0209153
SurfacePDF
Product ImageAPCON BLE-2SWITCH
0209154
SurfacePDF
Product ImageAPCON BLE-DISP4,8W
0209509
RecessedPDF
Product ImageAPCON BLE SOLUTION PACKAGE ONE
0209500
Surface; RecessedDALI-2PDF
Product ImageIR-ADAPTER-BLE SMARTPHONE
0209282
PDF

Downloads

Wireless Controls Brochure
