SQL Sign Recessed
Ceiling mounted, recessed LED Exit sign
Technical:
| Light Source | Battery | Input Voltage | Ip rating |
| 10 x 3 Chip LED | 1.5Ah Li-Fe | 220-240V 50-60Hz | IP20 |
Design:
Ceiling mounted, recessed LED Exit sign suited to modern architectural environments. An attractive flat design with the exit legend being framed by a high quality Aluminium extrusion measuring just 237x137mm.
The specially screened light-conducting panel ensures a uniform illumination and due to their high illuminance of >500cd/m² are ideal for use in brightly lit environments.
Can be configured for non-maintained, maintained or switch maintained operation.
Functions as stand-alone Self Test as standard or can be connected to a DALI system.

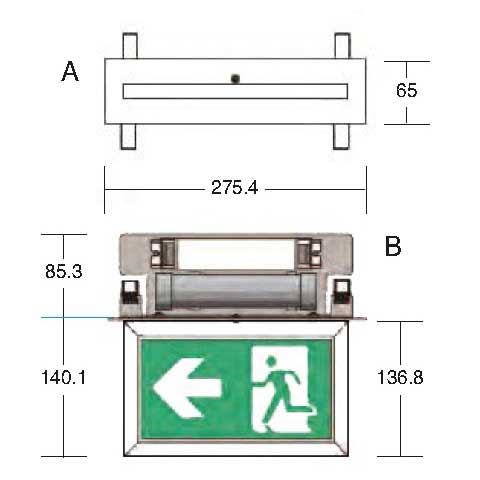

Dimensions:
Order Codes:
|
SQL/RECE/DALI/WH |
Wall Mounted, LED Exit Sign | |
|---|---|---|
|
Options |
/GR |
Grey painted finish |
| /DS | Double Sided | |
| Legends | /ECAR | EC Format – Arrow Right |
| /ECAL | EC Format – Arrow Left | |
| /ECAD | EC Format – Arrow Down | |
| /ISOAR | ISO Format – Arrow Right | |
| /ISOAL | ISO Format – Arrow Left | |
| /ISOAU | ISO Format – Arrow Up | |

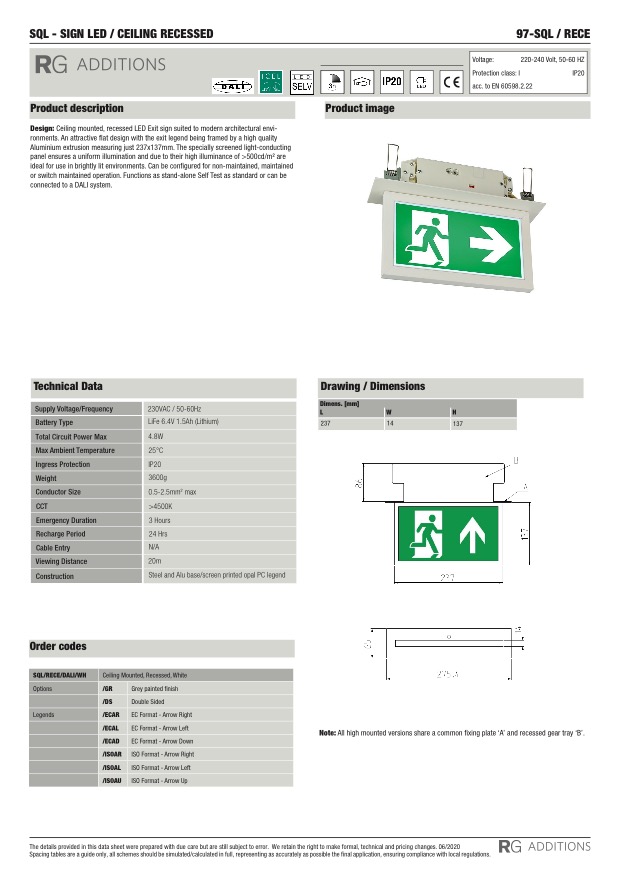

Data Sheet:
