SURVIVOR

Survivor by name…

Survivor is a premium quality vandal and shock resistant luminaire designed for public spaces.

As used on rail networks throughout the world

Survivor 510 is fire resisitant for use on the Underground

Fit and Forget

Survivor has a high resistance to dust and water and features tool-less removal of the light component for convenient connection or maintenance.

Modular Design

Surface Mounted. Suspended. Corner Mounted.

Add speaker modules, camera modules, mitred angles that follow the architecture. Media trunking system provides sufficient space for cabling.

Image	Part No.	Description
No Image	SURVIVOR TP25/60-LV 0209231	Straight connector for media support profiles, V2A, 1 piece
	SURVIVOR TP60-EPWS 0209236	End plate for media support profile (h = 60 mm), white, 1 piece
	SURVIVOR TP60-490WS 0209237	Media support profile (TP) (h = 60 mm), 4.9 m, white
No Image	SURVIVOR BLIND-069WS 0209238	Dummy cover, 0.69 m, white
No Image	SURVIVOR BLIND-130WS 0209239	Dummy cover, 1.3 m, white
No Image	SURVIVOR BLIND-160WS 0209240	Dummy cover, 1.6 m, white
	SURVIVOR BLIND-EPWS 0209243	End plate for dummy cover, white, 1 piece

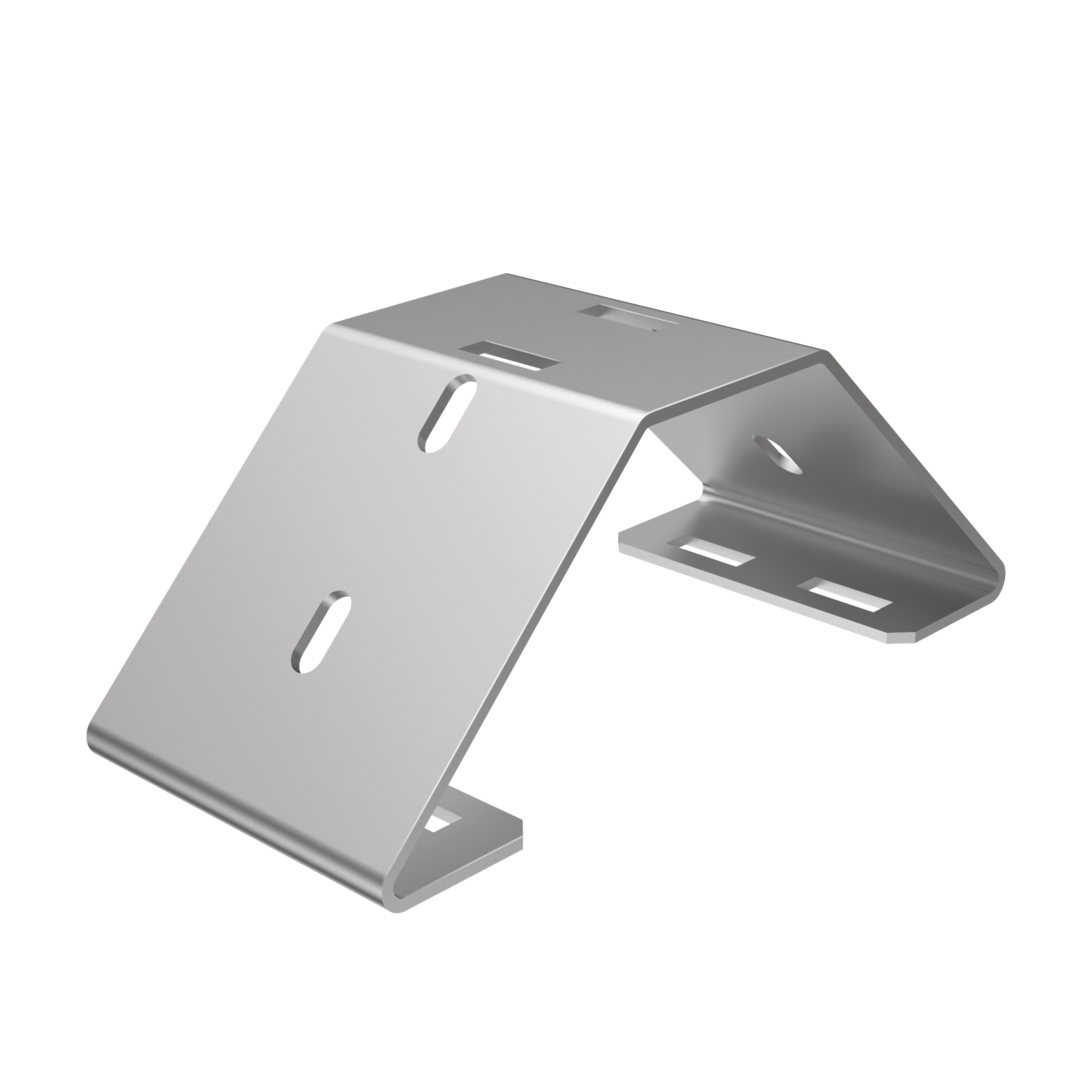

	SURVIVOR EM-HWB 0209244	Wall bracket (45°), double for joint, V2A, 1 piece
	SURVIVOR BLIND-TP60WFH100WS 0209246	Dummy cover + TP (h = 60 mm), hor. 90° corner, 1.0×1.0 m, white
No Image	SURVIVOR DV160-5X2,5 0209247	Through wiring set, internal for SURVIVOR160, 5×2.5 mm²
	SURVIVOR EM-EPWS 0209256	End plate for dummy lamp, 45° corner mounting, white, 1 piece

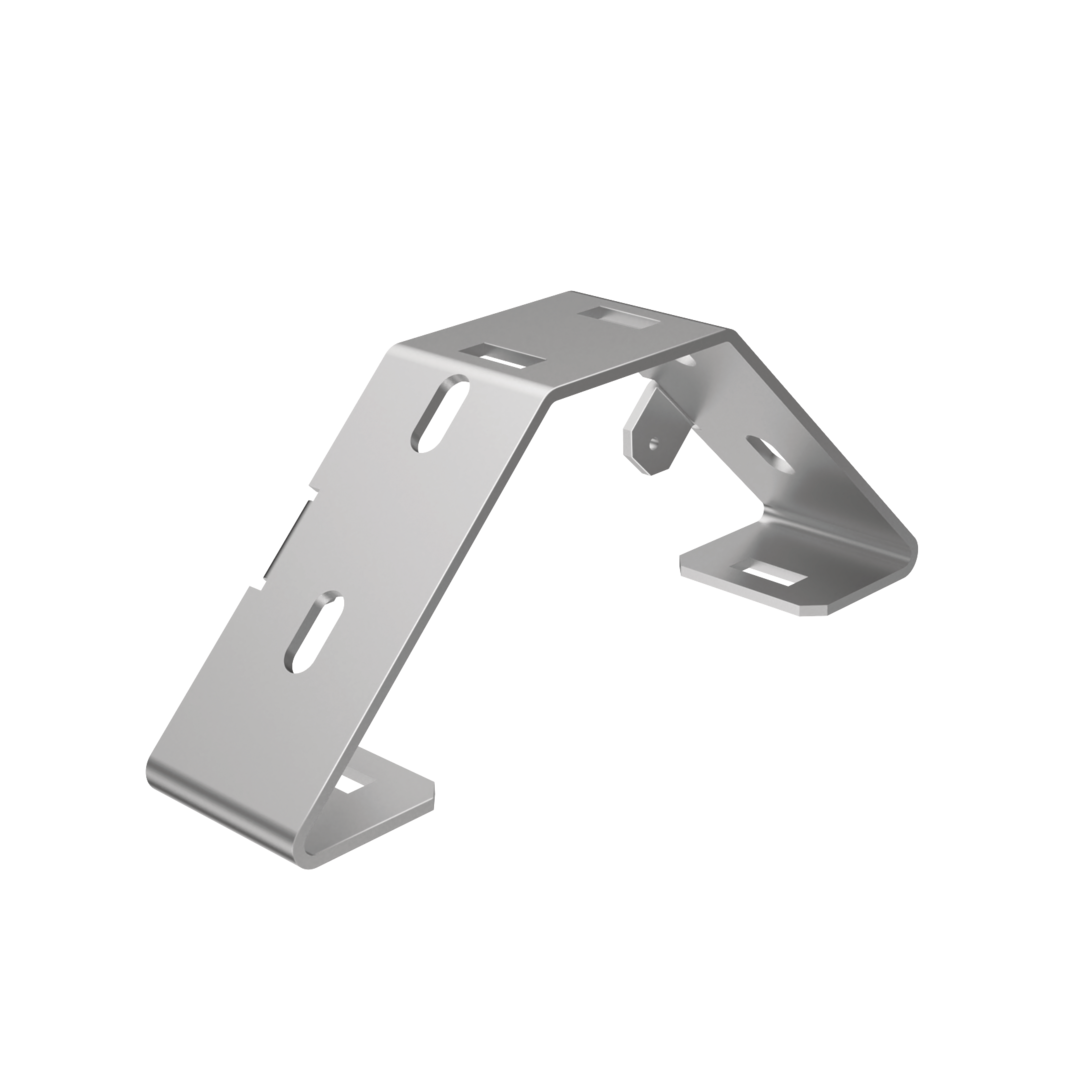

	SURVIVOR EM-HWE 0209257	Wall bracket (45°), easier for termination, V2A, 1 piece
	SURVIVOR TP25-490WS 0209286	Media support profile (TP) (h = 27mm), 4.9 m, white
	SURVIVOR TP60-100WS 0209325	Media support profile (TP) (h = 60 mm), 1.0 m, white
	SURVIVOR TP25-100WS 0209326	Media support profile (TP) (h = 27mm), 1.0 m, white
	SURVIVOR BLIND-TP60WFV100WS 0209332	Dummy cover + TP (h = 60 mm), vt. 90° corner, 1.0×1.0 m, white
	SURVIVOR BLIND-TP25WFH100WS 0209333	Dummy cover + TP (h = 27 mm), hor. 90° corner, 1.0×1.0 m, white
	SURVIVOR BLIND-TP25WFV100WS 0209334	Dummy cover + TP (h = 27 mm), vt. 90° corner, 1.0×1.0 m, white
	SURVIVOR BLIND-WFH100WS 0209335	Dummy cover, hor. 90° corner, 1.0×1.0 m, white
	SURVIVOR BLIND-WFV100WS 0209336	Dummy cover, vt. 90° corner, 1.0×1.0 m, white
	SURVIVOR BLIND-E45WFH100WS 0209337	Dummy cover + 45° wall bracket, hor. 90° corner, 1.0×1.0 m, white
No Image	SURVIVOR PR-GS 0209338	Sliding slide for TP, M16 female thread connection, V2A, 1 piece
No Image	SURVIVOR PMH-TP25/TP60 WS 0209339	Pendulum multi holder media support profiles, white, 1 piece
	SURVIVOR TP25-EPWS 0209340	End plate for media support profile (h = 27 mm), white, 1 piece
No Image	SURVIVOR DV130-5X2,5 0209354	Through-wiring set inside for SURVIVOR130, 5×2.5mm²
No Image	SURVIVOR DV069-5X2,5 0209355	Through wiring set, internal for SURVIVOR069, 5×2.5 mm²

Filters

		Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	Driver Type	IK Rating	Temp Range	Diffuser
Image	Part Code Article Number	Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	Driver Type	IK Rating	Temp Range	Diffuser	Data	LDT	Polar	BIM
	SURVIVOR069DAWS830K0250 0632202	690 mm	extremely wide beam	2750 lm	3000 K	≥ 80	145 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Clear
	SURVIVOR069DAWS830S0250 0632203	690 mm	extremely wide beam	2570 lm	3000 K	≥ 80	135 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR069DAWS840K0300 0632206	690 mm	extremely wide beam	2890 lm	4000 K	≥ 80	152 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Clear
	SURVIVOR069DAWS840S0250 0632207	690 mm	extremely wide beam	2710 lm	4000 K	≥ 80	143 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR069DAWS840AS0225 0632208	690 mm	asymmetric beam	2260 lm	4000 K	≥ 80	119 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR130DAWS830K0500 0632210	1300 mm	extremely wide beam	5490 lm	3000 K	≥ 80	157 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Clear
	SURVIVOR130DAWS830S0500 0632211	1300 mm	extremely wide beam	5150 lm	3000 K	≥ 80	147 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR130DAWS840K0550 0632214	1300 mm	extremely wide beam	5780 lm	4000 K	≥ 80	165 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Clear
	SURVIVOR130DAWS840S0550 0632215	1300 mm	extremely wide beam	5420 lm	4000 K	≥ 80	155 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR130DAWS840AS0450 0632216	1300 mm	asymmetric beam	4520 lm	4000 K	≥ 80	129 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR160DAWS830K0650 0632218	1600 mm	extremely wide beam	6870 lm	3000 K	≥ 80	160 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Clear
	SURVIVOR160DAWS830S0600 0632219	1600 mm	extremely wide beam	6440 lm	3000 K	≥ 80	150 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR160DAWS840K0700 0632222	1600 mm	extremely wide beam	7230 lm	4000 K	≥ 80	168 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Clear
	SURVIVOR160DAWS840S0650 0632223	1600 mm	extremely wide beam	6770 lm	4000 K	≥ 80	157 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR160DAWS840AS0550 0632224	1600 mm	asymmetric beam	5650 lm	4000 K	≥ 80	131 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C	PC Satin
	SURVIVOR069DAWS830ESGS0250 0632227	690 mm	extremely wide beam	2820 lm	3000 K	≥ 80	148 lm/W	DALI-2	IK08	-20 - 25 °C	Glass
	SURVIVOR069DAWS840ESGS0300 0632231	690 mm	extremely wide beam	2970 lm	4000 K	≥ 80	156 lm/W	DALI-2	IK08	-20 - 25 °C	Glass
	SURVIVOR130DAWS830ESGS0550 0632235	1300 mm	extremely wide beam	5640 lm	3000 K	≥ 80	161 lm/W	DALI-2	IK08	-20 - 25 °C	Glass
	SURVIVOR130DAWS840ESGS0550 0632239	1300 mm	extremely wide beam	5940 lm	4000 K	≥ 80	170 lm/W	DALI-2	IK08	-20 - 25 °C	Glass
	SURVIVOR160DAWS830ESGS0650 0632243	1600 mm	extremely wide beam	7050 lm	3000 K	≥ 80	164 lm/W	DALI-2	IK08	-20 - 25 °C	Glass
	SURVIVOR160DAWS840ESGS0700 0632247	1600 mm	extremely wide beam	7420 lm	4000 K	≥ 80	173 lm/W	DALI-2	IK08	-20 - 25 °C	Glass
	SURVIVOR069NDWS840MPO0225-DB 6068055	690 mm	wide beam	2200 lm	4000 K	≥ 80	124 lm/W	xFlex	IK11+ 100 J	-20 - 25 °C	PC Opal Prism
	SURVIVOR130NDWS840MPO0450-DB 6068056	1300 mm	wide beam	4300 lm	4000 K	≥ 80	123 lm/W	xFlex	IK11+ 100 J	-20 - 25 °C	PC Opal Prism
	SURVIVOR160NDWS840MPO0550-DB 6068057	1600 mm	wide beam	5400 lm	4000 K	≥ 80	126 lm/W	xFlex	IK11+ 100 J	-20 - 25 °C	PC Opal Prism
	SURVIVOR069DAWS840S0250-US 6068083	690 mm	extremely wide beam	2570 lm	4000 K	≥ 80	144 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Satin
	SURVIVOR069DAWS840AS0250-US 6068084	690 mm	asymmetric beam	2150 lm	4000 K	≥ 80	121 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Satin
	SURVIVOR069DAWS840MPO0225-US 6068085	690 mm	wide beam	2200 lm	4000 K	≥ 80	124 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Opal Prism
	SURVIVOR130DAWS840S0500-US 6068086	1300 mm	extremely wide beam	5140 lm	4000 K	≥ 80	143 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Satin
	SURVIVOR130DAWS840AS0500-US 6068087	1300 mm	asymmetric beam	4300 lm	4000 K	≥ 80	119 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Satin
	SURVIVOR130DAWS840MPO0450-US 6068088	1300 mm	wide beam	4300 lm	4000 K	≥ 80	119 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Opal Prism
	SURVIVOR160DAWS840S0650-US 6068089	1600 mm	extremely wide beam	6600 lm	4000 K	≥ 80	150 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Satin
	SURVIVOR160DAWS840AS0650-US 6068090	1600 mm	asymmetric beam	5510 lm	4000 K	≥ 80	125 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Satin
	SURVIVOR160DAWS840MPO0550-US 6068091	1600 mm	wide beam	5400 lm	4000 K	≥ 80	123 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Opal Prism
	SURVIVOR069NDWS830K0250-RF 0622202//420	690 mm	extremely wide beam	2700 lm	3000 K	≥ 80	150 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Clear
	SURVIVOR069NDWS830S0250-RF 0622203//420	690 mm	extremely wide beam	2500 lm	3000 K	≥ 80	139 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Opal Prism
	SURVIVOR069NDWS840K0300-RF 0622206//420	690 mm	extremely wide beam	2800 lm	4000 K	≥ 80	156 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Clear
	SURVIVOR069NDWS840S0250-RF 0622207//420	690 mm	extremely wide beam	2600 lm	4000 K	≥ 80	144 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR069NDWS840AS0225-RF 0622208//420	690 mm	asymmetric beam	2200 lm	4000 K	≥ 80	122 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR130NDWS830K0500-RF 0622210//420	1300 mm	extremely wide beam	5300 lm	3000 K	≥ 80	151 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Clear
	SURVIVOR130NDWS830S0500-RF 0622211//420	1300 mm	extremely wide beam	5000 lm	3000 K	≥ 80	143 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR130NDWS840K0550-RF 0622214//420	1300 mm	extremely wide beam	5600 lm	4000 K	≥ 80	160 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Clear
	SURVIVOR130NDWS840S0500-RF 0622215//420	1300 mm	extremely wide beam	5300 lm	4000 K	≥ 80	151 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR130NDWS840AS0450-RF 0622216//420	1300 mm	asymmetric beam	4400 lm	4000 K	≥ 80	126 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR160NDWS830K0650-RF 0622218//420	1600 mm	extremely wide beam	6700 lm	3000 K	≥ 80	149 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Clear
	SURVIVOR160NDWS830S0600-RF 0622219//420	1600 mm	extremely wide beam	6300 lm	3000 K	≥ 80	140 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR160NDWS840K0700-RF 0622222//420	1600 mm	extremely wide beam	7100 lm	4000 K	≥ 80	158 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Clear
	SURVIVOR160NDWS840S0650-RF 0622223//420	1600 mm	extremely wide beam	6600 lm	4000 K	≥ 80	147 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR160NDWS840AS0550-RF 0622224//420	1600 mm	asymmetric beam	5500 lm	4000 K	≥ 80	122 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR069NDWS830ESGS0250-RF 0622227//420	690 mm	extremely wide beam	2700 lm	3000 K	≥ 80	150 lm/W	xFlex	IK08	-20 - 50 °C	Glass
	SURVIVOR069NDWS840ESGS0300-RF 0622231//420	690 mm	extremely wide beam	2900 lm	4000 K	≥ 80	161 lm/W	xFlex	IK08	-20 - 50 °C	Glass
	SURVIVOR130NDWS830ESGS0550-RF 0622235//420	1300 mm	extremely wide beam	5500 lm	3000 K	≥ 80	157 lm/W	xFlex	IK08	-20 - 50 °C	Glass
	SURVIVOR130NDWS840ESGS0550-RF 0622239//420	1300 mm	extremely wide beam	5800 lm	4000 K	≥ 80	166 lm/W	xFlex	IK08	-20 - 50 °C	Glass
	SURVIVOR160NDWS830ESGS0650-RF 0622243//420	1600 mm	extremely wide beam	6900 lm	3000 K	≥ 80	153 lm/W	xFlex	IK08	-20 - 50 °C	Glass
	SURVIVOR160NDWS840ESGS0700-RF 0622247//420	1600 mm	extremely wide beam	7200 lm	4000 K	≥ 80	160 lm/W	xFlex	IK08	-20 - 50 °C	Glass
	SURVIVOR069DAWS840K0300-US 0632206//425	690 mm	extremely wide beam	2750 lm	4000 K	≥ 80	154 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Clear
	SURVIVOR130DAWS840K0550-US 0632214//425	1300 mm	extremely wide beam	5500 lm	4000 K	≥ 80	153 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C	PC Clear
	SURVIVOR069NDWS840S0250-DB 6068001//420	690 mm	extremely wide beam	2600 lm	4000 K	≥ 80	146 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C	PC Satin
	SURVIVOR069NDWS840AS0250-DB 6068002//420	690 mm	asymmetric beam	2200 lm	4000 K	≥ 80	124 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C
	SURVIVOR130NDWS840S0500-DB 6068003//420	1300 mm	extremely wide beam	5400 lm	4000 K	≥ 80	154 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C
	SURVIVOR130NDWS840AS0500-DB 6068004//420	1300 mm	asymmetric beam	4400 lm	4000 K	≥ 80	126 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C
	SURVIVOR160NDWS840S0650-DB 6068005//420	1600 mm	extremely wide beam	6600 lm	4000 K	≥ 80	153 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C
	SURVIVOR160NDWS840AS0650-DB 6068006//420	1600 mm	asymmetric beam	5510 lm	4000 K	≥ 80	128 lm/W	xFlex	IK11+ 100 J	-20 - 50 °C
	SURVIVOR069DAWS830S0300-US 6069075//425	690 mm	extremely wide beam	3190 lm	3000 K	≥ 80	139 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C
	SURVIVOR130DAWS830S0650-US 6069076//425	1300 mm	extremely wide beam	6370 lm	3000 K	≥ 80	138 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR160DAWS830S0800-US 6069077//425	1600 mm	extremely wide beam	7970 lm	3000 K	≥ 80	137 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C
	SURVIVOR069DAWS830AS0300-US 6069078//425	690 mm	asymmetric beam	2650 lm	3000 K	≥ 80	115 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR130DAWS830AS0550-US 6069079//425	1300 mm	asymmetric beam	5310 lm	3000 K	≥ 80	115 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR160DAWS830AS0700-US 6069080//425	1600 mm	asymmetric beam	6640 lm	3000 K	≥ 80	114 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR069DAWS830MPO0300-US 6069091//425	690 mm	wide beam	2540 lm	3000 K	≥ 80	110 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR130DAWS830MPO0550-US 6069092//425	1300 mm	wide beam	5080 lm	3000 K	≥ 80	110 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR160DAWS830MPO0650-US 6069093//425	1600 mm	wide beam	6350 lm	3000 K	≥ 80	109 lm/W	DALI-2	IK11+ 100 J	-20 - 45 °C
	SURVIVOR069DAWS840S0300-US 6069109//425	690 mm	extremely wide beam	3360 lm	4000 K	≥ 80	146 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C
	SURVIVOR130DAWS840S0650-US 6069110//425	1300 mm	extremely wide beam	6720 lm	4000 K	≥ 80	146 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C
	SURVIVOR160DAWS840S0800-US 6069111//425	1600 mm	extremely wide beam	8400 lm	4000 K	≥ 80	145 lm/W	DALI-2	IK11+ 100 J	-20 - 25 °C
