VENICE

Continuous LED
Light Channel

[scrolly id="12677"]

DESIGN

Venice is a modular system made up of an extruded carrier, LED modules and optics. The positioning of luminaires along the carrier is flexible and blank sections with sensors are easily accomodated.

Continuous BusBar

Venice uses our LINIA bus bar power system so luminaires and modules can be positioned anywhere along the lengthy of the system. The system parts just click in to locate and connect electrically.

Two Profiles

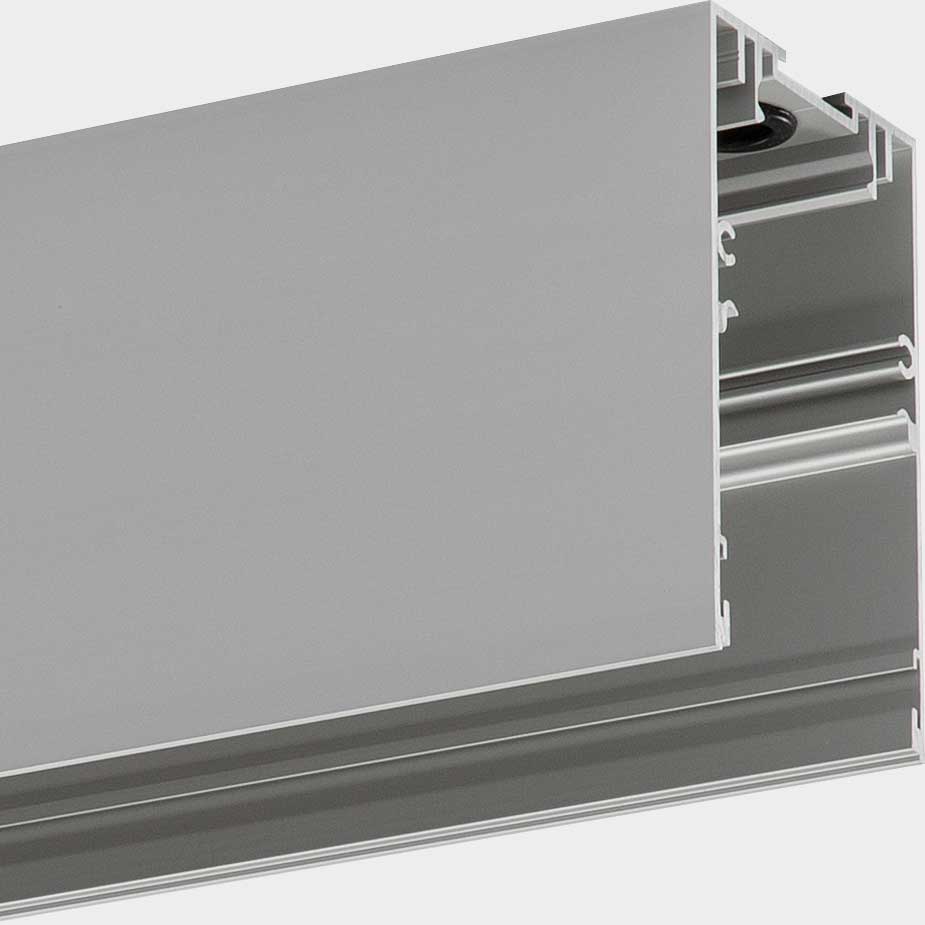

A-Profile

Straight edges designed for surface mounting or suspending. May also be recessed using the special mounting kit for a minimalist look.

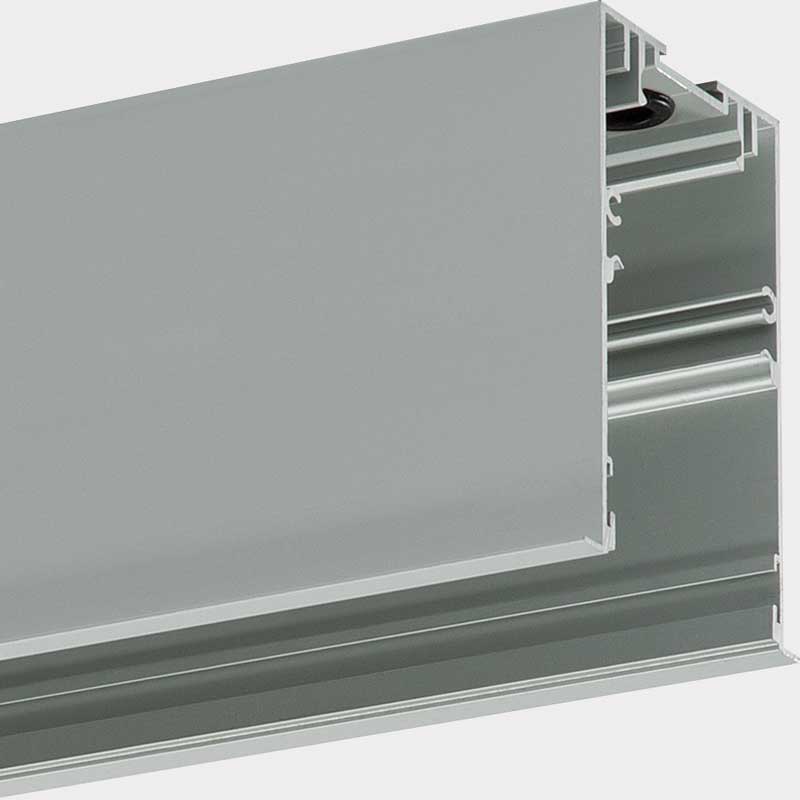

E-Profile

A return edge on the front face make recessing simpler and produces a clean result quickly.

Product Selection

Product Filters

		Size (mm)	Product Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Product Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	VENICE-A-F1X149-11-NE 0528261AF	1488 mm	Surface; Pendant Extrusion
	VENICE-A-F1X154-11-NE 0528264AF	1188 mm	Surface; Pendant Extrusion
	VENICE-A-F2X149-11-NE 0528262AF	2974 mm	Surface; Pendant Extrusion
	VENICE-A-F2X154-11-NE 0528265AF	2374 mm	Surface; Pendant Extrusion
	VENICE-A-F3X149-11-NE 0528263AF	4460 mm	Surface; Pendant Extrusion
	VENICE-A-F3X154-11-NE 0528266AF	3560 mm	Surface; Pendant Extrusion
	VENICE-E-F1X149-11-NE 0528267AF	1488 mm	Recessed Extrusion
	VENICE-E-F1X154-11-NE 0528270AF	1188 mm	Recessed Extrusion
	VENICE-E-F2X149-11-NE 0528268AF	2974 mm	Recessed Extrusion
	VENICE-E-F2X154-11-NE 0528271AF	2374 mm	Recessed Extrusion
	VENICE-E-F3X149-11-NE 0528269AF	4460 mm	Recessed Extrusion
	VENICE-E-F3X154-11-NE 0528272AF	3560 mm	Recessed Extrusion
	VENICE-G-F149-DAWS-480B830 0536109	1483 mm	LED Module	4420 lm	3000 K	≥ 80	142,6 lm/W	> 25	DALI	White
	VENICE-G-F149-DAWS-500B840 0536110	1483 mm	LED Module	4640 lm	4000 K	≥ 80	149,7 lm/W	> 25	DALI	White
	VENICE-G-F149-NDWS-480B830 0526109	1483 mm	LED Module	4420 lm	3000 K	≥ 80	142,6 lm/W	> 25	On/Off	White
	VENICE-G-F149-NDWS-500B840 0526110	1483 mm	LED Module	4640 lm	4000 K	≥ 80	149,7 lm/W	> 25	On/Off	White
	VENICE-G-F154-DAWS-380B830 0536107	1183 mm	LED Module	3590 lm	3000 K	≥ 80	143,6 lm/W	> 25	DALI	White
	VENICE-G-F154-DAWS-400B840 0536108	1183 mm	LED Module	3770 lm	4000 K	≥ 80	150,8 lm/W	> 25	DALI	White
	VENICE-G-F154-NDWS-380B830 0526107	1183 mm	LED Module	3590 lm	3000 K	≥ 80	143,6 lm/W	> 25	On/Off	White
	VENICE-G-F154-NDWS-400B840 0526108	1183 mm	LED Module	3770 lm	4000 K	≥ 80	150,8 lm/W	> 25	On/Off	White
	VENICE-G-F249-DAWS-1000B840 0536121	1483 mm	LED Module	9280 lm	4000 K	≥ 80	149,7 lm/W	> 25	DALI	White
	VENICE-G-F249-DAWS-960B830 0536120	1483 mm	LED Module	8840 lm	3000 K	≥ 80	142,6 lm/W	> 25	DALI	White
	VENICE-G-F249-NDWS-1000B840 0526121	1483 mm	LED Module	9280 lm	4000 K	≥ 80	149,7 lm/W	> 25	On/Off	White
	VENICE-G-F249-NDWS-960B830 0526120	1483 mm	LED Module	8840 lm	3000 K	≥ 80	142,6 lm/W	> 25	On/Off	White
	VENICE-G-F254-DAWS-740B830 0536118	1183 mm	LED Module	7180 lm	3000 K	≥ 80	143,6 lm/W	> 25	DALI	White
	VENICE-G-F254-DAWS-800B840 0536119	1183 mm	LED Module	7540 lm	4000 K	≥ 80	150,8 lm/W	> 25	DALI	White
	VENICE-G-F254-NDWS-740B830 0526118	1183 mm	LED Module	7180 lm	3000 K	≥ 80	143,6 lm/W	> 25	On/Off	White
	VENICE-G-F254-NDWS-800B840 0526119	1183 mm	LED Module	7540 lm	4000 K	≥ 80	150,8 lm/W	> 25	On/Off	White
	VENICE-G-R1X115/30-5 ND 0526116	1186 mm	LED Module	4780 lm	4000 K	≥ 80	164,8 lm/W	> 25	On/Off	White
	VENICE-G-R1X115/30-7 DA 0536116	1186 mm	LED Module	4780 lm	4000 K	≥ 80	164,8 lm/W	> 25	DALI	White
	VENICE-G-R1X145/45-5 ND 0526117	1486 mm	LED Module	6760 lm	4000 K	≥ 80	164,9 lm/W	> 25	On/Off	White
	VENICE-G-R1X145/45-7 DA 0536117	1486 mm	LED Module	6760 lm	4000 K	≥ 80	164,9 lm/W	> 25	DALI	White
	VENICE-SRM-R1X115 0208933	1186 mm	Louvre Optic
	VENICE-SRM-R1X145 0208934	1486 mm	Louvre Optic
	VENICE-ZAO F1X149 0208915	1486 mm	Opal Optic
	VENICE-ZAO F1X154 0208918	1186 mm	Opal Optic
	VENICE-ZAO F2X149 0208916	2972 mm	Opal Optic
	VENICE-ZAO F2X154 0208919	2372 mm	Opal Optic
	VENICE-ZAO F3X149 0208917	4456 mm	Opal Optic
	VENICE-ZAO F3X154 0208920	3558 mm	Opal Optic
	VENICE-ZMPS F1X149 0208921	1486 mm	Microprism Optic
	VENICE-ZMPS F1X154 0208924	1186 mm	Microprism Optic
	VENICE-ZMPS F2X149 0208922	2972 mm	Microprism Optic
	VENICE-ZMPS F2X154 0208925	2372 mm	Microprism Optic
	VENICE-ZMPS F3X149 0208923	4458 mm	Microprism Optic
	VENICE-ZMPS F3X154 0208926	3558 mm	Microprism Optic
	VENICE-ZAB F1X149 NE 0208927AF	1487 mm	Blanking Cover
	VENICE-ZAB F1X154 NE 0208930AF	1187 mm	Blanking Cover
	VENICE-ZAB F2X149 NE 0208928AF	2973 mm	Blanking Cover
	VENICE-ZAB F2X154 NE 0208931AF	2373 mm	Blanking Cover
	VENICE-ZAB F3X149 NE 0208929AF	4459 mm	Blanking Cover
	VENICE-ZAB F3X154 NE 0208932AF	3559 mm	Blanking Cover
