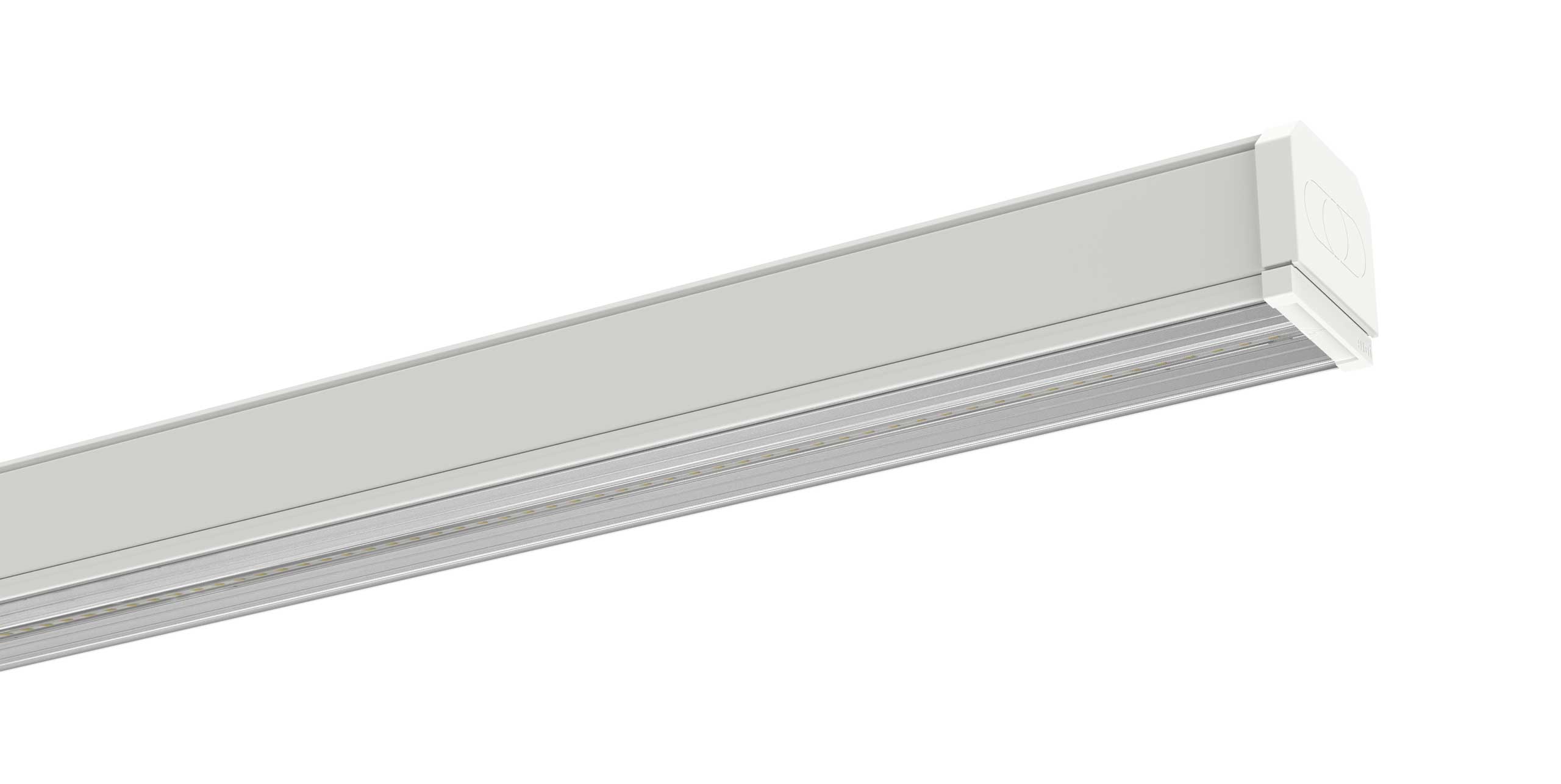

VL1GL

Very high efficiency

VL1GP

Very high efficiency

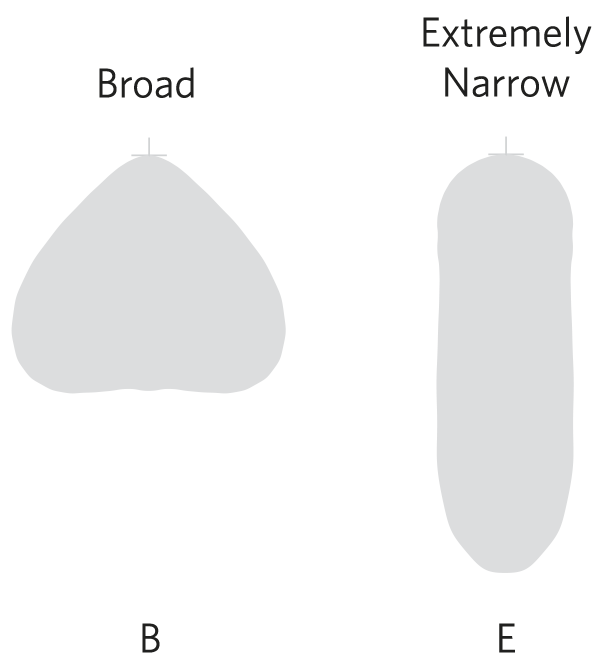

Broad and Narrow
Beam Optics

We use specially designed Linear Fresnel optics to focus the light precisely where it’s required.

Wide optic design reduces visual contrast and glare.

Available with RIDI ResFlex

Set the output onsite by adjusting the internal potentiometer to give just the right light level and just the right energy usage.

Colours

Available in white, silver and black as standard.

Add WS, SI or SW to the part numbers

WS

SI

SW

For warehouses, factories, datacentres and more

.

Product Selection

Product Filters

		Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	VL1GL1501-5FLWS840B1500 1552027	1500 mm	wide beam	15140 lm	4000 K	≥ 80	180,2 lm/W	≤ 25	xFlex	White
	VL1GL1501-5FLWS840BE1500 1552014	1500 mm	extremely wide beam	15140 lm	4000 K	≥ 80	180,2 lm/W	> 25	xFlex	White
	VL1GL1501-5FLWS840TB1500 1552016	1500 mm	deep-wide beam	15140 lm	4000 K	≥ 80	180,2 lm/W	≤ 25	xFlex	White
	VL1GL1501-5FLWS850TB1500 1552020	1500 mm	deep-wide beam	15140 lm	5000 K	≥ 80	180,2 lm/W	≤ 25	xFlex	White
	VL1GL1501-5FLWS865B1500 1552029	1500 mm	wide beam	14760 lm	6500 K	≥ 80	175,7 lm/W	≤ 25	xFlex	White
	VL1GL1501-5FLWS865BE1500 1552017	1500 mm	extremely wide beam	14770 lm	6500 K	≥ 80	175,8 lm/W	> 25	xFlex	White
	VL1GL1501-5FLWS865TB1500 1552019	1500 mm	deep-wide beam	14770 lm	6500 K	≥ 80	175,8 lm/W	≤ 25	xFlex	White
	VL1GL1501-5NDWS840BU0700 1552000	1500 mm	wide beam	6760 lm	4000 K	≥ 80	164,9 lm/W	≤ 19	On/Off	White
	VL1GL1501-5NDWS840E0800 1552001	1500 mm	narrow beam	7980 lm	4000 K	≥ 80	166,3 lm/W	≤ 19	On/Off	White
	VL1GL1501-7DAWS840B1500 1562027	1500 mm	wide beam	15140 lm	4000 K	≥ 80	178,1 lm/W	≤ 25	DALI-2	White
	VL1GL1501-7DAWS840BE1500 1562014	1500 mm	extremely wide beam	15330 lm	4000 K	≥ 80	180,4 lm/W	> 25	DALI-2	White
	VL1GL1501-7DAWS840BU0700 1562000	1500 mm	wide beam	6760 lm	4000 K	≥ 80	169,0 lm/W	≤ 19	DALI-2	White
	VL1GL1501-7DAWS840E0800 1562001	1500 mm	narrow beam	7980 lm	4000 K	≥ 80	169,8 lm/W	≤ 19	DALI-2	White
	VL1GL1501-7DAWS840TB1500 1562016	1500 mm	deep-wide beam	15330 lm	4000 K	≥ 80	180,4 lm/W	≤ 25	DALI-2	White
	VL1GL1501-7DAWS850TB1500 1562020	1500 mm	deep-wide beam	15330 lm	5000 K	≥ 80	182,5 lm/W	≤ 25	DALI-2	White
	VL1GL1501-7DAWS865B1500 1562029	1500 mm	wide beam	14950 lm	6500 K	≥ 80	178,0 lm/W	≤ 25	DALI-2	White
	VL1GL1501-7DAWS865BE1500 1562017	1500 mm	extremely wide beam	14950 lm	6500 K	≥ 80	175,9 lm/W	> 25	DALI-2	White
	VL1GL1501-7DAWS865TB1500 1562019	1500 mm	deep-wide beam	14950 lm	6500 K	≥ 80	178,0 lm/W	≤ 25	DALI-2	White
	VL1GL2001-5FLWS840B2000 1552028	2000 mm	wide beam	20180 lm	4000 K	≥ 80	181,8 lm/W	≤ 25	xFlex	White
	VL1GL2001-7DAWS840B2000 1562028	2000 mm	wide beam	20440 lm	4000 K	≥ 80	182,5 lm/W	≤ 25	DALI-2	White
	VL1GL2001-7DAWS840BE2000 1562015	2000 mm	extremely wide beam	20190 lm	4000 K	≥ 80	178,7 lm/W	> 25	DALI-2	White
	VL1GL2001-7DAWS840TB2000 1562018	2000 mm	deep-wide beam	20440 lm	4000 K	≥ 80	180,9 lm/W	≤ 25	DALI-2	White
