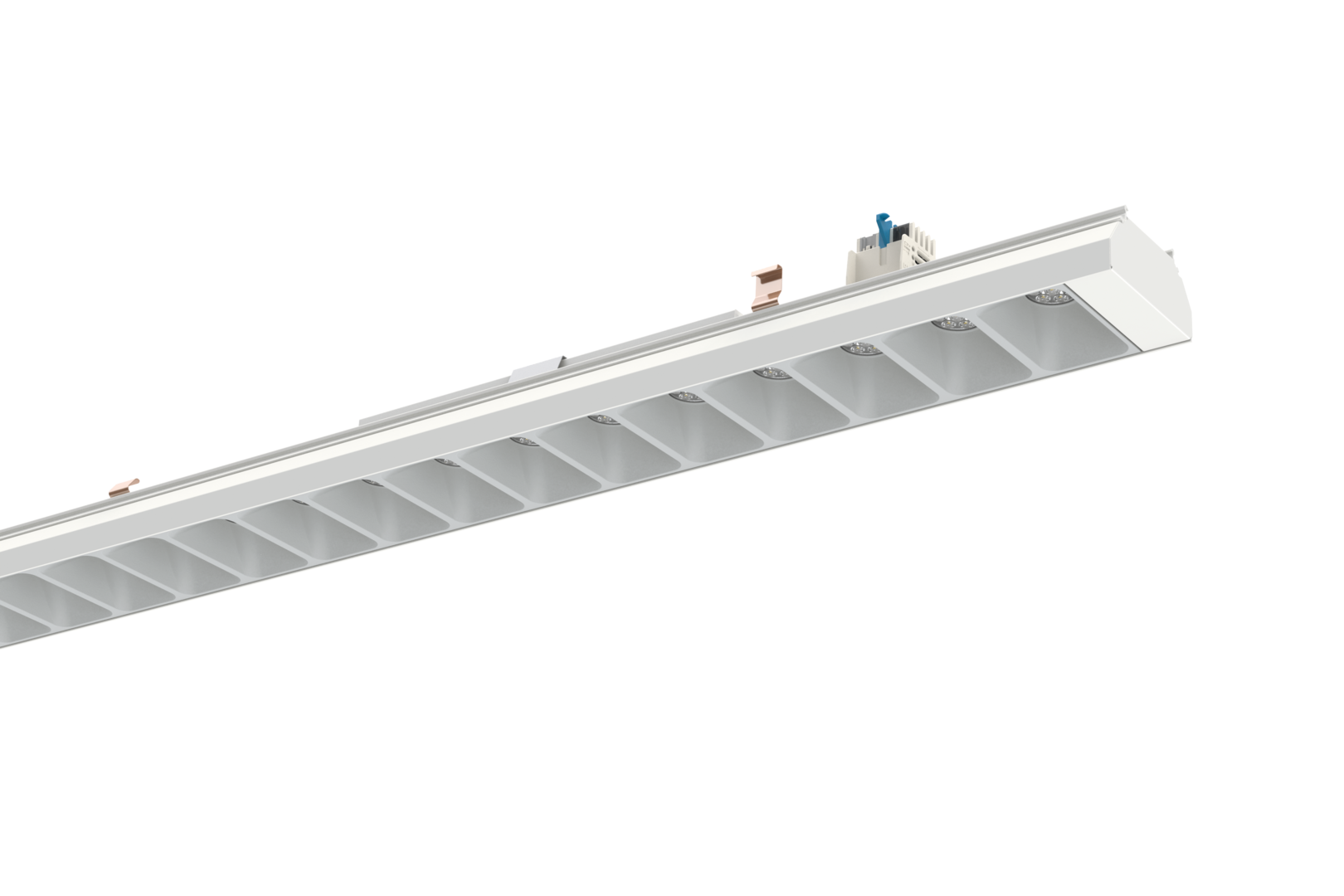

VL1GW

Highly efficient and low glare LED lighting modules using RIDI Multilens light engines

Two Versions

VL1GW-S

Standard Range

145 lm/W

Stone Grey Reflector

7000lm Output

DALI or ResFlex

VL1GW-P

Performance Range

165 lm/W

Specular Reflector

7000 or 8000 lm Output

DALI or ResFlex

White, Black or Silver

VL1GW-S

Standard Range

145 lm/W

Stone Grey Reflector

7000lm Output

DALI or ResFlex

VL1GW-P

Performance Range

165 lm/W

Specular Reflector

7000 or 8000 lm Output

DALI or ResFlex

White, Black or Silver

Available with RIDI ResFlex

Set the output onsite by adjusting the internal potentiometer to give just the right light level and just the right energy usage.

Colours

Available in white, silver and black as standard.

Add WS, SI or SW to the part numbers

WS

SI

SW

For warehouses, factories, datacentres and more

.

Product Selection

Product Filters

		Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour

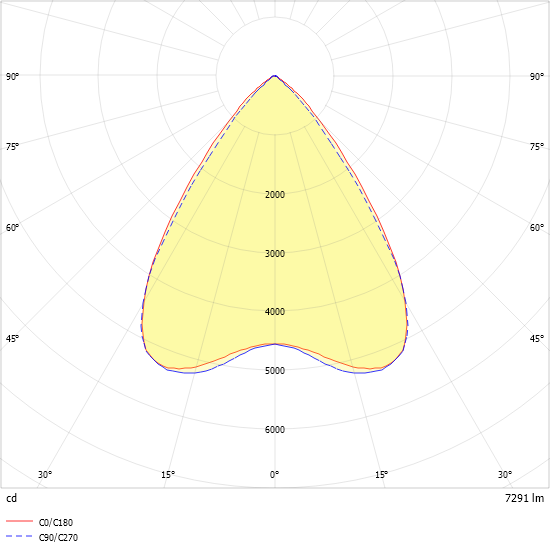

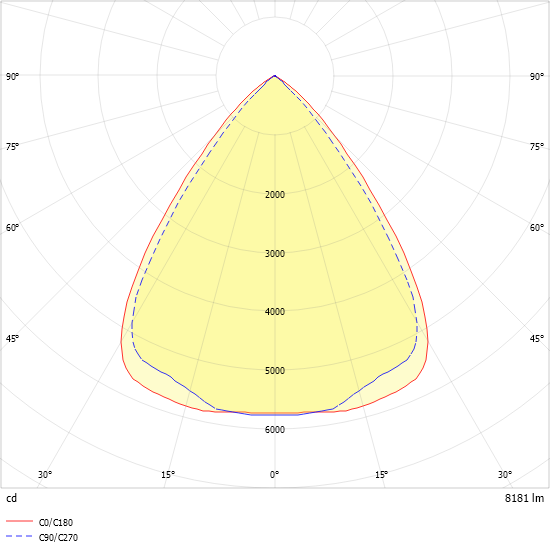

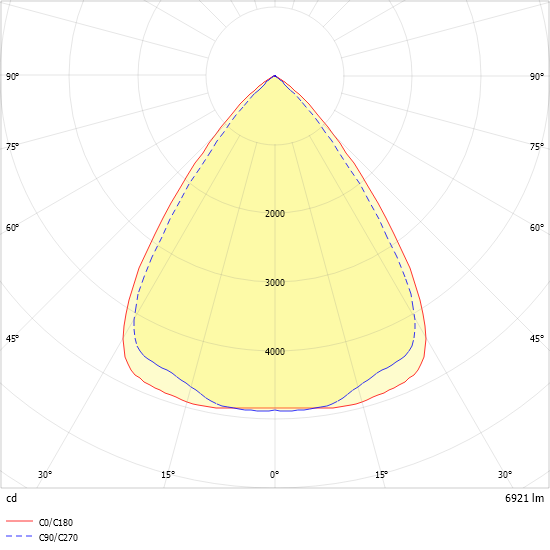

Image	Part Code Article Number	Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	VL1GW1500DASI840M9P0800 1532580SI	1500 mm	wide beam	8100 lm	4000 K	≥ 80	162,0 lm/W	≤ 19	DALI-2	Silver
	VL1GW1500DASI940M9P0700 1532581SI	1500 mm	wide beam	6920 lm	4000 K	≥ 90	141,2 lm/W	≤ 19	DALI-2	Silver
	VL1GW1500DASW840M9P0800 1532580SW	1500 mm	wide beam	8100 lm	4000 K	≥ 80	162,0 lm/W	≤ 19	DALI-2	Black
	VL1GW1500DASW940M9P0700 1532581SW	1500 mm	wide beam	6920 lm	4000 K	≥ 90	141,2 lm/W	≤ 19	DALI-2	Black
	VL1GW1500DAWS840M9P0800 1532580	1500 mm	wide beam	8100 lm	4000 K	≥ 80	162,0 lm/W	≤ 19	DALI-2	White
	VL1GW1500DAWS840M9S0700 1532579	1500 mm	wide beam	7290 lm	4000 K	≥ 80	145,8 lm/W	≤ 19	DALI-2	White
	VL1GW1500DAWS940M9P0700 1532581	1500 mm	wide beam	6920 lm	4000 K	≥ 90	141,2 lm/W	≤ 19	DALI-2	White
	VL1GW1500RFSI840M9P0800 1522580SI	1500 mm	wide beam	8180 lm	4000 K	≥ 80	163,6 lm/W	≤ 19	xFlex	Silver
	VL1GW1500RFSI940M9P0700 1522581SI	1500 mm	wide beam	6900 lm	4000 K	≥ 90	140,8 lm/W	≤ 19	xFlex	Silver
	VL1GW1500RFSW840M9P0800 1522580SW	1500 mm	wide beam	8180 lm	4000 K	≥ 80	163,6 lm/W	≤ 19	xFlex	Black
	VL1GW1500RFSW940M9P0700 1522581SW	1500 mm	wide beam	6900 lm	4000 K	≥ 90	140,8 lm/W	≤ 19	xFlex	Black
	VL1GW1500RFWS840M9P0800 1522580	1500 mm	wide beam	8180 lm	4000 K	≥ 80	163,6 lm/W	≤ 19	xFlex	White
	VL1GW1500RFWS840M9S0700 1522579	1500 mm	wide beam	7290 lm	4000 K	≥ 80	145,8 lm/W	≤ 19	xFlex	White
	VL1GW1500RFWS940M9P0700 1522581	1500 mm	wide beam	6900 lm	4000 K	≥ 90	140,8 lm/W	≤ 19	xFlex	White

%

Save 75% Install Time

We compared the install time of RIDI LINIA against ordinary trunking.

We saved 75% by using LINIA

Watch the video
