VL2 .. GL

LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.

Precision lensed optics for outstanding efficiency and lighting distribution.

Entry, Select, Performance

Choose from three LED technology tiers

Entry: Great Value, 5 Year Warranty, 50,000hrs Lifetime
Select: Extra Long Lifetime, 100,000hrs
Performance: Extreme Efficiency and 100,000hrs Lifetime

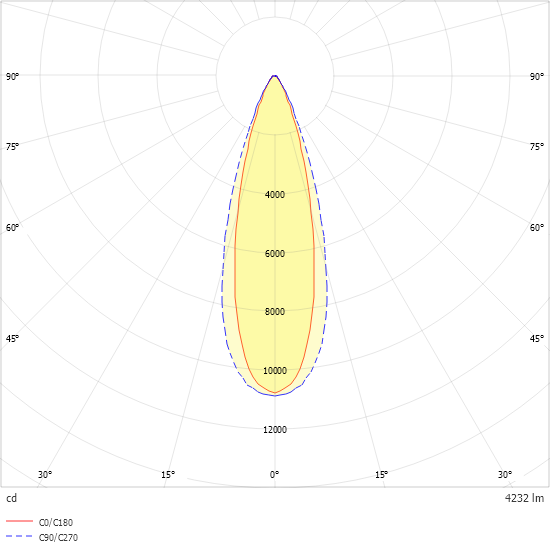

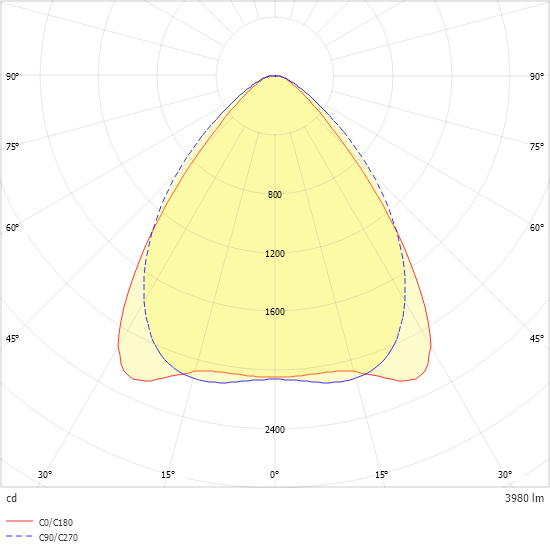

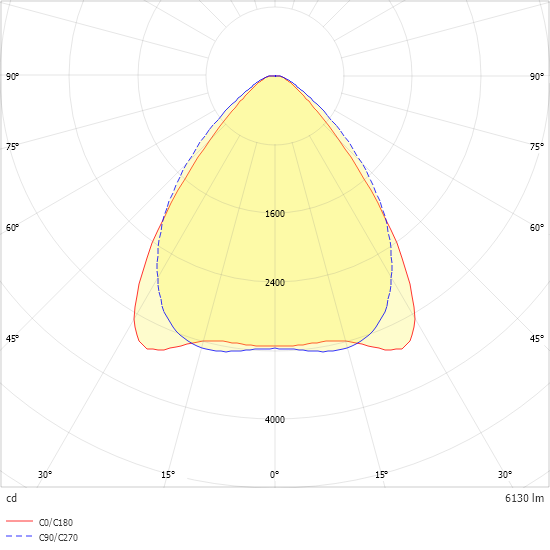

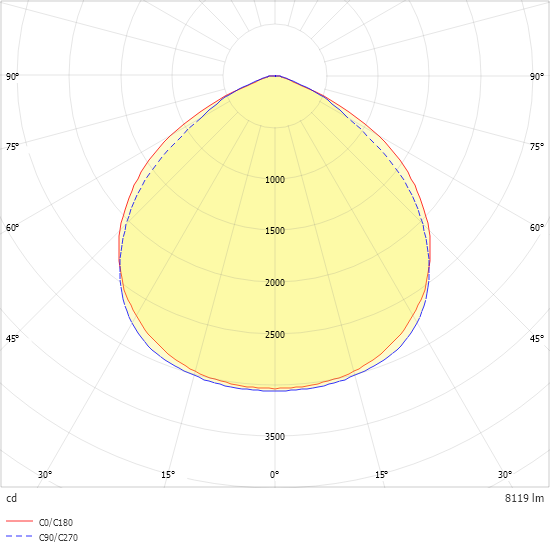

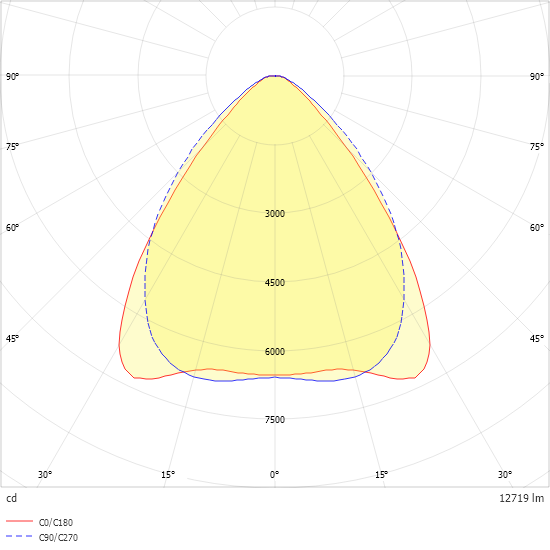

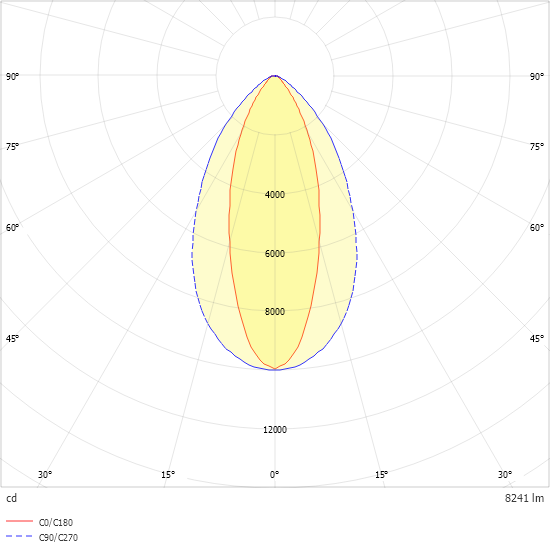

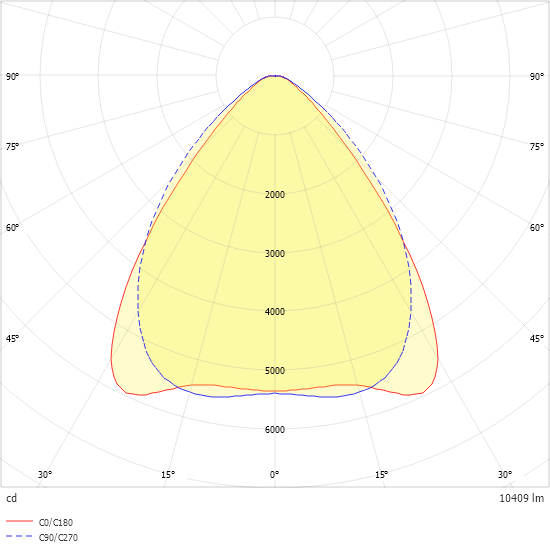

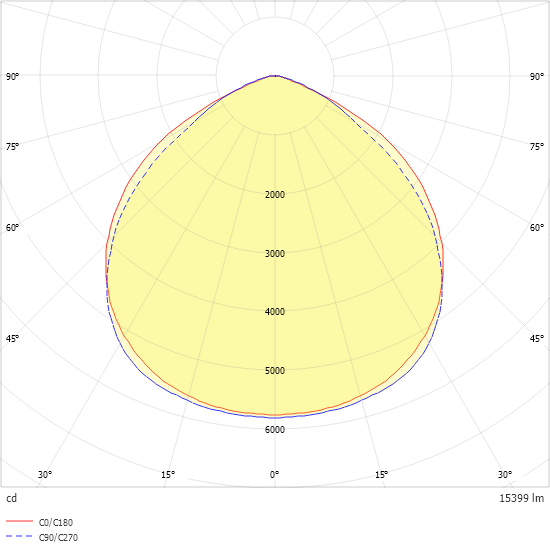

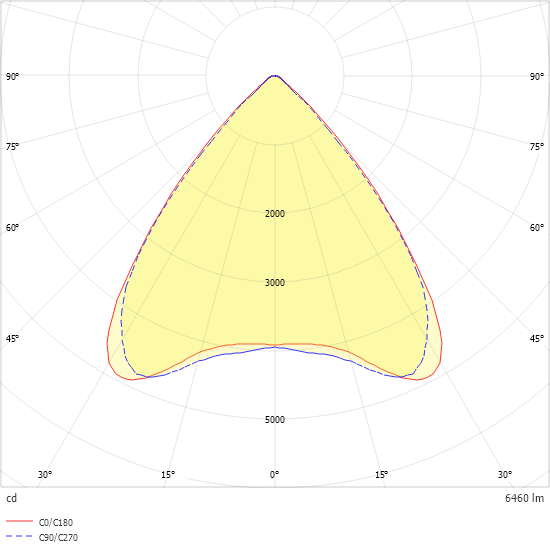

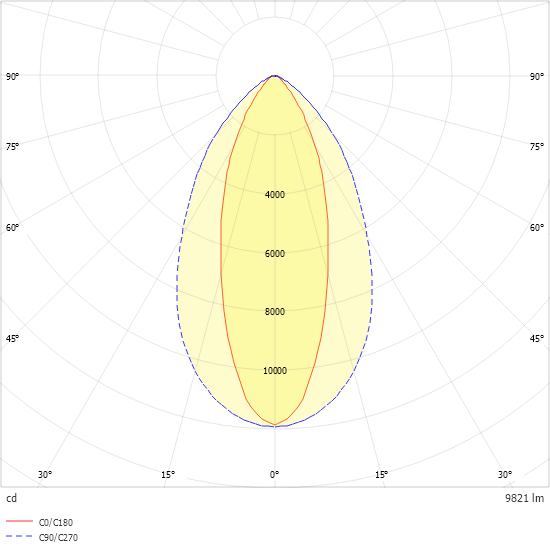

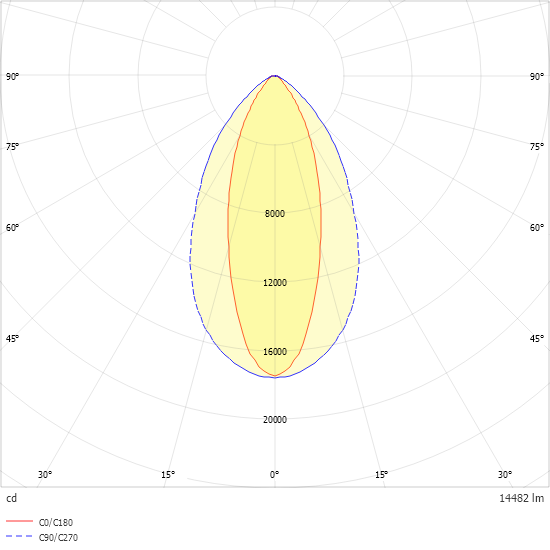

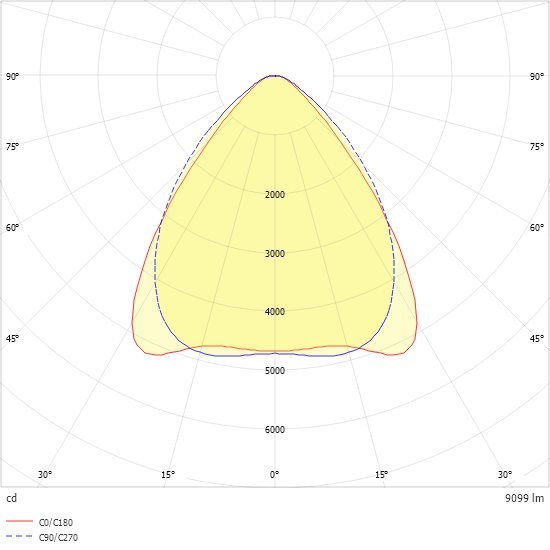

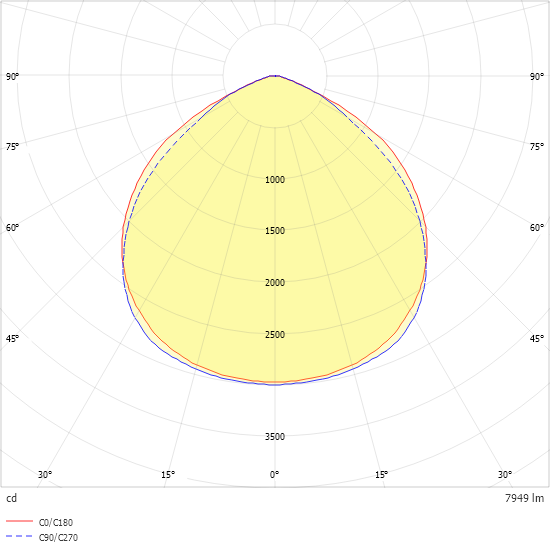

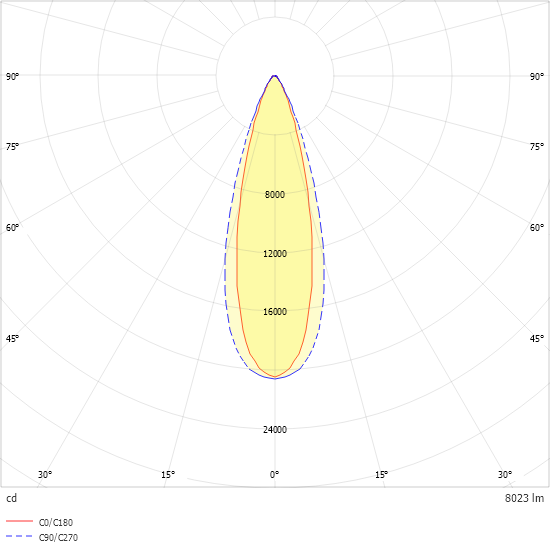

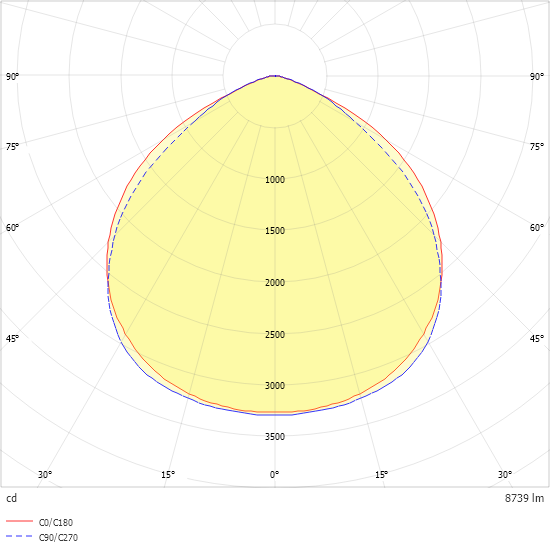

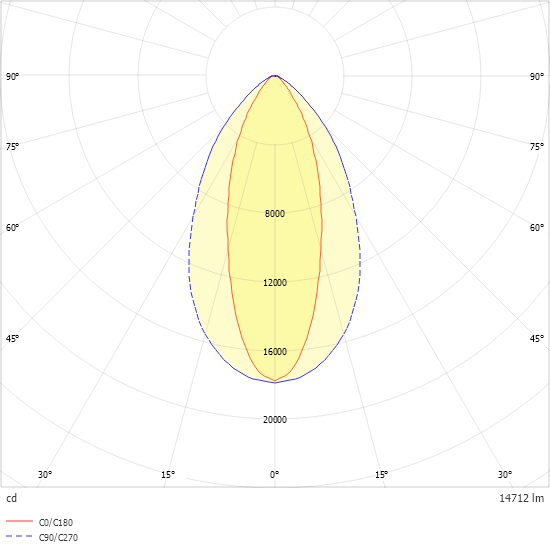

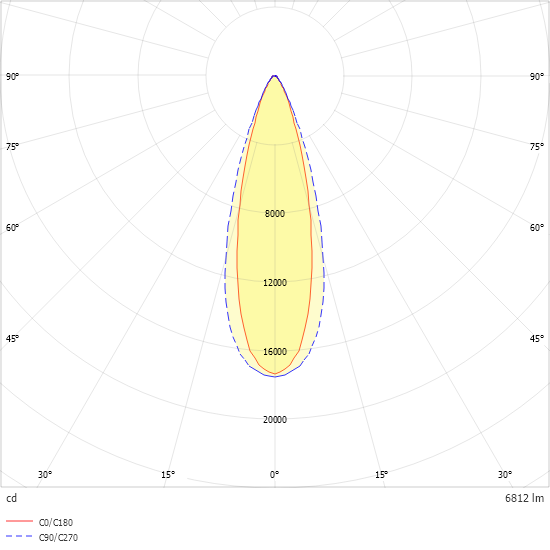

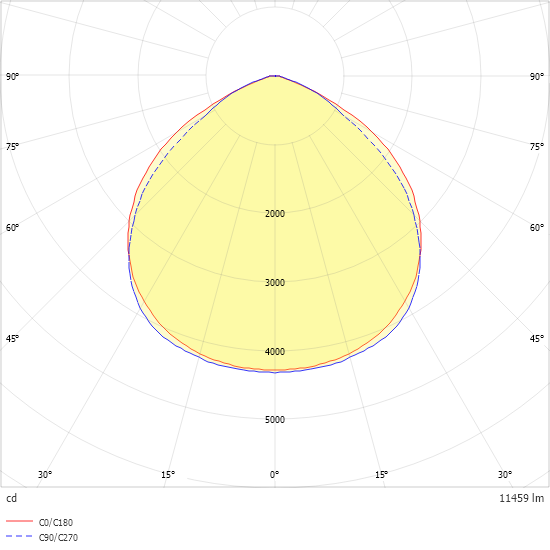

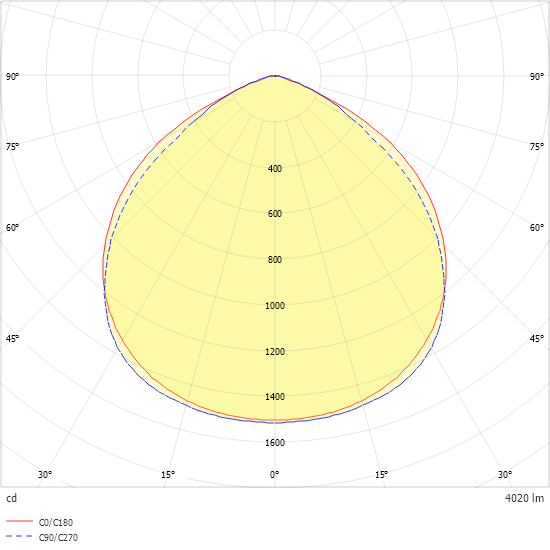

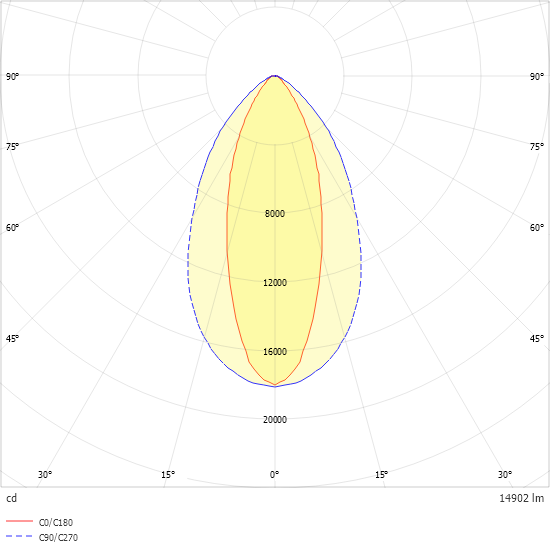

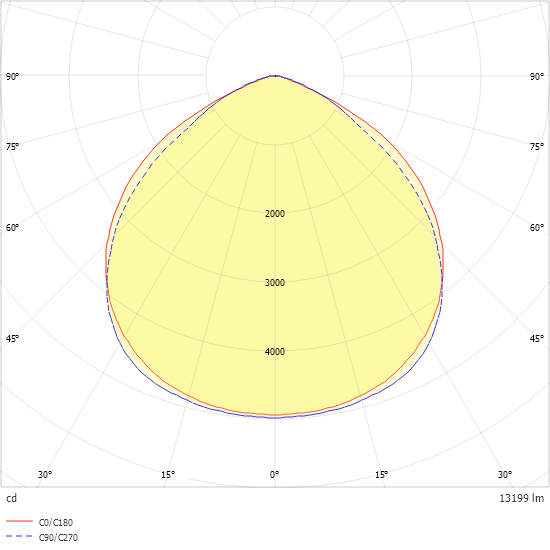

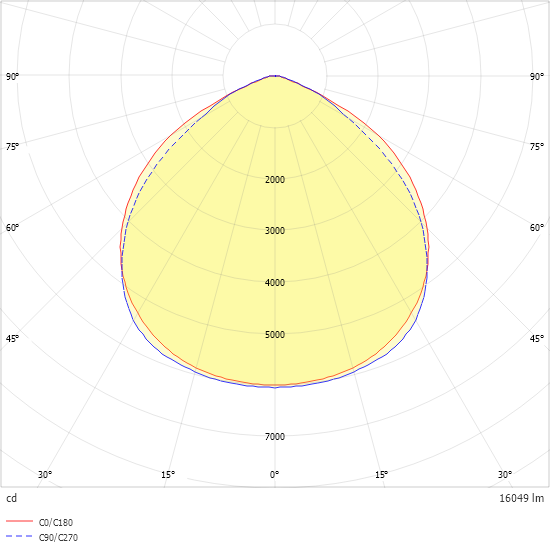

Lighting Distributions

VL2-GL is offered with five lens options

For warehouses, factories, datacentres and more

Available with RIDI xFlex

Adjust output onsite to give just the right light level and energy usage.

Technical Data and Downloads

Product Filters

		Length (mm)	Optic Type	CRI (Ra)	Light Colour	Output (lm)	Lm/W	UGR Rating	Driver Type	CBAT Use	Body Finish

Image	Part Code Article Number	Length (mm)	Optic Type	CRI (Ra)	Light Colour	Output (lm)	Lm/W	UGR Rating	Driver Type	CBAT Use	Body Finish	Data	LDT	Polar	BIM
	VL2E-GL150-7DAWS840B0800 2560020	1500 mm	wide beam	≥ 80	4000 K	8250 lm	160,0 lm/W	≤ 22	DALI-2	Yes	White
	VL2E-GL200-7DAWS840B1100 2560066	2000 mm	wide beam	≥ 80	4000 K	11000 lm	162,4 lm/W	≤ 22	DALI-2	Yes	White
	VL2P-GL150-7DAWS840B0850 2560070	1500 mm	wide beam	≥ 80	4000 K	8500 lm	183,0 lm/W	≤ 22	DALI-2	Yes	White

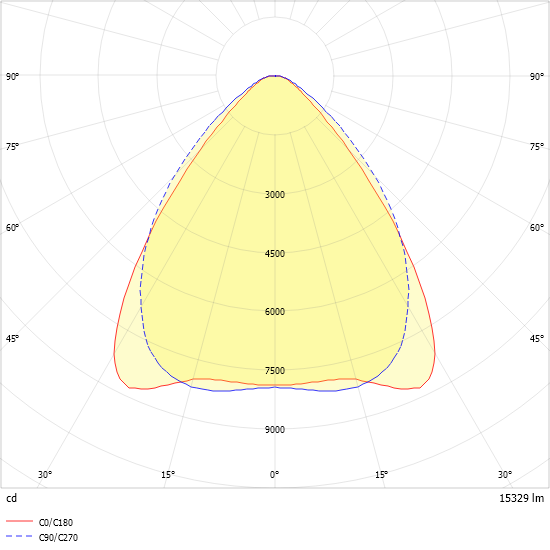

	VL2P-GL150-7DAWS840B1500 2560037	1500 mm	wide beam	≥ 80	4000 K	15250 lm	182,5 lm/W	≤ 25	DALI-2	Yes	White
	VL2P-GL150-7DAWS865B1500 2560064	1500 mm	wide beam	≥ 80	6500 K	15000 lm	178,0 lm/W	≤ 25	DALI-2	Yes	White
	VL2P-GL200-7DAWS840B1100 2560072	2000 mm	wide beam	≥ 80	4000 K	11500 lm	191,2 lm/W	≤ 22	DALI-2	Yes	White
	VL2P-GL200-7DAWS840B2000 2560038	2000 mm	wide beam	≥ 80	4000 K	20500 lm	182,5 lm/W	≤ 25	DALI-2	Yes	White

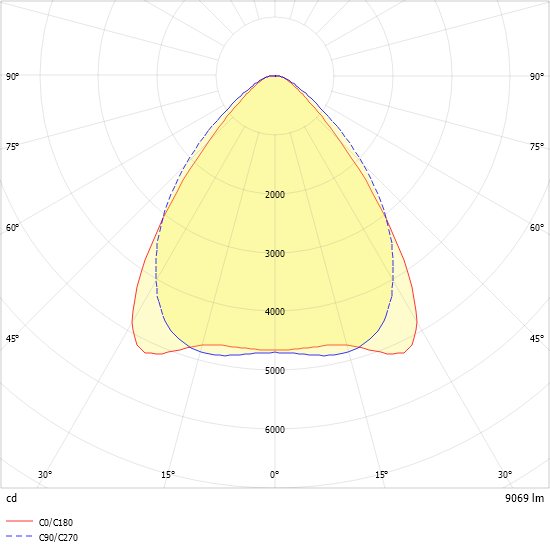

	VL2S-GL150-7DAWS840B0900 2560060	1500 mm	wide beam	≥ 80	4000 K	9000 lm	177,8 lm/W	≤ 25	DALI-2	Yes	White
	VL2S-GL150-7DAWS840B1300 2560084	1500 mm	wide beam	≥ 80	4000 K	12750 lm	174,7 lm/W	≤ 25	DALI-2	Yes	White

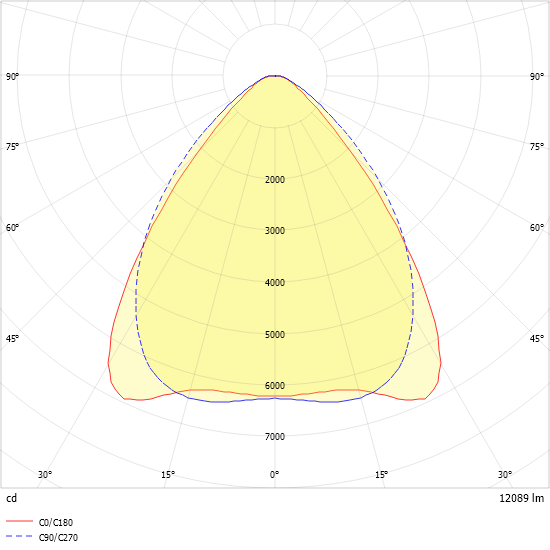

	VL2S-GL200-7DAWS840B1200 2560083	2000 mm	wide beam	≥ 80	4000 K	12000 lm	177,8 lm/W	≤ 25	DALI-2	Yes	White
	VL2S-GL200-7DAWS840B1700 2560085	2000 mm	wide beam	≥ 80	4000 K	17000 lm	176,0 lm/W	≤ 25	DALI-2	Yes	White

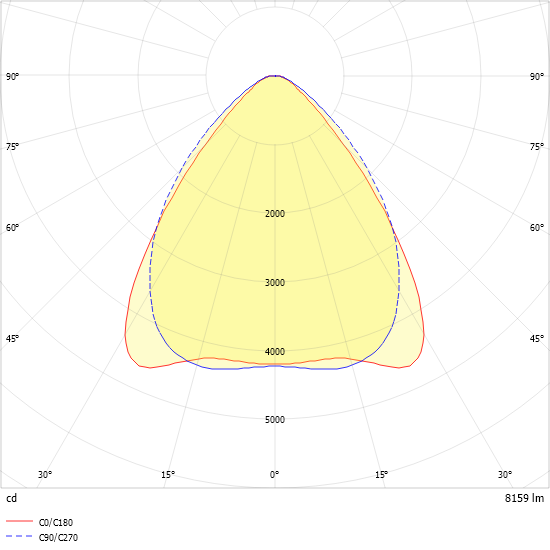

	VL2E-GL150-5FLWS840B0800 2550020	1500 mm	wide beam	≥ 80	4000 K	8250 lm	163,2 lm/W	≤ 22	xFlex	Yes	White
	VL2E-GL200-5FLWS840B1100 2550066	2000 mm	wide beam	≥ 80	4000 K	11000 lm	167,4 lm/W	≤ 22	xFlex	Yes	White
	VL2P-GL150-5FLWS840B0850 2550070	1500 mm	wide beam	≥ 80	4000 K	8500 lm	187,0 lm/W	≤ 22	xFlex	Yes	White

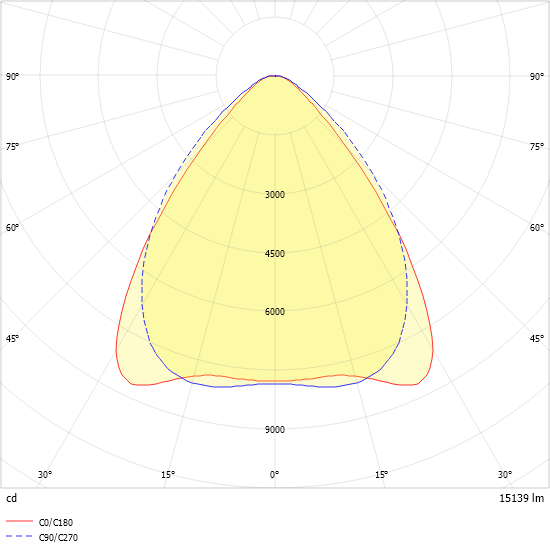

	VL2P-GL150-5FLWS840B1500 2550037	1500 mm	wide beam	≥ 80	4000 K	15250 lm	180,2 lm/W	≤ 25	xFlex	Yes	White
	VL2P-GL150-5FLWS850B1500 2550063	1500 mm	wide beam	≥ 80	5000 K	15250 lm	180,2 lm/W	≤ 25	xFlex	Yes	White

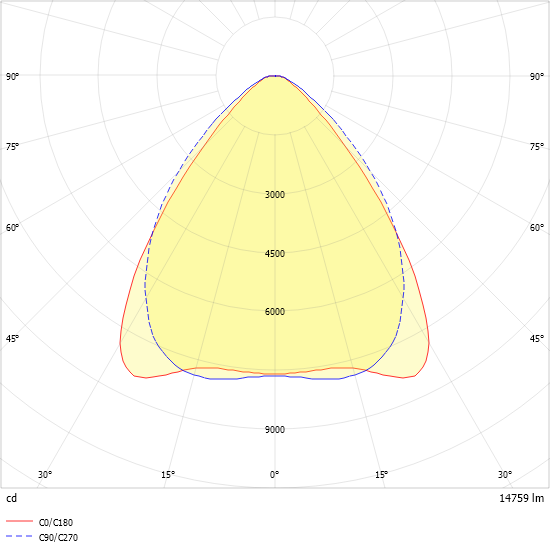

	VL2P-GL150-5FLWS865B1500 2550064	1500 mm	wide beam	≥ 80	6500 K	14750 lm	175,7 lm/W	≤ 25	xFlex	Yes	White
	VL2P-GL200-5FLWS840B1100 2550072	2000 mm	wide beam	≥ 80	4000 K	11500 lm	191,0 lm/W	≤ 22	xFlex	Yes	White
	VL2P-GL200-5FLWS840B2000 2550038	2000 mm	wide beam	≥ 80	4000 K	20250 lm	181,8 lm/W	≤ 25	xFlex	Yes	White
	VL2S-GL150-5FLWS840B0900 2550060	1500 mm	wide beam	≥ 80	4000 K	9000 lm	178,2 lm/W	≤ 25	xFlex	Yes	White
	VL2S-GL150-5FLWS840B1300 2550061	1500 mm	wide beam	≥ 80	4000 K	12750 lm	170,0 lm/W	≤ 25	xFlex	Yes	White

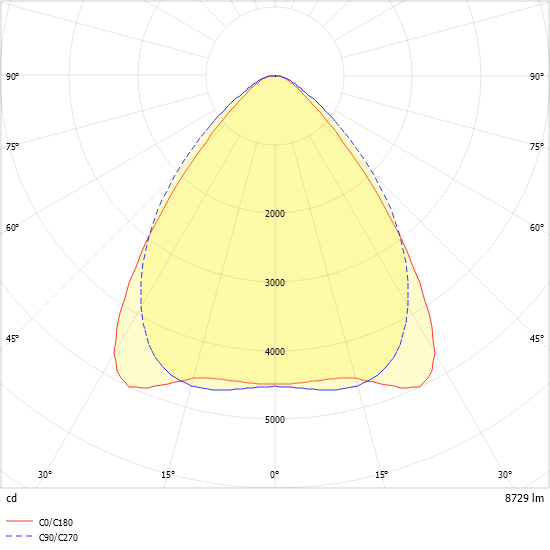

	VL2S-GL150-5FLWS865B0900 2550059	1500 mm	wide beam	≥ 80	6500 K	8750 lm	174,6 lm/W	≤ 25	xFlex	Yes	White
	VL2S-GL150-5FLWS865B1200 2550106	1500 mm	wide beam	≥ 80	6500 K	12500 lm	168,6 lm/W	≤ 25	xFlex	Yes	White
	VL2S-GL200-5FLWS840B1200 2550083	2000 mm	wide beam	≥ 80	4000 K	12250 lm	181,2 lm/W	≤ 25	xFlex	Yes	White
	VL2S-GL200-5FLWS840B1700 2550085	2000 mm	wide beam	≥ 80	4000 K	17000 lm	170,0 lm/W	≤ 25	xFlex	Yes	White
	VL2E-GL150-7DAWS840BE0800 2560019	1500 mm	extremely wide beam	≥ 80	4000 K	8250 lm	160,0 lm/W	≤ 25	DALI-2	Yes	White

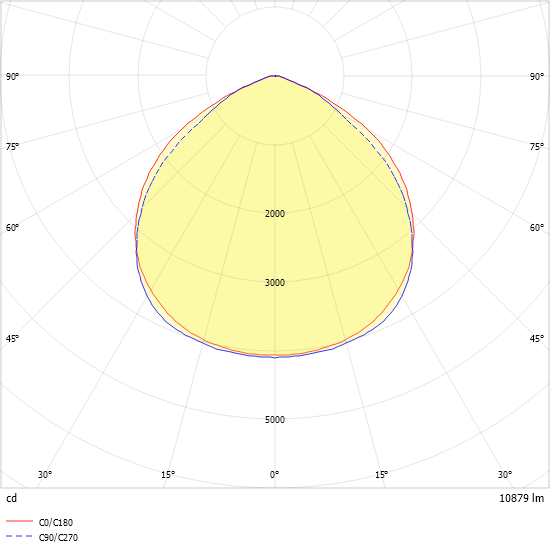

	VL2E-GL200-7DAWS840BE1100 2560065	2000 mm	extremely wide beam	≥ 80	4000 K	11000 lm	162,4 lm/W	≤ 25	DALI-2	Yes	White
	VL2P-GL150-7DAWS840BE1500 2560068	1500 mm	extremely wide beam	≥ 80	4000 K	15250 lm	182,5 lm/W	> 25	DALI-2	Yes	White
	VL2P-GL200-7DAWS840BE1100 2560071	2000 mm	extremely wide beam	≥ 80	4000 K	11500 lm	187,9 lm/W	> 25	DALI-2	Yes	White
	VL2P-GL200-7DAWS840BE2000 2560069	2000 mm	extremely wide beam	≥ 80	4000 K	20500 lm	184,1 lm/W	> 25	DALI-2	Yes	White

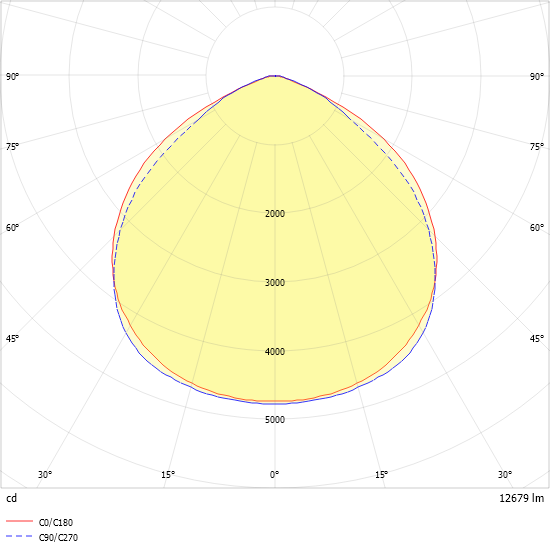

	VL2S-GL150-7DAWS840BE1300 2560062	1500 mm	extremely wide beam	≥ 80	4000 K	12750 lm	173,7 lm/W	> 25	DALI-2	Yes	White
	VL2S-GL150-7DAWS865BE0900 2560081	1500 mm	extremely wide beam	≥ 80	6500 K	9000 lm	177,8 lm/W	> 25	DALI-2	Yes	White

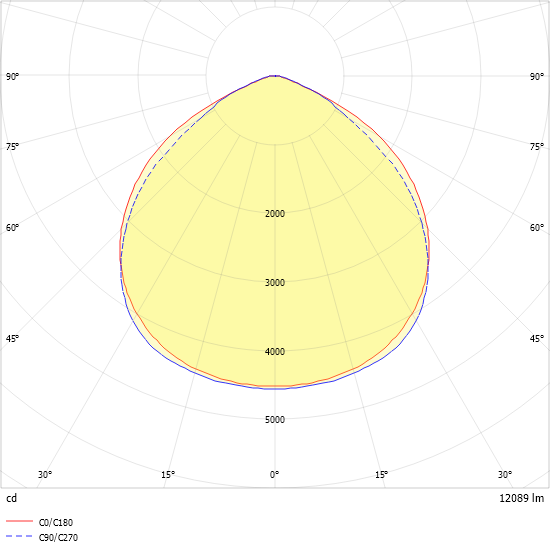

	VL2S-GL200-7DAWS840BE1200 2560082	2000 mm	extremely wide beam	≥ 80	4000 K	12000 lm	177,8 lm/W	> 25	DALI-2	Yes	White
	VL2S-GL200-7DAWS840BE1700 2560028	2000 mm	extremely wide beam	≥ 80	4000 K	17000 lm	176,0 lm/W	> 25	DALI-2	Yes	White

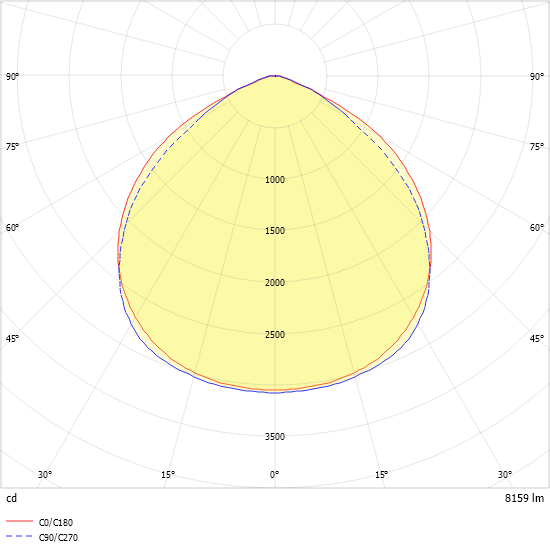

	VL2E-GL150-5FLWS840BE0800 2550019	1500 mm	extremely wide beam	≥ 80	4000 K	8250 lm	163,2 lm/W	≤ 25	xFlex	Yes	White
	VL2E-GL200-5FLWS840BE1100 2550065	2000 mm	extremely wide beam	≥ 80	4000 K	11000 lm	164,8 lm/W	≤ 25	xFlex	Yes	White
	VL2P-GL150-5FLWS840BE1500 2550068	1500 mm	extremely wide beam	≥ 80	4000 K	15250 lm	180,2 lm/W	> 25	xFlex	Yes	White

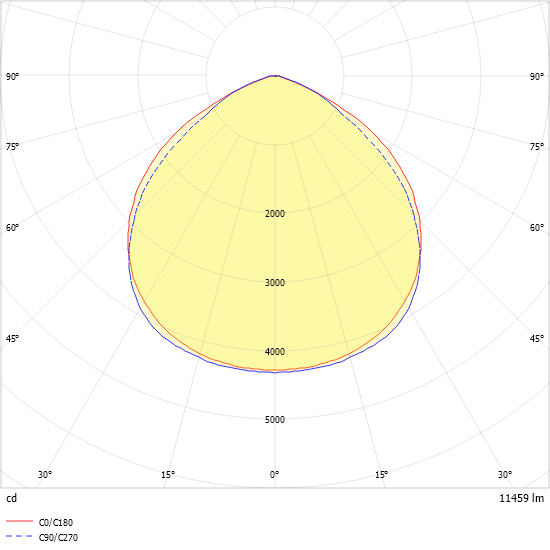

	VL2P-GL200-5FLWS840BE1100 2550071	2000 mm	extremely wide beam	≥ 80	4000 K	11500 lm	191,0 lm/W	> 25	xFlex	Yes	White
	VL2P-GL200-5FLWS840BE2000 2550069	2000 mm	extremely wide beam	≥ 80	4000 K	20250 lm	183,5 lm/W	> 25	xFlex	Yes	White

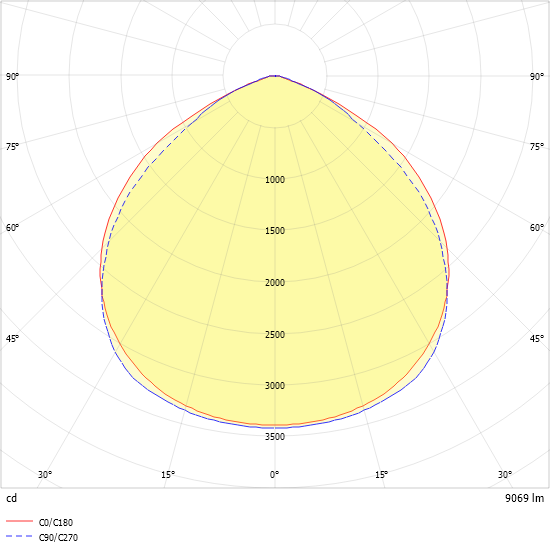

	VL2S-GL150-5FLWS840BE0900 2550081	1500 mm	extremely wide beam	≥ 80	4000 K	9000 lm	181,4 lm/W	> 25	xFlex	Yes	White
	VL2S-GL150-5FLWS840BE1300 2550027	1500 mm	extremely wide beam	≥ 80	4000 K	12750 lm	173,7 lm/W	> 25	xFlex	Yes	White
	VL2S-GL200-5FLWS840BE1200 2550082	2000 mm	extremely wide beam	≥ 80	4000 K	12000 lm	183,2 lm/W	> 25	xFlex	Yes	White

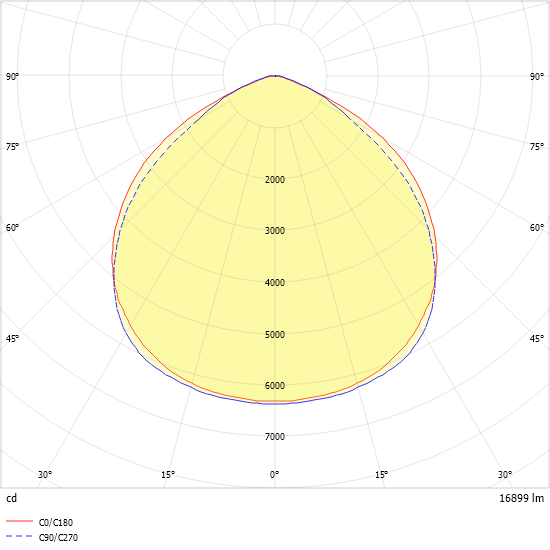

	VL2S-GL200-5FLWS840BE1700 2550028	2000 mm	extremely wide beam	≥ 80	4000 K	17000 lm	174,2 lm/W	> 25	xFlex	Yes	White
	VL2P-GL150-7DAWS840BU0650 2560039	1500 mm	wide beam	≥ 80	4000 K	6500 lm	174,3 lm/W	≤ 19	DALI-2	Yes	White

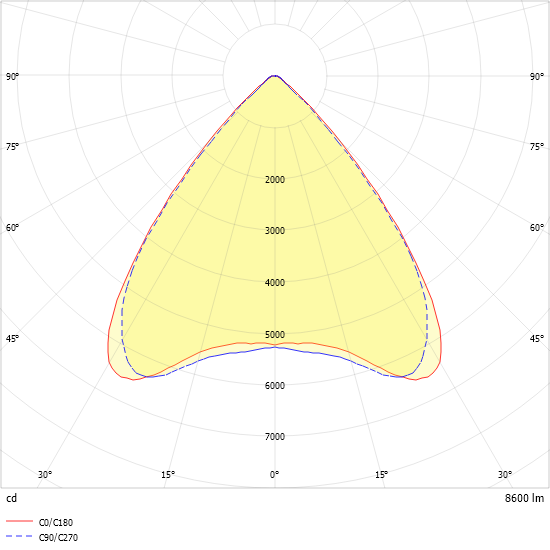

	VL2P-GL200-7DAWS840BU0850 2560075	2000 mm	wide beam	≥ 80	4000 K	8500 lm	172,0 lm/W	≤ 19	DALI-2	Yes	White

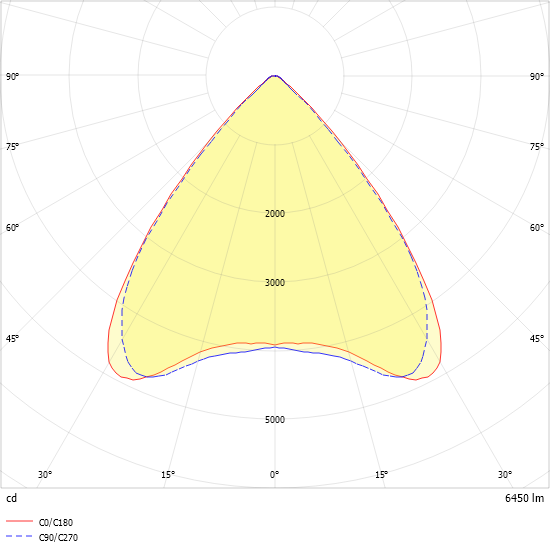

	VL2P-GL150-5FLWS840BU0650 2550039	1500 mm	wide beam	≥ 80	4000 K	6500 lm	179,2 lm/W	≤ 19	xFlex	Yes	White
	VL2P-GL200-5FLWS840BU0850 2550075	2000 mm	wide beam	≥ 80	4000 K	8500 lm	172,0 lm/W	≤ 19	xFlex	Yes	White

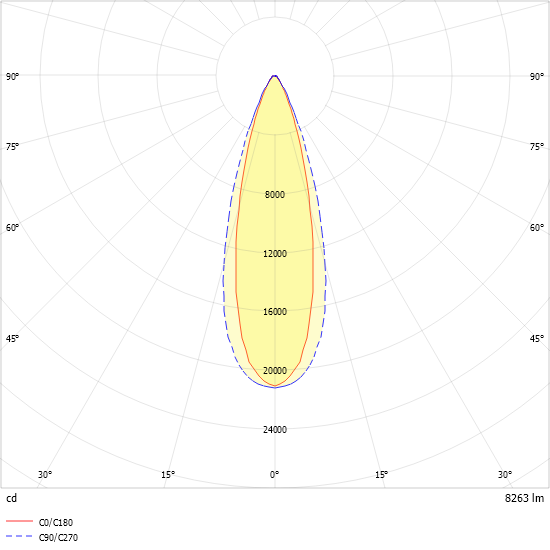

	VL2P-GL150-7DAWS840E0850 2560040	1500 mm	narrow beam	≥ 80	4000 K	8250 lm	175,7 lm/W	≤ 19	DALI-2	Yes	White

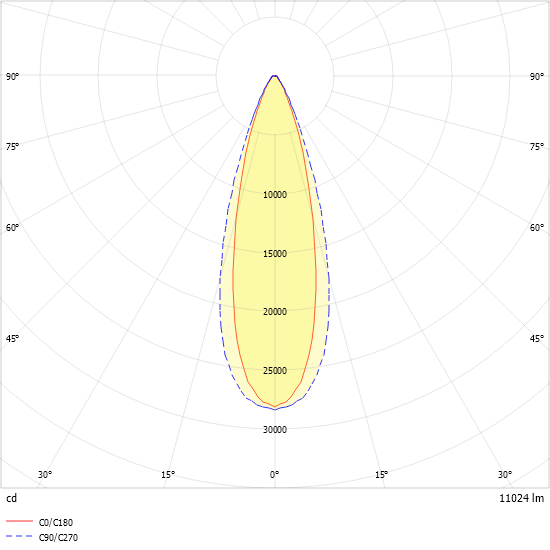

	VL2P-GL200-7DAWS840E1100 2560076	2000 mm	narrow beam	≥ 80	4000 K	11000 lm	177,7 lm/W	≤ 19	DALI-2	Yes	White
	VL2P-GL150-5FLWS840E0850 2550040	1500 mm	narrow beam	≥ 80	4000 K	8250 lm	175,7 lm/W	≤ 19	xFlex	Yes	White
	VL2P-GL200-5FLWS840E1100 2550076	2000 mm	narrow beam	≥ 80	4000 K	11000 lm	176,9 lm/W	≤ 19	xFlex	Yes	White
	VL2E-GL150-7DAWS840TB0800 2560021	1500 mm	deep-wide beam	≥ 80	4000 K	8250 lm	160,0 lm/W	≤ 22	DALI-2	Yes	White

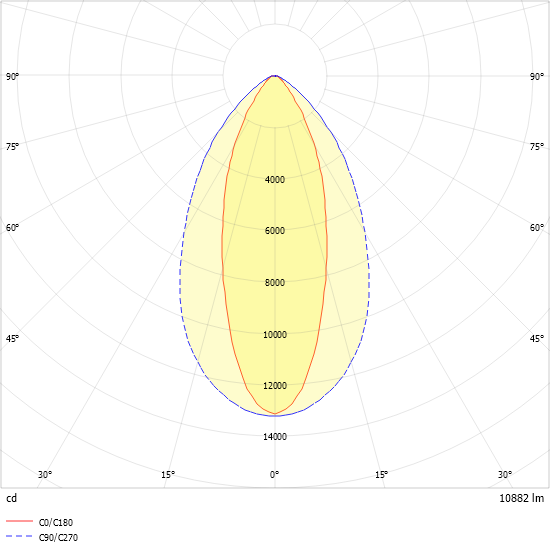

	VL2E-GL200-7DAWS840TB1100 2560067	2000 mm	deep-wide beam	≥ 80	4000 K	11000 lm	164,8 lm/W	≤ 22	DALI-2	Yes	White
	VL2P-GL150-7DAWS840TB1500 2560046	1500 mm	deep-wide beam	≥ 80	4000 K	15250 lm	182,5 lm/W	≤ 25	DALI-2	Yes	White
	VL2P-GL200-7DAWS840TB2000 2560047	2000 mm	deep-wide beam	≥ 80	4000 K	20500 lm	185,8 lm/W	≤ 25	DALI-2	Yes	White

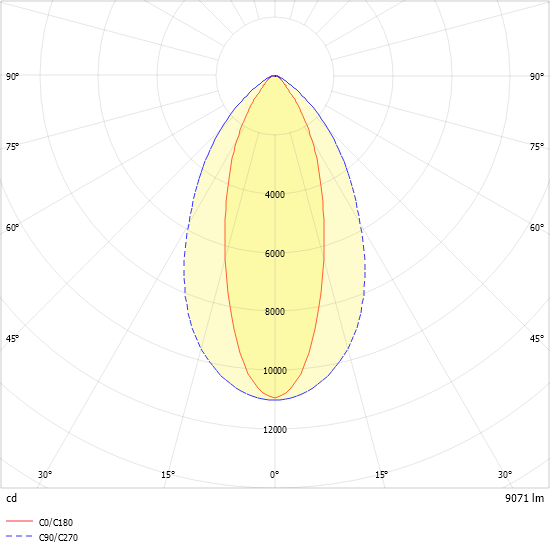

	VL2S-GL150-7DAWS840TB0900 2560086	1500 mm	deep-wide beam	≥ 80	4000 K	9000 lm	177,8 lm/W	≤ 22	DALI-2	Yes	White
	VL2S-GL150-7DAWS840TB1300 2560030	1500 mm	deep-wide beam	≥ 80	4000 K	12750 lm	176,1 lm/W	≤ 25	DALI-2	Yes	White
	VL2S-GL200-7DAWS840TB1200 2560087	2000 mm	deep-wide beam	≥ 80	4000 K	12000 lm	183,2 lm/W	≤ 22	DALI-2	Yes	White
	VL2S-GL200-7DAWS840TB1700 2560031	2000 mm	deep-wide beam	≥ 80	4000 K	17000 lm	177,9 lm/W	≤ 25	DALI-2	Yes	White
	VL2E-GL150-5FLWS840TB0800 2550021	1500 mm	deep-wide beam	≥ 80	4000 K	8250 lm	160,0 lm/W	≤ 22	xFlex	Yes	White
	VL2E-GL200-5FLWS840TB1100 2550067	2000 mm	deep-wide beam	≥ 80	4000 K	11000 lm	164,8 lm/W	≤ 22	xFlex	Yes	White
	VL2P-GL150-5FLWS840TB1500 2550046	1500 mm	deep-wide beam	≥ 80	4000 K	15250 lm	180,2 lm/W	≤ 25	xFlex	Yes	White

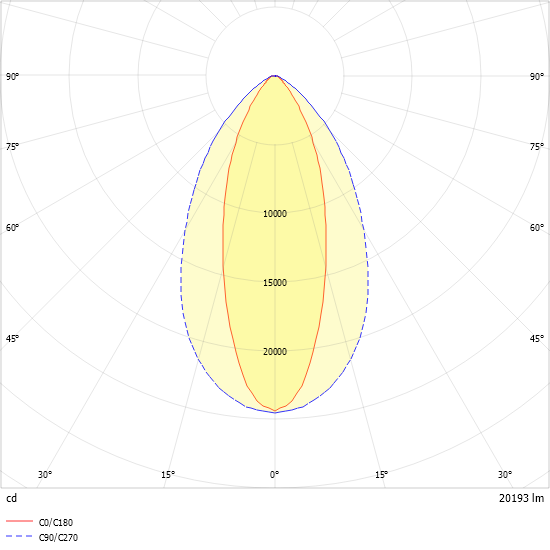

	VL2P-GL200-5FLWS840TB2000 2550047	2000 mm	deep-wide beam	≥ 80	4000 K	20250 lm	183,5 lm/W	≤ 25	xFlex	Yes	White
	VL2S-GL150-5FLWS840TB0900 2550086	1500 mm	deep-wide beam	≥ 80	4000 K	9000 lm	177,8 lm/W	≤ 22	xFlex	Yes	White

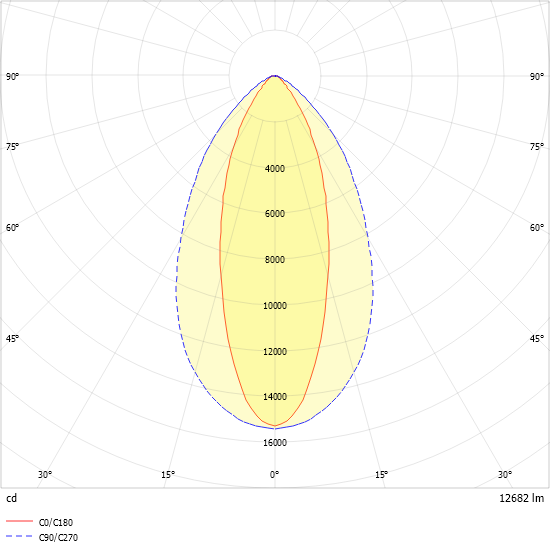

	VL2S-GL150-5FLWS840TB1300 2550030	1500 mm	deep-wide beam	≥ 80	4000 K	12750 lm	176,1 lm/W	≤ 25	xFlex	Yes	White

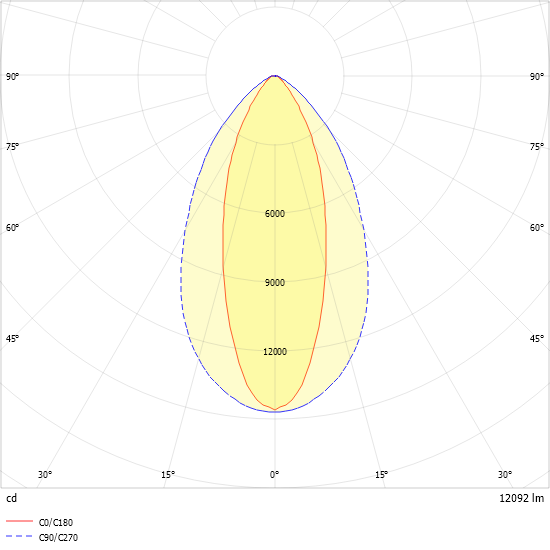

	VL2S-GL200-5FLWS840TB1200 2550087	2000 mm	deep-wide beam	≥ 80	4000 K	12000 lm	183,2 lm/W	≤ 22	xFlex	Yes	White
	VL2S-GL200-5FLWS840TB1700 2550031	2000 mm	deep-wide beam	≥ 80	4000 K	17000 lm	177,9 lm/W	≤ 25	xFlex	Yes	White

Results per Page:

Use the filters above each column to filter and limit table data. Advanced searches can be performed by using the following operators:
<, <=, >, >=, =, *, !, {, }, ||,&&, [empty], [nonempty], rgx:
Learn more

TableFilter v0.7.3

Page of 7
