VL2 .. GLS

LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.

Precision lensed optics for outstanding efficiency and lighting distribution. Sealed to IP54.

Performance

Available with our highest tier LED modules

Performance: Extreme Efficiency and 100,000hrs Lifetime

Lighting Distributions

VL2-GLS is offered with two lens options

For warehouses, factories, datacentres and more

.

Available with RIDI xFlex

Adjust output onsite to give just the right light level and energy usage.

Technical Data and Downloads

Product Filters

		Length (mm)	Beam Angle	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Temp Range	Body Colour
Image	Part Code Article Number	Length (mm)	Beam Angle	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Temp Range	Body Colour	Data	LDT	Polar	BIM

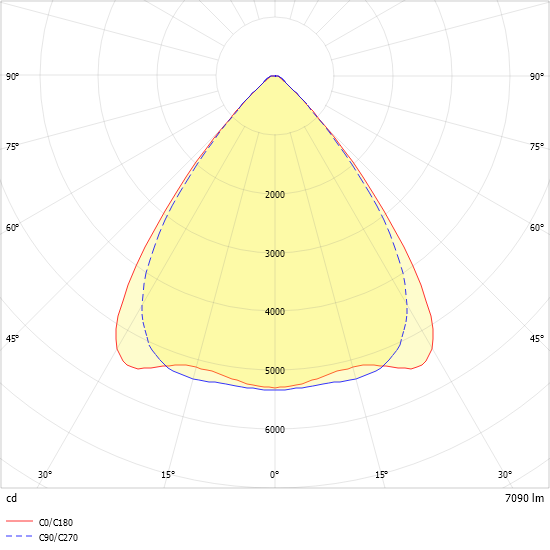

	VL2P-GLS150-5FLWS840BU0700 2550073	1500 mm	79 °	wide beam	7240 lm	4000 K	≥ 80	172 lm/W	≤ 19	xFlex	-20 - 38 °C	White

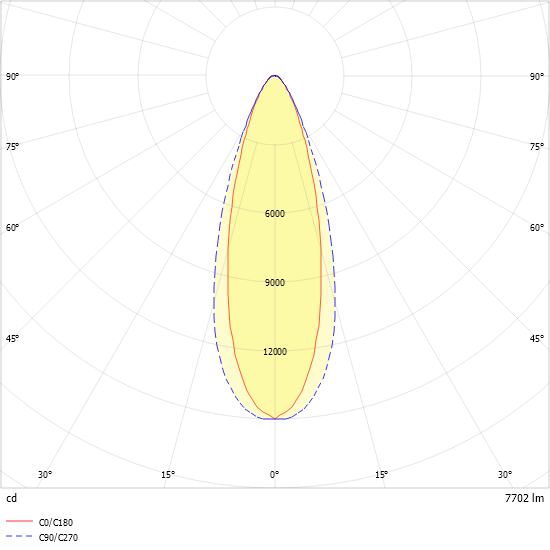

	VL2P-GLS150-5FLWS840E0750 2550074	1500 mm	31 °	narrow beam	7750 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex	-20 - 45 °C	White
	VL2P-GLS150-5FLWS840BU1500 2550095	1500 mm	79 °	wide beam	14800 lm	4000 K	≥ 80	176 lm/W	≤ 22	xFlex	-20 - 40 °C	White

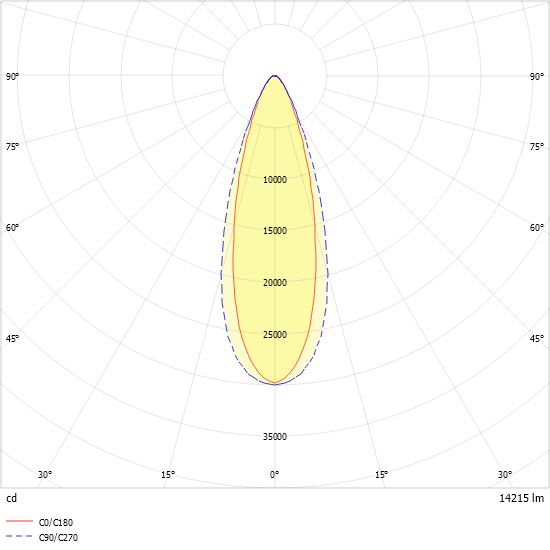

	VL2P-GLS150-5FLWS840E1400 2550096	1500 mm	30 °	narrow beam	14170 lm	4000 K	≥ 80	169 lm/W	≤ 22	xFlex	-20 - 40 °C	White

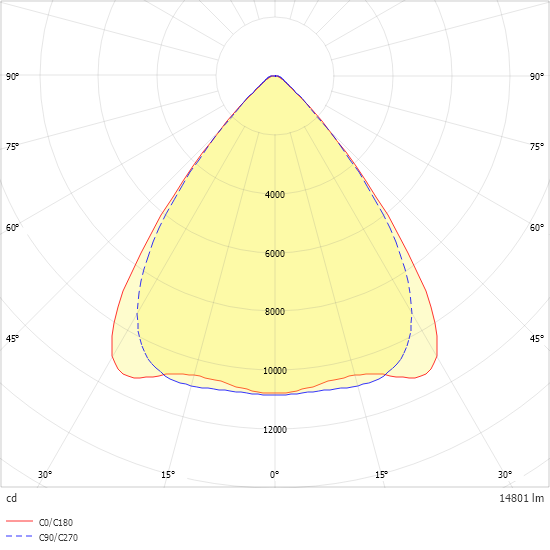

	VL2P-GLS150-5FLWS865BU1500 2550108	1500 mm	79 °	wide beam	14800 lm	6500 K	≥ 80	176 lm/W	≤ 22	xFlex	-20 - 40 °C	White
	VL2P-GLS150-7DAWS840BU0700 2560073	1500 mm	79 °	wide beam	7240 lm	4000 K	≥ 80	172 lm/W	≤ 19	DALI-2	-20 - 45 °C	White

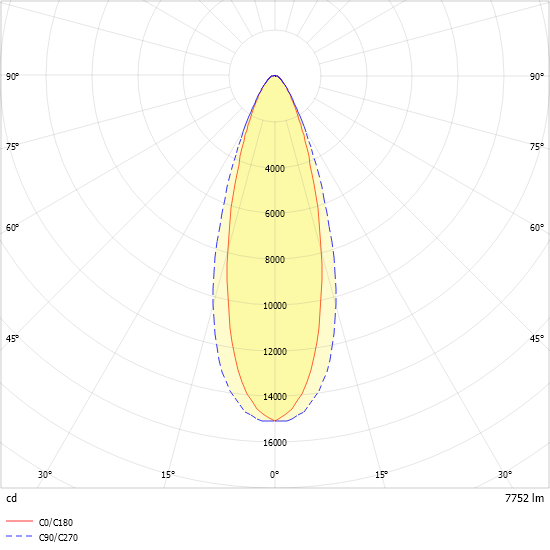

	VL2P-GLS150-7DAWS840E0750 2560074	1500 mm	31 °	narrow beam	7750 lm	4000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-20 - 45 °C	White
	VL2P-GLS150-7DAWS840BU1500 2560095	1500 mm	79 °	wide beam	14730 lm	4000 K	≥ 80	177 lm/W	≤ 22	DALI-2	-20 - 33 °C	White

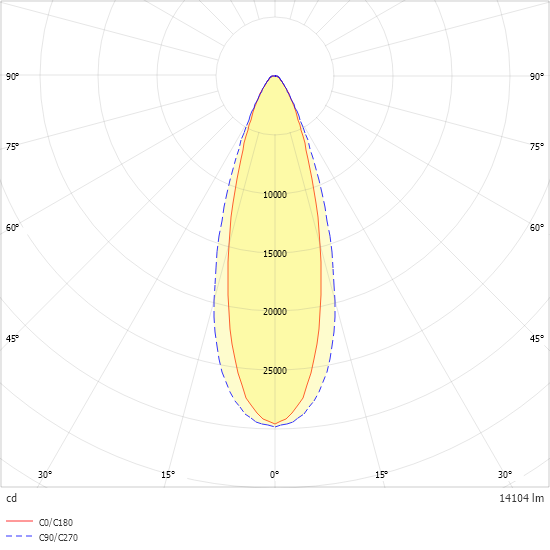

	VL2P-GLS150-7DAWS840E1400 2560096	1500 mm	30 °	narrow beam	14100 lm	4000 K	≥ 80	170 lm/W	≤ 22	DALI-2	-20 - 33 °C	White

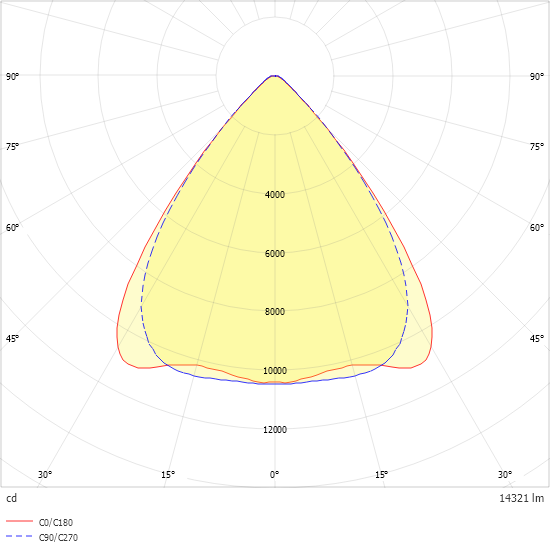

	VL2P-GLS150-7DAWS865BU1500 2560108	1500 mm	79 °	wide beam	14320 lm	6500 K	≥ 80	165 lm/W	≤ 22	DALI-2	-25 - 33 °C	White
	VL2P-GLS150-5FLSI840BU0700 2550073SI	1500 mm	79 °	wide beam	7020 lm	4000 K	≥ 80	167 lm/W	≤ 19	xFlex	-20 - 38 °C	Silver
	VL2P-GLS150-5FLSW840BU0700 2550073SW	1500 mm	79 °	wide beam	6810 lm	4000 K	≥ 80	162 lm/W	≤ 19	xFlex	-20 - 38 °C	Black
	VL2P-GLS150-5FLSI840E0750 2550074SI	1500 mm	31 °	narrow beam	7520 lm	4000 K	≥ 80	160 lm/W	≤ 19	xFlex	-20 - 45 °C	Silver
	VL2P-GLS150-5FLSW840E0750 2550074SW	1500 mm	31 °	narrow beam	7290 lm	4000 K	≥ 80	155 lm/W	≤ 19	xFlex	-20 - 45 °C	Black
	VL2P-GLS150-5FLSI840BU1500 2550095SI	1500 mm	79 °	wide beam	14360 lm	4000 K	≥ 80	171 lm/W	≤ 22	xFlex	-20 - 40 °C	Silver
	VL2P-GLS150-5FLSW840BU1500 2550095SW	1500 mm	79 °	wide beam	13910 lm	4000 K	≥ 80	166 lm/W	≤ 22	xFlex	-20 - 40 °C	Black
	VL2P-GLS150-5FLSI840E1400 2550096SI	1500 mm	30 °	narrow beam	13740 lm	4000 K	≥ 80	164 lm/W	≤ 22	xFlex	-20 - 40 °C	Silver
	VL2P-GLS150-5FLSW840E1400 2550096SW	1500 mm	30 °	narrow beam	13320 lm	4000 K	≥ 80	159 lm/W	≤ 22	xFlex	-20 - 40 °C	Black
	VL2P-GLS150-7DASI840BU0700 2560073SI	1500 mm	79 °	wide beam	7020 lm	4000 K	≥ 80	167 lm/W	≤ 19	DALI-2	-20 - 45 °C	Silver
	VL2P-GLS150-7DASW840BU0700 2560073SW	1500 mm	79 °	wide beam	6810 lm	4000 K	≥ 80	162 lm/W	≤ 19	DALI-2	-20 - 45 °C	Black
	VL2P-GLS150-7DASI840E0750 2560074SI	1500 mm	31 °	narrow beam	7520 lm	4000 K	≥ 80	157 lm/W	≤ 19	DALI-2	-20 - 45 °C	Silver
	VL2P-GLS150-7DASW840E0750 2560074SW	1500 mm	31 °	narrow beam	7290 lm	4000 K	≥ 80	152 lm/W	≤ 19	DALI-2	-20 - 45 °C	Black
	VL2P-GLS150-7DASI840BU1500 2560095SI	1500 mm	79 °	wide beam	14360 lm	4000 K	≥ 80	173 lm/W	≤ 22	DALI-2	-20 - 33 °C	Silver
	VL2P-GLS150-7DASW840BU1500 2560095SW	1500 mm	79 °	wide beam	13910 lm	4000 K	≥ 80	168 lm/W	≤ 22	DALI-2	-20 - 33 °C	Black
	VL2P-GLS150-7DASI840E1400 2560096SI	1500 mm	30 °	narrow beam	13740 lm	4000 K	≥ 80	166 lm/W	≤ 22	DALI-2	-20 - 33 °C	Silver
	VL2P-GLS150-7DASW840E1400 2560096SW	1500 mm	30 °	narrow beam	13320 lm	4000 K	≥ 80	160 lm/W	≤ 22	DALI-2	-20 - 33 °C	Black
