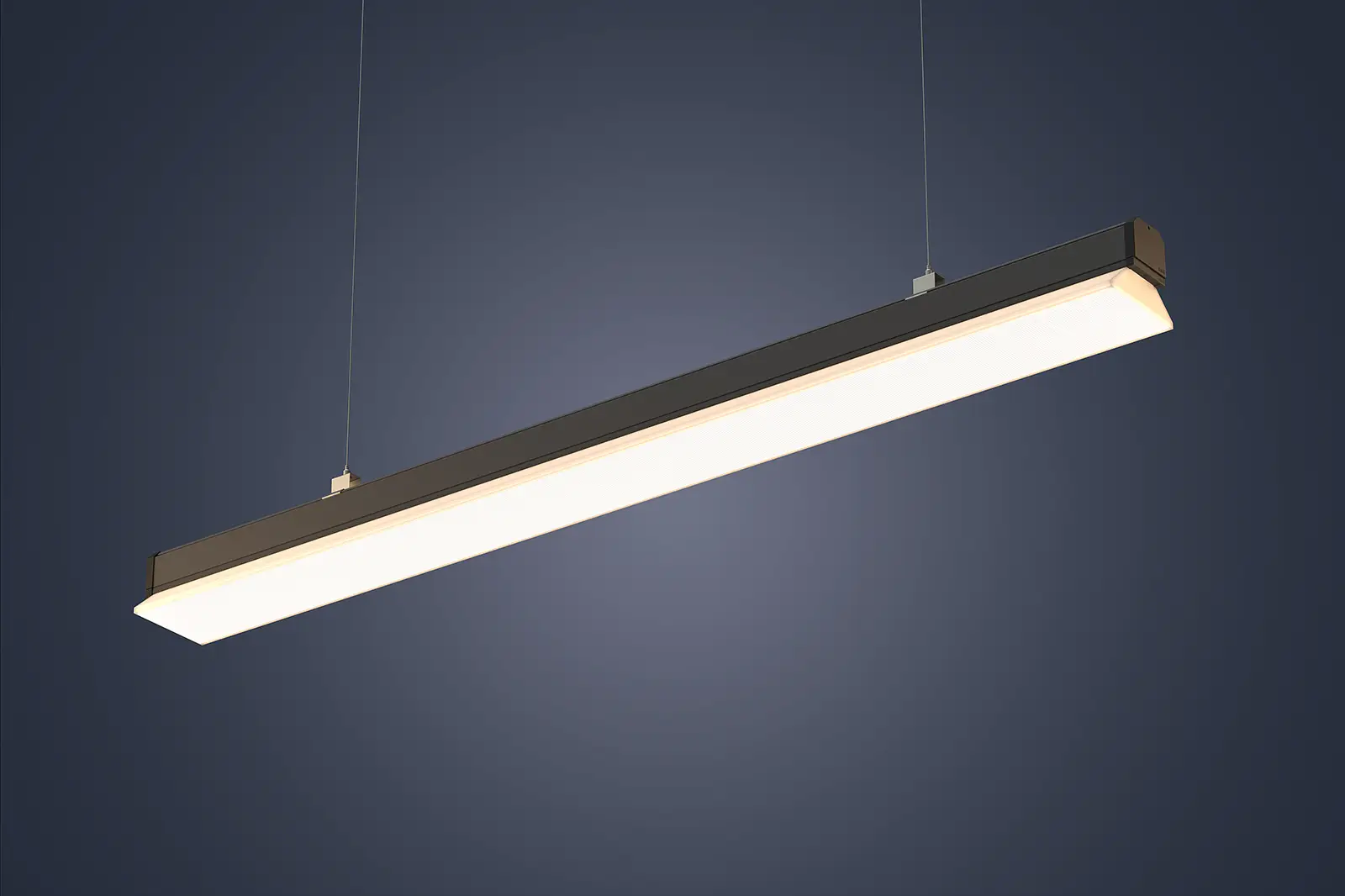

MIKI: VL2..GMS

LED Gear tray for RIDI LINIA-EVO
continuous pre-wired BusBar system

Wide microprism optic for office use

Low glare and diffuse ambience

UGR < 19
A wide diffuser with microprismatic control for low glare

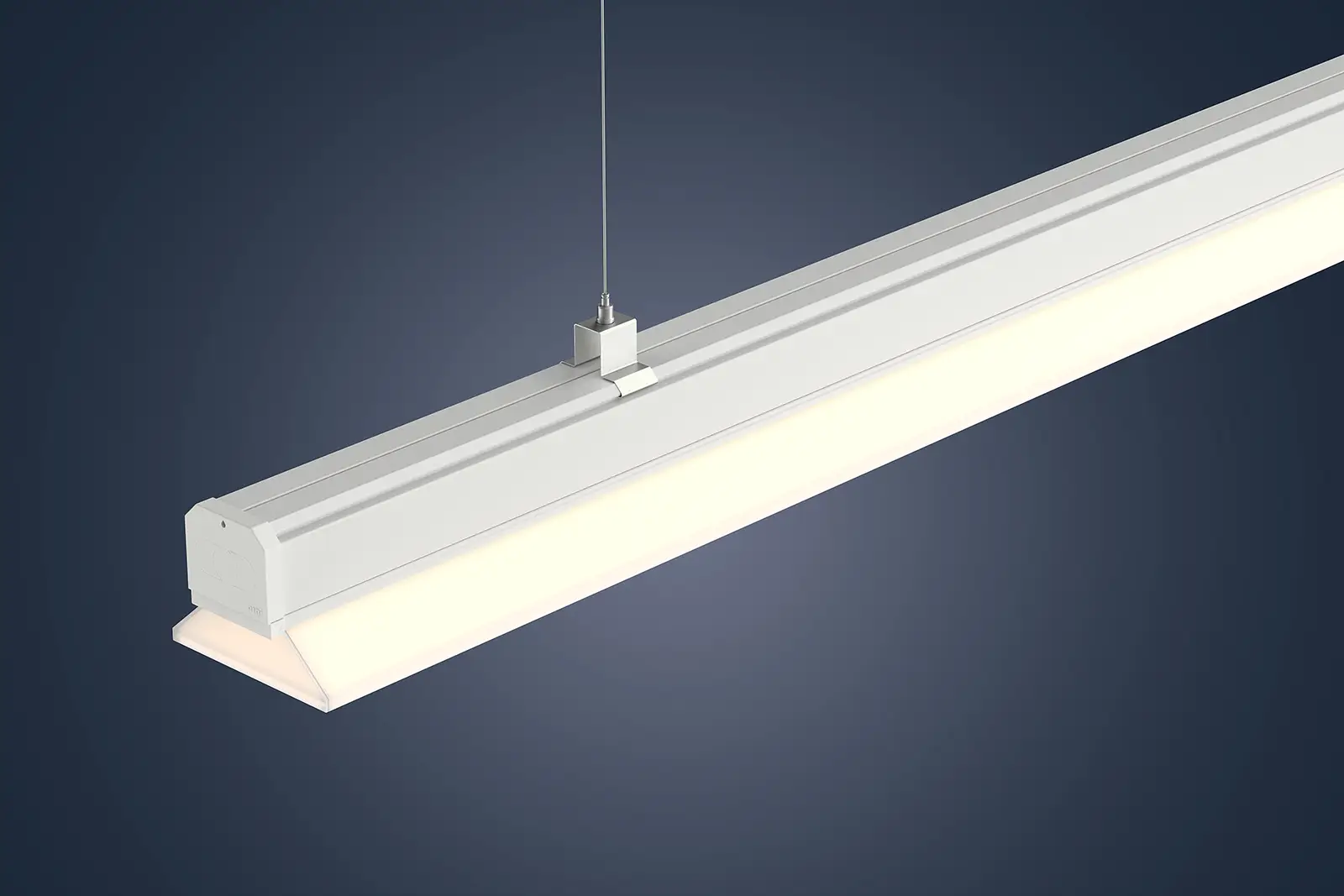

RIDI_LINIA_EVO_MIKI_Indirektanteil_final copy

Indirect as standard
Diffuse indirect light for a softer ambience

Light colours

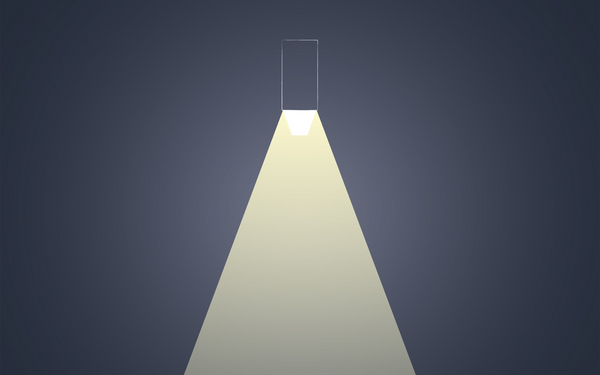

csm_LYV_Scribble_Lichtfarben_3000_c05b3ca4a8

3000 Kelvin

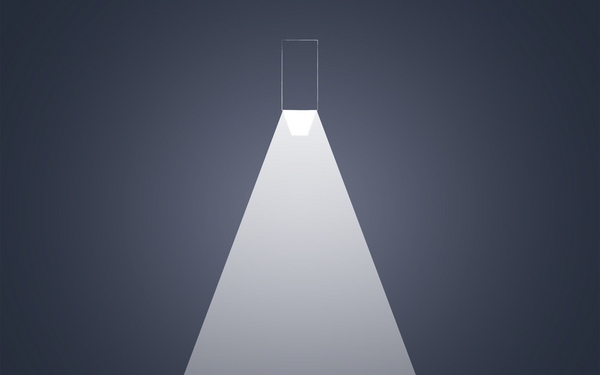

csm_LYV_Scribble_Lichtfarben_4000_6f90e6e189

4000 Kelvin

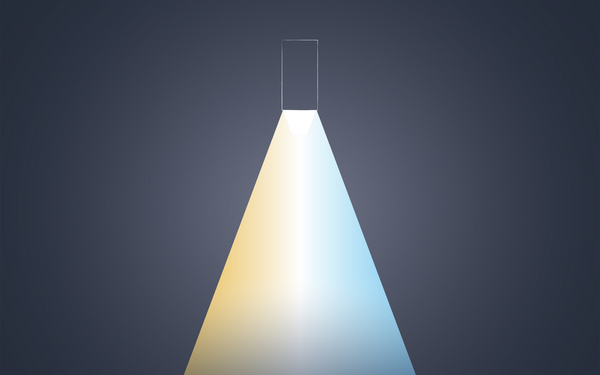

csm_LYV_Scribble_Lichtfarben_TW_8b9219793c

2700 – 6500 Kelvin | Tuneable White

Control options

Switchable (xFlex) – adjustable luminous flux

Dimmable (DALI-2)

csm_RIDI_Bewegung_Tageslichtsensor_3034e53dc7

Wireless controls

offices, education, datacentres and more

Image	Part No.	Description
No Image	ZADV SALI…150-5X1,5 DV 0205565	Sheathed cable 5×1.5mm² through wiring SALI external, max. 10A
No Image	ZADV SALI…150-3X1,5 DV 0205566	Sheathed cable 3×1.5mm² through wiring SALI external, max. 10A
	VLTHSS AUFHÄNGER AN SCHRÄGE 0205920	Hanger with wire 1.5m + ceiling fixing, inclined ceilings,1 pc
	VLTHSD AUFHÄNGER + DECKENBEF. 0205921	Hanger with wire 1.5m + ceiling fixing, 1 pc.
	VLTHS AUFHÄNGER MIT OESE 0205922	Hanger with wire 1.5m + ring loop, 1 pc.
	VLTHSB AUFHÄNGER + BALDACHIN 0205923	Hanger with wire 1.5m + canopy, 1 pc.
	VLTHST AUFHÄNGER AN T-PROFIL 0207943	Wire pend. f. syst. ceil. 24-26mm T, max 10kg, 1.5m, 1 pc
	VLTHSD SW AUFH. + DECKENBEF. 0205921SW	Hanger with cable 1.5m + ceiling fixture, black bow, 1 pc
	VLTHS SW AUFHÄNGER MIT OESE 0205922SW	Hanger with cable 1.5m + ring loop, black bow, 1 pc.
	VLTHSB-SI AUFHÄNGER +BALDACHIN 0205923SI	Hanger with wire 1.5m + canopy, silver, 1 pc.
	VLTHST SW AUFH. AN T-PROFIL 0207943SW	Wire pend., sys.ceilings w. T 24-26mm, max 10kg, 1.5m, 1 pc.
	VLTHDS AUFHÄNGER + HAKEN KURZ 0205222	Chain suspension hanger, angular mounting, max 20kg, 1 pc
	VLTHDK AUFHÄNGER + KARABINER 0205223	Chain suspension hanger for VLRFAS, 1 pc
	VLTHDB AUFHÄNGER 0205224	Ceiling fixture with cross screw for securing, max. 20 kg, 1 piece
	VLTHD TRAGSCHIENENAUFHÄNGER 0205794	Hanger for ceiling mounting, max. 20kg, 1 pc
	VLTHD-H10 TRAGSCH.AUFHÄNGER 0205930	Hanger for ceiling mounting H=10mm, max. 20kg, 1 pc.
	VLTHD-H01 TRAGSCH.AUFHÄNGER 0209167	Hanger for ceiling mounting H = 1 mm, uncoated, max. 20 kg, one unit
	VLTHD-H10-WS TRAGSCH.AUFHÄNGER 0205930BA	Hanger for ceiling mounting H=10mm, white max. 20kg, 1 pc.
	VLTHD-H01-WS TRAGSCH.AUFHÄNGER 0209167WS	Hanger for ceiling mounting H = 1 mm, white, max. 20 kg, one unit
	VLTLIK 0208310	Internal cable retainer, plastic, 10 units
	VLBP 0205887	Plate with loop for ceiling fixing. max. 20kg, 1 pc
	VLTLA 0205760	Ext. cable retainer max. 2 x dia.13mm + 1 x dia.7mm, 1 pc

Product Filters

		Range	Length (mm)	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Temp Range	Body Colour
Image	Part Code Article Number	Range	Length (mm)	Optic Type	Lumen Output	Power (W)	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Temp Range	Body Colour	Data	LDT	Polar	BIM
	VL2P-GMS150-7DAWS8TWMP0400 2561309	Performance	1500 mm	wide beam	3960 lm	27.0 W	2700–6500 K	≥ 80	147 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI8TWMP0400 2561309SI	Performance	1500 mm	wide beam	3960 lm	27.0 W	2700–6500 K	≥ 80	147 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW8TWMP0400 2561309SW	Performance	1500 mm	wide beam	3960 lm	27.0 W	2700–6500 K	≥ 80	147 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2P-GMS150-7DAWS8TWMP0650 2561310	Performance	1500 mm	wide beam	6420 lm	45.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI8TWMP0650 2561310SI	Performance	1500 mm	wide beam	6420 lm	45.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW8TWMP0650 2561310SW	Performance	1500 mm	wide beam	6420 lm	45.0 W	2700–6500 K	≥ 80	143 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2P-GMS150-5FLWS940MP1200 2551343	Performance	1500 mm	wide beam	12290 lm	85.0 W	4000 K	≥ 90	145 lm/W	≤ 22	xFlex	-25 - 35 °C	White
	VL2P-GMS150-5FLSI940MP1200 2551343SI	Performance	1500 mm	wide beam	12290 lm	85.0 W	4000 K	≥ 90	145 lm/W	≤ 22	xFlex	-25 - 35 °C	Silver
	VL2P-GMS150-5FLSW940MP1200 2551343SW	Performance	1500 mm	wide beam	12290 lm	85.0 W	4000 K	≥ 90	145 lm/W	≤ 22	xFlex	-25 - 35 °C	Black
	VL2P-GMS150-7DAWS940MP0450 2561339	Performance	1500 mm	wide beam	4350 lm	28.0 W	4000 K	≥ 90	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI940MP0450 2561339SI	Performance	1500 mm	wide beam	4350 lm	28.0 W	4000 K	≥ 90	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW940MP0450 2561339SW	Performance	1500 mm	wide beam	4350 lm	28.0 W	4000 K	≥ 90	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2P-GMS150-7DAWS940MP0650 2561340	Performance	1500 mm	wide beam	6430 lm	43.0 W	4000 K	≥ 90	150 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI940MP0650 2561340SI	Performance	1500 mm	wide beam	6430 lm	43.0 W	4000 K	≥ 90	150 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW940MP0650 2561340SW	Performance	1500 mm	wide beam	6430 lm	43.0 W	4000 K	≥ 90	150 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2P-GMS150-7DAWS940MP0850 2561341	Performance	1500 mm	wide beam	8460 lm	57.0 W	4000 K	≥ 90	148 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI940MP0850 2561341SI	Performance	1500 mm	wide beam	8460 lm	57.0 W	4000 K	≥ 90	148 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW940MP0850 2561341SW	Performance	1500 mm	wide beam	8460 lm	57.0 W	4000 K	≥ 90	148 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2P-GMS150-7DAWS940MP1000 2561342	Performance	1500 mm	wide beam	10460 lm	73.0 W	4000 K	≥ 90	143 lm/W	≤ 22	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI940MP1000 2561342SI	Performance	1500 mm	wide beam	10460 lm	73.0 W	4000 K	≥ 90	143 lm/W	≤ 22	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW940MP1000 2561342SW	Performance	1500 mm	wide beam	10460 lm	73.0 W	4000 K	≥ 90	143 lm/W	≤ 22	DALI-2	-25 - 35 °C	Black
	VL2P-GMS150-7DAWS940MP1200 2561343	Performance	1500 mm	wide beam	12450 lm	88.0 W	4000 K	≥ 90	141 lm/W	≤ 22	DALI-2	-25 - 35 °C	White
	VL2P-GMS150-7DASI940MP1200 2561343SI	Performance	1500 mm	wide beam	12450 lm	88.0 W	4000 K	≥ 90	141 lm/W	≤ 22	DALI-2	-25 - 35 °C	Silver
	VL2P-GMS150-7DASW940MP1200 2561343SW	Performance	1500 mm	wide beam	12450 lm	88.0 W	4000 K	≥ 90	141 lm/W	≤ 22	DALI-2	-25 - 35 °C	Black

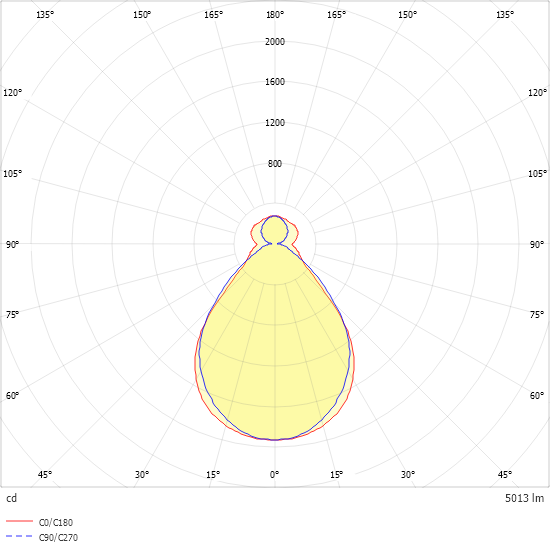

	VL2S-GMS100-5FLWS830MP0500 2551292	Select	1000 mm	wide beam	4550 lm	33.0 W	3000 K	≥ 80	138 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS100-5FLSI830MP0500 2551292SI	Select	1000 mm	wide beam	5010 lm	33.0 W	3000 K	≥ 80	152 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS100-5FLSW830MP0500 2551292SW	Select	1000 mm	wide beam	5010 lm	33.0 W	3000 K	≥ 80	152 lm/W	≤ 19	xFlex	-25 - 35 °C	Black

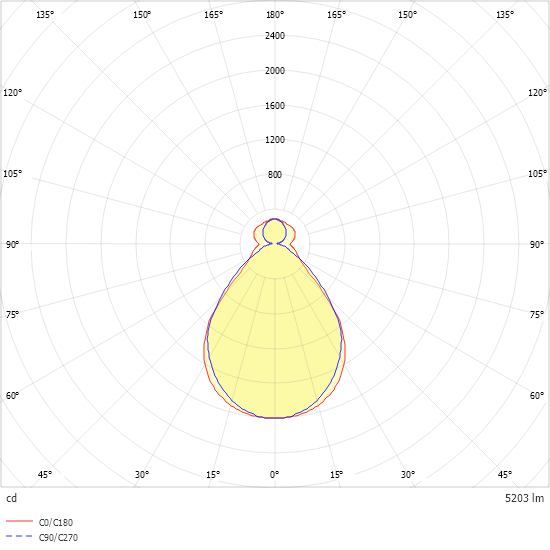

	VL2S-GMS100-5FLWS840MP0500 2551293	Select	1000 mm	wide beam	4730 lm	33.0 W	4000 K	≥ 80	143 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS100-5FLSI840MP0500 2551293SI	Select	1000 mm	wide beam	5200 lm	33.0 W	4000 K	≥ 80	158 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS100-5FLSW840MP0500 2551293SW	Select	1000 mm	wide beam	5200 lm	33.0 W	4000 K	≥ 80	158 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS100-5FLWS850MP0500 2551294	Select	1000 mm	wide beam	4730 lm	33.0 W	5000 K	≥ 80	143 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS100-5FLSI850MP0500 2551294SI	Select	1000 mm	wide beam	5200 lm	33.0 W	5000 K	≥ 80	158 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS100-5FLSW850MP0500 2551294SW	Select	1000 mm	wide beam	5200 lm	33.0 W	5000 K	≥ 80	158 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS100-5FLWS865MP0500 2551295	Select	1000 mm	wide beam	4550 lm	33.0 W	6500 K	≥ 80	138 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS100-5FLSI865MP0500 2551295SI	Select	1000 mm	wide beam	5010 lm	33.0 W	6500 K	≥ 80	152 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS100-5FLSW865MP0500 2551295SW	Select	1000 mm	wide beam	5010 lm	33.0 W	6500 K	≥ 80	152 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS830MP0750 2551297	Select	1500 mm	wide beam	6830 lm	49.0 W	3000 K	≥ 80	139 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI830MP0750 2551297SI	Select	1500 mm	wide beam	7510 lm	49.0 W	3000 K	≥ 80	153 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW830MP0750 2551297SW	Select	1500 mm	wide beam	7510 lm	49.0 W	3000 K	≥ 80	153 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS830MP1100 2551298	Select	1500 mm	wide beam	9610 lm	69.0 W	3000 K	≥ 80	139 lm/W	≤ 22	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI830MP1100 2551298SI	Select	1500 mm	wide beam	10570 lm	69.0 W	3000 K	≥ 80	153 lm/W	≤ 22	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW830MP1100 2551298SW	Select	1500 mm	wide beam	10570 lm	69.0 W	3000 K	≥ 80	153 lm/W	≤ 22	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS840MP0800 2551301	Select	1500 mm	wide beam	7090 lm	49.0 W	4000 K	≥ 80	145 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI840MP0800 2551301SI	Select	1500 mm	wide beam	7800 lm	49.0 W	4000 K	≥ 80	159 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW840MP0800 2551301SW	Select	1500 mm	wide beam	7800 lm	49.0 W	4000 K	≥ 80	159 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS840MP1100 2551302	Select	1500 mm	wide beam	9970 lm	69.0 W	4000 K	≥ 80	144 lm/W	≤ 22	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI840MP1100 2551302SI	Select	1500 mm	wide beam	10970 lm	69.0 W	4000 K	≥ 80	159 lm/W	≤ 22	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW840MP1100 2551302SW	Select	1500 mm	wide beam	10970 lm	69.0 W	4000 K	≥ 80	159 lm/W	≤ 22	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS850MP0800 2551304	Select	1500 mm	wide beam	7090 lm	49.0 W	5000 K	≥ 80	145 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI850MP0800 2551304SI	Select	1500 mm	wide beam	7800 lm	49.0 W	5000 K	≥ 80	159 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW850MP0800 2551304SW	Select	1500 mm	wide beam	7800 lm	49.0 W	5000 K	≥ 80	159 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS850MP1100 2551305	Select	1500 mm	wide beam	9970 lm	69.0 W	5000 K	≥ 80	144 lm/W	≤ 22	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI850MP1100 2551305SI	Select	1500 mm	wide beam	10970 lm	69.0 W	5000 K	≥ 80	159 lm/W	≤ 22	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW850MP1100 2551305SW	Select	1500 mm	wide beam	10970 lm	69.0 W	5000 K	≥ 80	159 lm/W	≤ 22	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS865MP0750 2551307	Select	1500 mm	wide beam	6830 lm	49.0 W	6500 K	≥ 80	139 lm/W	≤ 19	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI865MP0750 2551307SI	Select	1500 mm	wide beam	7510 lm	49.0 W	6500 K	≥ 80	153 lm/W	≤ 19	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW865MP0750 2551307SW	Select	1500 mm	wide beam	7510 lm	49.0 W	6500 K	≥ 80	153 lm/W	≤ 19	xFlex	-25 - 35 °C	Black
	VL2S-GMS150-5FLWS865MP1100 2551308	Select	1500 mm	wide beam	9610 lm	69.0 W	6500 K	≥ 80	139 lm/W	≤ 22	xFlex	-25 - 35 °C	White
	VL2S-GMS150-5FLSI865MP1100 2551308SI	Select	1500 mm	wide beam	10570 lm	69.0 W	6500 K	≥ 80	153 lm/W	≤ 22	xFlex	-25 - 35 °C	Silver
	VL2S-GMS150-5FLSW865MP1100 2551308SW	Select	1500 mm	wide beam	10570 lm	69.0 W	6500 K	≥ 80	153 lm/W	≤ 22	xFlex	-25 - 35 °C	Black
	VL2S-GMS100-7DAWS830MP0500 2561292	Select	1000 mm	wide beam	5010 lm	33.0 W	3000 K	≥ 80	152 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS100-7DASI830MP0500 2561292SI	Select	1000 mm	wide beam	5010 lm	33.0 W	3000 K	≥ 80	152 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS100-7DASW830MP0500 2561292SW	Select	1000 mm	wide beam	5010 lm	33.0 W	3000 K	≥ 80	152 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS100-7DAWS840MP0500 2561293	Select	1000 mm	wide beam	5200 lm	33.0 W	4000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS100-7DASI840MP0500 2561293SI	Select	1000 mm	wide beam	5200 lm	33.0 W	4000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS100-7DASW840MP0500 2561293SW	Select	1000 mm	wide beam	5200 lm	33.0 W	4000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS100-7DAWS850MP0500 2561294	Select	1000 mm	wide beam	5200 lm	33.0 W	5000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS100-7DASI850MP0500 2561294SI	Select	1000 mm	wide beam	5200 lm	33.0 W	5000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS100-7DASW850MP0500 2561294SW	Select	1000 mm	wide beam	5200 lm	33.0 W	5000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS100-7DAWS865MP0500 2561295	Select	1000 mm	wide beam	5010 lm	33.0 W	6500 K	≥ 80	152 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS100-7DASI865MP0500 2561295SI	Select	1000 mm	wide beam	5010 lm	33.0 W	6500 K	≥ 80	152 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS100-7DASW865MP0500 2561295SW	Select	1000 mm	wide beam	5010 lm	33.0 W	6500 K	≥ 80	152 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS830MP0450 2561296	Select	1500 mm	wide beam	4340 lm	28.0 W	3000 K	≥ 80	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI830MP0450 2561296SI	Select	1500 mm	wide beam	4340 lm	28.0 W	3000 K	≥ 80	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW830MP0450 2561296SW	Select	1500 mm	wide beam	4340 lm	28.0 W	3000 K	≥ 80	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS830MP0750 2561297	Select	1500 mm	wide beam	7510 lm	49.0 W	3000 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI830MP0750 2561297SI	Select	1500 mm	wide beam	7510 lm	49.0 W	3000 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW830MP0750 2561297SW	Select	1500 mm	wide beam	7510 lm	49.0 W	3000 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS830MP1100 2561298	Select	1500 mm	wide beam	10570 lm	71.0 W	3000 K	≥ 80	149 lm/W	≤ 22	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI830MP1100 2561298SI	Select	1500 mm	wide beam	10570 lm	71.0 W	3000 K	≥ 80	149 lm/W	≤ 22	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW830MP1100 2561298SW	Select	1500 mm	wide beam	10570 lm	71.0 W	3000 K	≥ 80	149 lm/W	≤ 22	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS840MP0450 2561299	Select	1500 mm	wide beam	4510 lm	28.0 W	4000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI840MP0450 2561299SI	Select	1500 mm	wide beam	4510 lm	28.0 W	4000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW840MP0450 2561299SW	Select	1500 mm	wide beam	4510 lm	28.0 W	4000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS840MP0650 2561300	Select	1500 mm	wide beam	6490 lm	41.0 W	4000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI840MP0650 2561300SI	Select	1500 mm	wide beam	6490 lm	41.0 W	4000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW840MP0650 2561300SW	Select	1500 mm	wide beam	6490 lm	41.0 W	4000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS840MP0800 2561301	Select	1500 mm	wide beam	7800 lm	49.0 W	4000 K	≥ 80	159 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI840MP0800 2561301SI	Select	1500 mm	wide beam	7800 lm	49.0 W	4000 K	≥ 80	159 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW840MP0800 2561301SW	Select	1500 mm	wide beam	7800 lm	49.0 W	4000 K	≥ 80	159 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black

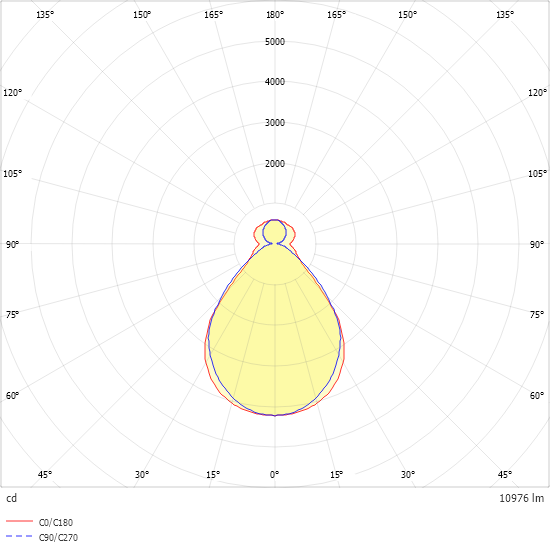

	VL2S-GMS150-7DAWS840MP1100 2561302	Select	1500 mm	wide beam	10970 lm	71.0 W	4000 K	≥ 80	155 lm/W	≤ 22	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI840MP1100 2561302SI	Select	1500 mm	wide beam	10970 lm	71.0 W	4000 K	≥ 80	155 lm/W	≤ 22	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW840MP1100 2561302SW	Select	1500 mm	wide beam	10970 lm	71.0 W	4000 K	≥ 80	155 lm/W	≤ 22	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS850MP0450 2561303	Select	1500 mm	wide beam	4510 lm	28.0 W	5000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI850MP0450 2561303SI	Select	1500 mm	wide beam	4510 lm	28.0 W	5000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW850MP0450 2561303SW	Select	1500 mm	wide beam	4510 lm	28.0 W	5000 K	≥ 80	161 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS850MP0800 2561304	Select	1500 mm	wide beam	7800 lm	49.0 W	5000 K	≥ 80	159 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI850MP0800 2561304SI	Select	1500 mm	wide beam	7800 lm	49.0 W	5000 K	≥ 80	159 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW850MP0800 2561304SW	Select	1500 mm	wide beam	7800 lm	49.0 W	5000 K	≥ 80	159 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS850MP1100 2561305	Select	1500 mm	wide beam	10970 lm	71.0 W	5000 K	≥ 80	155 lm/W	≤ 22	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI850MP1100 2561305SI	Select	1500 mm	wide beam	10970 lm	71.0 W	5000 K	≥ 80	155 lm/W	≤ 22	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW850MP1100 2561305SW	Select	1500 mm	wide beam	10970 lm	71.0 W	5000 K	≥ 80	155 lm/W	≤ 22	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS865MP0450 2561306	Select	1500 mm	wide beam	4340 lm	28.0 W	6500 K	≥ 80	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI865MP0450 2561306SI	Select	1500 mm	wide beam	4340 lm	28.0 W	6500 K	≥ 80	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW865MP0450 2561306SW	Select	1500 mm	wide beam	4340 lm	28.0 W	6500 K	≥ 80	155 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS865MP0750 2561307	Select	1500 mm	wide beam	7510 lm	49.0 W	6500 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI865MP0750 2561307SI	Select	1500 mm	wide beam	7510 lm	49.0 W	6500 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW865MP0750 2561307SW	Select	1500 mm	wide beam	7510 lm	49.0 W	6500 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black

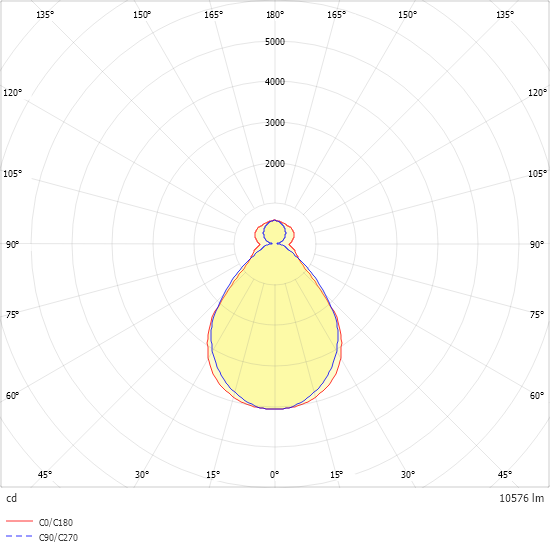

	VL2S-GMS150-7DAWS865MP1100 2561308	Select	1500 mm	wide beam	10570 lm	71.0 W	6500 K	≥ 80	149 lm/W	≤ 22	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI865MP1100 2561308SI	Select	1500 mm	wide beam	10570 lm	71.0 W	6500 K	≥ 80	149 lm/W	≤ 22	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW865MP1100 2561308SW	Select	1500 mm	wide beam	10570 lm	71.0 W	6500 K	≥ 80	149 lm/W	≤ 22	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS830MP0650 2561344	Select	1500 mm	wide beam	6260 lm	41.0 W	3000 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI830MP0650 2561344SI	Select	1500 mm	wide beam	6260 lm	41.0 W	3000 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW830MP0650 2561344SW	Select	1500 mm	wide beam	6260 lm	41.0 W	3000 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS850MP0650 2561345	Select	1500 mm	wide beam	6490 lm	41.0 W	5000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI850MP0650 2561345SI	Select	1500 mm	wide beam	6490 lm	41.0 W	5000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW850MP0650 2561345SW	Select	1500 mm	wide beam	6490 lm	41.0 W	5000 K	≥ 80	158 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black
	VL2S-GMS150-7DAWS865MP0650 2561346	Select	1500 mm	wide beam	6260 lm	41.0 W	6500 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	White
	VL2S-GMS150-7DASI865MP0650 2561346SI	Select	1500 mm	wide beam	6260 lm	41.0 W	6500 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Silver
	VL2S-GMS150-7DASW865MP0650 2561346SW	Select	1500 mm	wide beam	6260 lm	41.0 W	6500 K	≥ 80	153 lm/W	≤ 19	DALI-2	-25 - 35 °C	Black

Save 75% Install Time

We compared the install time of RIDI LINIA against ordinary trunking.

We saved 75% by using LINIA

Watch the video
