VL2 .. GP

LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.

Linear Fresnel optics for efficiency and glare control.

Entry, Select, Performance

Choose from three LED technology tiers

Entry: Great Value, 5 Year Warranty, 50,000hrs Lifetime
Select: Extra Long Lifetime, 100,000hrs
Performance: Extreme Efficiency and 100,000hrs Lifetime

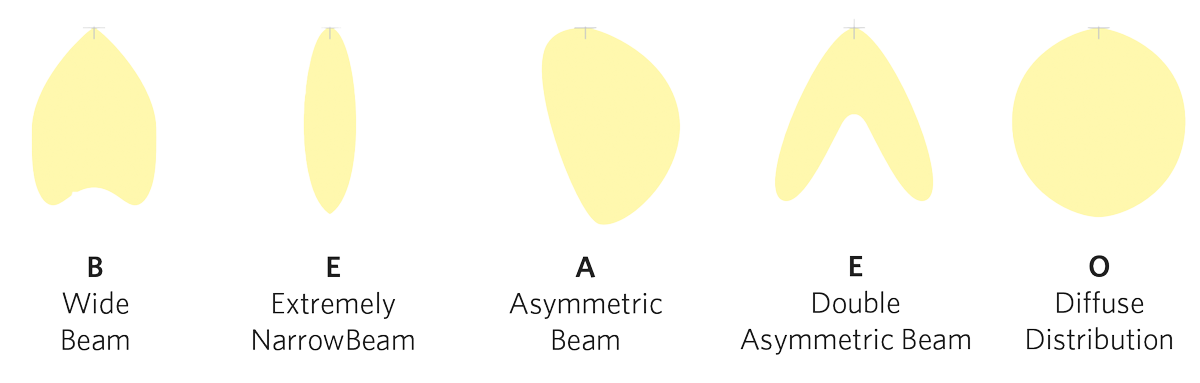

Lighting Distributions

VL2-GP is offered with five linear Fresnel options
*A, R, O available soon

For warehouses, factories, datacentres and more

Available with RIDI xFlex

Adjust output onsite to give just the right light level and energy usage.

Technical Data and Downloads

Product Filters

		Length (mm)	Beam Angle	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Temp Range	Body Colour
Image	Part Code Article Number	Length (mm)	Beam Angle	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Temp Range	Body Colour	Data	LDT	Polar	BIM
	VL2E-GP150-5FLWS840B1000 2550015	1500 mm	79 °	wide beam	9820 lm	4000 K	≥ 80	156 lm/W	> 25	xFlex	-25 - 35 °C	White
	VL2E-GP150-5FLWS840E1000 2550016	1500 mm	34 °	narrow beam	9930 lm	4000 K	≥ 80	158 lm/W	> 25	xFlex	-25 - 35 °C	White
	VL2E-GP200-5FLWS840B1300 2550017	2000 mm	79 °	wide beam	13100 lm	4000 K	≥ 80	160 lm/W	> 25	xFlex	-25 - 35 °C	White

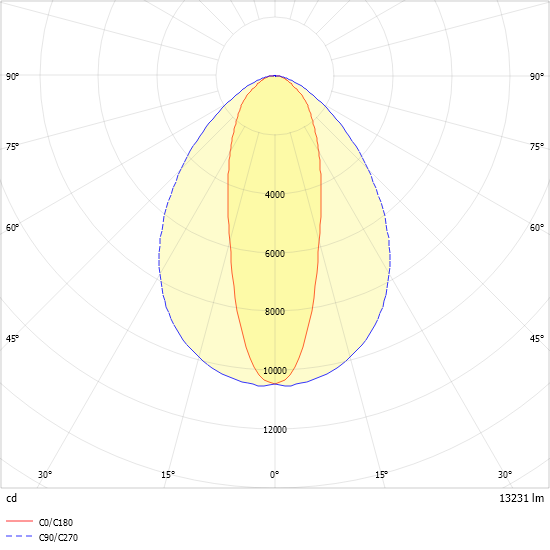

	VL2E-GP200-5FLWS840E1300 2550018	2000 mm	34 °	narrow beam	13230 lm	4000 K	≥ 80	161 lm/W	> 25	xFlex	-25 - 35 °C	White
	VL2S-GP150-5FLWS840B0900 2550023	1500 mm	79 °	wide beam	8910 lm	4000 K	≥ 80	178 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2S-GP150-5FLWS840E0900 2550024	1500 mm	34 °	narrow beam	9010 lm	4000 K	≥ 80	180 lm/W	> 25	xFlex	-25 - 40 °C	White

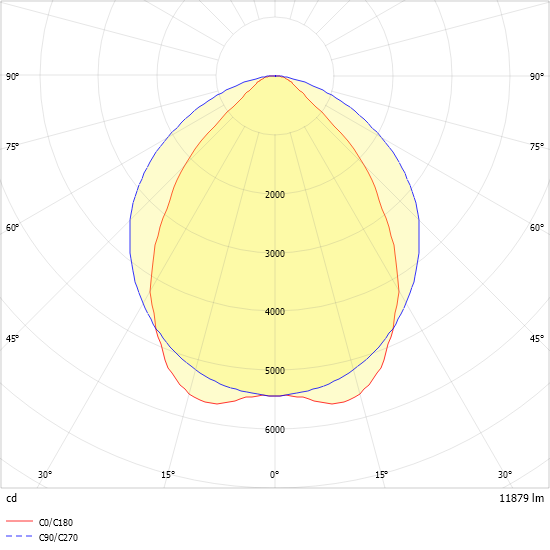

	VL2S-GP200-5FLWS840B1200 2550025	2000 mm	79 °	wide beam	11880 lm	4000 K	≥ 80	183 lm/W	> 25	xFlex	-25 - 35 °C	White
	VL2S-GP200-5FLWS840E1200 2550026	2000 mm	34 °	narrow beam	12010 lm	4000 K	≥ 80	185 lm/W	> 25	xFlex	-25 - 35 °C	White
	VL2S-GP150-5FLWS850B1200 2550055	1500 mm	79 °	wide beam	12480 lm	5000 K	≥ 80	176 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2S-GP150-5FLWS865B1200 2550056	1500 mm	79 °	wide beam	12220 lm	6500 K	≥ 80	172 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2P-GP150-5FLWS840B1000 2550077	1500 mm	79 °	wide beam	10230 lm	4000 K	≥ 80	173 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2P-GP150-5FLWS840E1000 2550078	1500 mm	34 °	narrow beam	10340 lm	4000 K	≥ 80	175 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2P-GP200-5FLWS840B1400 2550079	2000 mm	79 °	wide beam	13630 lm	4000 K	≥ 80	177 lm/W	> 25	xFlex	-25 - 35 °C	White
	VL2P-GP200-5FLWS840E1400 2550080	2000 mm	34 °	narrow beam	13780 lm	4000 K	≥ 80	179 lm/W	> 25	xFlex	-25 - 35 °C	White

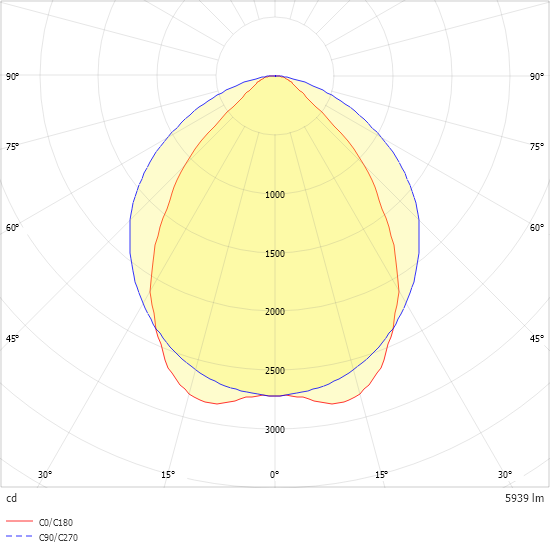

	VL2S-GP100-5FLWS840B0600 2550091	1000 mm	79 °	wide beam	5940 lm	4000 K	≥ 80	175 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2S-GP100-5FLWS840E0600 2550092	1000 mm	34 °	narrow beam	6010 lm	4000 K	≥ 80	177 lm/W	> 25	xFlex	-25 - 40 °C	White
	VL2S-GP150-5FLWS840W0950 2550117	1500 mm	92 °	diffuse beam	9270 lm	4000 K	≥ 80	160 lm/W	> 25	xFlex	-20 - 39 °C	White
	VL2S-GP150-5FLWS830W0900 2550119	1500 mm	92 °	diffuse beam	9030 lm	3000 K	≥ 80	156 lm/W	> 25	xFlex	-20 - 39 °C	White
	VL2S-GP150-5FLWS850W0950 2550120	1500 mm	92 °	diffuse beam	9270 lm	5000 K	≥ 80	160 lm/W	> 25	xFlex	-20 - 39 °C	White
	VL2S-GP150-5FLWS865W0900 2550121	1500 mm	92 °	diffuse beam	9080 lm	6500 K	≥ 80	157 lm/W	> 25	xFlex	-20 - 39 °C	White

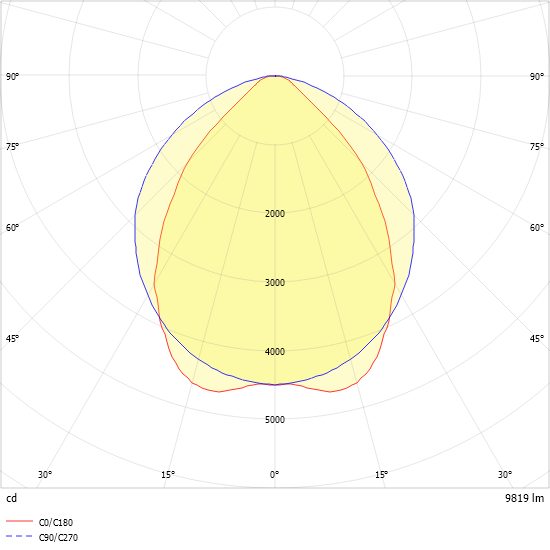

	VL2E-GP150-7DAWS840B1000 2560015	1500 mm	79 °	wide beam	9820 lm	4000 K	≥ 80	151 lm/W	> 25	DALI-2	-25 - 35 °C	White
	VL2E-GP150-7DAWS840E1000 2560016	1500 mm	34 °	narrow beam	9930 lm	4000 K	≥ 80	153 lm/W	> 25	DALI-2	-25 - 35 °C	White
	VL2E-GP200-7DAWS840B1300 2560017	2000 mm	79 °	wide beam	13100 lm	4000 K	≥ 80	156 lm/W	> 25	DALI-2	-25 - 35 °C	White
	VL2E-GP200-7DAWS840E1300 2560018	2000 mm	34 °	narrow beam	13230 lm	4000 K	≥ 80	158 lm/W	> 25	DALI-2	-25 - 35 °C	White
	VL2S-GP150-7DAWS840E0900 2560024	1500 mm	34 °	narrow beam	9010 lm	4000 K	≥ 80	177 lm/W	> 25	DALI-2	-25 - 35 °C	White
	VL2S-GP200-7DAWS840B1200 2560025	2000 mm	79 °	wide beam	11880 lm	4000 K	≥ 80	180 lm/W	> 25	DALI-2	-25 - 30 °C	White
	VL2S-GP200-7DAWS840E1200 2560026	2000 mm	34 °	narrow beam	12010 lm	4000 K	≥ 80	182 lm/W	> 25	DALI-2	-25 - 30 °C	White

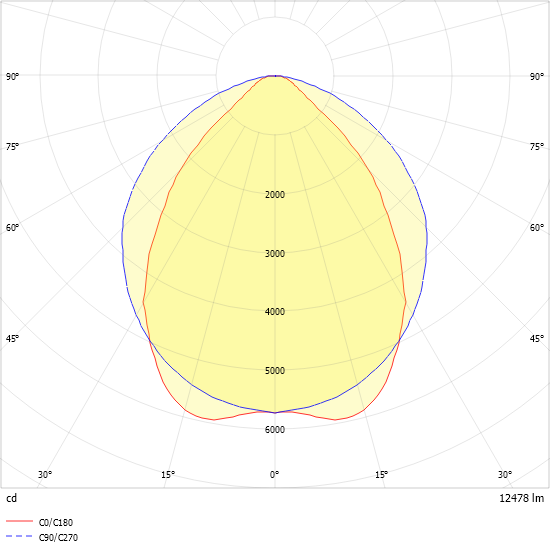

	VL2S-GP150-7DAWS840B1200 2560050	1500 mm	79 °	wide beam	12480 lm	4000 K	≥ 80	171 lm/W	> 25	DALI-2	-25 - 35 °C	White

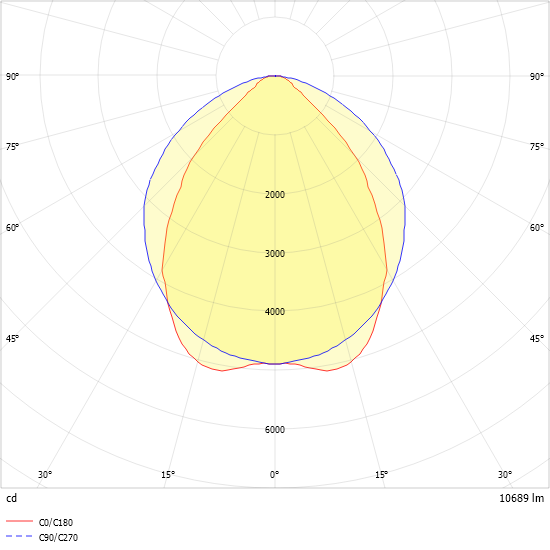

	VL2S-GP150-7DAWS865B1200 2560056	1500 mm	79 °	wide beam	12220 lm	6500 K	≥ 80	167 lm/W	> 25	DALI-2	-25 - 35 °C	White
	VL2S-GP150-7DAWS840B0500 2560058	1500 mm	79 °	wide beam	5170 lm	4000 K	≥ 80	172 lm/W	≤ 25	DALI-2	-25 - 40 °C	White
	VL2S-GP100-7DAWS840B0600 2560091	1000 mm	79 °	wide beam	5940 lm	4000 K	≥ 80	170 lm/W	> 25	DALI-2	-25 - 40 °C	White

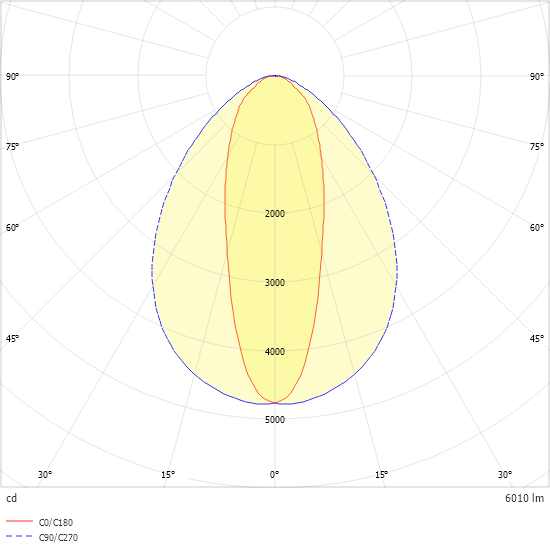

	VL2S-GP100-7DAWS840E0600 2560092	1000 mm	34 °	narrow beam	6010 lm	4000 K	≥ 80	172 lm/W	> 25	DALI-2	-25 - 40 °C	White

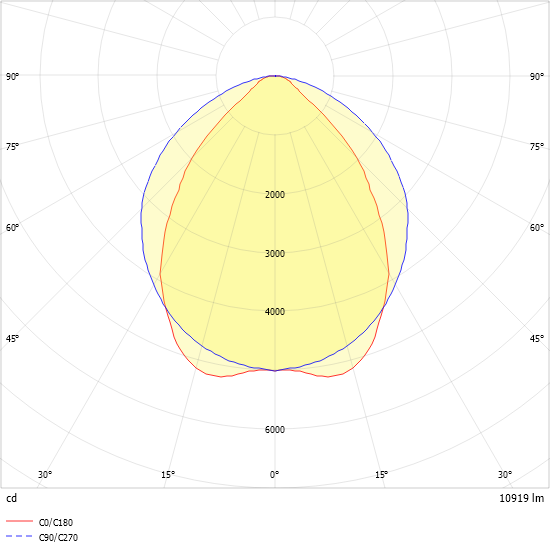

	VL2S-GP150-7DAWS840B0900 2560101	1500 mm	79 °	wide beam	8910 lm	4000 K	≥ 80	175 lm/W	> 25	DALI-2	-20 - 35 °C	White
	VL2S-GP150-7DAWS840W0900 2560118	1500 mm	92 °	diffuse beam	8850 lm	4000 K	≥ 80	161 lm/W	> 25	DALI-2	-25 - 45 °C	White
	VL2S-GP150-7DAWS830W0850 2560122	1500 mm	92 °	diffuse beam	8630 lm	3000 K	≥ 80	157 lm/W	> 25	DALI-2	-25 - 45 °C	White
	VL2S-GP150-7DAWS850W0900 2560123	1500 mm	92 °	diffuse beam	8850 lm	5000 K	≥ 80	161 lm/W	> 25	DALI-2	-25 - 45 °C	White
	VL2S-GP150-7DAWS865W0850 2560124	1500 mm	92 °	diffuse beam	8670 lm	6500 K	≥ 80	158 lm/W	> 25	DALI-2	-25 - 45 °C	White
	VL2S-GP150-5FLSI840B0900 2550023SI	1500 mm	79 °	wide beam	8910 lm	4000 K	≥ 80	178 lm/W	> 25	xFlex	-25 - 40 °C	Silver
	VL2S-GP150-5FLSW840B0900 2550023SW	1500 mm	79 °	wide beam	8910 lm	4000 K	≥ 80	178 lm/W	> 25	xFlex	-25 - 40 °C	Black
	VL2S-GP150-5FLSI840E0900 2550024SI	1500 mm	34 °	narrow beam	9010 lm	4000 K	≥ 80	180 lm/W	> 25	xFlex	-25 - 40 °C	Silver
	VL2S-GP150-5FLSW840E0900 2550024SW	1500 mm	34 °	narrow beam	9010 lm	4000 K	≥ 80	180 lm/W	> 25	xFlex	-25 - 40 °C	Black
	VL2S-GP150-5FLSI850B1200 2550055SI	1500 mm	79 °	wide beam	12480 lm	5000 K	≥ 80	176 lm/W	> 25	xFlex	-25 - 40 °C	Silver
	VL2S-GP150-5FLSW850B1200 2550055SW	1500 mm	79 °	wide beam	12480 lm	5000 K	≥ 80	176 lm/W	> 25	xFlex	-25 - 40 °C	Black
	VL2S-GP150-5FLSI865B1200 2550056SI	1500 mm	79 °	wide beam	12220 lm	6500 K	≥ 80	172 lm/W	> 25	xFlex	-25 - 40 °C	Silver
	VL2S-GP150-5FLSW865B1200 2550056SW	1500 mm	79 °	wide beam	12220 lm	6500 K	≥ 80	172 lm/W	> 25	xFlex	-25 - 40 °C	Black
	VL2P-GP150-5FLSI840B1000 2550077SI	1500 mm	79 °	wide beam	10230 lm	4000 K	≥ 80	173 lm/W	> 25	xFlex	-25 - 40 °C	Silver
	VL2P-GP150-5FLSW840B1000 2550077SW	1500 mm	79 °	wide beam	10230 lm	4000 K	≥ 80	173 lm/W	> 25	xFlex	-25 - 40 °C	Black
	VL2P-GP150-5FLSI840E1000 2550078SI	1500 mm	34 °	narrow beam	10340 lm	4000 K	≥ 80	175 lm/W	> 25	xFlex	-25 - 40 °C	Silver
	VL2P-GP150-5FLSW840E1000 2550078SW	1500 mm	34 °	narrow beam	10340 lm	4000 K	≥ 80	175 lm/W	> 25	xFlex	-25 - 40 °C	Black
	VL2P-GP200-5FLSI840B1400 2550079SI	2000 mm	79 °	wide beam	13630 lm	4000 K	≥ 80	177 lm/W	> 25	xFlex	-25 - 35 °C	Silver
	VL2P-GP200-5FLSW840B1400 2550079SW	2000 mm	79 °	wide beam	13630 lm	4000 K	≥ 80	177 lm/W	> 25	xFlex	-25 - 35 °C	Black
	VL2P-GP200-5FLSI840E1400 2550080SI	2000 mm	34 °	narrow beam	13780 lm	4000 K	≥ 80	179 lm/W	> 25	xFlex	-25 - 35 °C	Silver
	VL2P-GP200-5FLSW840E1400 2550080SW	2000 mm	34 °	narrow beam	13780 lm	4000 K	≥ 80	179 lm/W	> 25	xFlex	-25 - 35 °C	Black
	VL2S-GP150-5FLSI840W0900 2550117SI	1500 mm	92 °	diffuse beam	8990 lm	4000 K	≥ 80	155 lm/W	> 25	xFlex	-20 - 39 °C	Silver
	VL2S-GP150-5FLSW840W0850 2550117SW	1500 mm	92 °	diffuse beam	8710 lm	4000 K	≥ 80	150 lm/W	> 25	xFlex	-20 - 39 °C	Black
	VL2S-GP150-5FLSI830W0900 2550119SI	1500 mm	92 °	diffuse beam	8760 lm	3000 K	≥ 80	151 lm/W	> 25	xFlex	-20 - 39 °C	Silver
	VL2S-GP150-5FLSW830W0850 2550119SW	1500 mm	92 °	diffuse beam	8490 lm	3000 K	≥ 80	146 lm/W	> 25	xFlex	-20 - 39 °C	Black
	VL2S-GP150-5FLSI850W0900 2550120SI	1500 mm	92 °	diffuse beam	8990 lm	5000 K	≥ 80	155 lm/W	> 25	xFlex	-20 - 39 °C	Silver
	VL2S-GP150-5FLSW850W0850 2550120SW	1500 mm	92 °	diffuse beam	8710 lm	5000 K	≥ 80	150 lm/W	> 25	xFlex	-20 - 39 °C	Black
	VL2S-GP150-5FLSI865W0900 2550121SI	1500 mm	92 °	diffuse beam	8810 lm	6500 K	≥ 80	152 lm/W	> 25	xFlex	-20 - 39 °C	Silver
	VL2S-GP150-5FLSW865W0850 2550121SW	1500 mm	92 °	diffuse beam	8530 lm	6500 K	≥ 80	147 lm/W	> 25	xFlex	-20 - 39 °C	Black
	VL2S-GP150-7DASI840B1200 2560050SI	1500 mm	79 °	wide beam	12480 lm	4000 K	≥ 80	171 lm/W	> 25	DALI-2	-25 - 35 °C	Silver
	VL2S-GP150-7DASW840B1200 2560050SW	1500 mm	79 °	wide beam	12480 lm	4000 K	≥ 80	171 lm/W	> 25	DALI-2	-25 - 35 °C	Black
	VL2S-GP150-7DASI865B1200 2560056SI	1500 mm	79 °	wide beam	12220 lm	6500 K	≥ 80	167 lm/W	> 25	DALI-2	-25 - 35 °C	Silver
	VL2S-GP150-7DASW865B1200 2560056SW	1500 mm	79 °	wide beam	12220 lm	6500 K	≥ 80	167 lm/W	> 25	DALI-2	-25 - 35 °C	Black
	VL2S-GP150-7DASI840B0500 2560058SI	1500 mm	79 °	wide beam	5170 lm	4000 K	≥ 80	172 lm/W	≤ 25	DALI-2	-25 - 40 °C	Silver
	VL2S-GP150-7DASW840B0500 2560058SW	1500 mm	79 °	wide beam	5170 lm	4000 K	≥ 80	172 lm/W	≤ 25	DALI-2	-25 - 40 °C	Black
	VL2S-GP150-7DASI840B0900 2560101SI	1500 mm	79 °	wide beam	8910 lm	4000 K	≥ 80	175 lm/W	> 25	DALI-2	-20 - 35 °C	Silver
	VL2S-GP150-7DASW840B0900 2560101SW	1500 mm	79 °	wide beam	8910 lm	4000 K	≥ 80	175 lm/W	> 25	DALI-2	-20 - 35 °C	Black
	VL2S-GP150-7DASI840W0850 2560118SI	1500 mm	92 °	diffuse beam	8590 lm	4000 K	≥ 80	156 lm/W	> 25	DALI-2	-25 - 45 °C	Silver
	VL2S-GP150-7DASW840W0850 2560118SW	1500 mm	92 °	diffuse beam	8320 lm	4000 K	≥ 80	151 lm/W	> 25	DALI-2	-25 - 45 °C	Black
	VL2S-GP150-7DASI830W0850 2560122SI	1500 mm	92 °	diffuse beam	8370 lm	3000 K	≥ 80	152 lm/W	> 25	DALI-2	-25 - 45 °C	Silver
	VL2S-GP150-7DASW830W0800 2560122SW	1500 mm	92 °	diffuse beam	8110 lm	3000 K	≥ 80	147 lm/W	> 25	DALI-2	-25 - 45 °C	Black
	VL2S-GP150-7DASI850W0850 2560123SI	1500 mm	92 °	diffuse beam	8590 lm	5000 K	≥ 80	156 lm/W	> 25	DALI-2	-25 - 45 °C	Silver
	VL2S-GP150-7DASW850W0850 2560123SW	1500 mm	92 °	diffuse beam	8320 lm	5000 K	≥ 80	151 lm/W	> 25	DALI-2	-25 - 45 °C	Black
	VL2S-GP150-7DASI865W0850 2560124SI	1500 mm	92 °	diffuse beam	8410 lm	6500 K	≥ 80	153 lm/W	> 25	DALI-2	-25 - 45 °C	Silver
	VL2S-GP150-7DASW865W0800 2560124SW	1500 mm	92 °	diffuse beam	8150 lm	6500 K	≥ 80	148 lm/W	> 25	DALI-2	-25 - 45 °C	Black
