VL2 .. Multilens Premium

LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.

RIDI Multilens Premium optics for extremely high optical efficiency and low glare,

Multilens Premium

We use the highest specification LED chips behind specially designed indiviudal lens units recessed into a semi-specular reflector.

The result is extremely high optical efficiency, accurate beam forming and low visual glare.

Higher CRI

VL2-ML Premium is available with optional >90 CRI LEDs for improved colour rendering and visual acuity

offices, education, datacentres and more

.

Available with RIDI xFlex

Adjust output onsite to give just the right light level and energy usage.

Technical Data and Downloads

Product Filters

		Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour

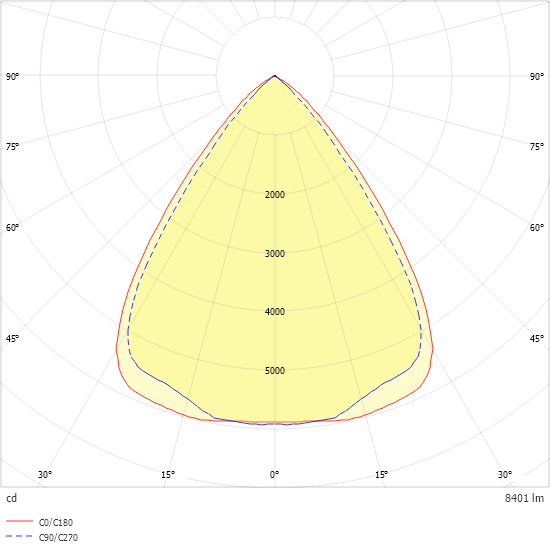

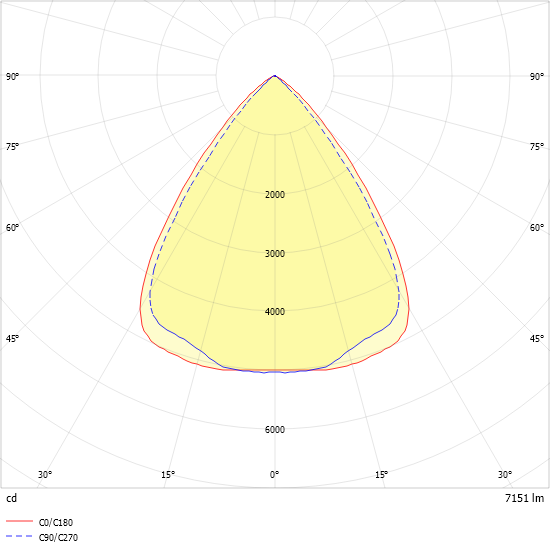

Image	Part Code Article Number	Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	VL2P-ML150-7DASW940M9P0700 2560014SW	1500 mm	wide beam	7080 lm	4000 K	≥ 90	139 lm/W	≤ 19	DALI-2	Black
	VL2P-ML150-7DASI940M9P0700 2560014SI	1500 mm	wide beam	7080 lm	4000 K	≥ 90	139 lm/W	≤ 19	DALI-2	Silver
	VL2P-ML150-7DAWS940M9P0700 2560014	1500 mm	wide beam	7080 lm	4000 K	≥ 90	139 lm/W	≤ 19	DALI-2	White
	VL2P-ML150-7DAWS830M9P0800 2560013	1500 mm	wide beam	7890 lm	3000 K	≥ 80	155 lm/W	≤ 19	DALI-2	White
	VL2P-ML150-7DASW840M9P0850 2560012SW	1500 mm	wide beam	8320 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI-2	Black
	VL2P-ML150-7DASI840M9P0850 2560012SI	1500 mm	wide beam	8320 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI-2	Silver
	VL2P-ML150-7DAWS840M9P0850 2560012	1500 mm	wide beam	8320 lm	4000 K	≥ 80	163 lm/W	≤ 19	DALI-2	White
	VL2P-ML150-5FLSW940M9P0700 2550014SW	1500 mm	wide beam	7150 lm	4000 K	≥ 90	140 lm/W	≤ 19	xFlex	Black
	VL2P-ML150-5FLSI940M9P0700 2550014SI	1500 mm	wide beam	7150 lm	4000 K	≥ 90	140 lm/W	≤ 19	xFlex	Silver
	VL2P-ML150-5FLWS940M9P0700 2550014	1500 mm	wide beam	7150 lm	4000 K	≥ 90	140 lm/W	≤ 19	xFlex	White
	VL2P-ML150-5FLWS830M9P0800 2550013	1500 mm	wide beam	7970 lm	3000 K	≥ 80	156 lm/W	≤ 19	xFlex	White
	VL2P-ML150-5FLSW840M9P0850 2550012SW	1500 mm	wide beam	8400 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex	Black
	VL2P-ML150-5FLSI840M9P0850 2550012SI	1500 mm	wide beam	8400 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex	Silver
	VL2P-ML150-5FLWS840M9P0850 2550012	1500 mm	wide beam	8400 lm	4000 K	≥ 80	165 lm/W	≤ 19	xFlex	White

LINIA EVO Catalogue

%

Save 75% Install Time

We compared the install time of RIDI LINIA against ordinary trunking.

We saved 75% by using LINIA
