VL2 .. Multilens Standard
LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.
RIDI Multilens Standard optics for low glare, with a stone grey reflector system.
Comfortable
Low Glare Light
Control of glare on screens is also an element overlooked in recent times but the reality is we should achieve UGR ratings of under 19 and in fact the Well Standard is requiring glare control levels at 17.
Our range of Multilens products are both highly efficient and ergonomic. Energy reduction is essential for us to be part of the global movement for the reduction of Co2. This combines with a focused light approach of delivering light to the task. It is estimated that the M9S Multilens system will save around 20% energy over a conventional flat panel.
Stone Grey Surface
This Multilens Standard reflector ignites and creates a natural appearance like sunlight on natural stone. It delivering a more human and interesting light.
Available with RIDI xFlex
Adjust output onsite to give just the right light level and energy usage.
Technical Data and Downloads
Product Filters
| Length (mm) |
Optic Type |
CRI (Ra) |
Light Colour |
Output (lm) |
Lm/W | UGR Rating |
Driver Type |
CBAT Use |
Body Finish |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image | Part Code Article Number |
Length (mm) |
Optic Type |
CRI (Ra) |
Light Colour |
Output (lm) |
Lm/W |
UGR Rating |
Driver Type |
CBAT Use |
Body Finish |

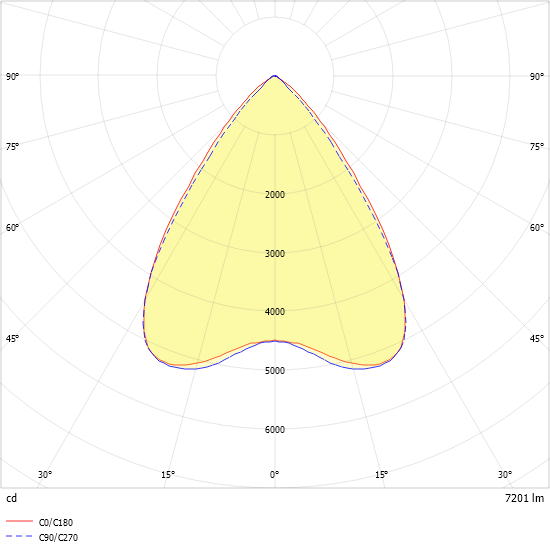

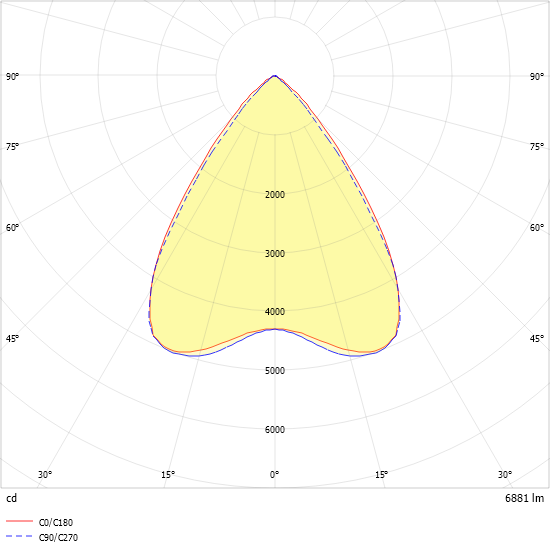

Data | LDT | Polar | BIM |
 | VL2S-ML150-7DAWS830M9S0700 / 2560011 | 1500 mm | wide beam | ≥ 80 | 3000 K | 7000 lm | 137,6 lm/W | ≤ 19 | DALI-2 | Yes | White | NA |  |  |  |
| VL2S-ML150-7DAWS840M9S0750 / 2560010 | 1500 mm | wide beam | ≥ 80 | 4000 K | 7250 lm | 145,8 lm/W | ≤ 19 | DALI-2 | Yes | White | NA | |  | |
 | VL2S-ML150-5FLWS830M9S0700 / 2550011 | 1500 mm | wide beam | ≥ 80 | 3000 K | 7000 lm | 138,0 lm/W | ≤ 19 | xFlex | Yes | White | NA | |  | |
| VL2S-ML150-5FLWS840M9S0700 / 2550010 | 1500 mm | wide beam | ≥ 80 | 4000 K | 7250 lm | 144,0 lm/W | ≤ 19 | xFlex | Yes | White | NA | |  | |
