VLDF

Compact LED Strip

Slim Design

Only 36mm wide and 50mm tall, VLDF is compact and unobtrusive but still robust and easy to install.

Maximum Efficiency

VLDF uses RIDI Group’s in house LED boards and a choice of six different optics

Three Standard Colours

White , Silver and Structured Black as standard.

Any RAL colour you like as a special order.

Product Selection

Product Filters

		Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	VLDF-F124DAWS-160B830 0532501	500 mm	wide beam	1480 lm	3000 K	≥ 80	148,0 lm/W	> 25	DALI	White
	VLDF-F124DAWS-160LPO830 0532541	500 mm	extremely wide beam	1310 lm	3000 K	≥ 80	131,0 lm/W	≤ 25	DALI	White
	VLDF-F124DAWS-170B840 0532505	500 mm	wide beam	1570 lm	4000 K	≥ 80	157,0 lm/W	> 25	DALI	White
	VLDF-F124DAWS-170LPO840 0532543	500 mm	extremely wide beam	1390 lm	4000 K	≥ 80	139,0 lm/W	≤ 25	DALI	White
	VLDF-F124NDWS-160B830 0522501	500 mm	wide beam	1480 lm	3000 K	≥ 80	148,0 lm/W	> 25	On/Off	White
	VLDF-F124NDWS-160LPO830 0522541	500 mm	extremely wide beam	1310 lm	3000 K	≥ 80	131,0 lm/W	≤ 25	On/Off	White
	VLDF-F124NDWS-170B840 0522505	500 mm	wide beam	1570 lm	4000 K	≥ 80	157,0 lm/W	> 25	On/Off	White
	VLDF-F124NDWS-170LPO840 0522543	500 mm	extremely wide beam	1390 lm	4000 K	≥ 80	139,0 lm/W	≤ 25	On/Off	White
	VLDF-F139DAWS-280B830 0532509	888 mm	wide beam	2590 lm	3000 K	≥ 80	136,3 lm/W	> 25	DALI	White
	VLDF-F139DAWS-280LPO830 0532545	888 mm	extremely wide beam	2290 lm	3000 K	≥ 80	120,5 lm/W	≤ 25	DALI	White
	VLDF-F139DAWS-300B840 0532513	888 mm	wide beam	2780 lm	4000 K	≥ 80	146,3 lm/W	> 25	DALI	White
	VLDF-F139DAWS-300LPO840 0532547	888 mm	extremely wide beam	2450 lm	4000 K	≥ 80	128,9 lm/W	≤ 25	DALI	White
	VLDF-F139NDWS-280B830 0522509	888 mm	wide beam	2590 lm	3000 K	≥ 80	136,3 lm/W	> 25	On/Off	White
	VLDF-F139NDWS-280LPO830 0522545	888 mm	extremely wide beam	2290 lm	3000 K	≥ 80	120,5 lm/W	≤ 25	On/Off	White
	VLDF-F139NDWS-300B840 0522513	888 mm	wide beam	2780 lm	4000 K	≥ 80	146,3 lm/W	> 25	On/Off	White
	VLDF-F139NDWS-300LPO840 0522547	888 mm	extremely wide beam	2450 lm	4000 K	≥ 80	128,9 lm/W	≤ 25	On/Off	White
	VLDF-F149DAWS-470B830 0532517	1488 mm	wide beam	4350 lm	3000 K	≥ 80	140,3 lm/W	> 25	DALI	White
	VLDF-F149DAWS-470LPO830 0532549	1488 mm	extremely wide beam	3840 lm	3000 K	≥ 80	123,9 lm/W	≤ 25	DALI	White
	VLDF-F149DAWS-500B840 0532521	1488 mm	wide beam	4630 lm	4000 K	≥ 80	149,4 lm/W	> 25	DALI	White
	VLDF-F149DAWS-500LPO840 0532551	1488 mm	extremely wide beam	4090 lm	4000 K	≥ 80	131,9 lm/W	≤ 25	DALI	White
	VLDF-F149NDWS-470B830 0522517	1488 mm	wide beam	4350 lm	3000 K	≥ 80	140,3 lm/W	> 25	On/Off	White
	VLDF-F149NDWS-470LPO830 0522549	1488 mm	extremely wide beam	3840 lm	3000 K	≥ 80	123,9 lm/W	≤ 25	On/Off	White
	VLDF-F149NDWS-500B840 0522521	1488 mm	wide beam	4630 lm	4000 K	≥ 80	149,4 lm/W	> 25	On/Off	White
	VLDF-F149NDWS-500LPO840 0522551	1488 mm	extremely wide beam	4090 lm	4000 K	≥ 80	131,9 lm/W	≤ 25	On/Off	White
	VLDF-F154DAWS-380B830 0532525	1188 mm	wide beam	3520 lm	3000 K	≥ 80	140,8 lm/W	> 25	DALI	White
	VLDF-F154DAWS-380LPO830 0532553	1188 mm	extremely wide beam	3110 lm	3000 K	≥ 80	124,4 lm/W	≤ 25	DALI	White
	VLDF-F154DAWS-400B840 0532529	1188 mm	wide beam	3700 lm	4000 K	≥ 80	148,0 lm/W	> 25	DALI	White

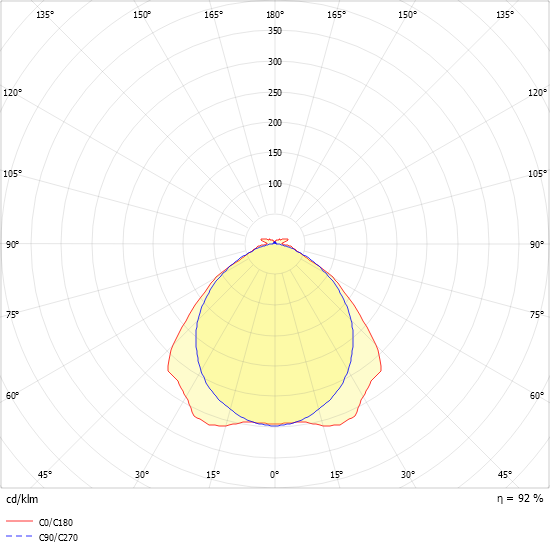

	VLDF-F154DAWS-400LPT840 0532554	1188 mm	extremely wide beam	3700 lm	4000 K	≥ 80	148,0 lm/W	≤ 25	DALI	White
	VLDF-F154NDWS-380B830 0522525	1188 mm	wide beam	3520 lm	3000 K	≥ 80	140,8 lm/W	> 25	On/Off	White
	VLDF-F154NDWS-380LPO830 0522553	1188 mm	extremely wide beam	3110 lm	3000 K	≥ 80	124,4 lm/W	≤ 25	On/Off	White
	VLDF-F154NDWS-400B840 0522529	1188 mm	wide beam	3700 lm	4000 K	≥ 80	148,0 lm/W	> 25	On/Off	White
	VLDF-F154NDWS-400LPO840 0522555	1188 mm	extremely wide beam	3270 lm	4000 K	≥ 80	130,8 lm/W	≤ 25	On/Off	White
	VLDF-F180DAWS-650B830 0532533	1488 mm	wide beam	6020 lm	3000 K	≥ 80	136,8 lm/W	> 25	DALI	White
	VLDF-F180DAWS-650LPO830 0532557	1488 mm	extremely wide beam	5310 lm	3000 K	≥ 80	120,7 lm/W	> 25	DALI	White
	VLDF-F180DAWS-680B840 0532538	1488 mm	wide beam	6300 lm	4000 K	≥ 80	143,2 lm/W	> 25	DALI	White
	VLDF-F180DAWS-680LPO840 0532559	1488 mm	extremely wide beam	5560 lm	4000 K	≥ 80	126,4 lm/W	> 25	DALI	White
	VLDF-F180NDWS-650B830 0522533	1488 mm	wide beam	6020 lm	3000 K	≥ 80	136,8 lm/W	> 25	On/Off	White
	VLDF-F180NDWS-650LPO830 0522557	1488 mm	extremely wide beam	5310 lm	3000 K	≥ 80	120,7 lm/W	> 25	On/Off	White
	VLDF-F180NDWS-680B840 0522538	1488 mm	wide beam	6300 lm	4000 K	≥ 80	143,2 lm/W	> 25	On/Off	White
	VLDF-F180NDWS-680LPO840 0522559	1488 mm	extremely wide beam	5560 lm	4000 K	≥ 80	126,4 lm/W	> 25	On/Off	White
