F-LINE-EXIT
Wall Mounted LED Exit Sign
Technical:
| Light Source | Battery | Input Voltage | Ip rating |
| 15 x Long life LED | 2Ah NiMH | 220-240V 50-60Hz | IP20 |
Design:
Slim wall mounted LED Exit sign features a welded steel housing, an internal Miro reflector and the sign panel features matrix dot coating to ensure even illumination of the safety sign legend.
Measuring 315 x 190 mm, the LED exit sign provides a viewing distance of 28 metres. All versions are supplied with integral Maintained emergency lighting control gear.
Functions as Self Test, central test, DALI and 24Volt versions are also available.

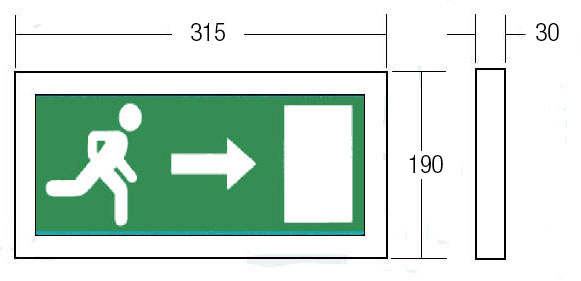

Dimensions:
Order Codes:
| F-LINE EXIT LED | Wall Mounted, LED Exit Sign | |
|---|---|---|
| Standard | /MX/M3 |
3 Hour Maintained, gloss white front plate, |
| Options | /SG | Textured Silver Grey finish |
| /TW | Textured white finish | |
| /DALI | DALI / Self Test | |
| /VCT | Validate Central Test | |
| Legends | /AL | Arrow left |
| /AR | Arrow Right | |

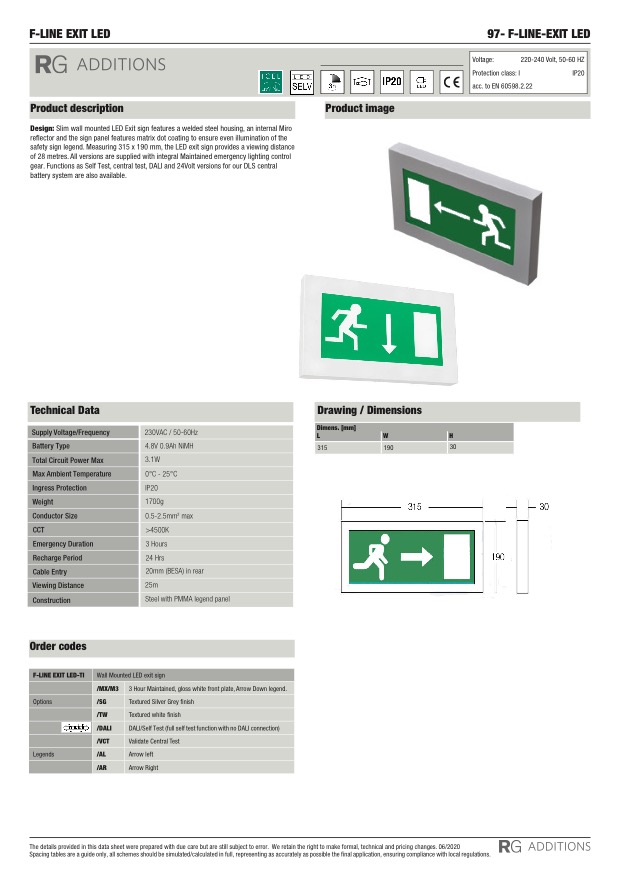

Data Sheet:
