REY
Supermarket Aisle Lighting

Four ultra efficient Total Internal Reflection (TIR) lenses project a carefully formed beam of light to evenly light vertical surfaces in supermarkets and other retail environments.

Twin Heads

Back to back twin version with a total of 13,000 lumens allows you to illuminate both sides of the aisle from a single point

Custom Optics

TIR – Total Internal Reflection – Lenses, specially designed for REY, provide accurate beam forming and great efficiency.

Whether it’s for supermarket aisle lighting or general wallwashing, there’s more light where it’s needed and less where it’s not.

80° Adjustment

Tilt the lens array through 80° to allow for any height of shelf or distance from the track

Product Selection

Product Filters

Size
(mm)
Optic
Type
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W Driver
Type
Body
Colour
Image Part Code
Article Number
Size
(mm)
Optic
Type
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W Driver
Type
Body
Colour

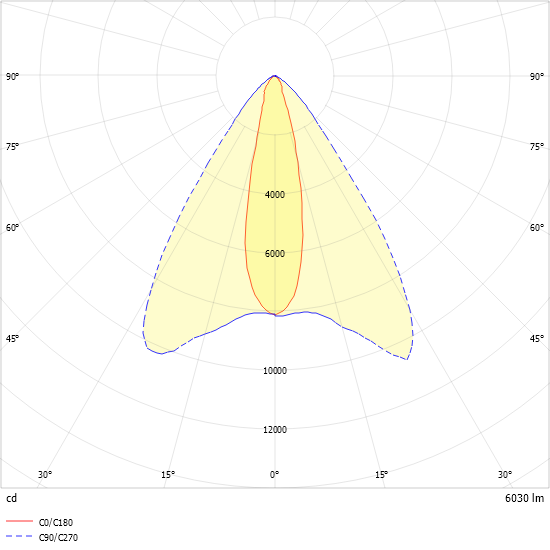

Data LDT Polar BIM

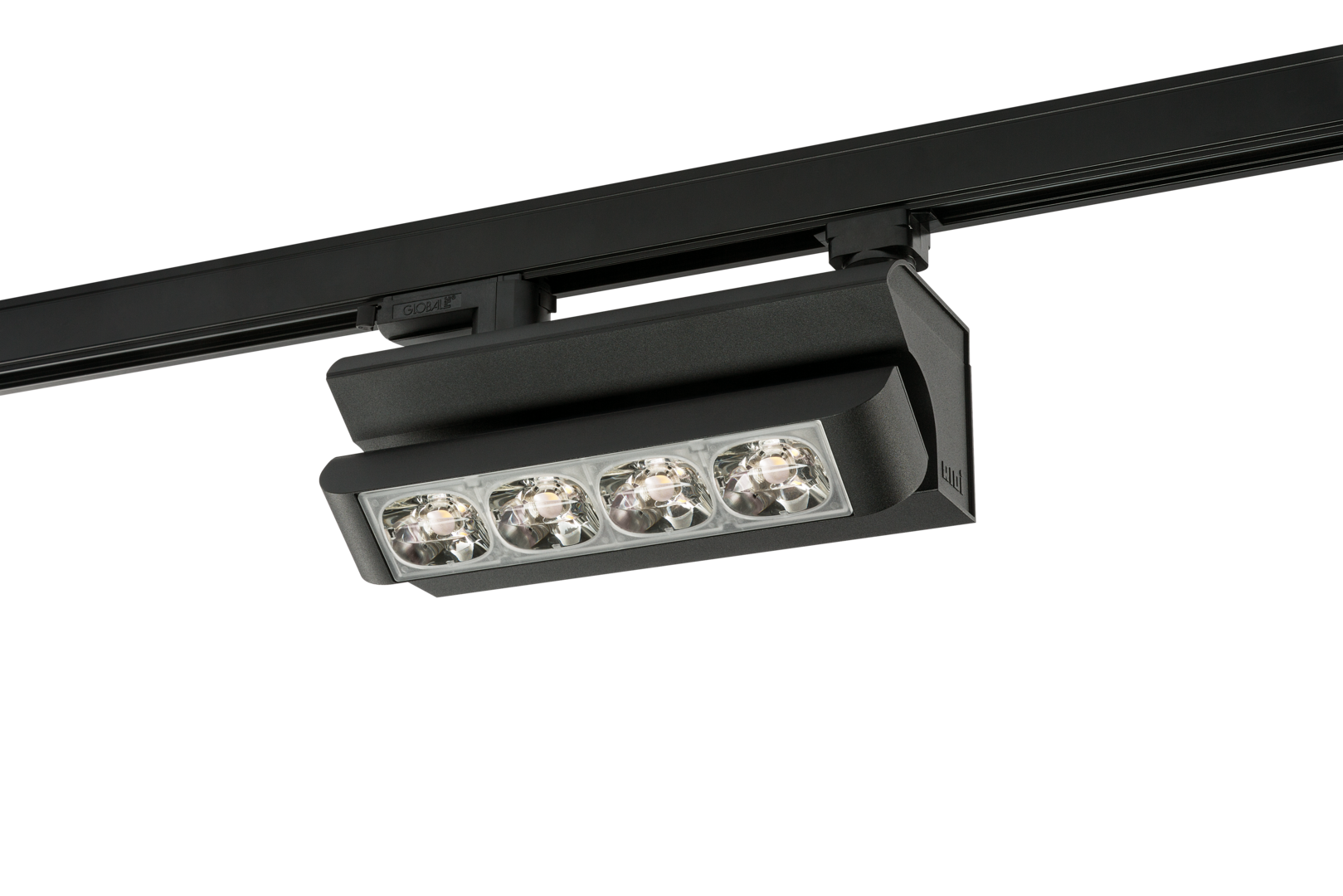

Product ImageREY-1 NDFSW830RA0650
0322037AQ
270 mmdouble asymmetric beam6030 lm3000 K≥ 80118 lm/WOn/OffGreyPDFEulumdatProduct ImageEulumdat

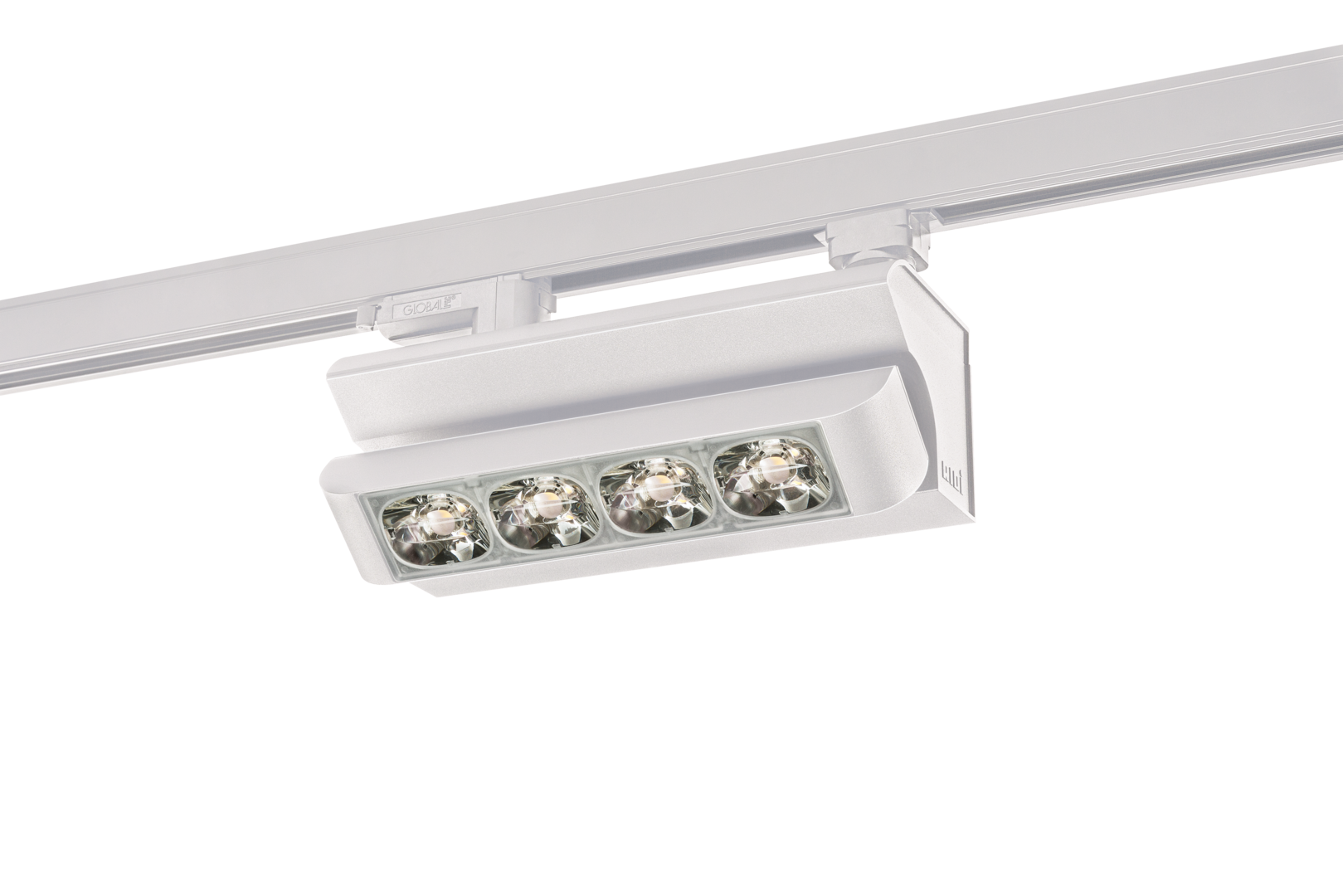

Product ImageREY-1 DAFWS830RA0650
0332037AH
270 mmdouble asymmetric beam6030 lm3000 K≥ 80118 lm/WDALIWhitePDFEulumdatProduct ImageEulumdat
