iline 5 offers great flexibility and modularity, allowing for custom design configurations. It features direct or direct/indirect lighting with a 50mm width. Available in standard and custom lengths in pendant, surface and reccesed profiles.
45 Cannon Street, London
iline 5, with color temperature options of 3000K or 4000K includes RIDI Soft Light Opal diffusers or micro lens technology (UGR<19) for workplace comfort. Available in three standard RAL colors (9016 White, 9005 Black, 7016 Anthracite), it delivers efficiency of up to 115 lm/W.

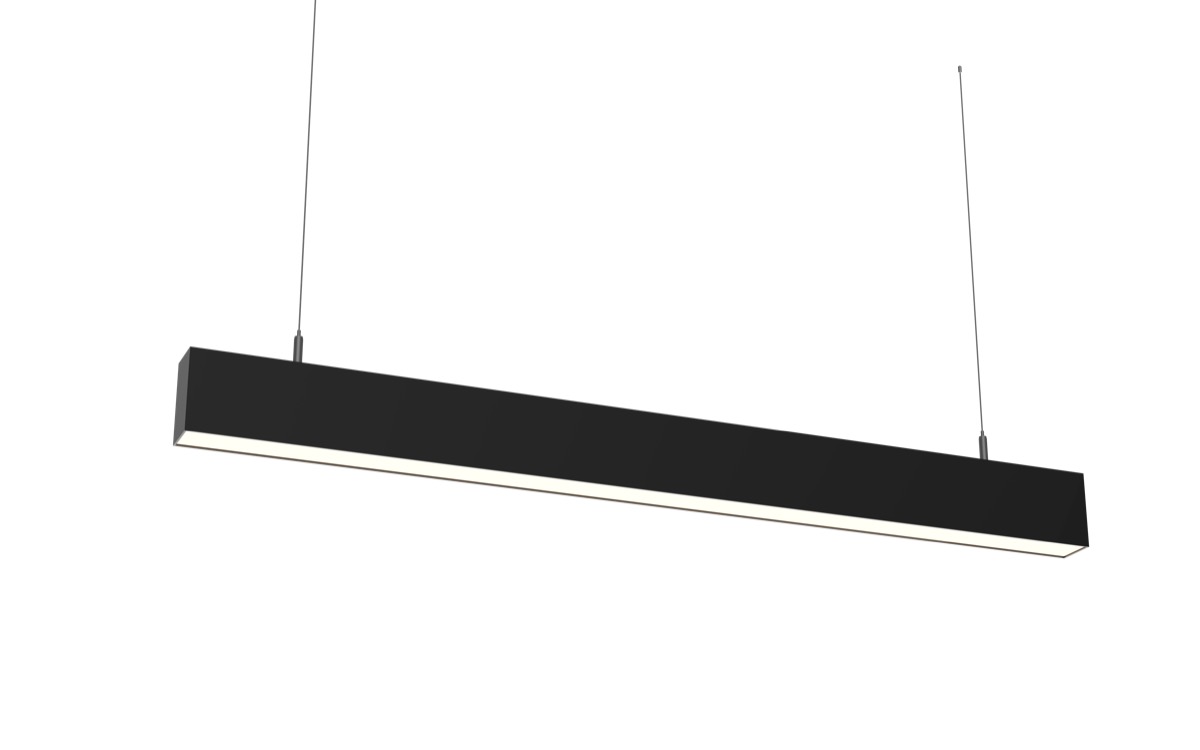

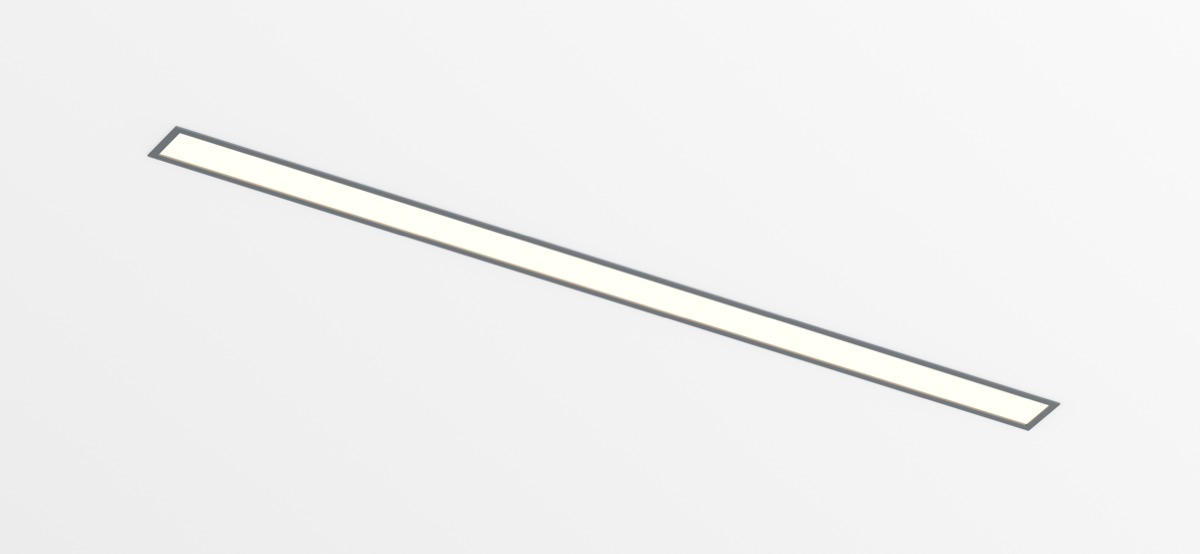

Surface, Pendant and Recessed Versions
Integrated emergency functionality
Optional sensor integration
Optional wireless lighting controls
Custom paint finishes
Product Filters
| Emergency | Length (mm) |
Mounting | Distribution | Optic Type |
Lumen Output |
Light Colour |
Lm/W | UGR < Rating |
Body Colour |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image | Part Code Article Number |
Emergency | Length (mm) |
Mounting | Distribution | Optic Type |
Lumen Output |
Light Colour |
Lm/W | UGR < Rating |
Body Colour |

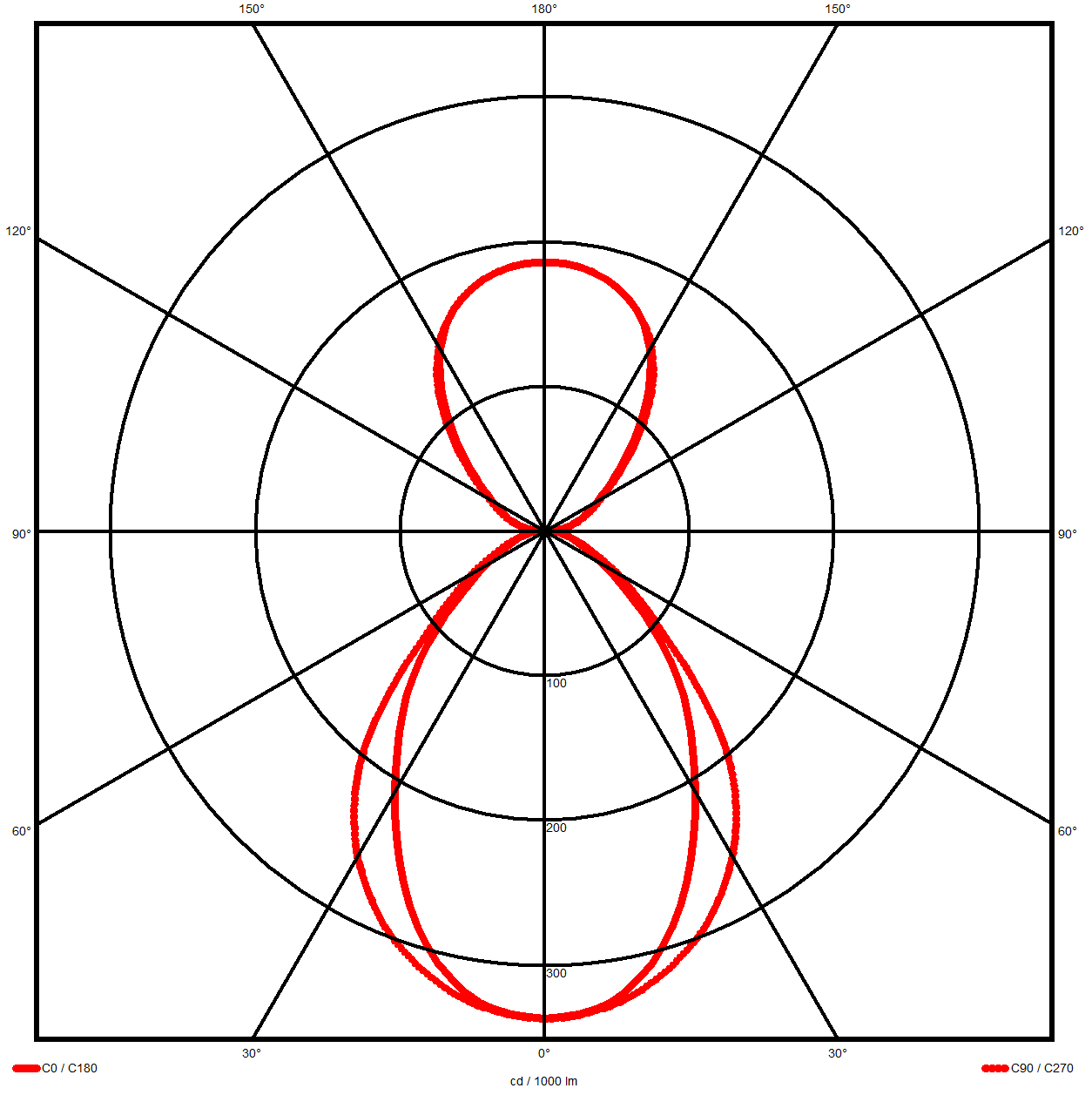

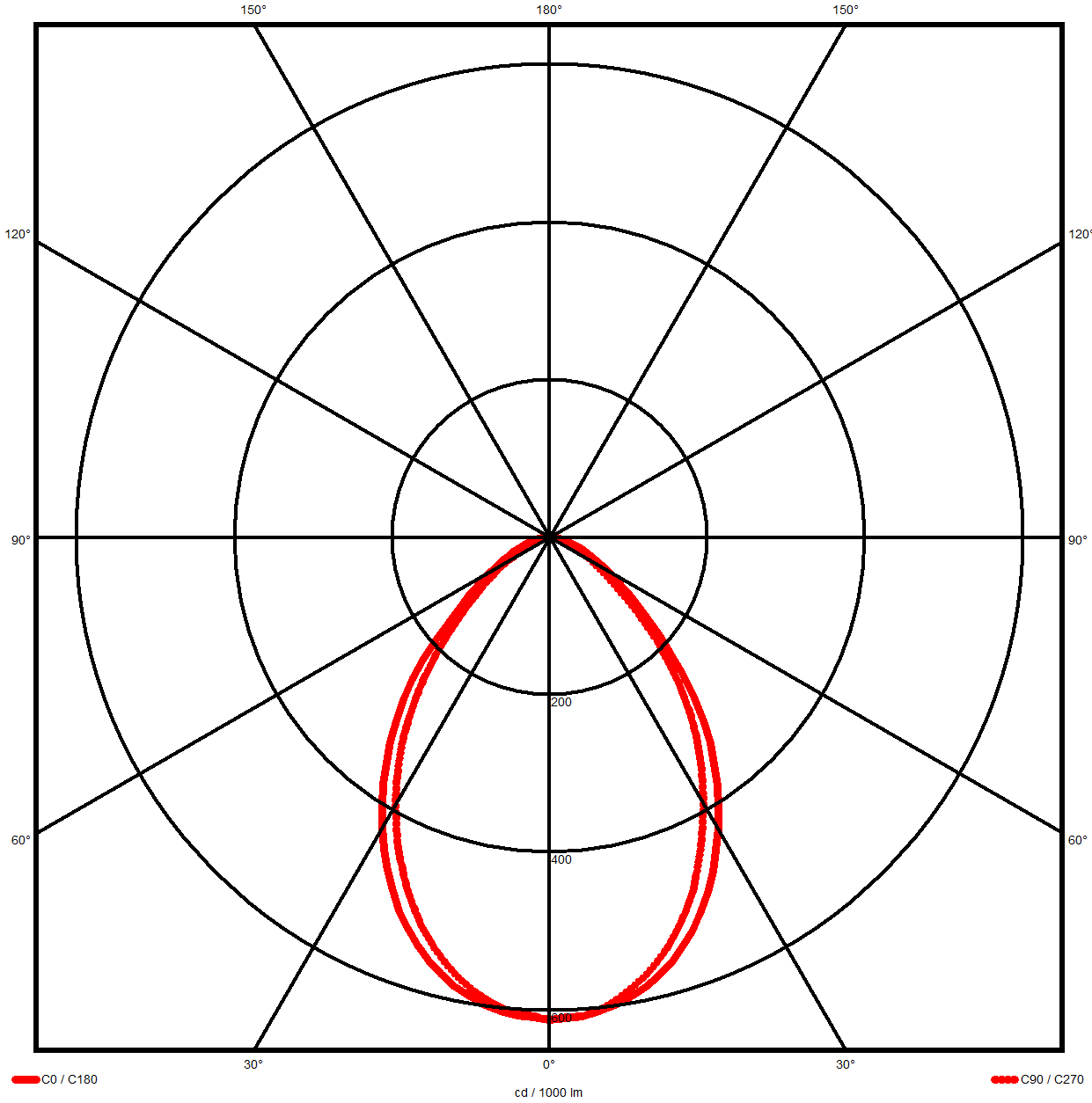

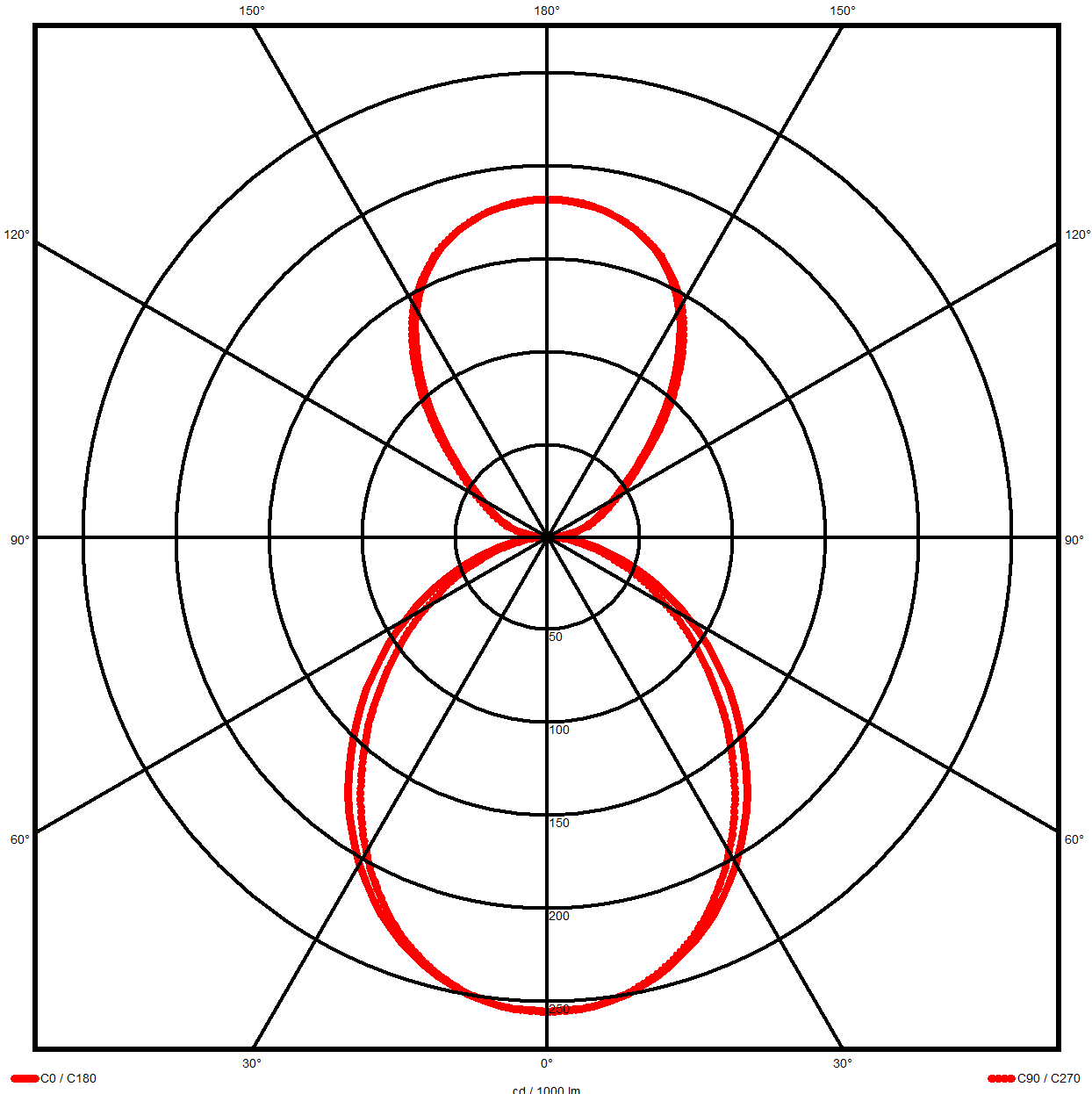

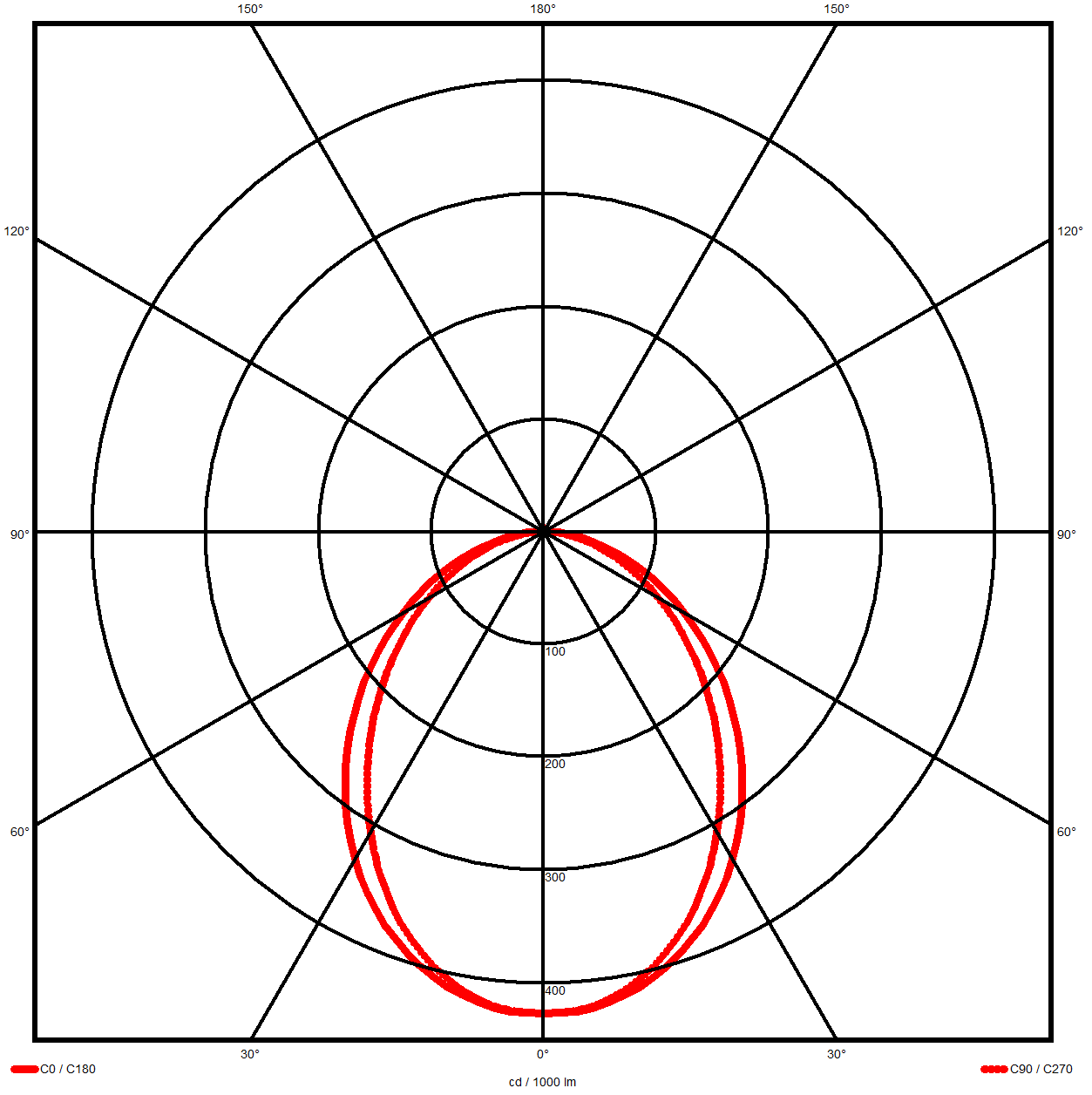

Data | Polar |

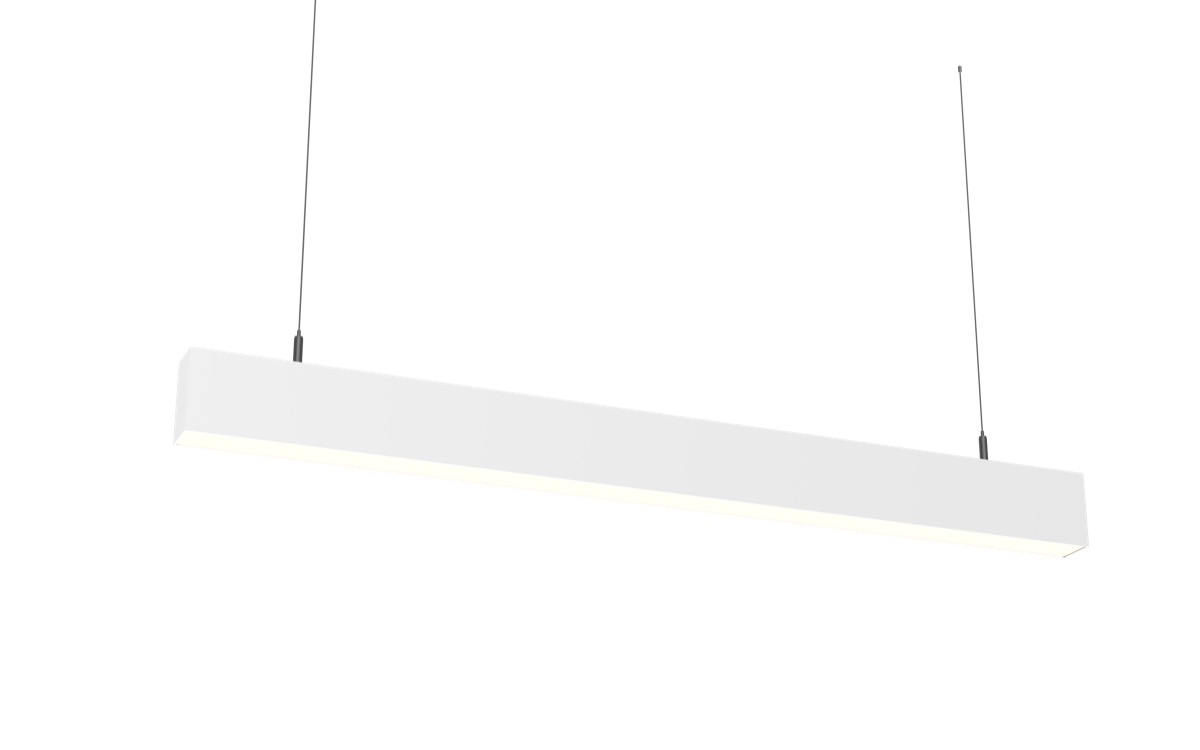

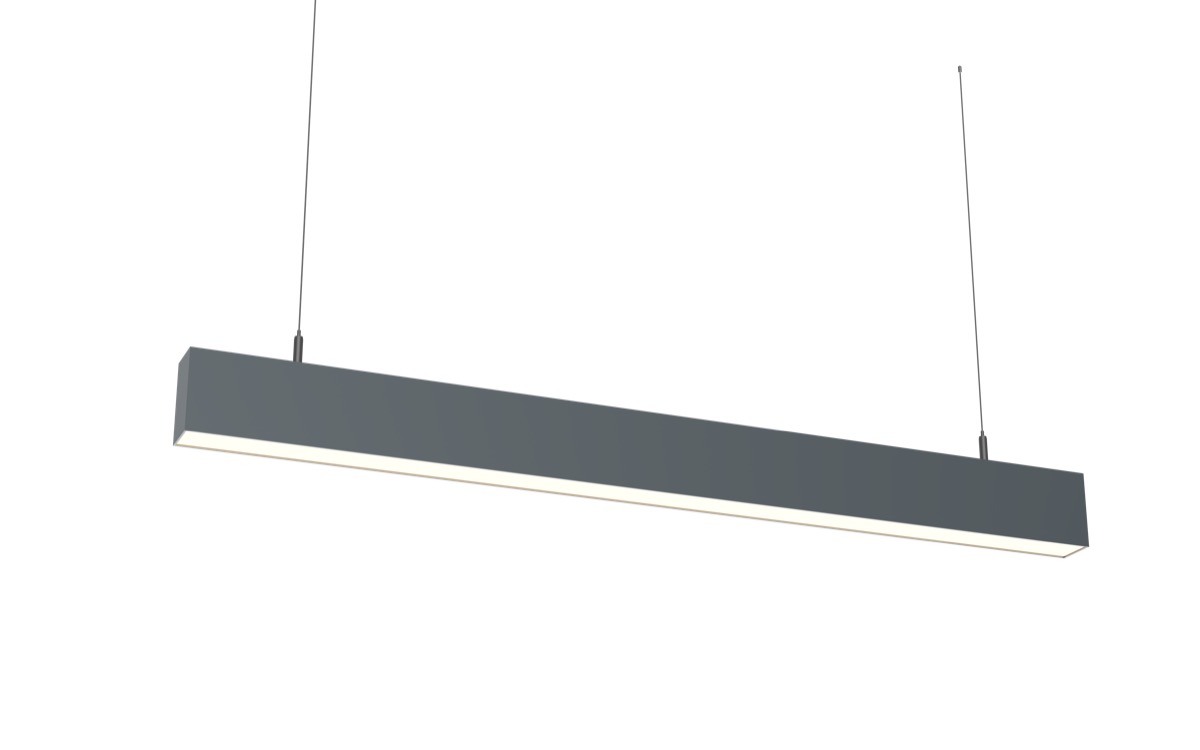

 | IL5-WS-1150-830M-DADI-MP-FW 97-IL500001 | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | White |  |  |
 | IL5-WS-1150-830M-DADI-MP-FB 97-IL500002 | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Black | | |
 | IL5-WS-1150-830M-DADI-MP-FG 97-IL500003 | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Grey | | |
| IL5-WS-1150-840M-DADI-MP-FW 97-IL500007 | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | White | | |
| IL5-WS-1150-840M-DADI-MP-FB 97-IL500008 | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Black | | |
| IL5-WS-1150-840M-DADI-MP-FG 97-IL500009 | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Grey | | |
| IL5-WS-1150-830M-DADI-OP-FW 97-IL500010 | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | White | |  |
| IL5-WS-1150-830M-DADI-OP-FB 97-IL500011 | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1150-830M-DADI-OP-FG 97-IL500012 | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1150-840M-DADI-OP-FW 97-IL500016 | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | White | | |
| IL5-WS-1150-840M-DADI-OP-FB 97-IL500017 | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Black | | |
| IL5-WS-1150-840M-DADI-OP-FG 97-IL500018 | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Grey | | |
| IL5-WS-1150-830M-DAD-MP-FW 97-IL500019 | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | |  |
| IL5-WS-1150-830M-DAD-MP-FB 97-IL500020 | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1150-830M-DAD-MP-FG 97-IL500021 | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1150-840M-DAD-MP-FW 97-IL500025 | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1150-840M-DAD-MP-FB 97-IL500026 | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1150-840M-DAD-MP-FG 97-IL500027 | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1150-830M-DAD-OP-FW 97-IL500028 | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | |  |
| IL5-WS-1150-830M-DAD-OP-FB 97-IL500029 | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1150-830M-DAD-OP-FG 97-IL500030 | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1150-840M-DAD-OP-FW 97-IL500034 | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1150-840M-DAD-OP-FB 97-IL500035 | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1150-840M-DAD-OP-FG 97-IL500036 | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |

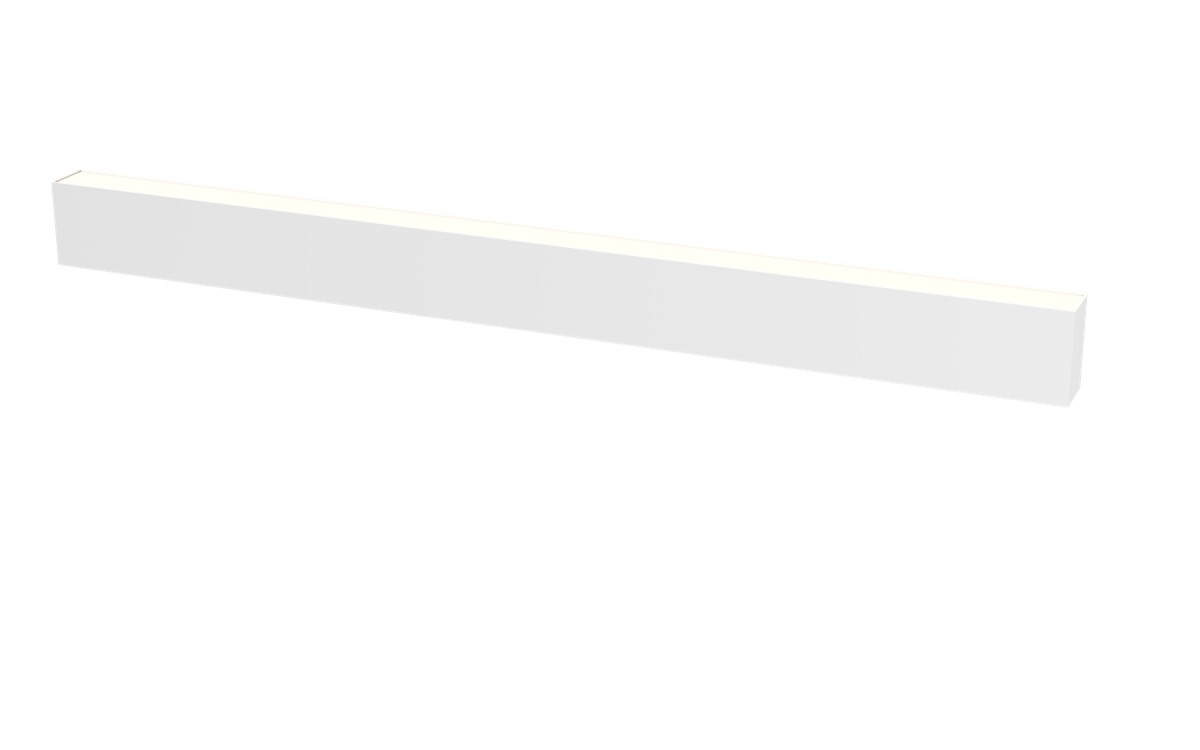

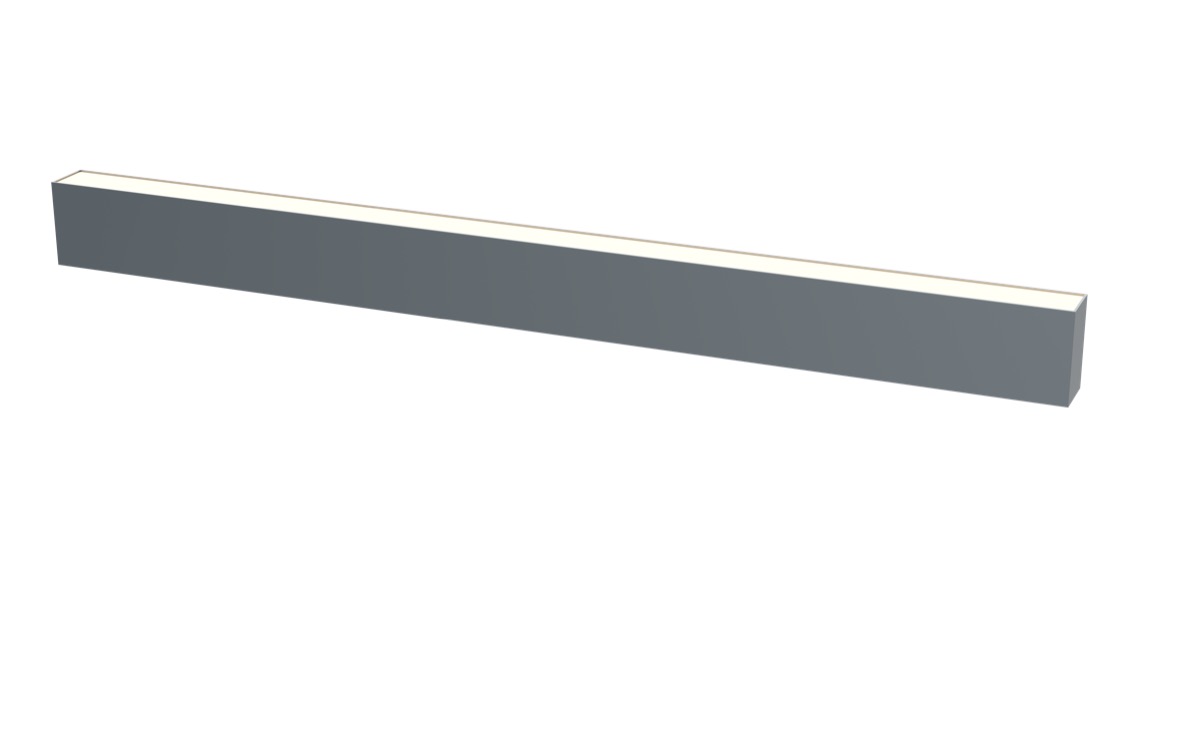

 | IL5-S-1150-830M-DAD-MP-FW 97-IL500037 | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
 | IL5-S-1150-830M-DAD-MP-FB 97-IL500038 | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
 | IL5-S-1150-830M-DAD-MP-FG 97-IL500039 | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1150-840M-DAD-MP-FW 97-IL500043 | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1150-840M-DAD-MP-FB 97-IL500044 | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1150-840M-DAD-MP-FG 97-IL500045 | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1150-830M-DAD-OP-FW 97-IL500046 | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1150-830M-DAD-OP-FB 97-IL500047 | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1150-830M-DAD-OP-FG 97-IL500048 | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1150-840M-DAD-OP-FW 97-IL500052 | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1150-840M-DAD-OP-FB 97-IL500053 | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1150-840M-DAD-OP-FG 97-IL500054 | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1430-830M-DADI-MP-FW 97-IL500201 | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | White | | |
| IL5-WS-1430-830M-DADI-MP-FB 97-IL500202 | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Black | | |
| IL5-WS-1430-830M-DADI-MP-FG 97-IL500203 | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Grey | | |
| IL5-WS-1430-840M-DADI-MP-FW 97-IL500207 | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | White | | |
| IL5-WS-1430-840M-DADI-MP-FB 97-IL500208 | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Black | | |
| IL5-WS-1430-840M-DADI-MP-FG 97-IL500209 | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Grey | | |
| IL5-WS-1430-830M-DADI-OP-FW 97-IL500210 | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1430-830M-DADI-OP-FB 97-IL500211 | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1430-830M-DADI-OP-FG 97-IL500212 | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1430-840M-DADI-OP-FW 97-IL500216 | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | White | | |
| IL5-WS-1430-840M-DADI-OP-FB 97-IL500217 | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Black | | |
| IL5-WS-1430-840M-DADI-OP-FG 97-IL500218 | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Grey | | |
| IL5-WS-1430-830M-DAD-MP-FW 97-IL500219 | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1430-830M-DAD-MP-FB 97-IL500220 | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1430-830M-DAD-MP-FG 97-IL500221 | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1430-840M-DAD-MP-FW 97-IL500225 | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1430-840M-DAD-MP-FB 97-IL500226 | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1430-840M-DAD-MP-FG 97-IL500227 | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1430-830M-DAD-OP-FW 97-IL500228 | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1430-830M-DAD-OP-FB 97-IL500229 | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1430-830M-DAD-OP-FG 97-IL500230 | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1430-840M-DAD-OP-FW 97-IL500234 | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1430-840M-DAD-OP-FB 97-IL500235 | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1430-840M-DAD-OP-FG 97-IL500236 | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1430-830M-DAD-MP-FW 97-IL500237 | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1430-830M-DAD-MP-FB 97-IL500238 | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1430-830M-DAD-MP-FG 97-IL500239 | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1430-840M-DAD-MP-FW 97-IL500243 | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1430-840M-DAD-MP-FB 97-IL500244 | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1430-840M-DAD-MP-FG 97-IL500245 | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1430-830M-DAD-OP-FW 97-IL500246 | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1430-830M-DAD-OP-FB 97-IL500247 | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1430-830M-DAD-OP-FG 97-IL500248 | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1430-840M-DAD-OP-FW 97-IL500252 | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1430-840M-DAD-OP-FB 97-IL500253 | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1430-840M-DAD-OP-FG 97-IL500254 | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1990-830M-DADI-MP-FW 97-IL500401 | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | White | | |
| IL5-WS-1990-830M-DADI-MP-FB 97-IL500402 | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Black | | |
| IL5-WS-1990-830M-DADI-MP-FG 97-IL500403 | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Grey | | |
| IL5-WS-1990-840M-DADI-MP-FW 97-IL400407 | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | White | | |
| IL5-WS-1990-840M-DADI-MP-FB 97-IL400408 | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Black | | |
| IL5-WS-1990-840M-DADI-MP-FG 97-IL400409 | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Grey | | |
| IL5-WS-1990-830M-DADI-OP-FW 97-IL500410 | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | White | | |
| IL5-WS-1990-830M-DADI-OP-FB 97-IL500411 | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Black | | |
| IL5-WS-1990-830M-DADI-OP-FG 97-IL500412 | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Grey | | |
| IL5-WS-1990-840M-DADI-OP-FW 97-IL500416 | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | White | | |
| IL5-WS-1990-840M-DADI-OP-FB 97-IL500417 | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Black | | |
| IL5-WS-1990-840M-DADI-OP-FG 97-IL500418 | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Grey | | |
| IL5-WS-1990-830M-DAD-MP-FW 97-IL500419 | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1990-830M-DAD-MP-FB 97-IL500420 | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1990-830M-DAD-MP-FG 97-IL500421 | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1990-840M-DAD-MP-FW 97-IL500425 | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1990-840M-DAD-MP-FB 97-IL500426 | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1990-840M-DAD-MP-FG 97-IL500427 | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1990-830M-DAD-OP-FW 97-IL500428 | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1990-830M-DAD-OP-FB 97-IL500429 | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1990-830M-DAD-OP-FG 97-IL500430 | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1990-840M-DAD-OP-FW 97-IL500434 | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1990-840M-DAD-OP-FB 97-IL500435 | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1990-840M-DAD-OP-FG 97-IL500436 | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1990-830M-DAD-MP-FW 97-IL500437 | None | mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1990-830M-DAD-MP-FB 97-IL500438 | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1990-830M-DAD-MP-FG 97-IL500439 | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1990-840M-DAD-MP-FW 97-IL500443 | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1990-840M-DAD-MP-FB 97-IL500444 | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1990-840M-DAD-MP-FG 97-IL500445 | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1990-830M-DAD-OP-FW 97-IL500446 | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1990-830M-DAD-OP-FB 97-IL500447 | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1990-830M-DAD-OP-FG 97-IL500448 | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1990-840M-DAD-OP-FW 97-IL500452 | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1990-840M-DAD-OP-FB 97-IL500453 | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1990-840M-DAD-OP-FG 97-IL500454 | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |

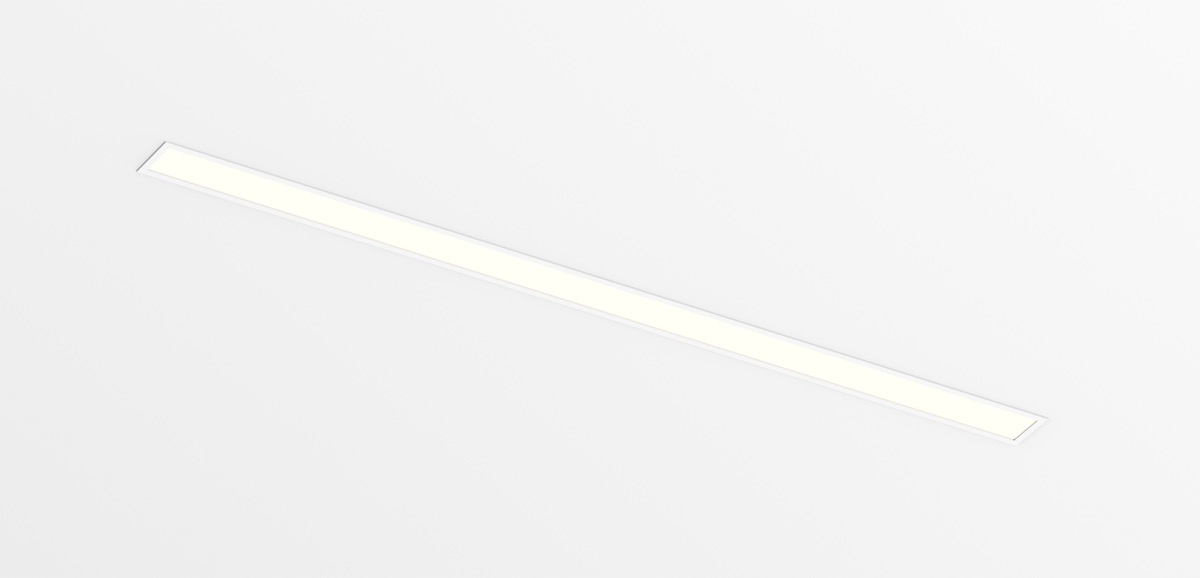

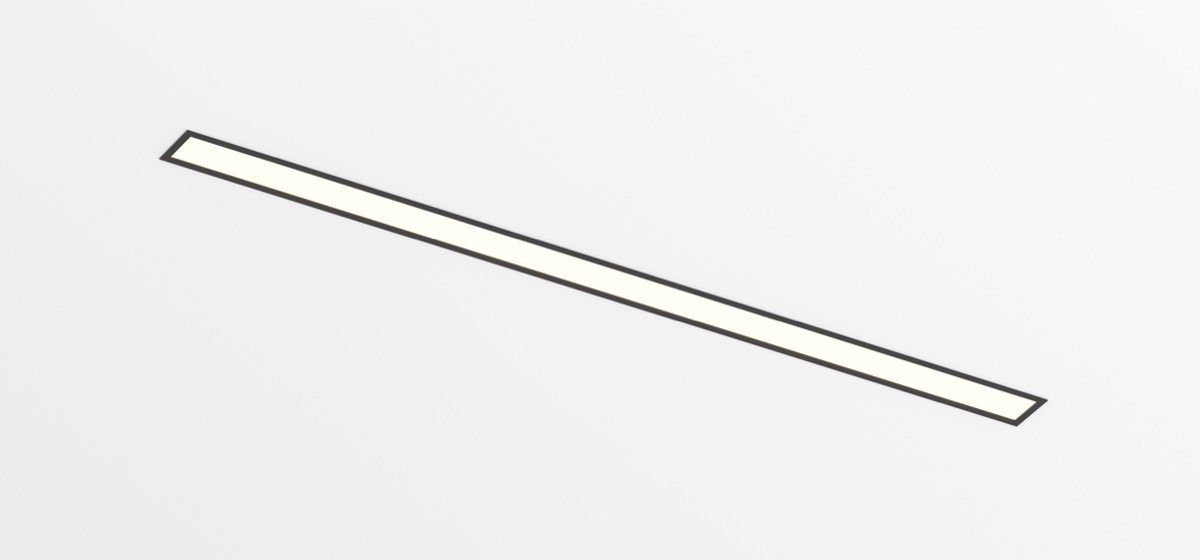

 | IL5-R-1160-830M-DAD-MP-FW 97-IL500120 | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
 | IL5-R-1160-830M-DAD-MP-FB 97-IL500121 | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
 | IL5-R-1160-830M-DAD-MP-FG 97-IL500122 | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1160-840M-DAD-MP-FW 97-IL500123 | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1160-840M-DAD-MP-FB 97-IL500124 | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1160-840M-DAD-MP-FG 97-IL500125 | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1160-830M-DAD-OP-FW 97-IL500126 | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1160-830M-DAD-OP-FB 97-IL500127 | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1160-830M-DAD-OP-FG 97-IL500128 | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| I56-R-1160-840M-DAD-OP-FW 97-IL500129 | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1160-840M-DAD-OP-FB 97-IL500130 | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1160-840M-DAD-OP-FG 97-IL500131 | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-1440-830M-DAD-MP-FW 97-IL500320 | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-R-1440-830M-DAD-MP-FB 97-IL500321 | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-1440-830M-DAD-MP-FG 97-IL500322 | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1440-840M-DAD-MP-FW 97-IL500323 | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1440-840M-DAD-MP-FB 97-IL500324 | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1440-840M-DAD-MP-FG 97-IL500325 | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1440-830M-DAD-OP-FW 97-IL500326 | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1440-830M-DAD-OP-FB 97-IL500327 | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1440-830M-DAD-OP-FG 97-IL500328 | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-1440-840M-DAD-OP-FW 97-IL500329 | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1440-840M-DAD-OP-FB 97-IL500330 | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1440-840M-DAD-OP-FG 97-IL500331 | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-2000-830M-DAD-MP-FW 97-IL500520 | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-R-2000-830M-DAD-MP-FB 97-IL500521 | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-2000-830M-DAD-MP-FG 97-IL500522 | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-2000-840M-DAD-MP-FW 97-IL500523 | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-R-2000-840M-DAD-MP-FB 97-IL500524 | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-2000-840M-DAD-MP-FG 97-IL500525 | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-2000-830M-DAD-OP-FW 97-IL500526 | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-R-2000-830M-DAD-OP-FB 97-IL500527 | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-2000-830M-DAD-OP-FG 97-IL500528 | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-2000-840M-DAD-OP-FW 97-IL500529 | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-R2000-840M-DAD-OP-FB 97-IL500530 | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-R2000-840M-DAD-OP-FG 97-IL500531 | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1150-830M-DADI-MP-FWE 97-IL500001E | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | White | | |
| IL5-WS-1150-830M-DADI-MP-FBE 97-IL500002E | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Black | | |
| IL5-WS-1150-830M-DADI-MP-FGE 97-IL500003E | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Grey | | |
| IL5-WS-1150-840M-DADI-MP-FWE 97-IL500007E | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | White | | |
| IL5-WS-1150-840M-DADI-MP-FBE 97-IL500008E | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Black | | |
| IL5-WS-1150-840M-DADI-MP-FGE 97-IL500009E | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Grey | | |
| IL5-WS-1150-830M-DADI-OP-FWE 97-IL500010E | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1150-830M-DADI-OP-FBE 97-IL500011E | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1150-830M-DADI-OP-FGE 97-IL500012E | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1150-840M-DADI-OP-FWE 97-IL500016E | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | White | | |
| IL5-WS-1150-840M-DADI-OP-FBE 97-IL500017E | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Black | | |
| IL5-WS-1150-840M-DADI-OP-FGE 97-IL500018E | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Grey | | |
| IL5-WS-1150-830M-DAD-MP-FWE 97-IL500019E | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1150-830M-DAD-MP-FBE 97-IL500020E | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1150-830M-DAD-MP-FGE 97-IL500021E | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1150-840M-DAD-MP-FWE 97-IL500025E | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1150-840M-DAD-MP-FBE 97-IL500026E | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1150-840M-DAD-MP-FGE 97-IL500027E | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1150-830M-DAD-OP-FWE 97-IL500028E | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1150-830M-DAD-OP-FBE 97-IL500029E | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1150-830M-DAD-OP-FGE 97-IL500030E | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1150-840M-DAD-OP-FWE 97-IL500034E | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1150-840M-DAD-OP-FBE 97-IL500035E | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1150-840M-DAD-OP-FGE 97-IL500036E | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1150-830M-DAD-MP-FWE 97-IL500037E | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1150-830M-DAD-MP-FBE 97-IL500038E | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1150-830M-DAD-MP-FGE 97-IL500039E | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1150-840M-DAD-MP-FWE 97-IL500043E | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1150-840M-DAD-MP-FBE 97-IL500044E | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1150-840M-DAD-MP-FGE 97-IL500045E | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1150-830M-DAD-OP-FWE 97-IL500046E | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1150-830M-DAD-OP-FBE 97-IL500047E | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1150-830M-DAD-OP-FGE 97-IL500048E | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1150-840M-DAD-OP-FWE 97-IL500052E | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1150-840M-DAD-OP-FBE 97-IL500053E | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1150-840M-DAD-OP-FGE 97-IL500054E | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1430-830M-DADI-MP-FWE 97-IL500201E | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | White | | |
| IL5-WS-1430-830M-DADI-MP-FBE 97-IL500202E | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Black | | |
| IL5-WS-1430-830M-DADI-MP-FGE 97-IL500203E | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Grey | | |
| IL5-WS-1430-840M-DADI-MP-FWE 97-IL500207E | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | White | | |
| IL5-WS-1430-840M-DADI-MP-FBE 97-IL500208E | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Black | | |
| IL5-WS-1430-840M-DADI-MP-FGE 97-IL500209E | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Grey | | |
| IL5-WS-1430-830M-DADI-OP-FWE 97-IL500210E | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1430-830M-DADI-OP-FBE 97-IL500211E | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1430-830M-DADI-OP-FGE 97-IL500212E | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1430-840M-DADI-OP-FWE 97-IL500216E | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | White | | |
| IL5-WS-1430-840M-DADI-OP-FBE 97-IL500217E | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Black | | |
| IL5-WS-1430-840M-DADI-OP-FGE 97-IL500218E | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Grey | | |
| IL5-WS-1430-830M-DAD-MP-FWE 97-IL500219E | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1430-830M-DAD-MP-FBE 97-IL500220E | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1430-830M-DAD-MP-FGE 97-IL500221E | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1430-840M-DAD-MP-FWE 97-IL500225E | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1430-840M-DAD-MP-FBE 97-IL500226E | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1430-840M-DAD-MP-FGE 97-IL500227E | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1430-830M-DAD-OP-FWE 97-IL500228E | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1430-830M-DAD-OP-FBE 97-IL500229E | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1430-830M-DAD-OP-FGE 97-IL500230E | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1430-840M-DAD-OP-FWE 97-IL500234E | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1430-840M-DAD-OP-FBE 97-IL500235E | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1430-840M-DAD-OP-FGE 97-IL500236E | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1430-830M-DAD-MP-FWE 97-IL500237E | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1430-830M-DAD-MP-FBE 97-IL500238E | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1430-830M-DAD-MP-FGE 97-IL500239E | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1430-840M-DAD-MP-FWE 97-IL500243E | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1430-840M-DAD-MP-FBE 97-IL500244E | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1430-840M-DAD-MP-FGE 97-IL500245E | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1430-830M-DAD-OP-FWE 97-IL500246E | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1430-830M-DAD-OP-FBE 97-IL500247E | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1430-830M-DAD-OP-FGE 97-IL500248E | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1430-840M-DAD-OP-FWE 97-IL500252E | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1430-840M-DAD-OP-FBE 97-IL500253E | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1430-840M-DAD-OP-FGE 97-IL500254E | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1990-830M-DADI-MP-FWE 97-IL500401E | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | White | | |
| IL5-WS-1990-830M-DADI-MP-FBE 97-IL500402E | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Black | | |
| IL5-WS-1990-830M-DADI-MP-FGE 97-IL500403E | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Grey | | |
| IL5-WS-1990-840M-DADI-MP-FWE 97-IL400407E | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | White | | |
| IL5-WS-1990-840M-DADI-MP-FBE 97-IL400408E | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Black | | |
| IL5-WS-1990-840M-DADI-MP-FGE 97-IL400409E | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Grey | | |
| IL5-WS-1990-830M-DADI-OP-FWE 97-IL500410E | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | White | | |
| IL5-WS-1990-830M-DADI-OP-FBE 97-IL500411E | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Black | | |
| IL5-WS-1990-830M-DADI-OP-FGE 97-IL500412E | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Grey | | |
| IL5-WS-1990-840M-DADI-OP-FWE 97-IL500416E | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | White | | |
| IL5-WS-1990-840M-DADI-OP-FBE 97-IL500417E | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Black | | |
| IL5-WS-1990-840M-DADI-OP-FGE 97-IL500418E | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Grey | | |
| IL5-WS-1990-830M-DAD-MP-FWE 97-IL500419E | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1990-830M-DAD-MP-FBE 97-IL500420E | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1990-830M-DAD-MP-FGE 97-IL500421E | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1990-840M-DAD-MP-FWE 97-IL500425E | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1990-840M-DAD-MP-FBE 97-IL500426E | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1990-840M-DAD-MP-FGE 97-IL500427E | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1990-830M-DAD-OP-FWE 97-IL500428E | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1990-830M-DAD-OP-FBE 97-IL500429E | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1990-830M-DAD-OP-FGE 97-IL500430E | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1990-840M-DAD-OP-FWE 97-IL500434E | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1990-840M-DAD-OP-FBE 97-IL500435E | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1990-840M-DAD-OP-FGE 97-IL500436E | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1990-830M-DAD-MP-FWE 97-IL500437E | None | mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1990-830M-DAD-MP-FBE 97-IL500438E | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1990-830M-DAD-MP-FGE 97-IL500439E | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1990-840M-DAD-MP-FWE 97-IL500443E | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1990-840M-DAD-MP-FBE 97-IL500444E | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1990-840M-DAD-MP-FGE 97-IL500445E | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1990-830M-DAD-OP-FWE 97-IL500446E | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1990-830M-DAD-OP-FBE 97-IL500447E | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1990-830M-DAD-OP-FGE 97-IL500448E | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1990-840M-DAD-OP-FWE 97-IL500452E | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1990-840M-DAD-OP-FBE 97-IL500453E | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1990-840M-DAD-OP-FGE 97-IL500454E | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-1160-830M-DAD-MP-FWE 97-IL500120E | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-R-1160-830M-DAD-MP-FBE 97-IL500121E | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-1160-830M-DAD-MP-FGE 97-IL500122E | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1160-840M-DAD-MP-FWE 97-IL500123E | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1160-840M-DAD-MP-FBE 97-IL500124E | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1160-840M-DAD-MP-FGE 97-IL500125E | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1160-830M-DAD-OP-FWE 97-IL500126E | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1160-830M-DAD-OP-FBE 97-IL500127E | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1160-830M-DAD-OP-FGE 97-IL500128E | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| I56-R-1160-840M-DAD-OP-FWE 97-IL500129E | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1160-840M-DAD-OP-FBE 97-IL500130E | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1160-840M-DAD-OP-FGE 97-IL500131E | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-1440-830M-DAD-MP-FWE 97-IL500320E | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-R-1440-830M-DAD-MP-FBE 97-IL500321E | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-1440-830M-DAD-MP-FGE 97-IL500322E | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1440-840M-DAD-MP-FWE 97-IL500323E | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1440-840M-DAD-MP-FBE 97-IL500324E | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1440-840M-DAD-MP-FGE 97-IL500325E | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1440-830M-DAD-OP-FWE 97-IL500326E | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1440-830M-DAD-OP-FBE 97-IL500327E | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1440-830M-DAD-OP-FGE 97-IL500328E | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-1440-840M-DAD-OP-FWE 97-IL500329E | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1440-840M-DAD-OP-FBE 97-IL500330E | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1440-840M-DAD-OP-FGE 97-IL500331E | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-2000-830M-DAD-MP-FWE 97-IL500520E | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-R-2000-830M-DAD-MP-FBE 97-IL500521E | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-2000-830M-DAD-MP-FGE 97-IL500522E | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-2000-840M-DAD-MP-FWE 97-IL500523E | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-R-2000-840M-DAD-MP-FBE 97-IL500524E | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-2000-840M-DAD-MP-FGE 97-IL500525E | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-2000-830M-DAD-OP-FWE 97-IL500526E | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-R-2000-830M-DAD-OP-FBE 97-IL500527E | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-2000-830M-DAD-OP-FGE 97-IL500528E | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-2000-840M-DAD-OP-FWE 97-IL500529E | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-R2000-840M-DAD-OP-FBE 97-IL500530E | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-R2000-840M-DAD-OP-FGE 97-IL500531E | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1150-830M-DADI-MP-FWES 97-IL500001ES | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | White | | |
| IL5-WS-1150-830M-DADI-MP-FBES 97-IL500002ES | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Black | | |
| IL5-WS-1150-830M-DADI-MP-FGES 97-IL500003ES | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Grey | | |
| IL5-WS-1150-840M-DADI-MP-FWES 97-IL500007ES | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | White | | |
| IL5-WS-1150-840M-DADI-MP-FBES 97-IL500008ES | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Black | | |
| IL5-WS-1150-840M-DADI-MP-FGES 97-IL500009ES | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Grey | | |
| IL5-WS-1150-830M-DADI-OP-FWES 97-IL500010ES | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1150-830M-DADI-OP-FBES 97-IL500011ES | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1150-830M-DADI-OP-FGES 97-IL500012ES | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1150-840M-DADI-OP-FWES 97-IL500016ES | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | White | | |
| IL5-WS-1150-840M-DADI-OP-FBES 97-IL500017ES | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Black | | |
| IL5-WS-1150-840M-DADI-OP-FGES 97-IL500018ES | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Grey | | |
| IL5-WS-1150-830M-DAD-MP-FWES 97-IL500019ES | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1150-830M-DAD-MP-FBES 97-IL500020ES | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1150-830M-DAD-MP-FGES 97-IL500021ES | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1150-840M-DAD-MP-FWES 97-IL500025ES | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1150-840M-DAD-MP-FBES 97-IL500026ES | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1150-840M-DAD-MP-FGES 97-IL500027ES | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1150-830M-DAD-OP-FWES 97-IL500028ES | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1150-830M-DAD-OP-FBES 97-IL500029ES | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1150-830M-DAD-OP-FGES 97-IL500030ES | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1150-840M-DAD-OP-FWES 97-IL500034ES | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1150-840M-DAD-OP-FBES 97-IL500035ES | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1150-840M-DAD-OP-FGES 97-IL500036ES | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1150-830M-DAD-MP-FWES 97-IL500037ES | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1150-830M-DAD-MP-FBES 97-IL500038ES | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1150-830M-DAD-MP-FGES 97-IL500039ES | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1150-840M-DAD-MP-FWES 97-IL500043ES | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1150-840M-DAD-MP-FBES 97-IL500044ES | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1150-840M-DAD-MP-FGES 97-IL500045ES | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1150-830M-DAD-OP-FWES 97-IL500046ES | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1150-830M-DAD-OP-FBES 97-IL500047ES | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1150-830M-DAD-OP-FGES 97-IL500048ES | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1150-840M-DAD-OP-FWES 97-IL500052ES | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1150-840M-DAD-OP-FBES 97-IL500053ES | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1150-840M-DAD-OP-FGES 97-IL500054ES | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1430-830M-DADI-MP-FWES 97-IL500201ES | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | White | | |
| IL5-WS-1430-830M-DADI-MP-FBES 97-IL500202ES | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Black | | |
| IL5-WS-1430-830M-DADI-MP-FGES 97-IL500203ES | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Grey | | |
| IL5-WS-1430-840M-DADI-MP-FWES 97-IL500207ES | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | White | | |
| IL5-WS-1430-840M-DADI-MP-FBES 97-IL500208ES | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Black | | |
| IL5-WS-1430-840M-DADI-MP-FGES 97-IL500209ES | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Grey | | |
| IL5-WS-1430-830M-DADI-OP-FWES 97-IL500210ES | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1430-830M-DADI-OP-FBES 97-IL500211ES | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1430-830M-DADI-OP-FGES 97-IL500212ES | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1430-840M-DADI-OP-FWES 97-IL500216ES | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | White | | |
| IL5-WS-1430-840M-DADI-OP-FBES 97-IL500217ES | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Black | | |
| IL5-WS-1430-840M-DADI-OP-FGES 97-IL500218ES | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Grey | | |
| IL5-WS-1430-830M-DAD-MP-FWES 97-IL500219ES | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1430-830M-DAD-MP-FBES 97-IL500220ES | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1430-830M-DAD-MP-FGES 97-IL500221ES | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1430-840M-DAD-MP-FWES 97-IL500225ES | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1430-840M-DAD-MP-FBES 97-IL500226ES | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1430-840M-DAD-MP-FGES 97-IL500227ES | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1430-830M-DAD-OP-FWES 97-IL500228ES | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1430-830M-DAD-OP-FBES 97-IL500229ES | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1430-830M-DAD-OP-FGES 97-IL500230ES | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1430-840M-DAD-OP-FWES 97-IL500234ES | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1430-840M-DAD-OP-FBES 97-IL500235ES | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1430-840M-DAD-OP-FGES 97-IL500236ES | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1430-830M-DAD-MP-FWES 97-IL500237ES | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1430-830M-DAD-MP-FBES 97-IL500238ES | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1430-830M-DAD-MP-FGES 97-IL500239ES | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1430-840M-DAD-MP-FWES 97-IL500243ES | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1430-840M-DAD-MP-FBES 97-IL500244ES | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1430-840M-DAD-MP-FGES 97-IL500245ES | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1430-830M-DAD-OP-FWES 97-IL500246ES | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1430-830M-DAD-OP-FBES 97-IL500247ES | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1430-830M-DAD-OP-FGES 97-IL500248ES | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1430-840M-DAD-OP-FWES 97-IL500252ES | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1430-840M-DAD-OP-FBES 97-IL500253ES | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1430-840M-DAD-OP-FGES 97-IL500254ES | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1990-830M-DADI-MP-FWES 97-IL500401ES | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | White | | |
| IL5-WS-1990-830M-DADI-MP-FBES 97-IL500402ES | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Black | | |
| IL5-WS-1990-830M-DADI-MP-FGES 97-IL500403ES | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Grey | | |
| IL5-WS-1990-840M-DADI-MP-FWES 97-IL400407ES | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | White | | |
| IL5-WS-1990-840M-DADI-MP-FBES 97-IL400408ES | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Black | | |
| IL5-WS-1990-840M-DADI-MP-FGES 97-IL400409ES | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Grey | | |
| IL5-WS-1990-830M-DADI-OP-FWES 97-IL500410ES | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | White | | |
| IL5-WS-1990-830M-DADI-OP-FBES 97-IL500411ES | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Black | | |
| IL5-WS-1990-830M-DADI-OP-FGES 97-IL500412ES | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Grey | | |
| IL5-WS-1990-840M-DADI-OP-FWES 97-IL500416ES | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | White | | |
| IL5-WS-1990-840M-DADI-OP-FBES 97-IL500417ES | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Black | | |
| IL5-WS-1990-840M-DADI-OP-FGES 97-IL500418ES | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Grey | | |
| IL5-WS-1990-830M-DAD-MP-FWES 97-IL500419ES | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1990-830M-DAD-MP-FBES 97-IL500420ES | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1990-830M-DAD-MP-FGES 97-IL500421ES | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1990-840M-DAD-MP-FWES 97-IL500425ES | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1990-840M-DAD-MP-FBES 97-IL500426ES | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1990-840M-DAD-MP-FGES 97-IL500427ES | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1990-830M-DAD-OP-FWES 97-IL500428ES | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1990-830M-DAD-OP-FBES 97-IL500429ES | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1990-830M-DAD-OP-FGES 97-IL500430ES | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1990-840M-DAD-OP-FWES 97-IL500434ES | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1990-840M-DAD-OP-FBES 97-IL500435ES | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1990-840M-DAD-OP-FGES 97-IL500436ES | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1990-830M-DAD-MP-FWES 97-IL500437ES | None | mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1990-830M-DAD-MP-FBES 97-IL500438ES | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1990-830M-DAD-MP-FGES 97-IL500439ES | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1990-840M-DAD-MP-FWES 97-IL500443ES | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1990-840M-DAD-MP-FBES 97-IL500444ES | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1990-840M-DAD-MP-FGES 97-IL500445ES | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1990-830M-DAD-OP-FWES 97-IL500446ES | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1990-830M-DAD-OP-FBES 97-IL500447ES | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1990-830M-DAD-OP-FGES 97-IL500448ES | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1990-840M-DAD-OP-FWES 97-IL500452ES | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1990-840M-DAD-OP-FBES 97-IL500453ES | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1990-840M-DAD-OP-FGES 97-IL500454ES | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-1160-830M-DAD-MP-FWES 97-IL500120ES | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-R-1160-830M-DAD-MP-FBES 97-IL500121ES | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-1160-830M-DAD-MP-FGES 97-IL500122ES | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1160-840M-DAD-MP-FWES 97-IL500123ES | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1160-840M-DAD-MP-FBES 97-IL500124ES | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1160-840M-DAD-MP-FGES 97-IL500125ES | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1160-830M-DAD-OP-FWES 97-IL500126ES | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1160-830M-DAD-OP-FBES 97-IL500127ES | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1160-830M-DAD-OP-FGES 97-IL500128ES | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| I56-R-1160-840M-DAD-OP-FWES 97-IL500129ES | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1160-840M-DAD-OP-FBES 97-IL500130ES | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1160-840M-DAD-OP-FGES 97-IL500131ES | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-1440-830M-DAD-MP-FWES 97-IL500320ES | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-R-1440-830M-DAD-MP-FBES 97-IL500321ES | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-1440-830M-DAD-MP-FGES 97-IL500322ES | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1440-840M-DAD-MP-FWES 97-IL500323ES | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1440-840M-DAD-MP-FBES 97-IL500324ES | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1440-840M-DAD-MP-FGES 97-IL500325ES | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1440-830M-DAD-OP-FWES 97-IL500326ES | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1440-830M-DAD-OP-FBES 97-IL500327ES | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1440-830M-DAD-OP-FGES 97-IL500328ES | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-1440-840M-DAD-OP-FWES 97-IL500329ES | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1440-840M-DAD-OP-FBES 97-IL500330ES | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1440-840M-DAD-OP-FGES 97-IL500331ES | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-2000-830M-DAD-MP-FWES 97-IL500520ES | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-R-2000-830M-DAD-MP-FBES 97-IL500521ES | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-2000-830M-DAD-MP-FGES 97-IL500522ES | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-2000-840M-DAD-MP-FWES 97-IL500523ES | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-R-2000-840M-DAD-MP-FBES 97-IL500524ES | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-2000-840M-DAD-MP-FGES 97-IL500525ES | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-2000-830M-DAD-OP-FWES 97-IL500526ES | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-R-2000-830M-DAD-OP-FBES 97-IL500527ES | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-2000-830M-DAD-OP-FGES 97-IL500528ES | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-2000-840M-DAD-OP-FWES 97-IL500529ES | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-R2000-840M-DAD-OP-FBES 97-IL500530ES | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-R2000-840M-DAD-OP-FGES 97-IL500531ES | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1150-830M-DADI-MP-FWED 97-IL500001ED | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | White | | |
| IL5-WS-1150-830M-DADI-MP-FBED 97-IL500002ED | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Black | | |
| IL5-WS-1150-830M-DADI-MP-FGED 97-IL500003ED | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5481 lm | 3000K | 111 | 19 | Grey | | |
| IL5-WS-1150-840M-DADI-MP-FWED 97-IL500007ED | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | White | | |
| IL5-WS-1150-840M-DADI-MP-FBED 97-IL500008ED | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Black | | |
| IL5-WS-1150-840M-DADI-MP-FGED 97-IL500009ED | None | 1150 mm | Pendant | Direct / Indirect | Microprism | 5650 lm | 4000K | 115 | 19 | Grey | | |
| IL5-WS-1150-830M-DADI-OP-FWED 97-IL500010ED | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1150-830M-DADI-OP-FBED 97-IL500011ED | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1150-830M-DADI-OP-FGED 97-IL500012ED | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 5985 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1150-840M-DADI-OP-FWED 97-IL500016ED | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | White | | |
| IL5-WS-1150-840M-DADI-OP-FBED 97-IL500017ED | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Black | | |
| IL5-WS-1150-840M-DADI-OP-FGED 97-IL500018ED | None | 1150 mm | Pendant | Direct / Indirect | Opal Prism | 6170 lm | 4000K | 125 | 22 | Grey | | |
| IL5-WS-1150-830M-DAD-MP-FWED 97-IL500019ED | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1150-830M-DAD-MP-FBED 97-IL500020ED | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1150-830M-DAD-MP-FGED 97-IL500021ED | None | 1150 mm | Pendant | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1150-840M-DAD-MP-FWED 97-IL500025ED | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1150-840M-DAD-MP-FBED 97-IL500026ED | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1150-840M-DAD-MP-FGED 97-IL500027ED | None | 1150 mm | Pendant | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1150-830M-DAD-OP-FWED 97-IL500028ED | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1150-830M-DAD-OP-FBED 97-IL500029ED | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1150-830M-DAD-OP-FGED 97-IL500030ED | None | 1150 mm | Pendant | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1150-840M-DAD-OP-FWED 97-IL500034ED | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1150-840M-DAD-OP-FBED 97-IL500035ED | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1150-840M-DAD-OP-FGED 97-IL500036ED | None | 1150 mm | Pendant | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1150-830M-DAD-MP-FWED 97-IL500037ED | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1150-830M-DAD-MP-FBED 97-IL500038ED | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1150-830M-DAD-MP-FGED 97-IL500039ED | None | 1150 mm | Surface | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1150-840M-DAD-MP-FWED 97-IL500043ED | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1150-840M-DAD-MP-FBED 97-IL500044ED | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1150-840M-DAD-MP-FGED 97-IL500045ED | None | 1150 mm | Surface | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1150-830M-DAD-OP-FWED 97-IL500046ED | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1150-830M-DAD-OP-FBED 97-IL500047ED | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1150-830M-DAD-OP-FGED 97-IL500048ED | None | 1150 mm | Surface | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1150-840M-DAD-OP-FWED 97-IL500052ED | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1150-840M-DAD-OP-FBED 97-IL500053ED | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1150-840M-DAD-OP-FGED 97-IL500054ED | None | 1150 mm | Surface | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1430-830M-DADI-MP-FWED 97-IL500201ED | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | White | | |
| IL5-WS-1430-830M-DADI-MP-FBED 97-IL500202ED | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Black | | |
| IL5-WS-1430-830M-DADI-MP-FGED 97-IL500203ED | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7087 lm | 3000K | 112 | 19 | Grey | | |
| IL5-WS-1430-840M-DADI-MP-FWED 97-IL500207ED | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | White | | |
| IL5-WS-1430-840M-DADI-MP-FBED 97-IL500208ED | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Black | | |
| IL5-WS-1430-840M-DADI-MP-FGED 97-IL500209ED | None | 1430 mm | Pendant | Direct / Indirect | Microprism | 7297 lm | 4000K | 116 | 19 | Grey | | |
| IL5-WS-1430-830M-DADI-OP-FWED 97-IL500210ED | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | White | | |
| IL5-WS-1430-830M-DADI-OP-FBED 97-IL500211ED | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Black | | |
| IL5-WS-1430-830M-DADI-OP-FGED 97-IL500212ED | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7706 lm | 3000K | 122 | 22 | Grey | | |
| IL5-WS-1430-840M-DADI-OP-FWED 97-IL500216ED | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | White | | |
| IL5-WS-1430-840M-DADI-OP-FBED 97-IL500217ED | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Black | | |
| IL5-WS-1430-840M-DADI-OP-FGED 97-IL500218ED | None | 1430 mm | Pendant | Direct / Indirect | Opal Prism | 7944 lm | 4000K | 126 | 22 | Grey | | |
| IL5-WS-1430-830M-DAD-MP-FWED 97-IL500219ED | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1430-830M-DAD-MP-FBED 97-IL500220ED | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1430-830M-DAD-MP-FGED 97-IL500221ED | None | 1430 mm | Pendant | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1430-840M-DAD-MP-FWED 97-IL500225ED | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1430-840M-DAD-MP-FBED 97-IL500226ED | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1430-840M-DAD-MP-FGED 97-IL500227ED | None | 1430 mm | Pendant | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1430-830M-DAD-OP-FWED 97-IL500228ED | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1430-830M-DAD-OP-FBED 97-IL500229ED | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1430-830M-DAD-OP-FGED 97-IL500230ED | None | 1430 mm | Pendant | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1430-840M-DAD-OP-FWED 97-IL500234ED | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1430-840M-DAD-OP-FBED 97-IL500235ED | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1430-840M-DAD-OP-FGED 97-IL500236ED | None | 1430 mm | Pendant | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1430-830M-DAD-MP-FWED 97-IL500237ED | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1430-830M-DAD-MP-FBED 97-IL500238ED | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1430-830M-DAD-MP-FGED 97-IL500239ED | None | 1430 mm | Surface | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1430-840M-DAD-MP-FWED 97-IL500243ED | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1430-840M-DAD-MP-FBED 97-IL500244ED | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1430-840M-DAD-MP-FGED 97-IL500245ED | None | 1430 mm | Surface | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1430-830M-DAD-OP-FWED 97-IL500246ED | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1430-830M-DAD-OP-FBED 97-IL500247ED | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1430-830M-DAD-OP-FGED 97-IL500248ED | None | 1430 mm | Surface | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1430-840M-DAD-OP-FWED 97-IL500252ED | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1430-840M-DAD-OP-FBED 97-IL500253ED | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1430-840M-DAD-OP-FGED 97-IL500254ED | None | 1430 mm | Surface | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-WS-1990-830M-DADI-MP-FWED 97-IL500401ED | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | White | | |
| IL5-WS-1990-830M-DADI-MP-FBED 97-IL500402ED | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Black | | |
| IL5-WS-1990-830M-DADI-MP-FGED 97-IL500403ED | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10275 lm | 3000K | 113 | 19 | Grey | | |
| IL5-WS-1990-840M-DADI-MP-FWED 97-IL400407ED | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | White | | |
| IL5-WS-1990-840M-DADI-MP-FBED 97-IL400408ED | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Black | | |
| IL5-WS-1990-840M-DADI-MP-FGED 97-IL400409ED | None | 1990 mm | Pendant | Direct / Indirect | Microprism | 10593 lm | 4000K | 117 | 19 | Grey | | |
| IL5-WS-1990-830M-DADI-OP-FWED 97-IL500410ED | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | White | | |
| IL5-WS-1990-830M-DADI-OP-FBED 97-IL500411ED | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Black | | |
| IL5-WS-1990-830M-DADI-OP-FGED 97-IL500412ED | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11148 lm | 3000K | 123 | 22 | Grey | | |
| IL5-WS-1990-840M-DADI-OP-FWED 97-IL500416ED | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | White | | |
| IL5-WS-1990-840M-DADI-OP-FBED 97-IL500417ED | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Black | | |
| IL5-WS-1990-840M-DADI-OP-FGED 97-IL500418ED | None | 1990 mm | Pendant | Direct / Indirect | Opal Prism | 11493 lm | 4000K | 127 | 22 | Grey | | |
| IL5-WS-1990-830M-DAD-MP-FWED 97-IL500419ED | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-WS-1990-830M-DAD-MP-FBED 97-IL500420ED | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-WS-1990-830M-DAD-MP-FGED 97-IL500421ED | None | 1990 mm | Pendant | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-WS-1990-840M-DAD-MP-FWED 97-IL500425ED | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-WS-1990-840M-DAD-MP-FBED 97-IL500426ED | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-WS-1990-840M-DAD-MP-FGED 97-IL500427ED | None | 1990 mm | Pendant | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-WS-1990-830M-DAD-OP-FWED 97-IL500428ED | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-WS-1990-830M-DAD-OP-FBED 97-IL500429ED | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-WS-1990-830M-DAD-OP-FGED 97-IL500430ED | None | 1990 mm | Pendant | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-WS-1990-840M-DAD-OP-FWED 97-IL500434ED | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-WS-1990-840M-DAD-OP-FBED 97-IL500435ED | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-WS-1990-840M-DAD-OP-FGED 97-IL500436ED | None | 1990 mm | Pendant | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
| IL5-S-1990-830M-DAD-MP-FWED 97-IL500437ED | None | mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-S-1990-830M-DAD-MP-FBED 97-IL500438ED | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-S-1990-830M-DAD-MP-FGED 97-IL500439ED | None | 1990 mm | Surface | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-S-1990-840M-DAD-MP-FWED 97-IL500443ED | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-S-1990-840M-DAD-MP-FBED 97-IL500444ED | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-S-1990-840M-DAD-MP-FGED 97-IL500445ED | None | 1990 mm | Surface | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-S-1990-830M-DAD-OP-FWED 97-IL500446ED | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-S-1990-830M-DAD-OP-FBED 97-IL500447ED | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-S-1990-830M-DAD-OP-FGED 97-IL500448ED | None | 1990 mm | Surface | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-S-1990-840M-DAD-OP-FWED 97-IL500452ED | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-S-1990-840M-DAD-OP-FBED 97-IL500453ED | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-S-1990-840M-DAD-OP-FGED 97-IL500454ED | None | 1990 mm | Surface | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
 | IL5-R-1160-830M-DAD-MP-FWED 97-IL500120ED | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | White | | |
 | IL5-R-1160-830M-DAD-MP-FBED 97-IL500121ED | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Black | | |
 | IL5-R-1160-830M-DAD-MP-FGED 97-IL500122ED | None | 1165 mm | Recessed | Direct | Microprism | 2541 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1160-840M-DAD-MP-FWED 97-IL500123ED | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1160-840M-DAD-MP-FBED 97-IL500124ED | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1160-840M-DAD-MP-FGED 97-IL500125ED | None | 1165 mm | Recessed | Direct | Microprism | 2620 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1160-830M-DAD-OP-FWED 97-IL500126ED | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1160-830M-DAD-OP-FBED 97-IL500127ED | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1160-830M-DAD-OP-FGED 97-IL500128ED | None | 1165 mm | Recessed | Direct | Opal Prism | 2598 lm | 3000K | 94 | 22 | Grey | | |
| I56-R-1160-840M-DAD-OP-FWED 97-IL500129ED | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1160-840M-DAD-OP-FBED 97-IL500130ED | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1160-840M-DAD-OP-FGED 97-IL500131ED | None | 1165 mm | Recessed | Direct | Opal Prism | 2678 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-1440-830M-DAD-MP-FWED 97-IL500320ED | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | White | | |
| IL5-R-1440-830M-DAD-MP-FBED 97-IL500321ED | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-1440-830M-DAD-MP-FGED 97-IL500322ED | None | 1445 mm | Recessed | Direct | Microprism | 3160 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-1440-840M-DAD-MP-FWED 97-IL500323ED | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | White | | |
| IL5-R-1440-840M-DAD-MP-FBED 97-IL500324ED | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-1440-840M-DAD-MP-FGED 97-IL500325ED | None | 1445 mm | Recessed | Direct | Microprism | 3258 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-1440-830M-DAD-OP-FWED 97-IL500326ED | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | White | | |
| IL5-R-1440-830M-DAD-OP-FBED 97-IL500327ED | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-1440-830M-DAD-OP-FGED 97-IL500328ED | None | 1445 mm | Recessed | Direct | Opal Prism | 3230 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-1440-840M-DAD-OP-FWED 97-IL500329ED | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | White | | |
| IL5-R-1440-840M-DAD-OP-FBED 97-IL500330ED | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Black | | |
| IL5-R-1440-840M-DAD-OP-FGED 97-IL500331ED | None | 1445 mm | Recessed | Direct | Opal Prism | 3330 lm | 4000K | 97 | 22 | Grey | | |
| IL5-R-2000-830M-DAD-MP-FWED 97-IL500520ED | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | White | | |
| IL5-R-2000-830M-DAD-MP-FBED 97-IL500521ED | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Black | | |
| IL5-R-2000-830M-DAD-MP-FGED 97-IL500522ED | None | 2005 mm | Recessed | Direct | Microprism | 4398 lm | 3000K | 92 | 19 | Grey | | |
| IL5-R-2000-840M-DAD-MP-FWED 97-IL500523ED | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | White | | |
| IL5-R-2000-840M-DAD-MP-FBED 97-IL500524ED | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Black | | |
| IL5-R-2000-840M-DAD-MP-FGED 97-IL500525ED | None | 2005 mm | Recessed | Direct | Microprism | 4534 lm | 4000K | 95 | 19 | Grey | | |
| IL5-R-2000-830M-DAD-OP-FWED 97-IL500526ED | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | White | | |
| IL5-R-2000-830M-DAD-OP-FBED 97-IL500527ED | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Black | | |
| IL5-R-2000-830M-DAD-OP-FGED 97-IL500528ED | None | 2005 mm | Recessed | Direct | Opal Prism | 4495 lm | 3000K | 94 | 22 | Grey | | |
| IL5-R-2000-840M-DAD-OP-FWED 97-IL500529ED | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | White | | |
| IL5-R2000-840M-DAD-OP-FBED 97-IL500530ED | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Black | | |
| IL5-R2000-840M-DAD-OP-FGED 97-IL500531ED | None | 2005 mm | Recessed | Direct | Opal Prism | 4634 lm | 4000K | 97 | 22 | Grey | | |
LINES OF LIGHT
iLine 5+3
iLine Pro 6+4
iLine 5
iLine 4
iLine 6
iLine Pro 6
LINIA EVO
ST – 3 Circuit Track
Purelight
S36-Profil
H80-Profil
